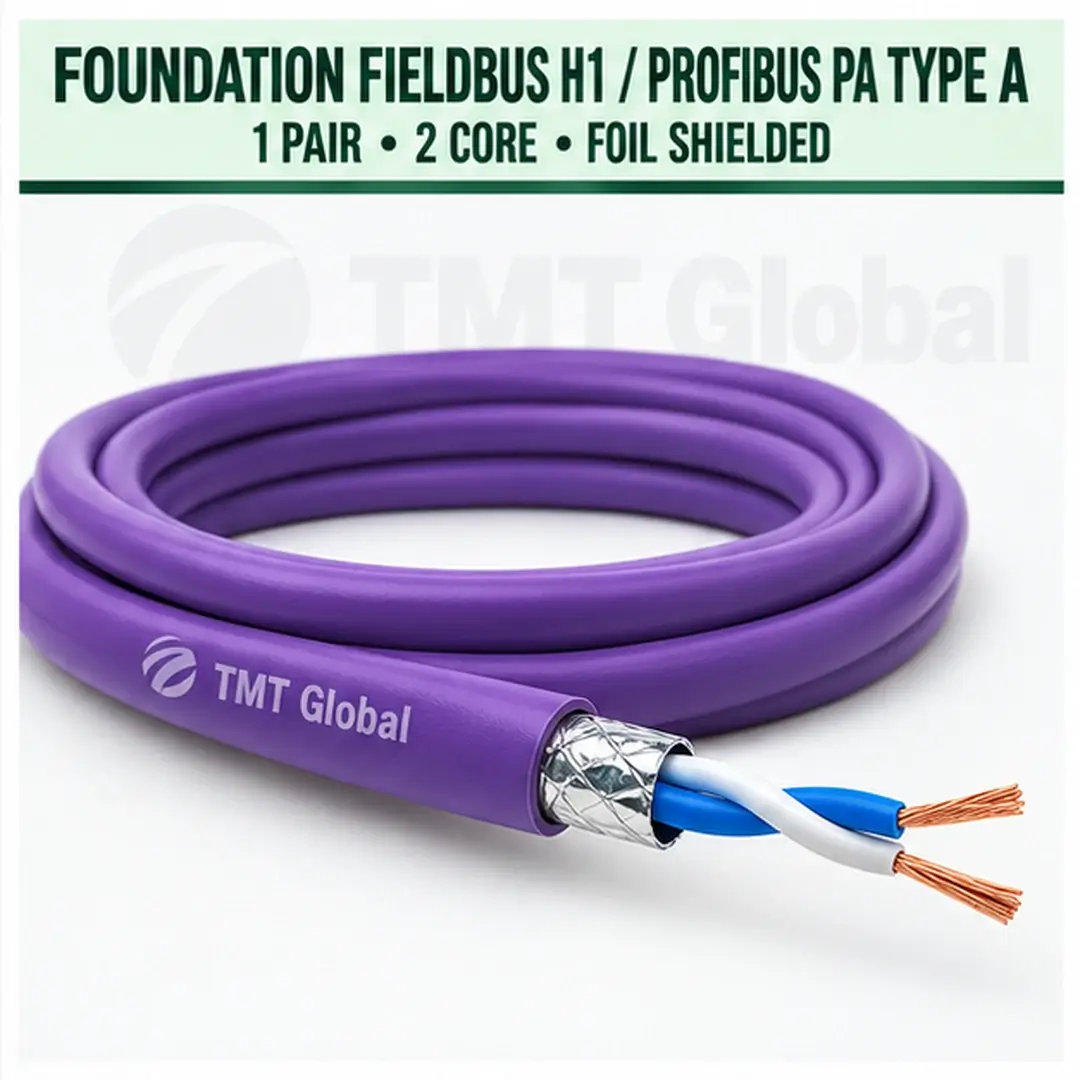

1 Pair (2 Core) Foil Shielded FOUNDATION Fieldbus H1 / PROFIBUS PA Type A Bus Cable

TMT 1 Pair (2 Core) Foil Shielded FOUNDATION Fieldbus H1 / PROFIBUS PA Type A Bus Cable – Series

TMT Global 1 Pair (2 Core) Foil Shielded FOUNDATION Fieldbus H1 / PROFIBUS PA Type A Bus Cable is a controlled protocol-bus cable family for foundation fieldbus h1 trunk and spur circuits and related industrial or building-automation networks. The product page fixes the 1 pair (2 core), foil shielded and 100 Ω nominal at 31.25 kHz electrical family, while the TMT Series ordering table provides exact jacket and conductor-size item codes for customer search, quotation and project selection.

KEY FEATURES

• 1 Pair (2 Core) controlled twisted-pair construction
• Overall aluminium/polyester foil screen with drain wire
• 100 Ω nominal at 31.25 kHz protocol-design target
• 16, 18 AWG Series options
• PVC, LSZH and outdoor PE jacket choices
• Exact searchable ordering code for every standard combination

TYPICAL APPLICATIONS

• FOUNDATION Fieldbus H1 trunk and spur circuits
• PROFIBUS PA process-automation networks
• Transmitters, positioners, valves and process instruments
• Oil and gas, chemical, water, pharmaceutical and utility plants
• Multi-pair families require individual pair screens plus an overall screen where released by the factory design.

Technical Specification

AWG / NOMINAL AREA / SERIES AVAILABILITY
