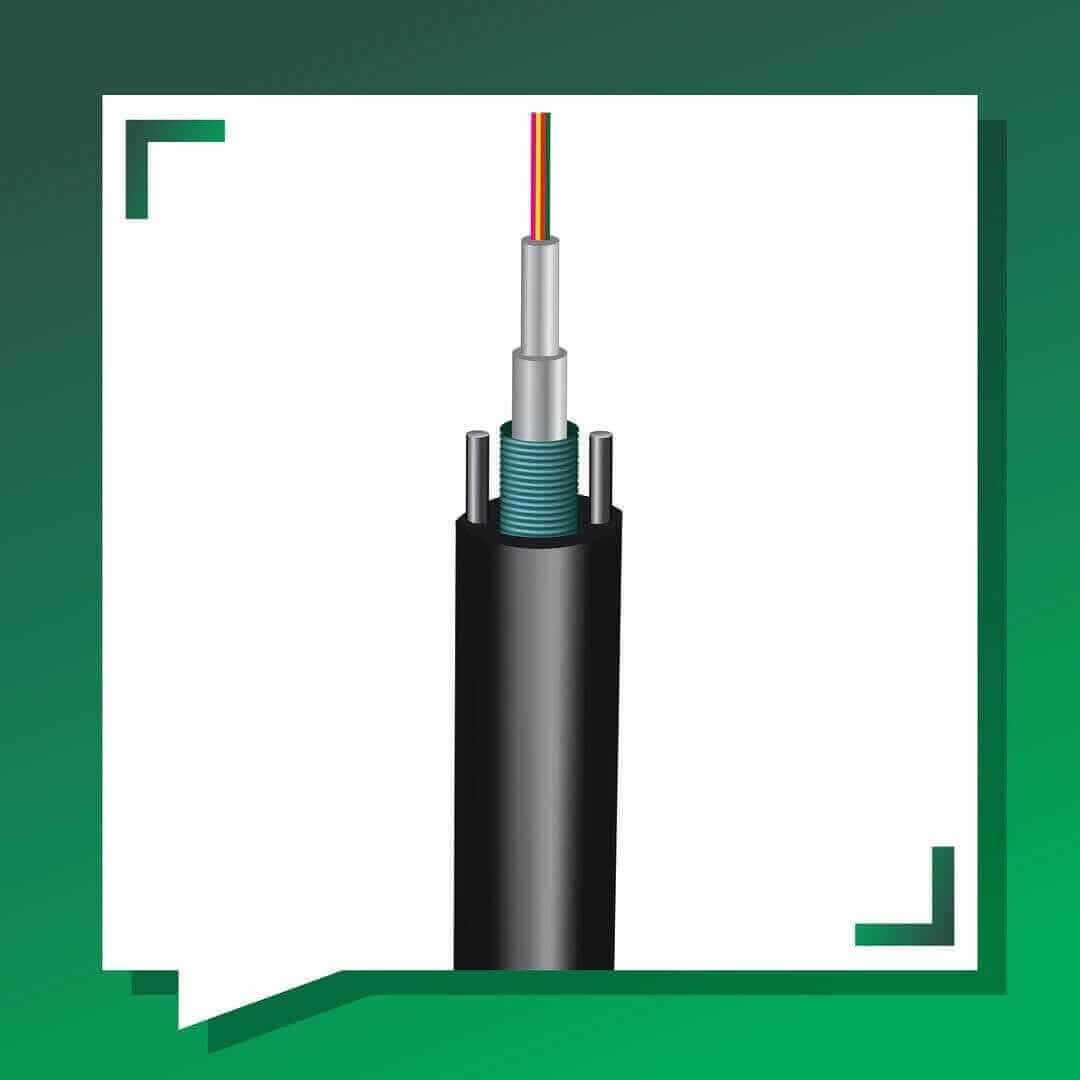

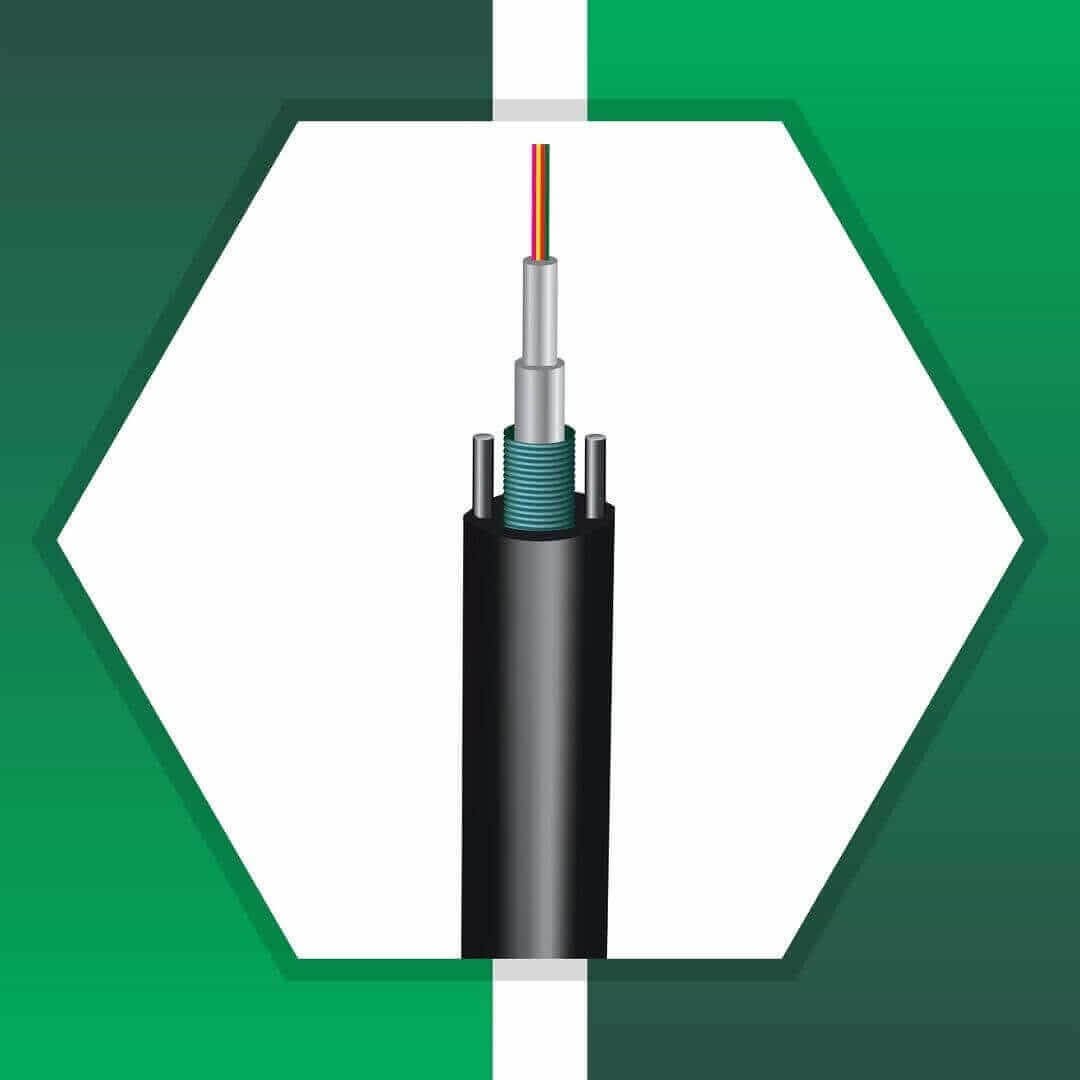

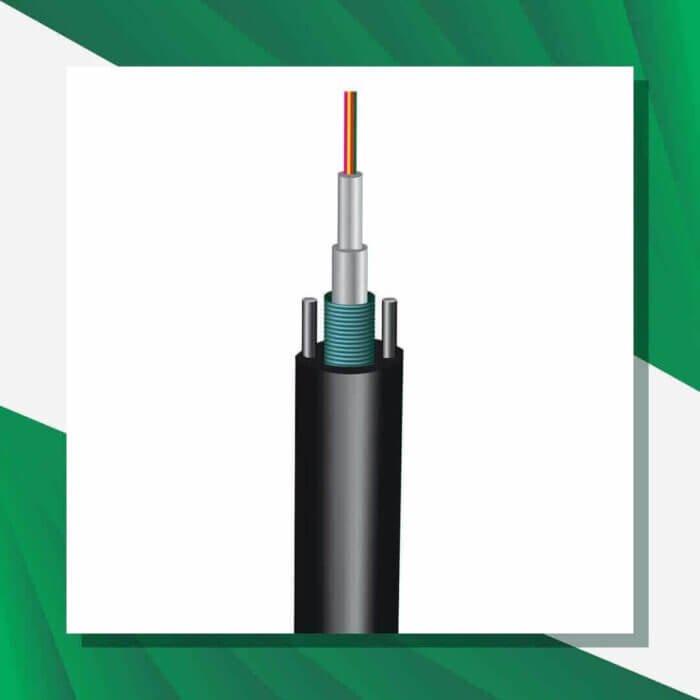

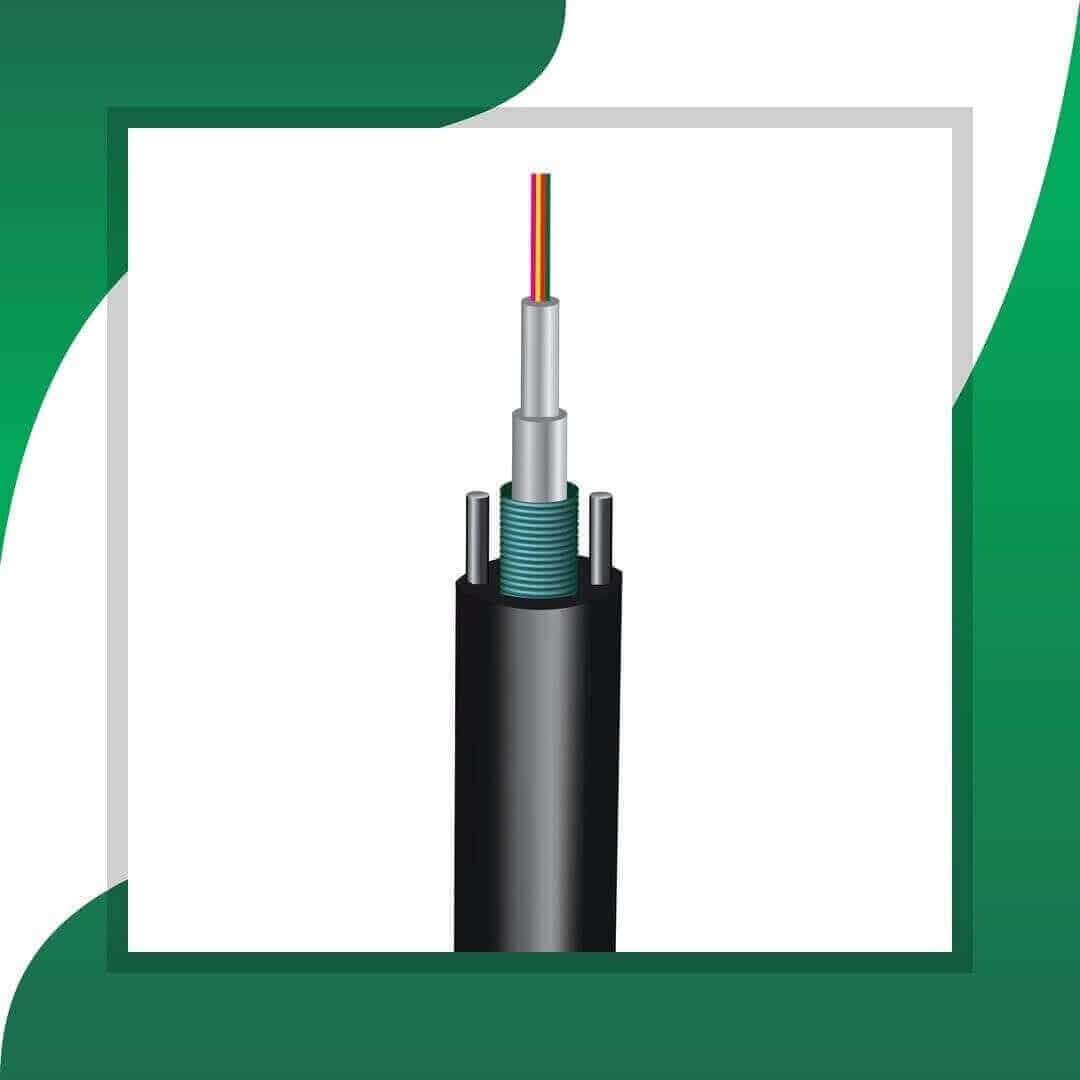

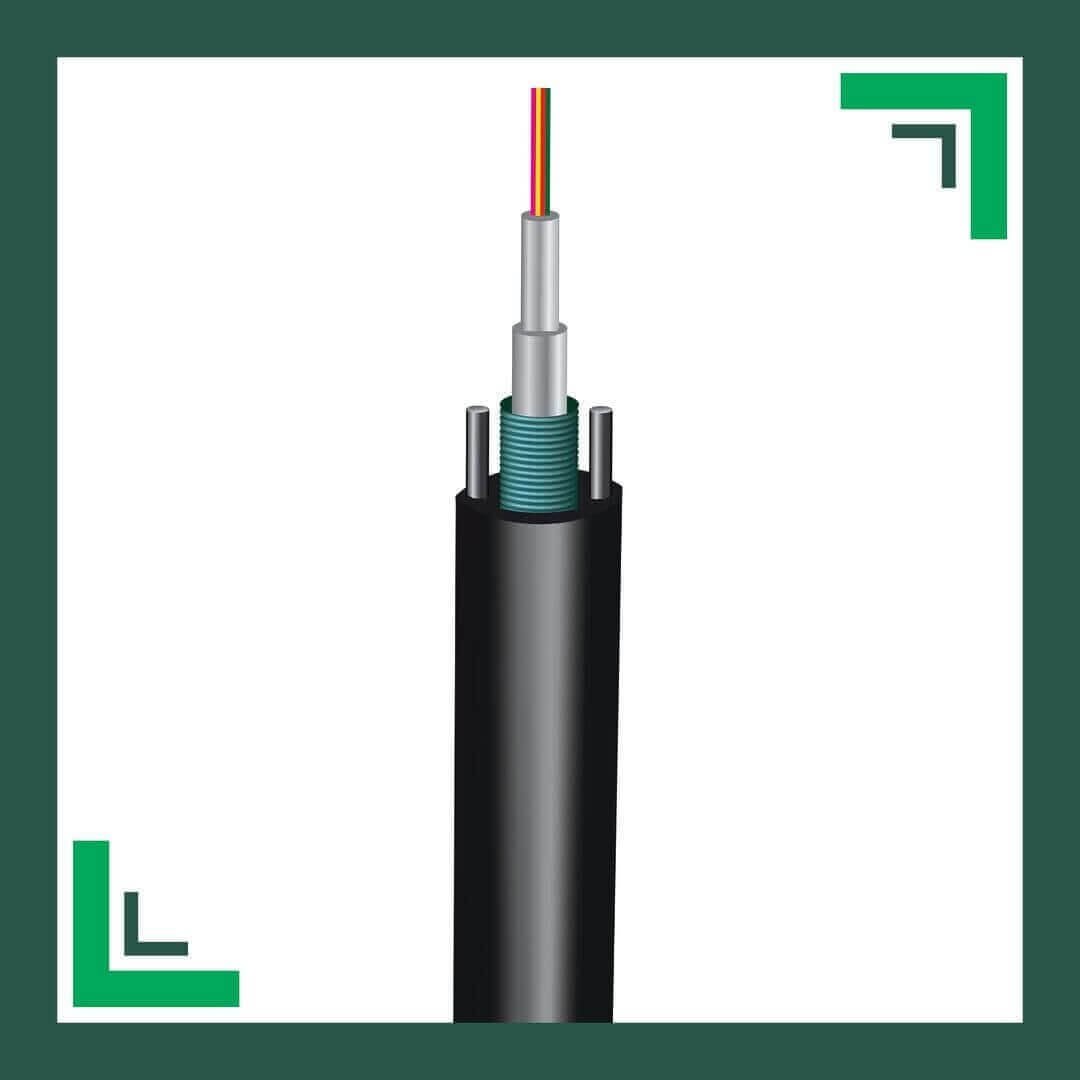

24 Core OM2 Armored Fiber Optic Cable Multimode Indoor Outdoor

General Specification
Products : Multimode Fiber Optic cable
Fiber Count : 24
Fiber Type : 50/125 OM2
Armored : Corrugated Steel Tape
Outer Jacket : PE
Attenuation (max/KM) : 3.5 dB/km (850) 1.5 dB/km (1300 nm)
Length/ Drum : 2000 m Drum ±5%
Product ID : TMT-242LPK

Chat with Sales

0 People watching this product now!

Choosing the 24 Core OM2 Armored Fiber Optic Cable Multimode Indoor Outdoor

24 fibres serve campus and data-centre backbones, where many duplex links share one route and spare fibres are kept for growth. OM2 (50/125) carries 1 Gb Ethernet up to about 550 m; for new 10 Gb links choose OM3 or OM4. Corrugated steel tape armour protects against rodents and crushing for direct burial and outdoor ducts.

Order code: TMT-242LPK. Send us the length, jacket and quantity for a project quotation and datasheet.

TMT GLOBAL 24 Core OM2 Armored Fiber Optic Cable Multimode Indoor-Outdoor

TMT GLOBAL provides high-strength optical fiber cables for use in various industrial, indoor, and outdoor applications. Offering unique properties and benefits for different types of use, our communications optical fiber cable products can easily meet complex application requirements and specifications.24 Core OM2 Armored Fiber Optic Cable Multimode Indoor-Outdoor

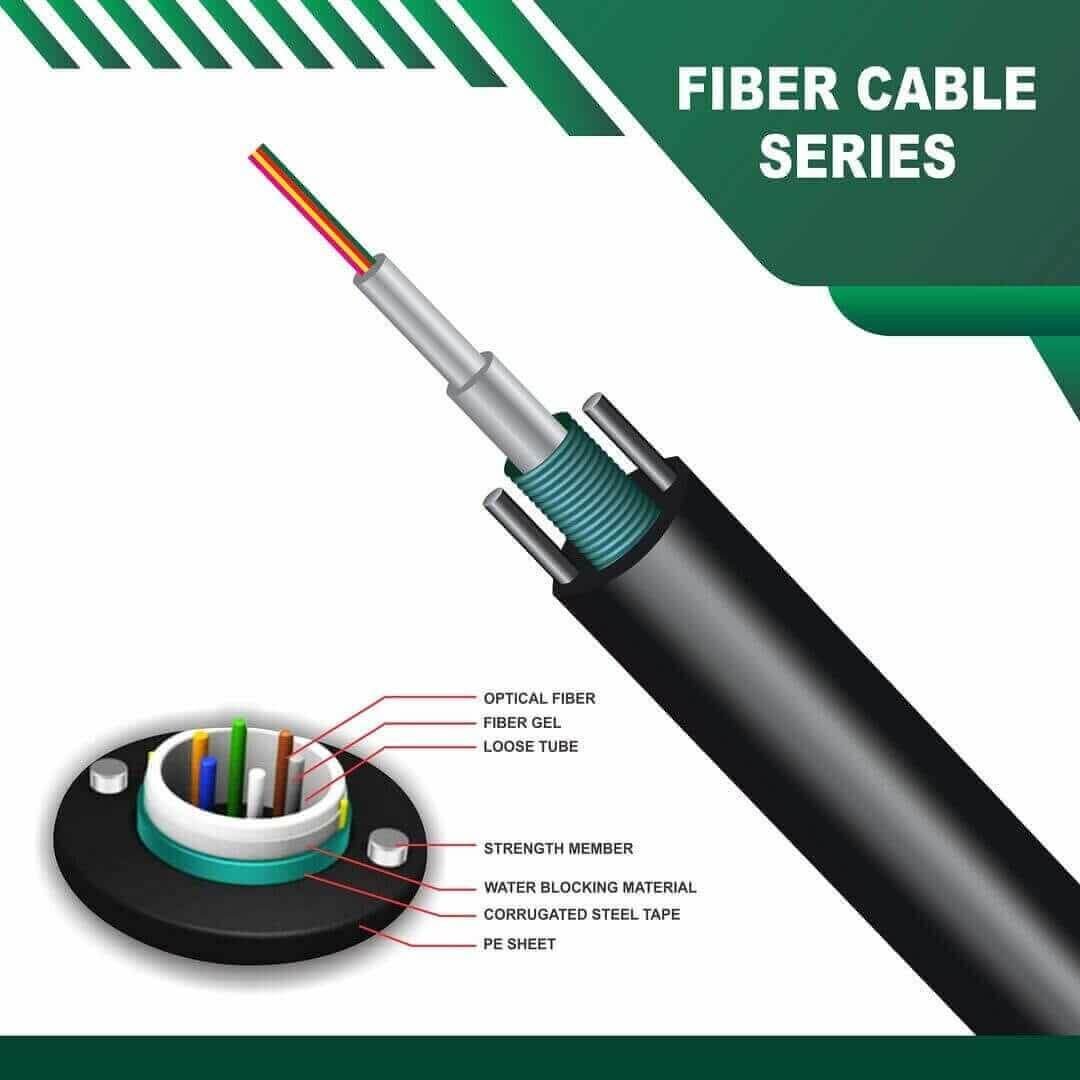

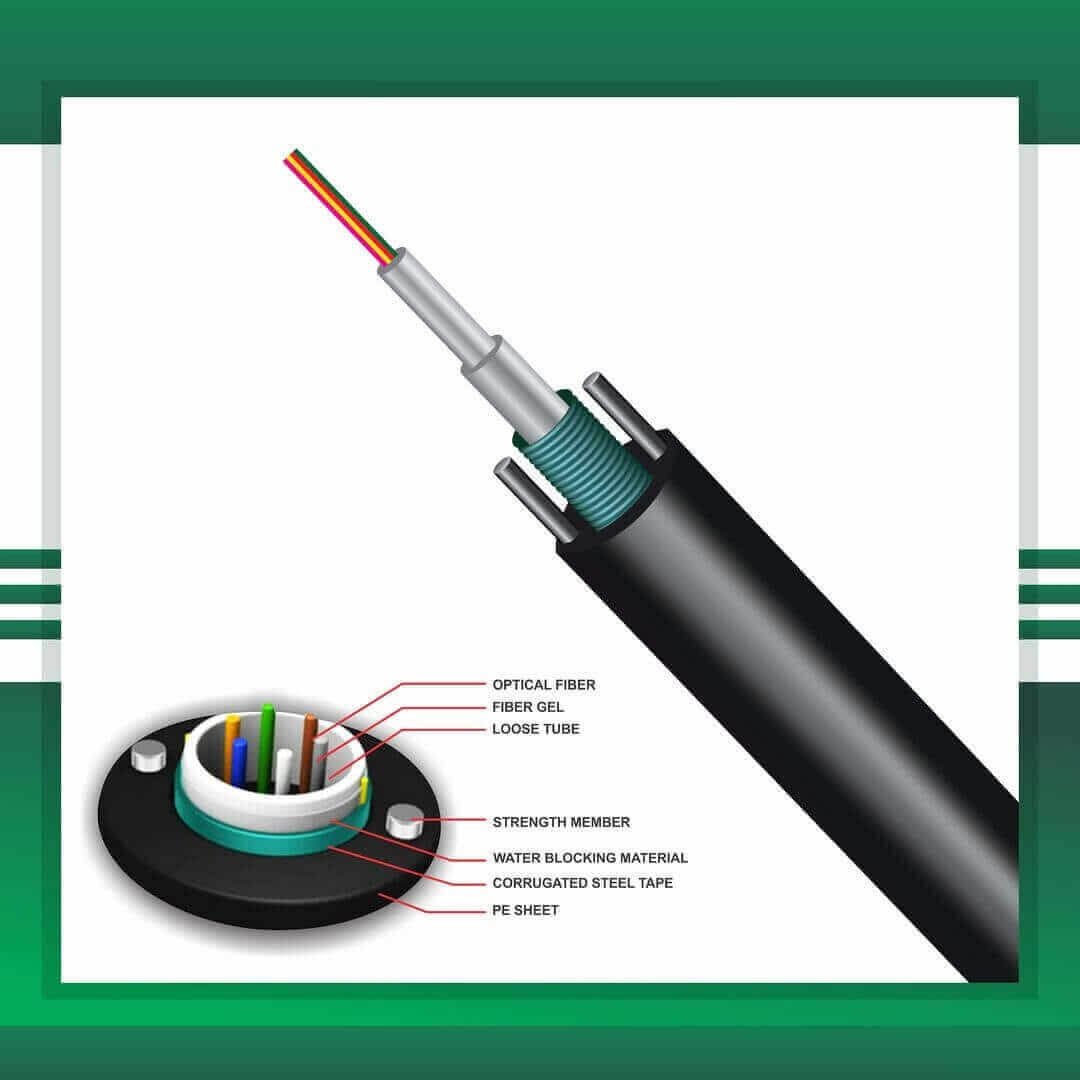

PHYSICAL DESCRIPTION
Products	multimode Fiber optic cable
Tube Filling Compound	Thixotropic jelly
Fiber Type	50/125 OM2
Tube material	PBT ( Polybutylene Terephthalate)
Armored	Corrugated steel tape
Packing Detail
Fiber Count	6,8,12,24,
Tube Outer/Inner Diameter(mm)	3.0/2.0 ±
Cable Diameter(mm)	7.2*-12
Cable Weight(kg/km)	45±
Length/ Drum	2000 m Drum ±5%
Ripcord	Polyester cord
Outer Jacket	PE,MDPE, LSZH

Mechanical and Environmental Properties
Physical tests	Value		Standard
Tensile Strength	2700 N (during Installation) 1700 N (during Operation)		IEC 60794-1-E1
Impact Resistance	10J, 3 impacts		IEC 60794-1-E4
Crush Resistance	220 N/cm		IEC 60794-1-E3
Temperature Cycling	-40 to +70 °C		IEC 60794-1-F1
Flame Retardancy	According to IEC 60332-3		IEC 60332-3
Cable Bending Radius
Bend Radius (during installation)	20x cable diameter		IEC 60794-1-2-E11A
Bend Radius (during Service)	10x cable diameter		IEC 60794-1-E11
Repeating Bending	20x cable diameter		IEC 60794-1-E6
Temperature Range)
Operation Temperature		-40 to +70 C	IEC 60794-1-2-F1
Storage and Transportation Temperature		-40 to +70 C
Installation Temperature		-30 to +60 C

Optical Characteristics
Fiber type		50/125 μm MM OM2	50/125 μm MM OM3	50/125 μm MM OM4
Attenuation (max)	850 nm	3.5 dB/km	3.5 dB/km	3.5 dB/km
Attenuation (max)	1300 nm	1.5 dB/km	1.5 dB/km	1.5 dB/km
Bandwidth (Laser EMB)	850 nm		2000 MHz.km	2000 MHz.km
Bandwidth (Laser EMB)	1300 nm		500 MHz.km	500 MHz.km
Bandwidth (Overfilled)	850 nm	700 MHz.km	1500 MHz.km	3500 MHz.km
Bandwidth (Overfilled)	1300 nm	500 MHz.km	500 MHz.km	500 MHz.km
Numerical Aperture		0.200±0.015	0.2±0.015	0.2±0.015
Core Diameter		50 ± 2 μm	50 ± 2 μm	50 ± 2 μm
Cladding Diameter		125 ± 1μm	125 ± 1μm	125 ± 1μm
Core/Clad Concentricity error		≤ 1 μm	≤ 1 μm	≤ 1 μm
Cladding non-circularity		≤ 0.7 %	≤ 0.7 %	≤ 0.7 %
Coating Diameter		242 ± 5 μm	242 ± 5 μm	242 ± 5 μm
Proof Test		≥ 100kpsi or 0.7GPa	≥ 100kpsi or 0.7GPa	≥ 100kpsi or 0.7GPa

Ordering Information
Model no	Products ID	Description
TMT-3200	TMT-062LPK	6 CORE MULTIMODE INDOOR/OUTDOOR ARMOURED FIBER OPTIC CABLE OM2
TMT-3201	TMT-082LPK	8 CORE MULTIMODE INDOOR/OUTDOOR ARMOURED FIBER OPTIC CABLE OM2
TMT-3202	TMT-122LPK	12 CORE MULTIMODE INDOOR/OUTDOOR ARMOURED FIBER OPTIC CABLE OM2
TMT-3203	TMT-242LPK	24 CORE MULTIMODE INDOOR/OUTDOOR ARMOURED FIBER OPTIC CABLE OM2
