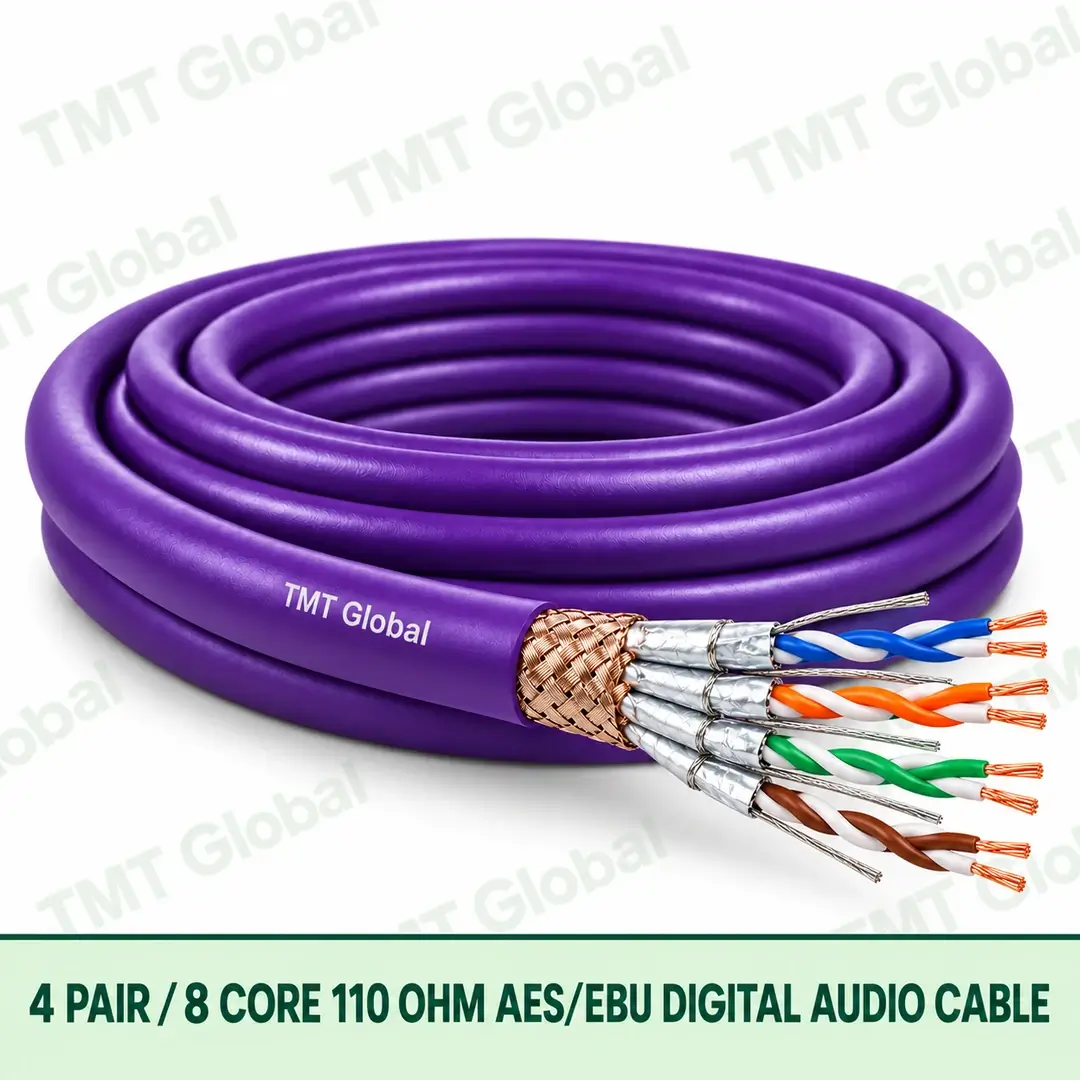

4 Pair / 8 Core 110 Ohm AES/EBU Digital Audio Cable

KEY FEATURES

  • 4 twisted pairs / 8 colour-coded stranded copper conductors
  • Controlled 110 ohm characteristic impedance target for AES3 / AES-EBU
  • 22, 24, 26 AWG Series options
  • PVC, LSZH jacket choices
  • Low-capacitance audio construction subject to released factory design
  • Exact searchable ordering code for every approved combination
Chat with Sales

Supplied in the UAE by AMSS from our Sharjah office (Industrial Area 18) and Dubai office (Naif, Deira), for projects across the Emirates. Request a quote

0 People watching this product now!
Description

Choosing the 4 Pair / 8 Core 110 Ohm AES/EBU Digital Audio Cable

4 pairs make it a multicore snake: up to 4 balanced channels between stage boxes, AV racks and mixing positions in one cable.

Related options in this range: 4 Pair / 8 Core Foil + Braid Shielded Balanced Audio Cable · 4 Pair / 8 Core Foil Shielded Balanced Audio Cable · 2 Pair / 4 Core 110 Ohm AES/EBU Digital Audio Cable · 2 Pair / 4 Core Foil + Braid Shielded Balanced Audio Cable · 2 Pair / 4 Core Foil Shielded Balanced Audio Cable

Order code: 08S-DA. Send us the length, jacket and quantity for a project quotation and datasheet.

TMT 4 Pair / 8 Core 110 Ohm AES/EBU Digital Audio Cable Series

TMT Global 4 Pair / 8 Core 110 Ohm AES/EBU Digital Audio Cable is a configurable 110 ohm professional digital-audio cable family for studios, broadcast rooms, AV racks, theatres, venues and installed sound systems. This page covers the 4-pair AES/EBU electrical construction; the ordering table lists the exact conductor-size and jacket order codes.

KEY FEATURES

  • 4 twisted pairs / 8 colour-coded stranded copper conductors
  • Controlled 110 ohm characteristic impedance target for AES3 / AES-EBU
  • 22, 24, 26 AWG Series options
  • PVC, LSZH jacket choices
  • Low-capacitance audio construction subject to released factory design
  • Exact searchable ordering code for every approved combination

TYPICAL APPLICATIONS

  • AES3 / AES-EBU digital-audio links
  • Broadcast, studio and post-production routing
  • Digital consoles, interfaces, patch systems and equipment racks
  • Multichannel digital-audio snakes and fixed installations
  • Analogue audio use only where the released electrical design permits

Technical Specification

AWG / NOMINAL AREA / SERIES AVAILABILITY

Additional information
AWG22 awg, 24 awg, 26 awg
BrandTMT Global
ColourViolet
Jacket TypePVC, LSZH
Length305 m
