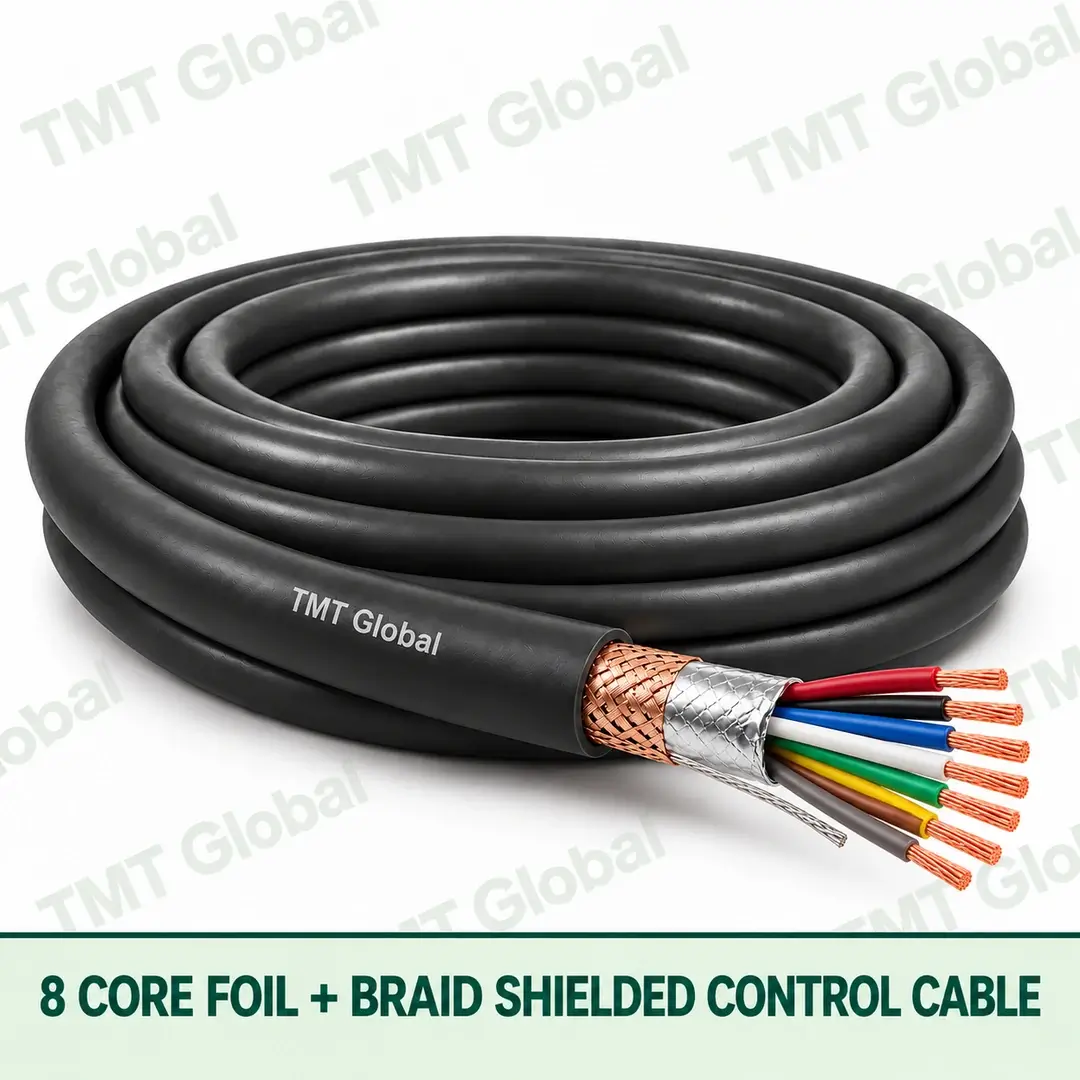

8 Core Foil + Braid Shielded Control Cable

Choosing the 8 Core Foil + Braid Shielded Control Cable

Eight cores can wire a complete door: reader, lock, exit button and door contact in one run. Foil plus tinned-copper braid gives the strongest protection against electrical noise and adds mechanical strength, which is why it is the usual choice in plant rooms, near VFDs and motors, and across industrial sites.

Related options in this range: 6 Core Foil + Braid Shielded Control Cable · 7 Core Foil + Braid Shielded Control Cable · 10 Core Foil + Braid Shielded Control Cable · 12 Core Foil + Braid Shielded Control Cable · 8 Core Foil Shielded Control Cable · 8 Core Unshielded Control Cable

Order code: 08B-BA. Send us the length, jacket and quantity for a project quotation and datasheet.

TMT 8 Core Foil + Braid Shielded Control Cable Series

TMT Global 8 Core Foil + Braid Shielded Control Cable is a configurable multicore control-cable family for machinery, control panels, building services and low-voltage automation interconnection. The product page fixes the 8-core foil + braid shielded construction, while the TMT Series ordering table provides exact AWG and jacket-specific item codes for customer search, quotation and project selection.

KEY FEATURES

• 8-core controlled construction
• Overall foil + tinned-copper braid + drain wire
• 12, 14, 16, 18, 20, 22, 23 and 24 AWG Series options
• PVC, LSZH and outdoor PE jacket choices
• Bare-copper conductor; solid or stranded by released drawing
• Exact searchable ordering code for every standard combination

TYPICAL APPLICATIONS

• Machine and equipment control circuits
• Control panels, switchboards and plant rooms
• Relays, contactors, actuators and interlock circuits
• Building automation and process-control interconnection
• Industrial facilities, commercial buildings and infrastructure

Technical Specification

AWG / NOMINAL AREA / SERIES AVAILABILITY
