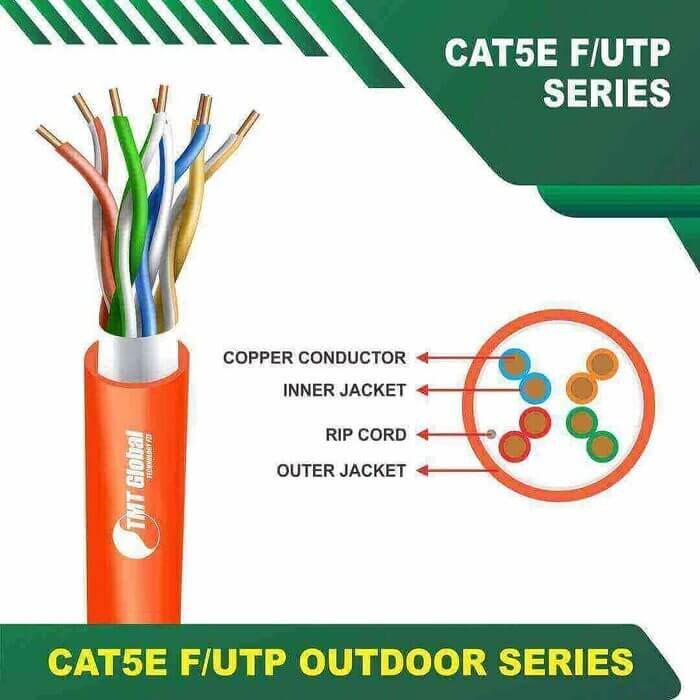

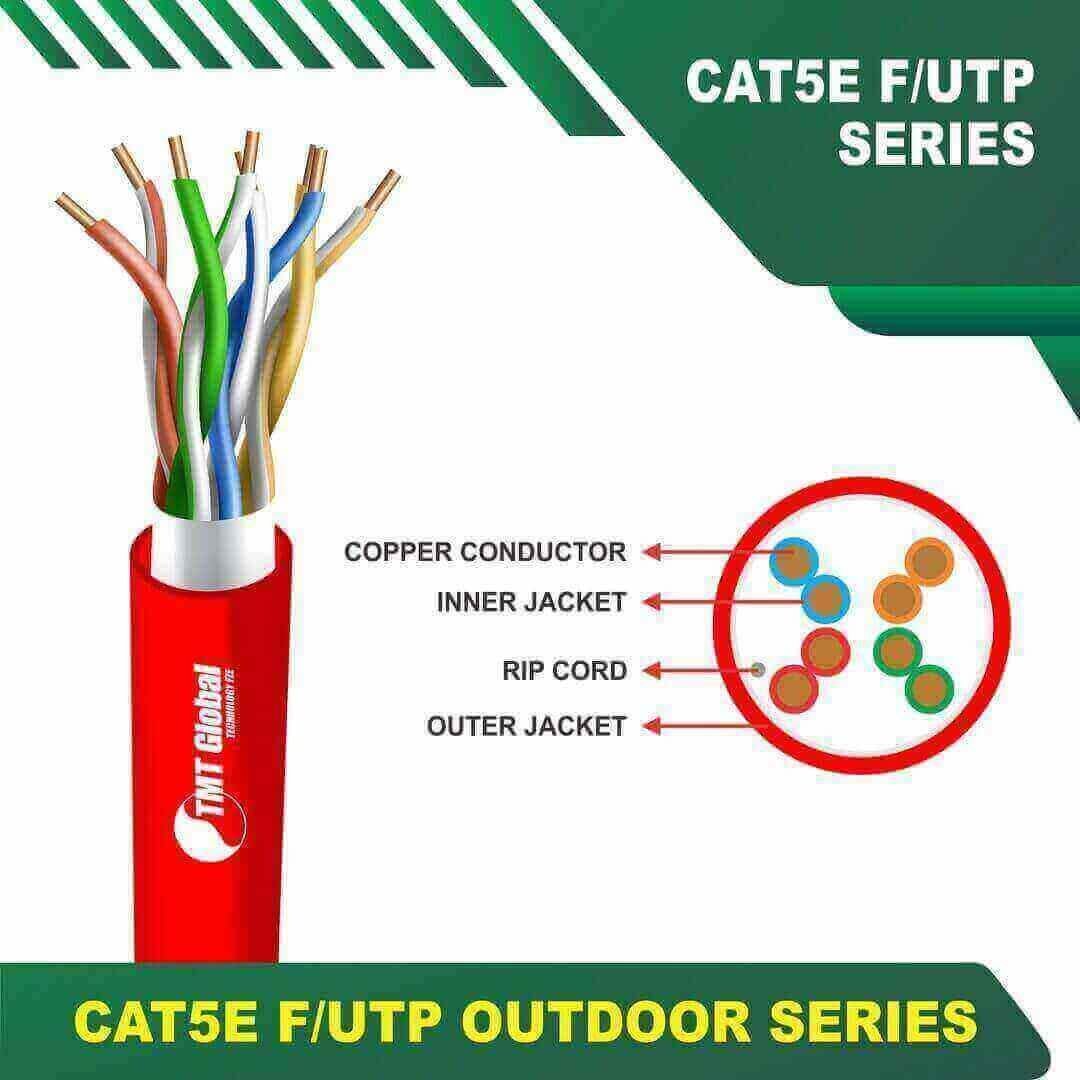

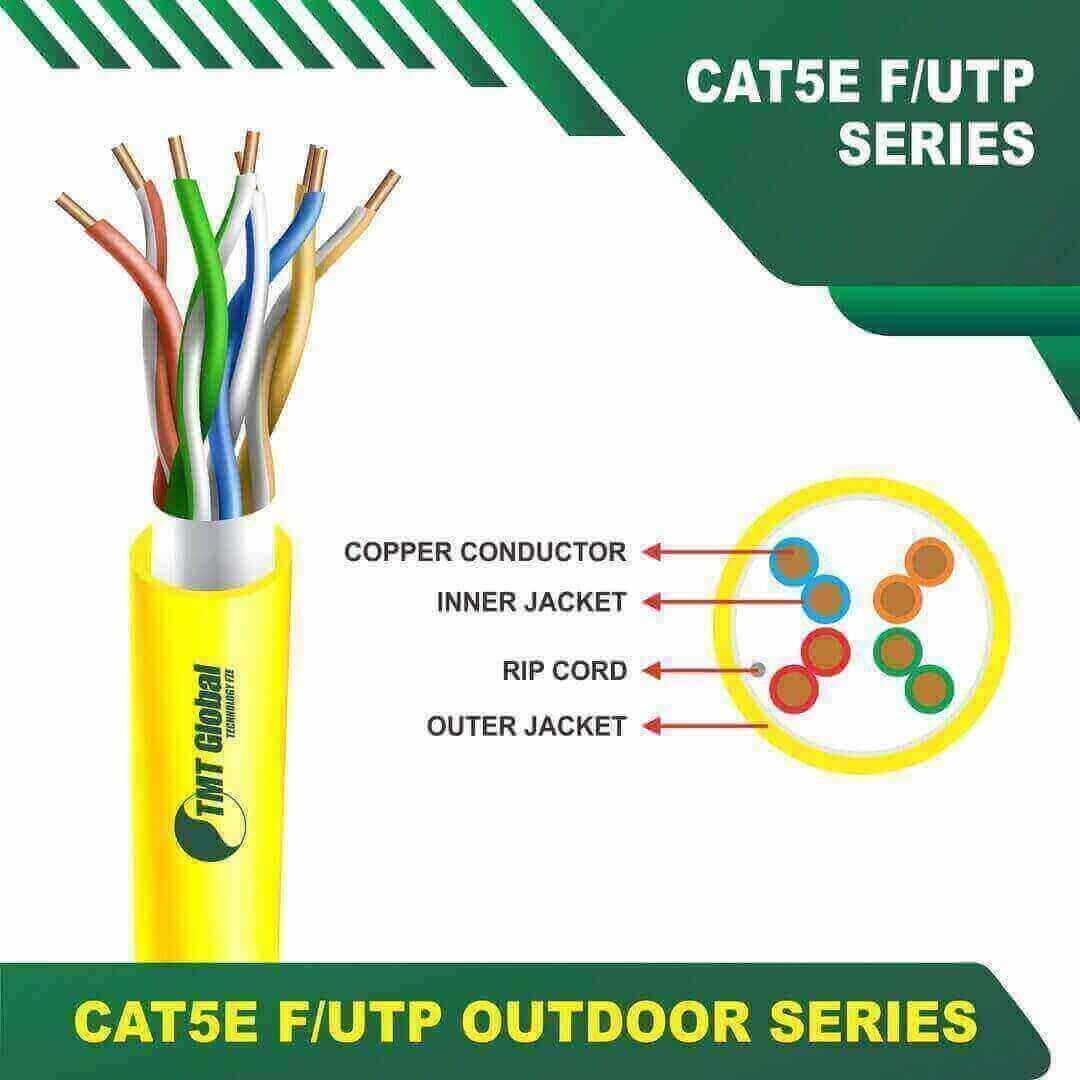

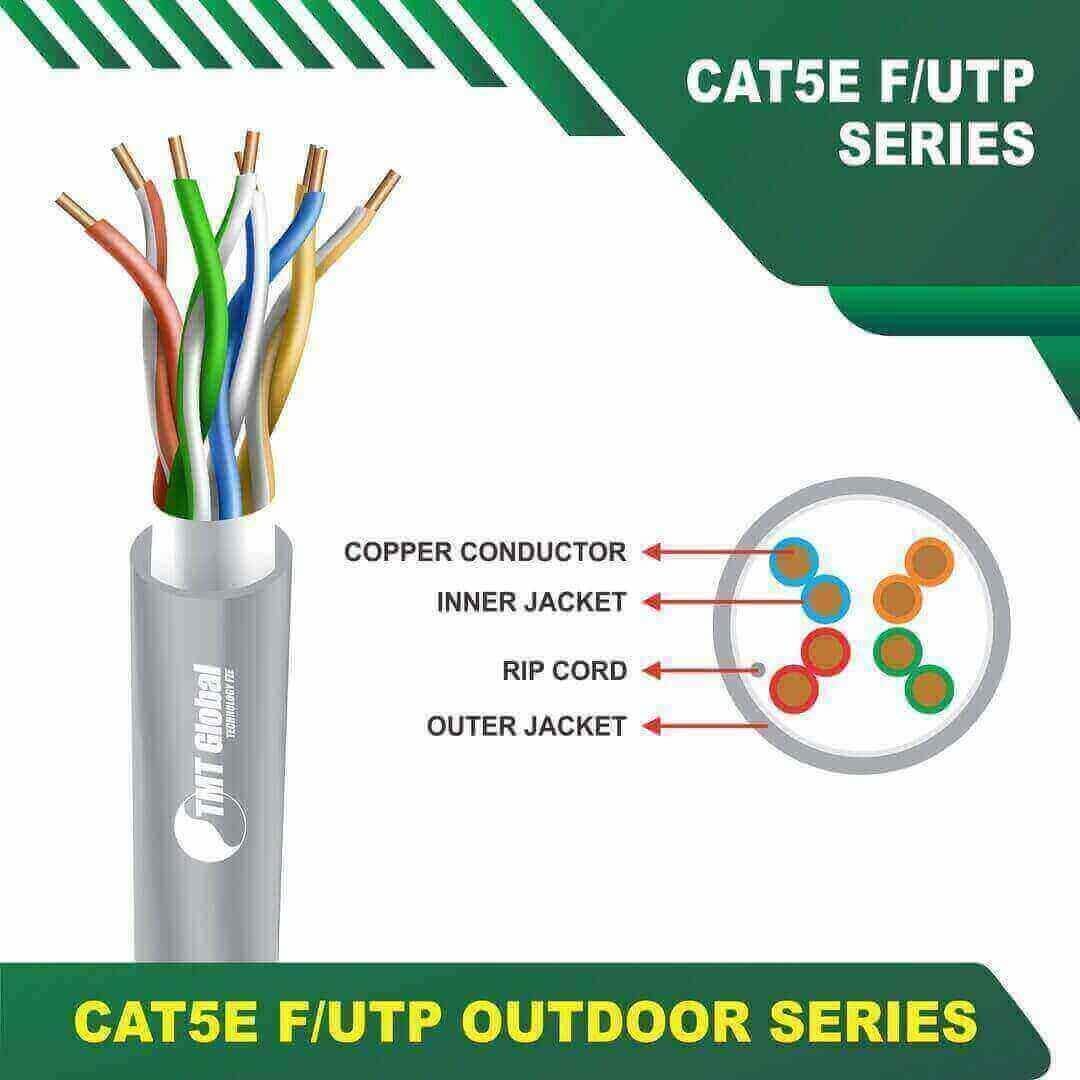

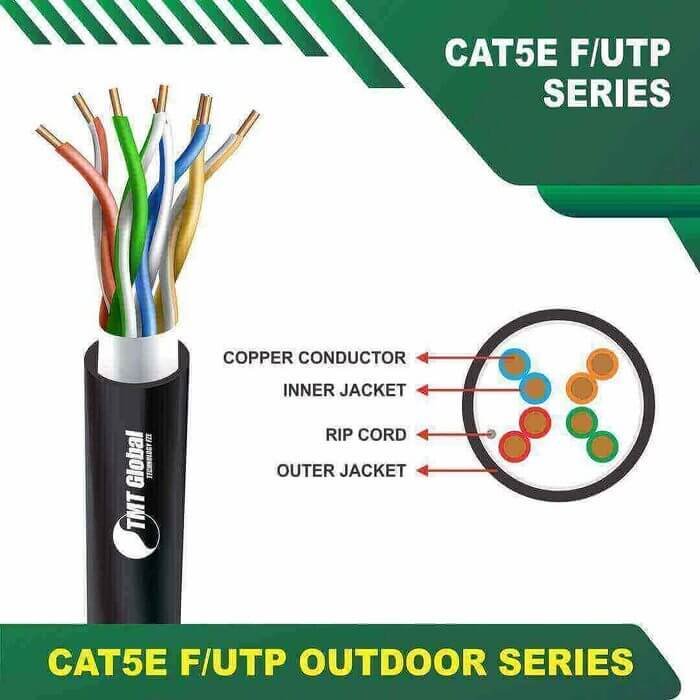

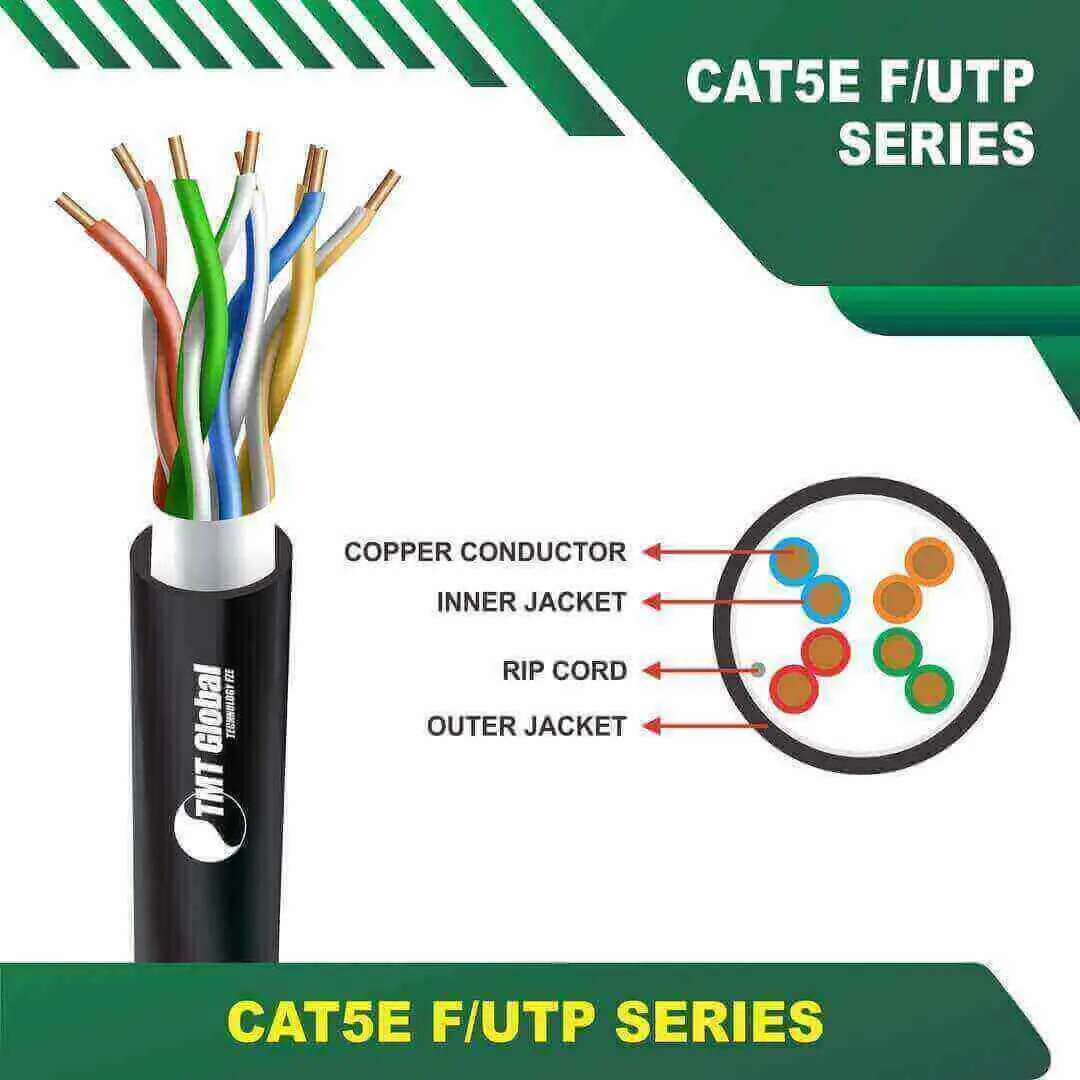

TMT GLOBAL CAT5E F UTP OUTDOOR 24AWG 4 PAIR CABLE 305M tmt-5004

TMT GLOBAL 305m cat5e f utp outdoor 24 awg cable 305m tmt-5004 Manufactured Tested and Complied with ANSI/TIA/568.2-D CENELEC EN 50288-5IEC 61156-5 (ISO/IEC-11801 Class -Ea). Cat6a Series is Designed to Ensure the Highest levels of performance, reliability, and longevity, and are ideal for large enterprise and small business.cat5 outdoor 305m f utp outdoor 24 awg cable 305m

ELECTRICAL SPECIFICATIONS
Characteristic Impedance: 100―6 Ohm @ 1-100 MHz
DC Resistance: 93 Ohm/Km max.
Resistance unbalance: 2% max.
Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz
Cap. Unbalance (wire to ground): 1500 pF/Km max. @ 1 KHz.
Voltage rating: 72 Vdc max.
Dielectric strength: 1500 Volts/1 minute min rms
Velocity of Propagation (NVP): 67-69%
Insulation Resistance: 5000 Mega Ohm•Km min. @ 500 Vdc
Insulation Resistance: 45 nS/100m max @ 1-100 MHz
Coupling attenuation: 40 dB min @ 30-100

PHYSICAL AND MECHANICAL PROPERTIES
Basic Conductor: tmt copper
Conductor Size: 24AWG
Insulation: HDPE
Number of insulated conductors: 8, twisted in 4 pairs
Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown
Outer Jacket: Heavy-duty, black, UV-resistant PE compound for outdoor use.
Standard Jacket Color: Black
Standard Surface Marking: Includes TMT Global P/N, cable description, Meter mark and Model Number
Pulling force: 110 N max.
Short Term Bend Radius: 6xOD (mm)
Temperature operating range: -20 to +80C
Installation temperature range: 0 to +50C
Ordering Information
Item Name: Cat5e u utp 5xxx8B PE Outdoor Cable 24 awg 4 pair 305m
Item Code: 5X148BOK
