Cat6 23awg 4 pair U FTP Ethernet Cable 305m tmt-4045

TMT GLOBAL Cat6 23awg 4 pair U FTP Ethernet Cable 305m tmt-4045

TMT Global Cat6 23awg 4 pair U FTP Ethernet Cable 305m tmt-4045 are Manufactured Tested and Complied with IEC 60332-1-2 EN 50173-1:2011 ISO/IEC11801:2011(Ed. 2.2) ANSI/TIA/EIA-568.2-D IEC61935-2:2010(Ed.3.0) EN 50173-2:2007 including Amendment A1:2010 cat6 cable cat6a cat7 cat6 23awg 4 Cat6 23awg 4 pair U FTP Ethernet Cable 305m tmt-4045 twisted pair cat6a cable cat7 cat8 cat7 cable cat8 global products range network cable cat6 23awg 4 twisted pair Requirements for Patch Cord Assemblies and Provide High Performance levels for structured cabling systems.Cat6 23awg 4 twisted pair U-FTP Ethernet Cable 305m

ELECTRICAL SPECIFICATIONS
Characteristic Impedance: 100±6 Ohm @ 1-250 MHz
DC Resistance: 93 Ohm/Km max.
Resistance unbalance: 2% max.
Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz
Cap. Unbalance (wire to ground): 1600 pF/m max. @ 1 KHz.
Voltage rating: 72 Vdc max.
Dielectric strength: 1500 Volts/1 minute min rms
Velocity of Propagation (NVP): 67-69%
Propagation Delay Skew: 514 + 36/vf. nS/100m max @ 1-300 MHz
Insulation Resistance: 5000 Mega Ohm•Km min. @ 500 Vdc
Coupling attenuation: 40 dB min @ 30-100 MHz 40-20Log(f/100) @100-300 MHz

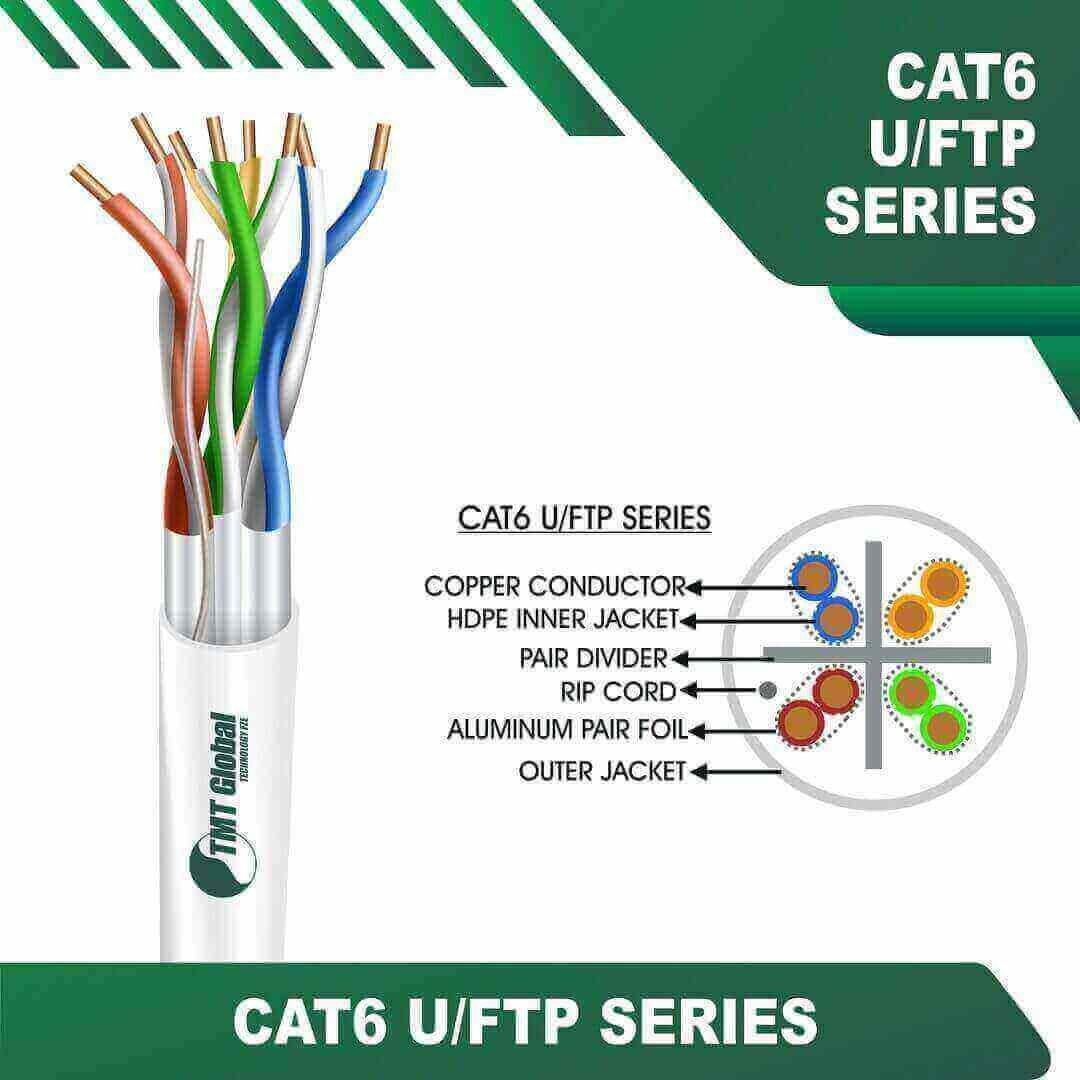

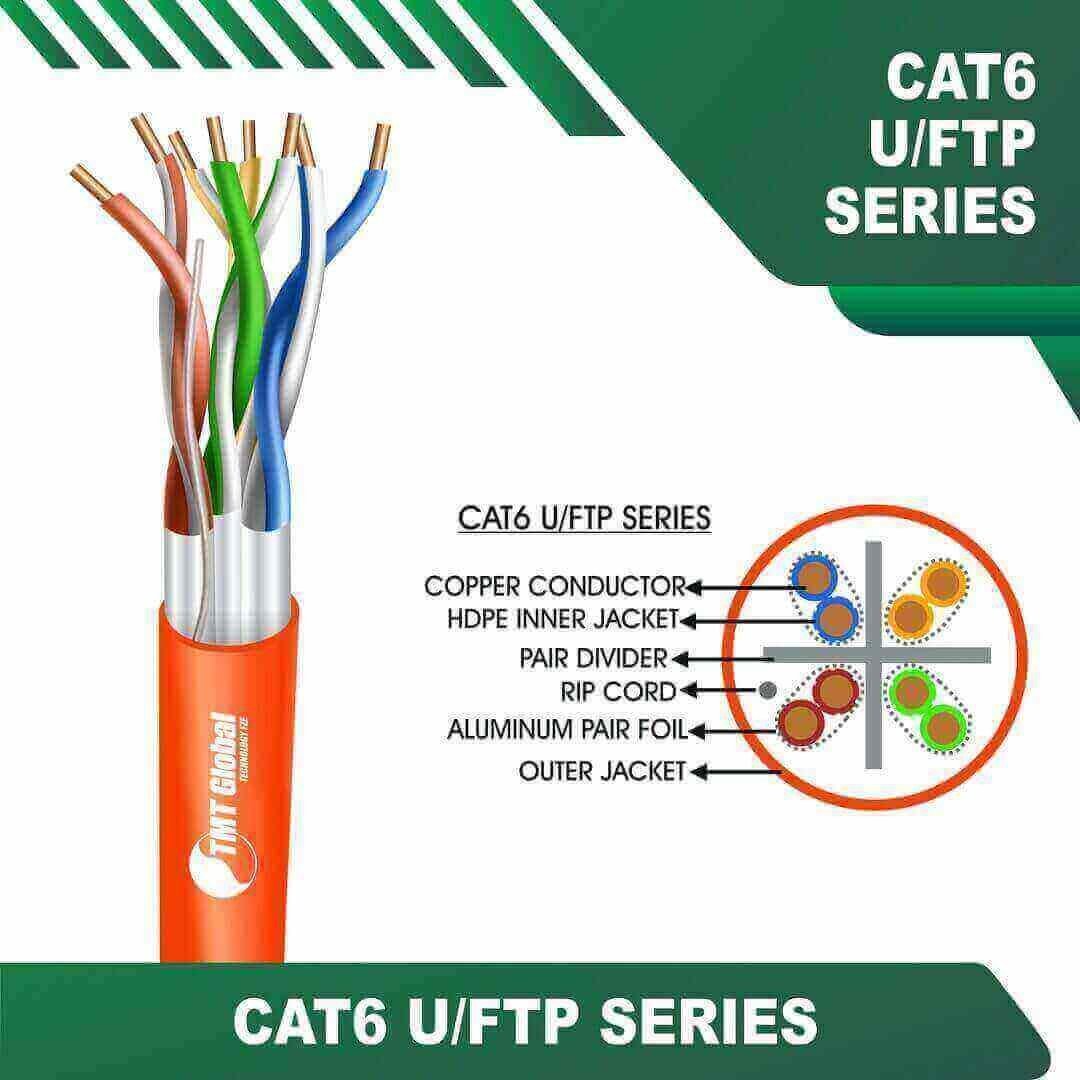

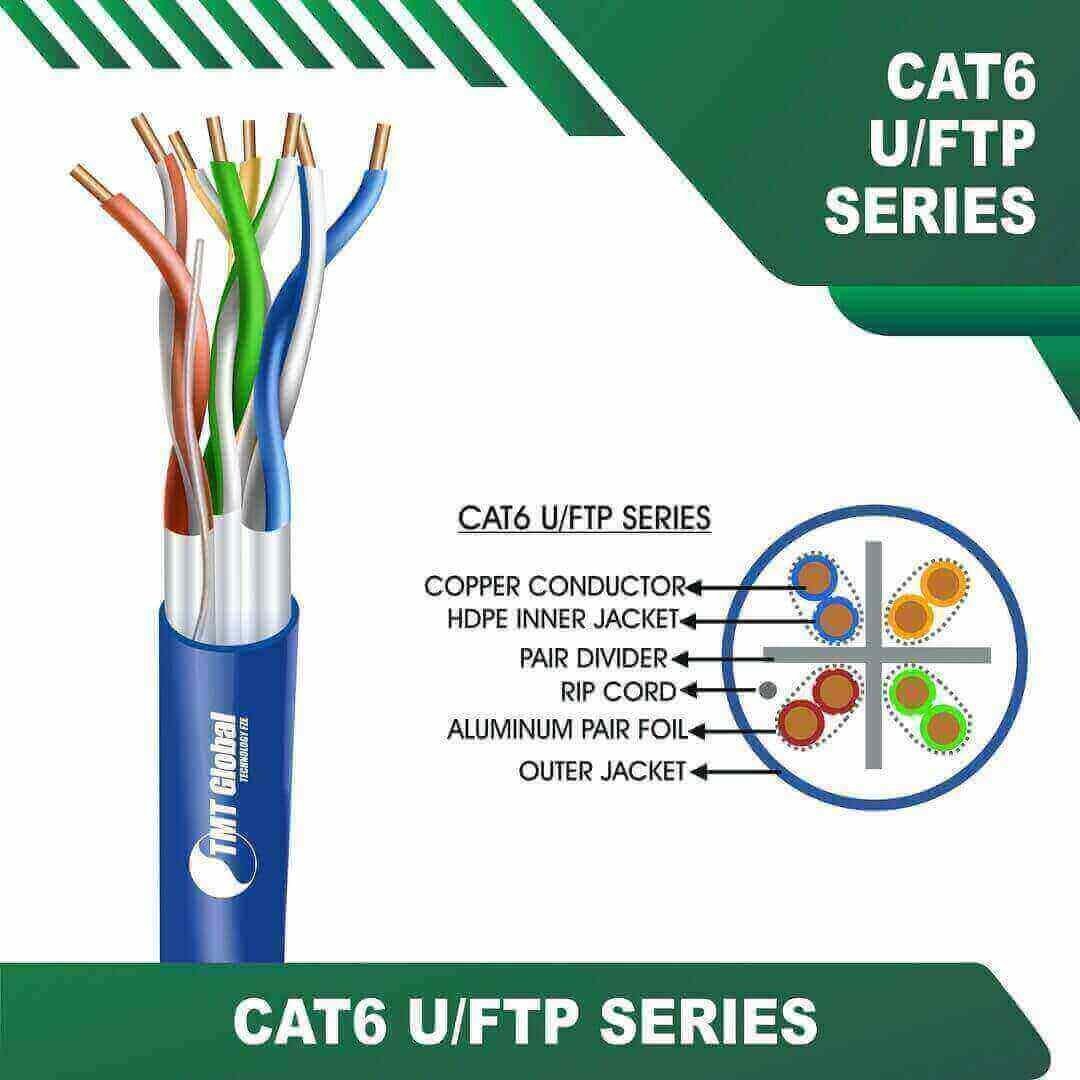

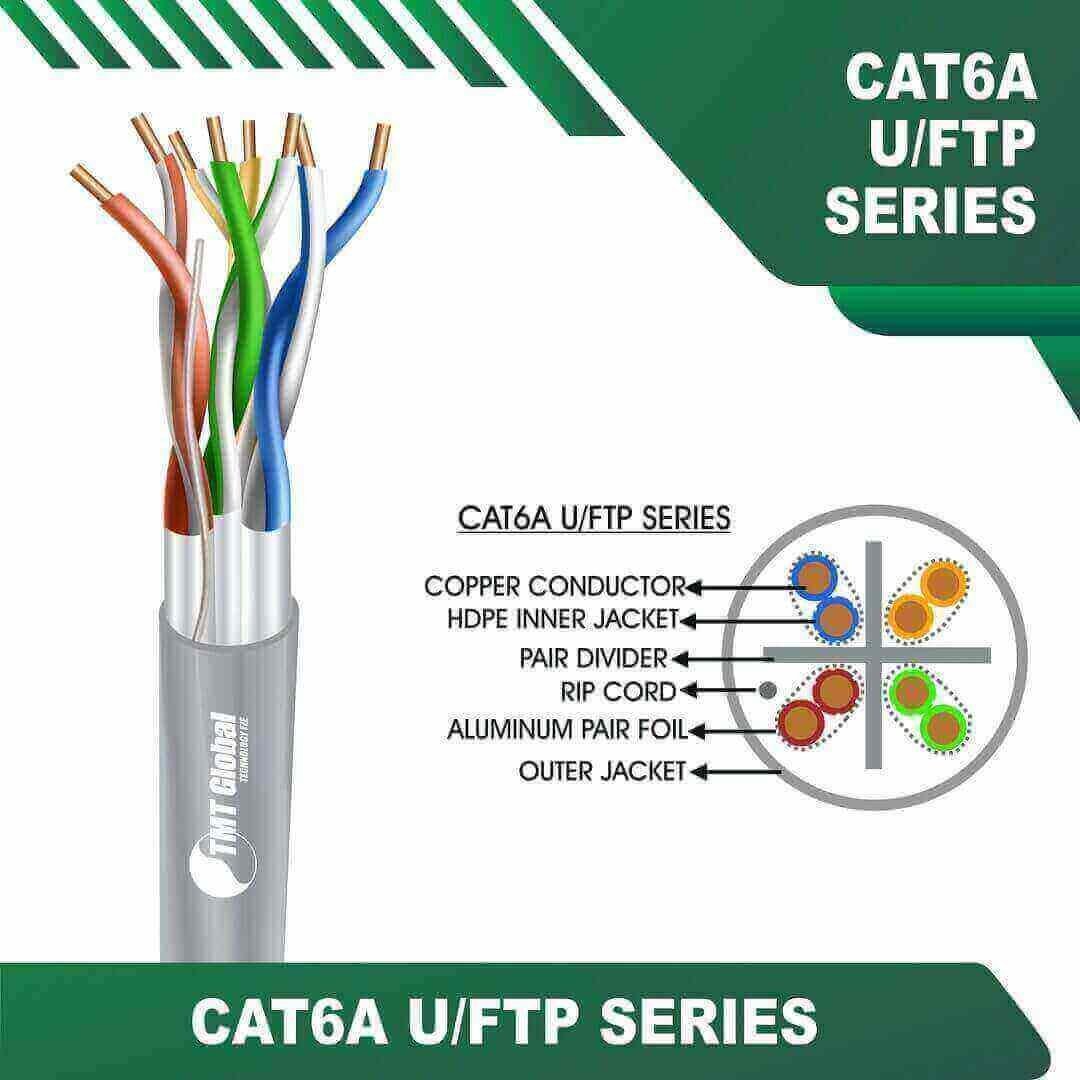

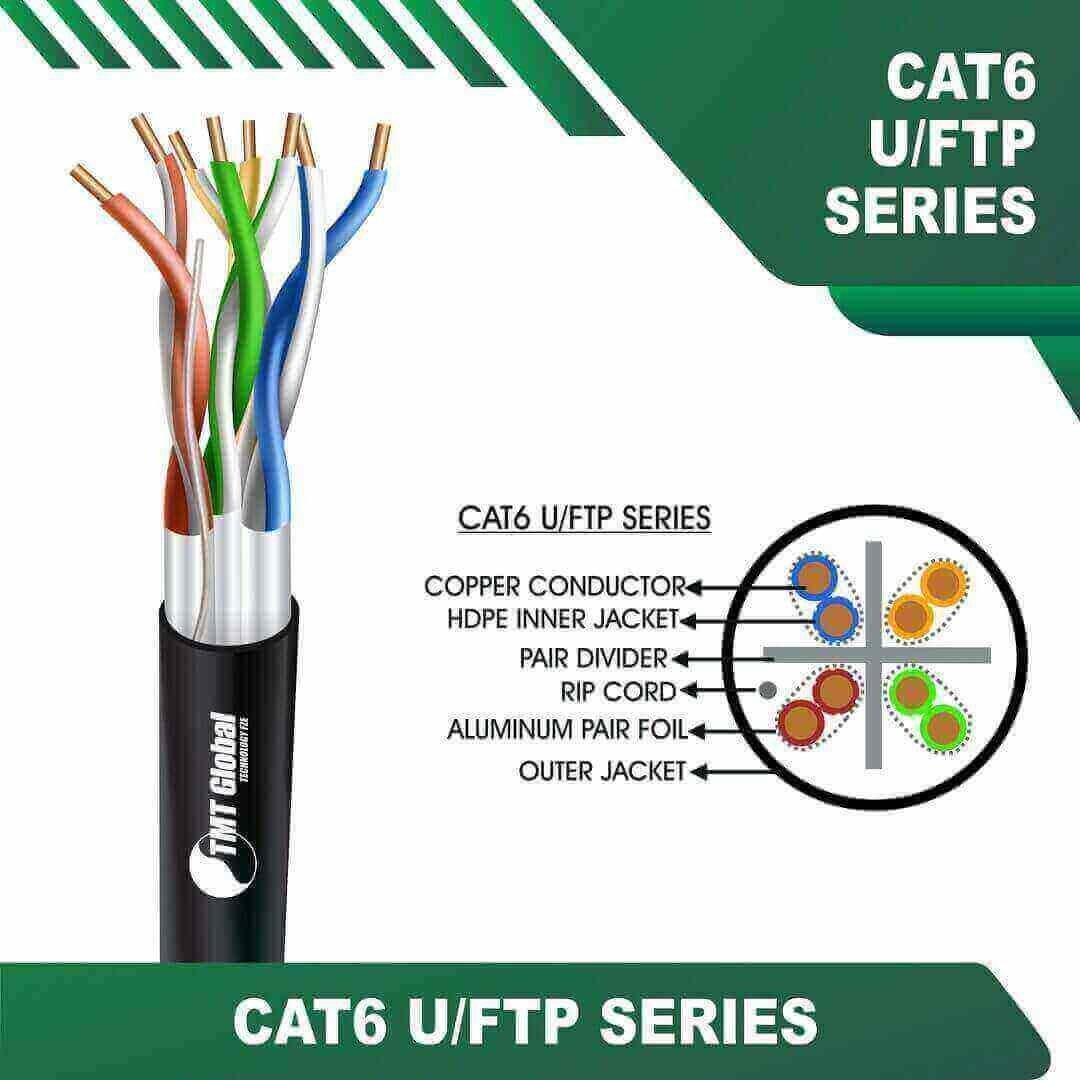

PHYSICAL AND MECHANICAL PROPERTIES
Basic Conductor: TMT copper
Conductor Size: 23AWG
Insulation: HDPE
Number of insulated conductors: 8, twisted in 4 pairs
Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown
Overall Coverage: Polyester-aluminum tape on pair
Drain wire: copper conductor laid in close contact under the shield.
Outer Jacket: PVC/LSZH
Standard Jacket Color:Blue/Gray /Black/Green/Orange/Red/Violet/White/Yellow./Aqua
Standard Surface Marking: Includes TMT Global P/N, cable description, Meter mark and Model Number
Pulling force: 110 N max.
Short Term Bend Radius: 8xOD (mm)
Temperature operating range: -20 to +80C
Installation temperature range: 0 to +50C
Ordering Information
Item Name: 23AWG 4PAIR CAT6 uftp CABLE PVC  305M
