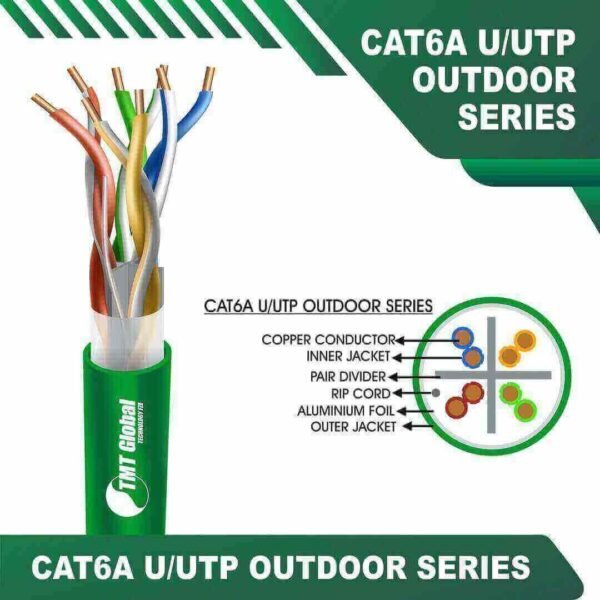

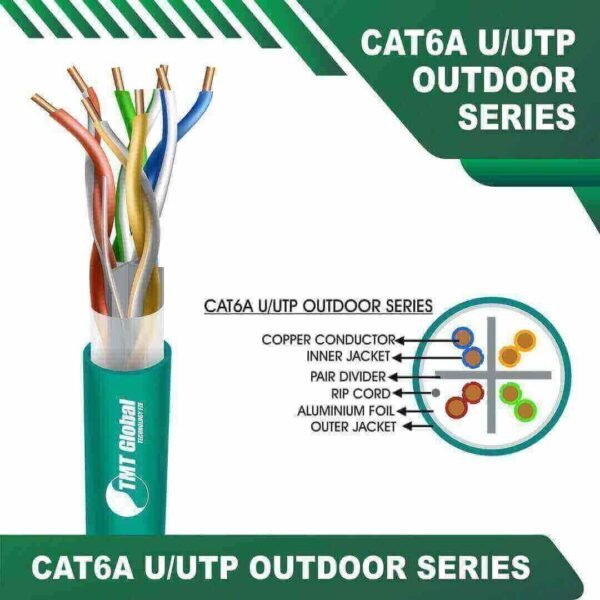

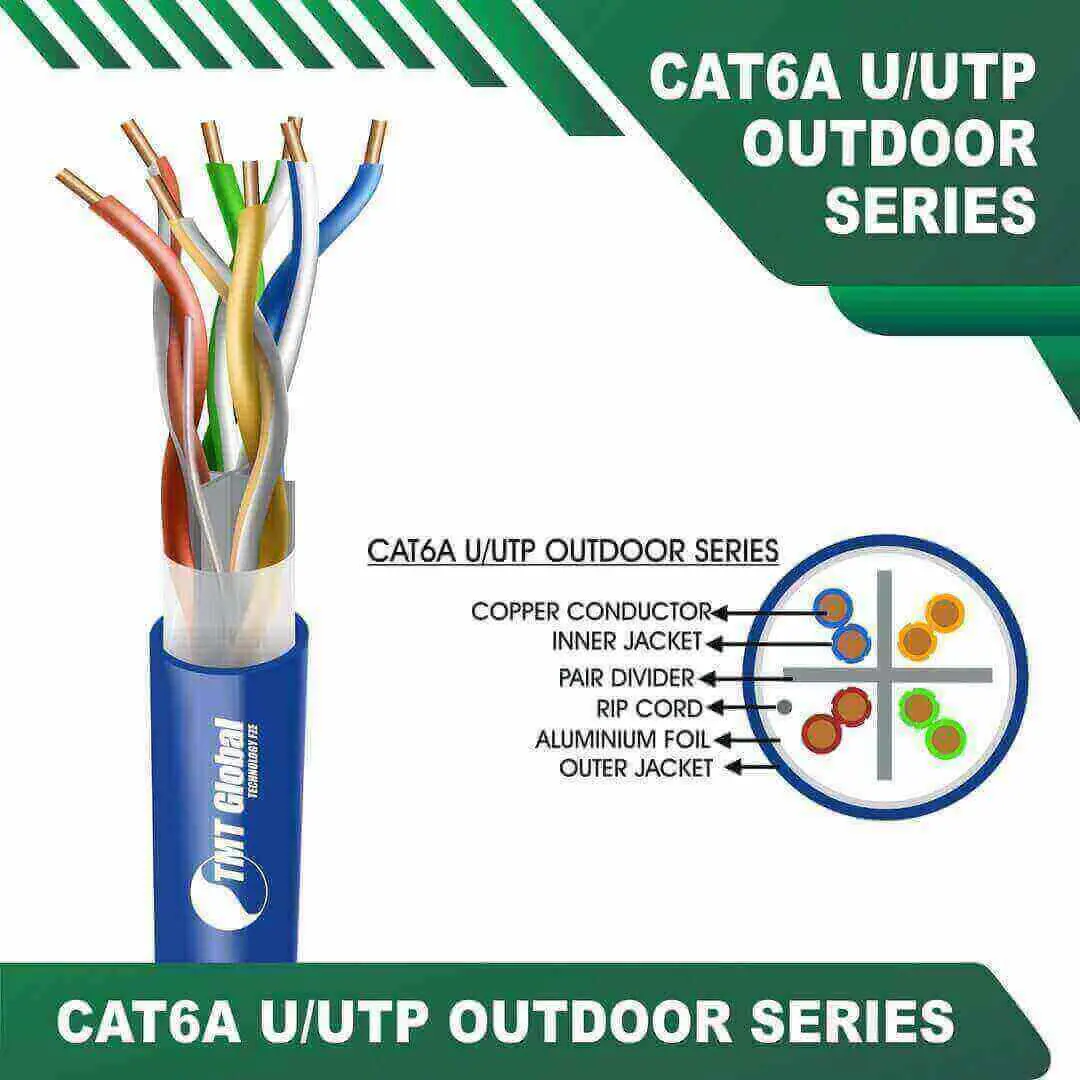

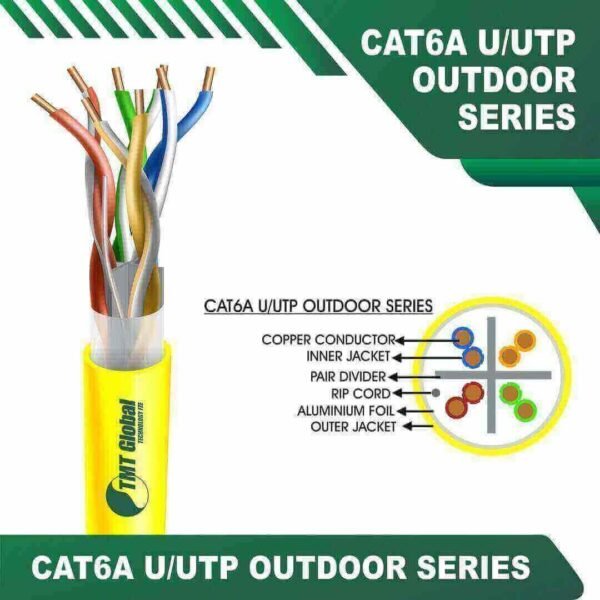

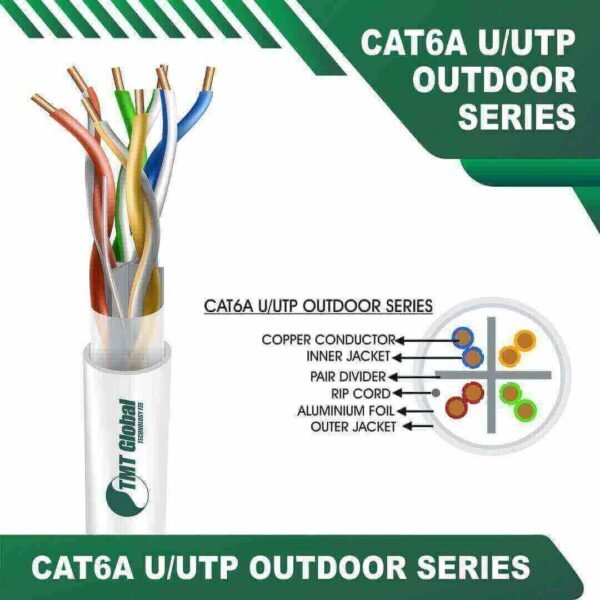

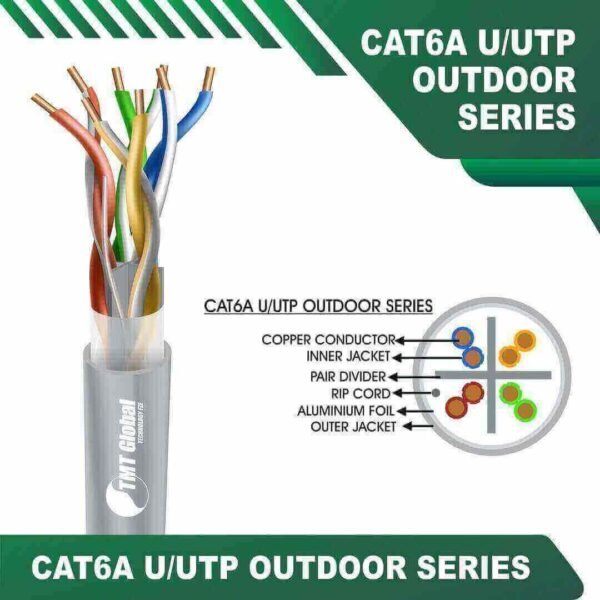

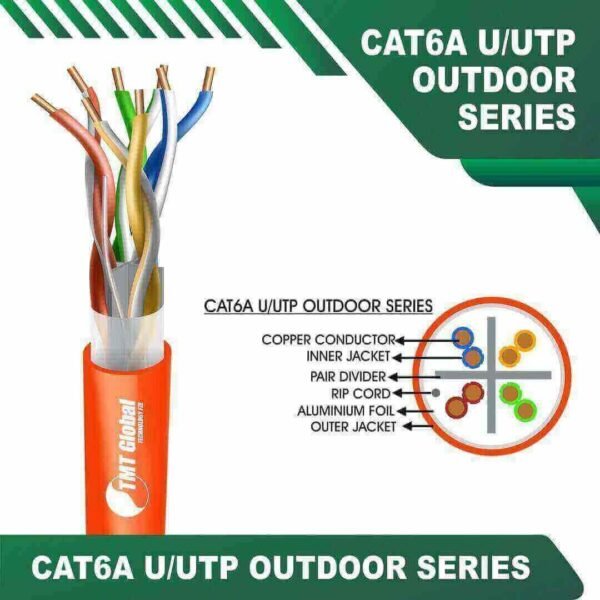

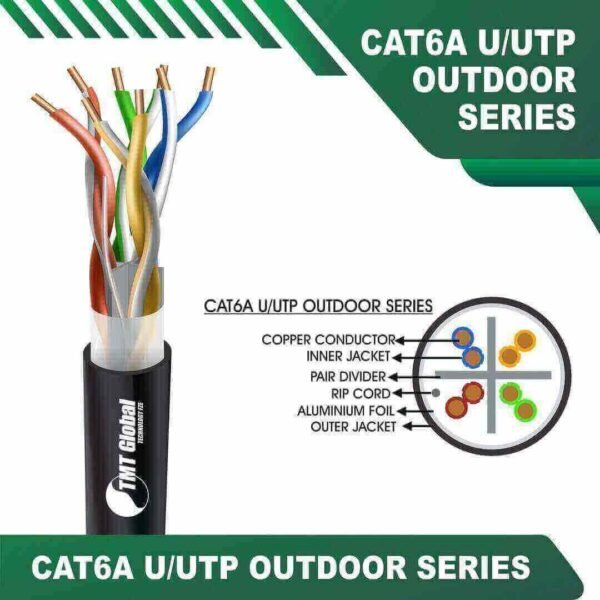

Cat6a 23awg 4pair U-UTP Outdoor Solid Cable 305m

TMT GLOBAL Cat6a 23AWG 4Pair U-UTP Outdoor Solid Cable 305m

Elevate Your Networking Experience

Introducing the Cat6a 23AWG 4Pair U-UTP Outdoor Solid Cable 305m, a top-tier solution designed to meet all your high-speed networking requirements. If you’re looking for reliability and performance in an outdoor setting, this cable is engineered to deliver exceptional data transfer speeds while maintaining robustness against harsh environmental conditions.

Designed for Durability and Performance

This outdoor cable features sturdy 23AWG wire construction, which enhances its conductivity and minimizes signal loss over long distances. With four twisted pairs, the Cat6a ensures optimal data transmission with impressive bandwidth capabilities, perfect for gigabit networks. Whether you’re setting up a new internet service, connecting outdoor security cameras, or establishing network systems in expansive outdoor areas, trust this cable to maintain peak performance even under demanding circumstances.

Easy Installation and Versatile Application

The Cat6a cable comes in a generous 305-meter roll, providing ample length for various projects without the hassle of frequent splicing. Its U-UTP (Unshielded Twisted Pair) design makes it straightforward to install, allowing you to achieve a clean and efficient networking setup. Suitable for residential, commercial, or industrial applications, it is the ideal choice for those requiring a reliable connection for both indoor and outdoor use.

Furthermore, its robust construction protects against UV rays, moisture, and temperature extremes, assuring performance longevity. With the Cat6a 23AWG 4Pair U-UTP Outdoor Solid Cable, you can confidently build a reliable networking infrastructure that stands the test of time, keeping your connections strong and stable.

ELECTRICAL SPECIFICATIONS
Characteristic Impedance: 100±6 Ohm @ 1-500 MHz
Loop Resistance: 25
Resistance unbalance: 2% max.
Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz
Cap. Unbalance (wire to ground): 1500 pF/Km max. @ 1 KHz.
Voltage rating: 72 Vdc max.
Dielectric strength: 1500 Volts/1 minute min rms
Velocity of Propagation (NVP): 67-69%
Propagation Delay Skew: 534 + 36/vf. nS/100m max @ 1-500 MHz
Insulation Resistance: 45 nS/100m max @ 1-500 MHz
Coupling attenuation: 55 dB min @ 30-100 MHz 55-20Log(f/100) @100-500 MHz

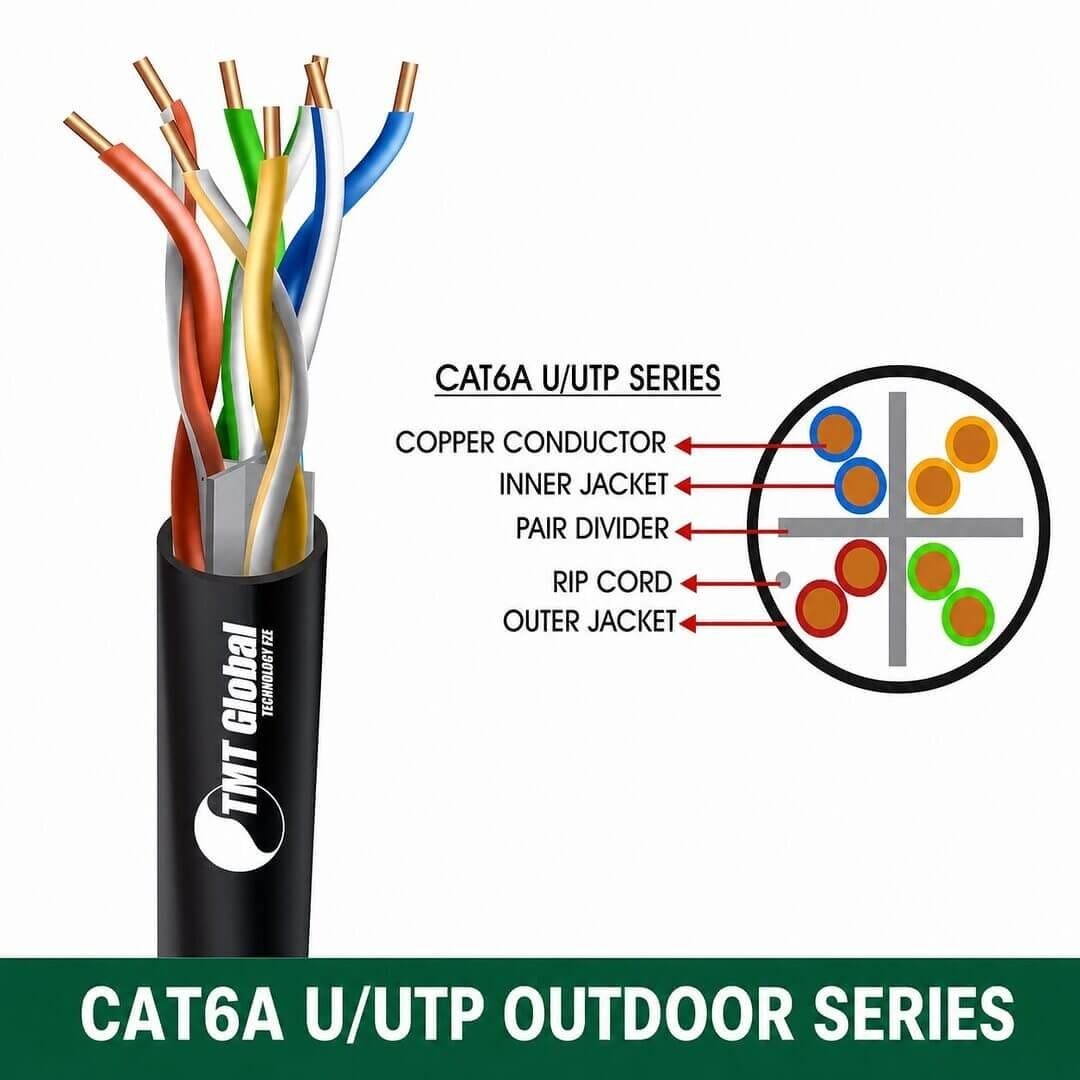

PHYSICAL AND MECHANICAL PROPERTIES
Basic Conductor: tmt copper
Conductor Size: 23AWG
Insulation: HDPE
Number of insulated conductors: 8, twisted in 4 pairs
Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown
Overall Coverage: N
Drain wire: N
Outer Jacket: PE OUTDOOR
Standard Jacket Color:Black
Standard Surface Marking: Includes TMT Global P/N, cable description, Meter mark and Model Number
Pulling force: 110 N max.
Short Term Bend Radius: 8xOD (mm)
Temperature operating range: -20 to +80C
Installation temperature range: 0 to +50C
Ordering Information
Item Name: 23AWG 4PAIR CAT6A U/UTP OUTDOOR SERIES – BLACK
