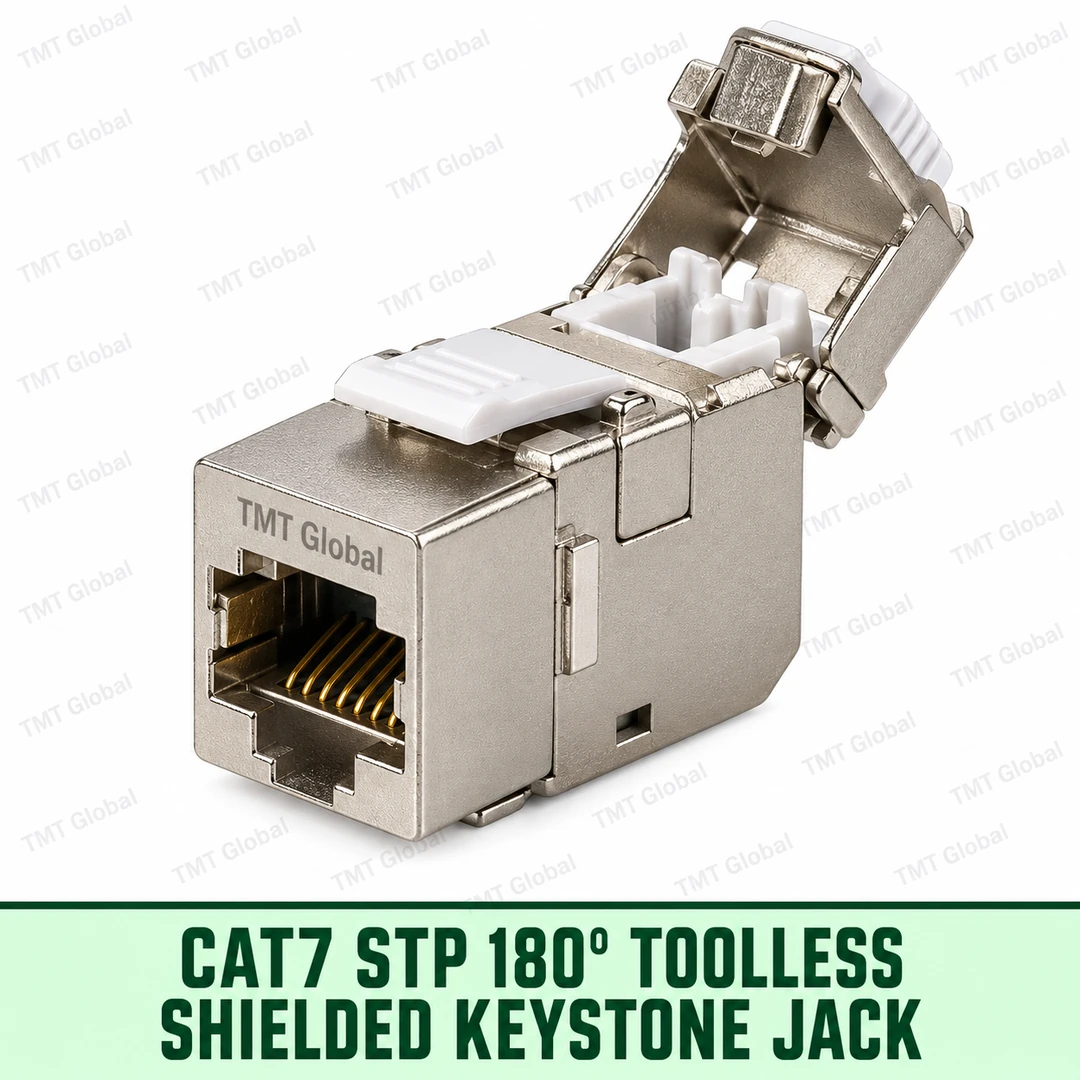

Cat7 STP 180° Toolless Shielded Keystone Jack

Choosing the Cat7 STP 180° Toolless Shielded Keystone Jack

Cat7-rated jacks match screened Cat7 cable for high-noise environments. The shielded body gives 360° screen continuity; use it only with shielded (F/UTP, S/FTP) cable and an earthed patch panel. The 180° straight-through entry suits patch panels and deep back boxes. Toolless termination lets installers terminate without a punch tool, saving time on large projects.

Order code: TMT-07SBS1. Send us the quantity for a project quotation and datasheet.

TMT Cat7 STP 180° Toolless Shielded Keystone Jack Series

The TMT Global Cat7 STP 180° Toolless Shielded Keystone Jack is a controlled keystone connectivity product for Cat7 / Class F structured cabling terminations. It provides a standards-aligned RJ45 8P8C interface with toolless termination, 180° straight geometry and s/ftp / shielded construction. The product is intended for professional network installations where repeatable termination, reliable contact performance and consistent TMT specification control are required.

FEATURES

• Cat7 / Class F transmission target
• 1–600 MHz performance range
• S/FTP / Shielded RJ45 8P8C interface
• Toolless termination
• T568A / T568B wiring identification
• 360° shield continuity / earthing path

APPLICATIONS

• High-performance shielded LAN
• Data centres
• Industrial networks
• Class F installations
• High-EMI environments

Technical Specification

STANDARDS & COMPLIANCE

• IEC 60603-7-7:2010
• ISO/IEC 11801-1 structured cabling system application
• Shield continuity / bonding path for screened cabling
• ANSI/TIA-568.2-D where applicable
• EN 50173 where applicable
• UL 94 V-0 polymer components
• RoHS
• REACH

AUTHORITY FIRE-PERFORMANCE NOTE

Keystone jacks are connectivity hardware, not permanent telecom cables. Euroclass/CPR cable fire-rating and IEC/EN 60332-1-2 cable flame tests are not applied to this hardware unless a specific accredited assembly test covers the product. Use UL 94 V-0 for applicable plastic parts.

PRODUCT CONTROL STATEMENT

This SKU is defined by the published TMT website/datasheet specification. Any OEM production must match the listed construction, interface, category, termination and compliance requirements and provide supporting test/conformity evidence.
