144 core odf wall mounted optical distribution frame

Choosing the 144 core odf wall mounted optical distribution frame

Terminates up to 144 fibres in one wall-mounted frame, sized for a main distribution point where many cables meet. Splice trays, adapters and cable management keep incoming cables and patch cords separated and labelled.

Related options in this range: 96-Core Floor-Standing ODF — LC Adapter + Pigtail · 96 core odf wall mounted optical distribution frame · 72 core odf wall mounted optical distribution frame · 48-Core 1U LC High-Density ODF · 48 core odf wall mounted optical distribution frame

Order code: TMT-144CMD1. Send us the length, jacket and quantity for a project quotation and datasheet.

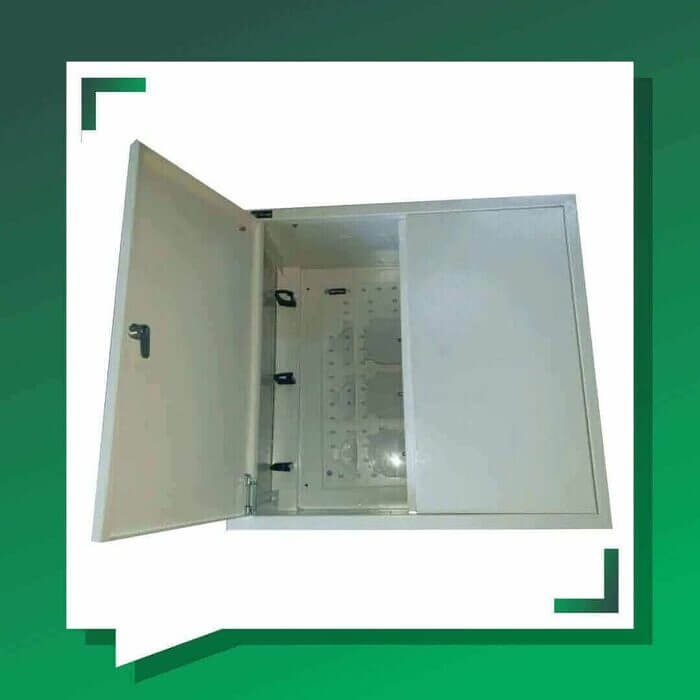

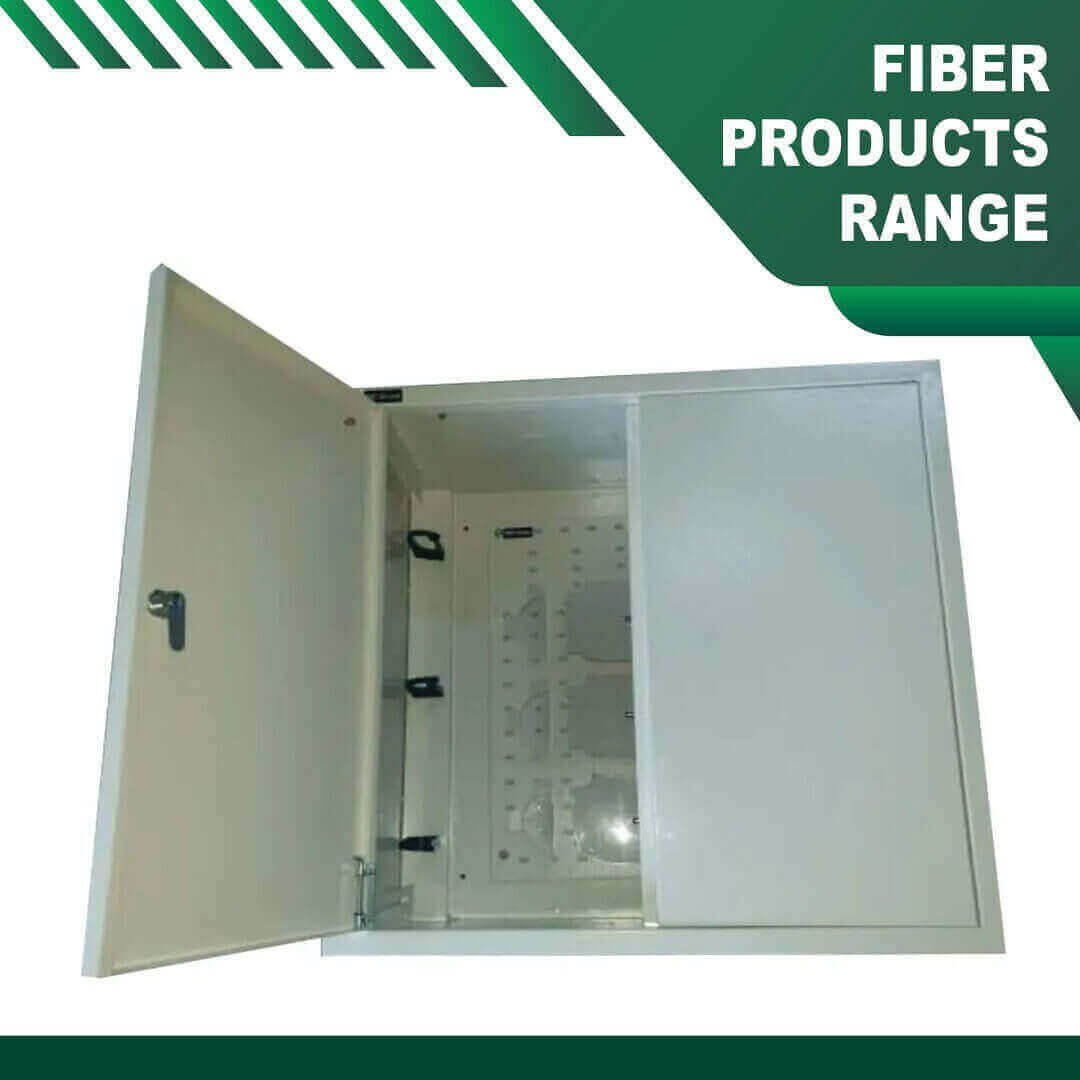

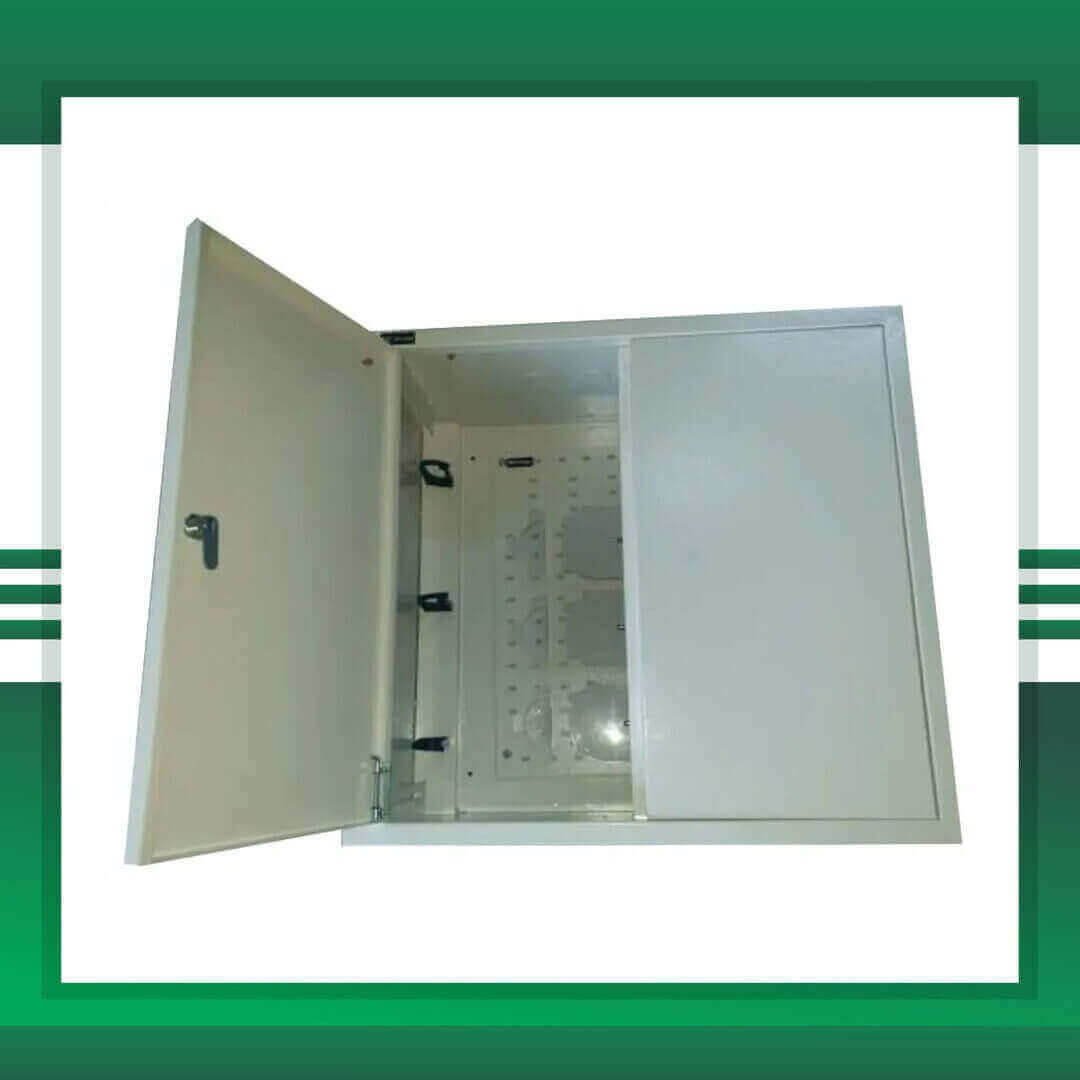

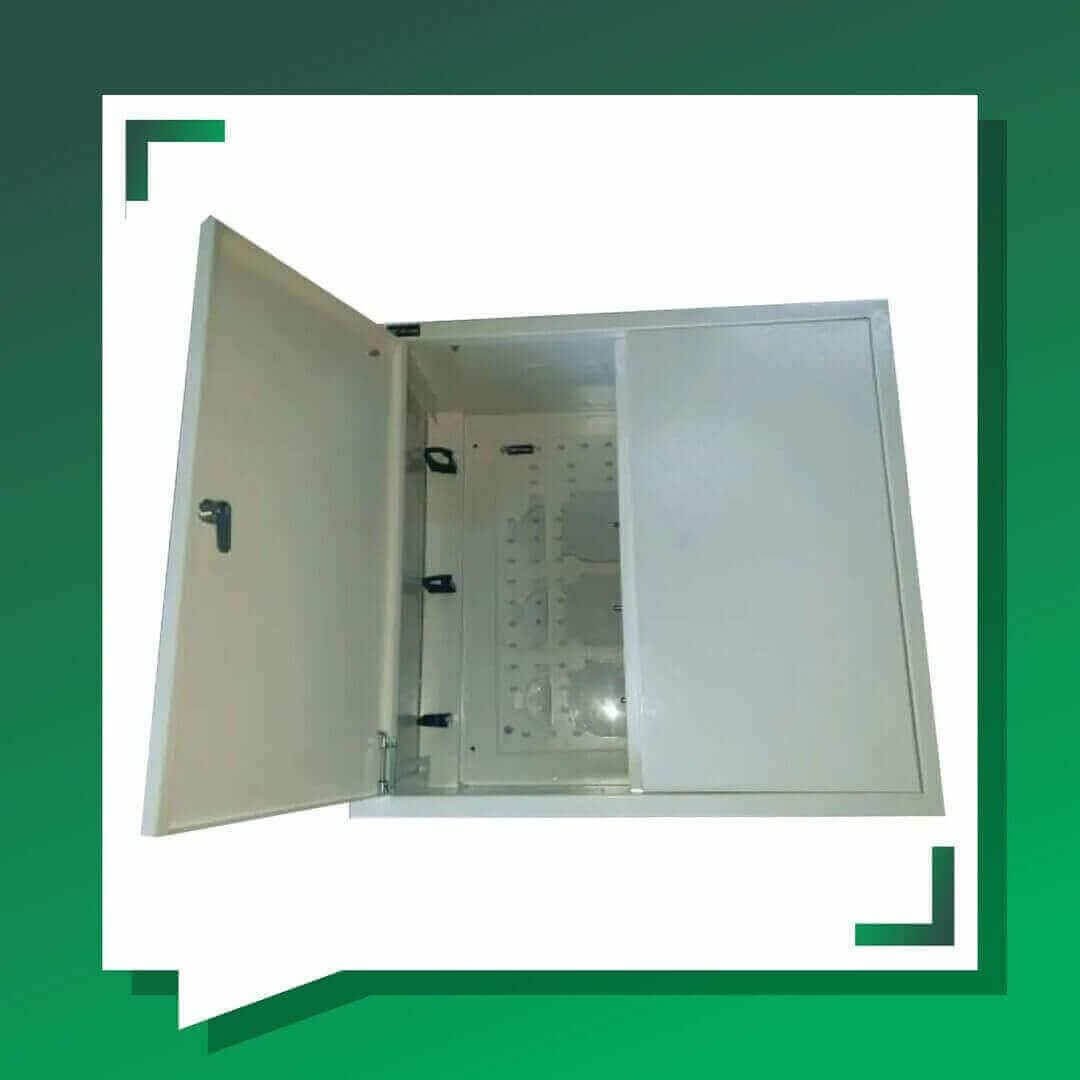

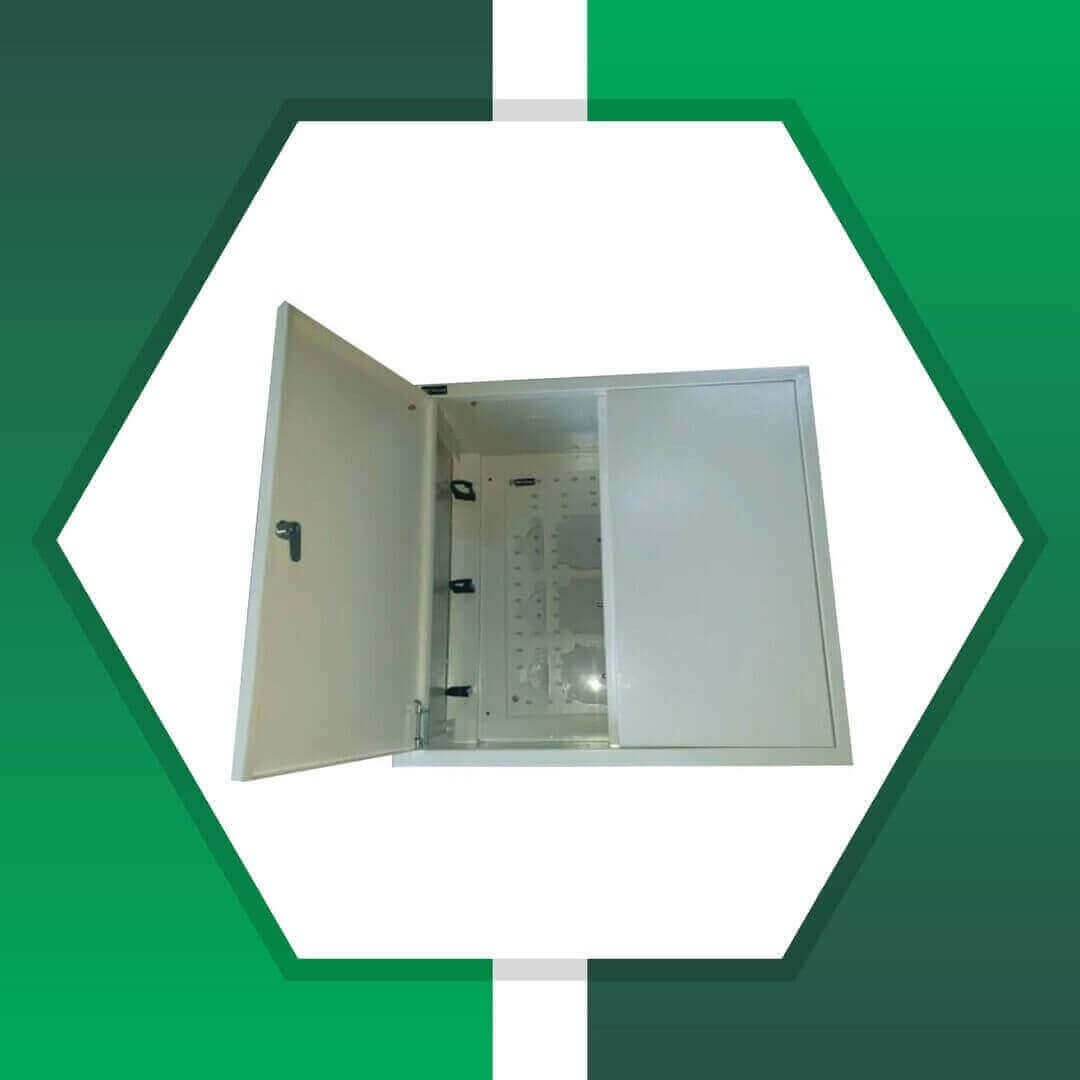

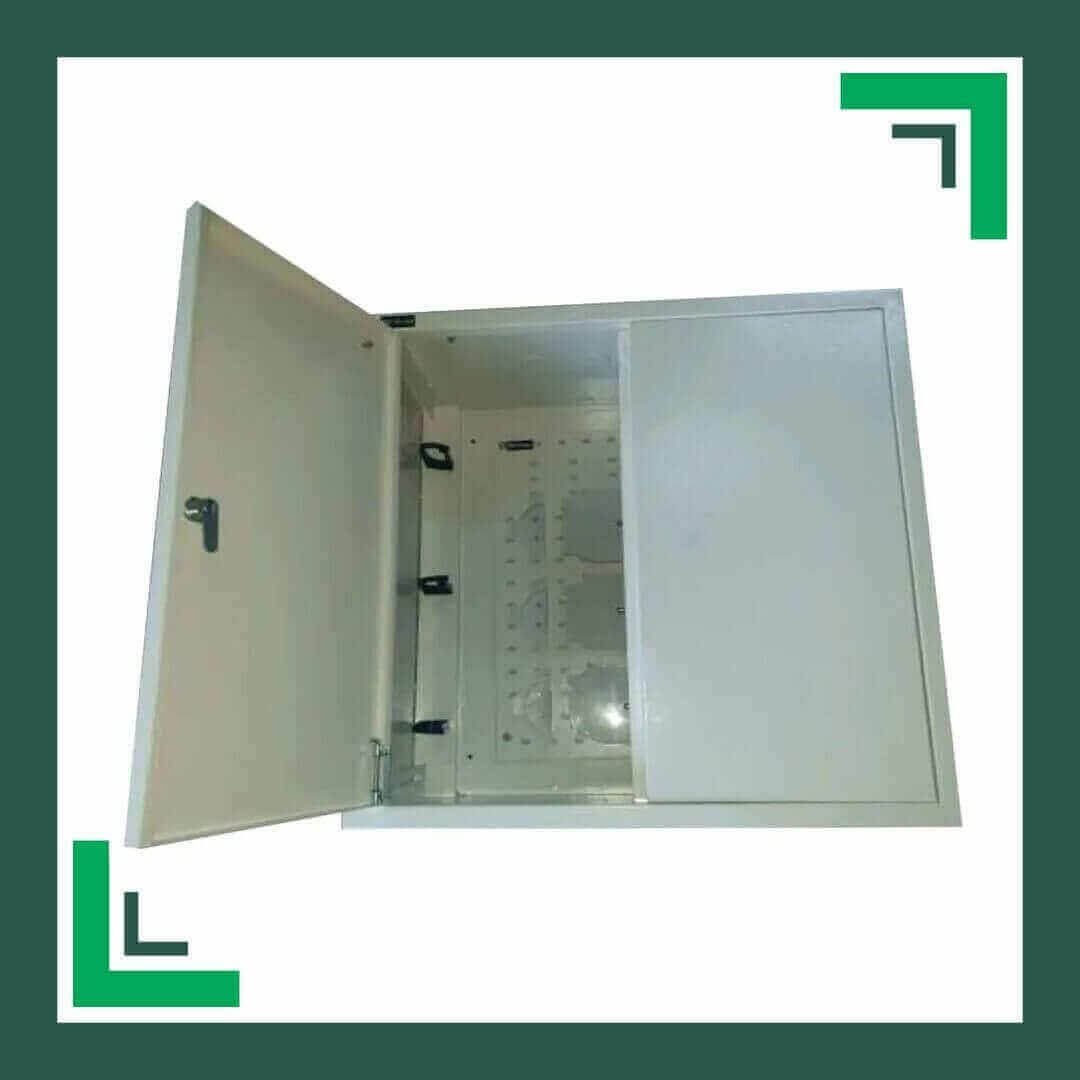

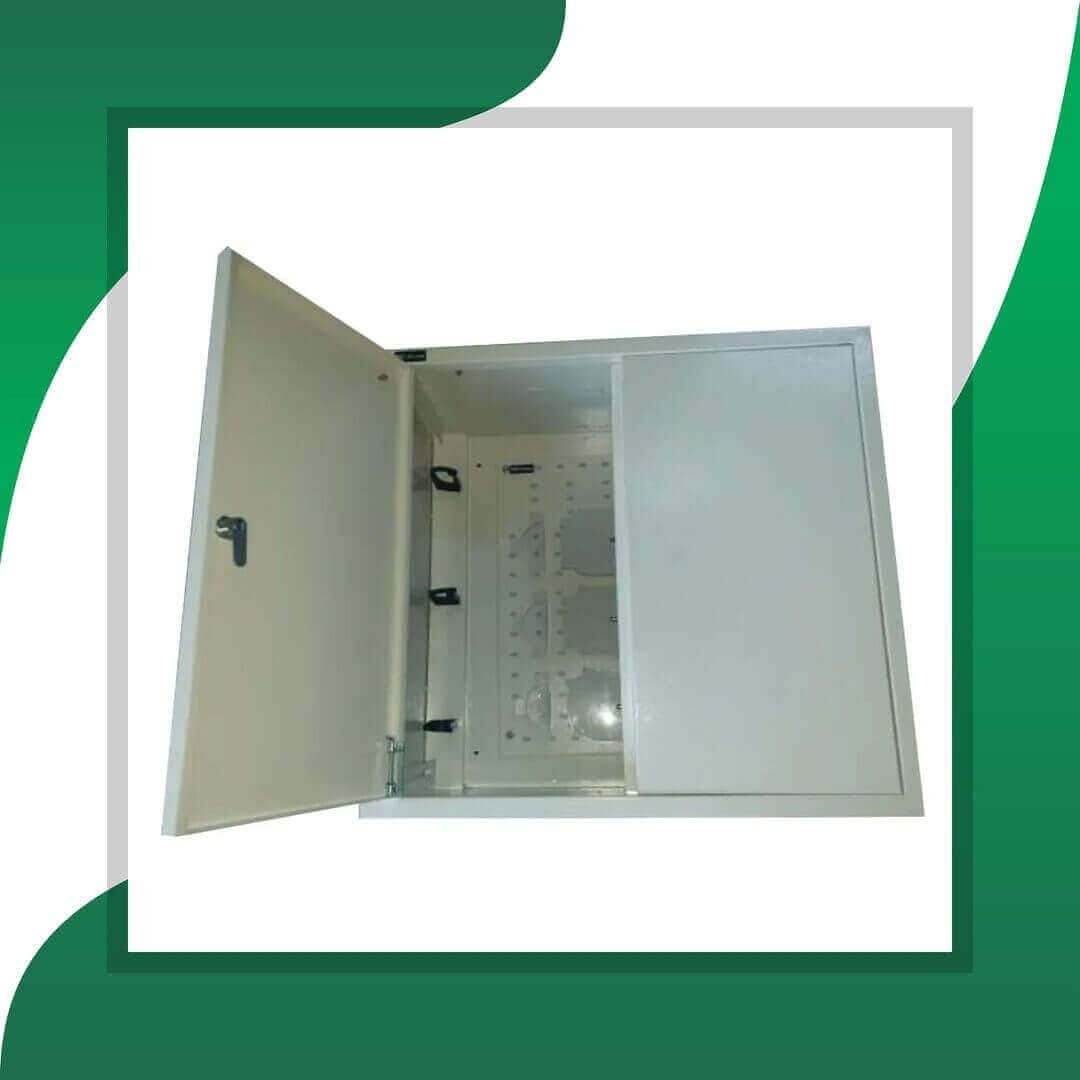

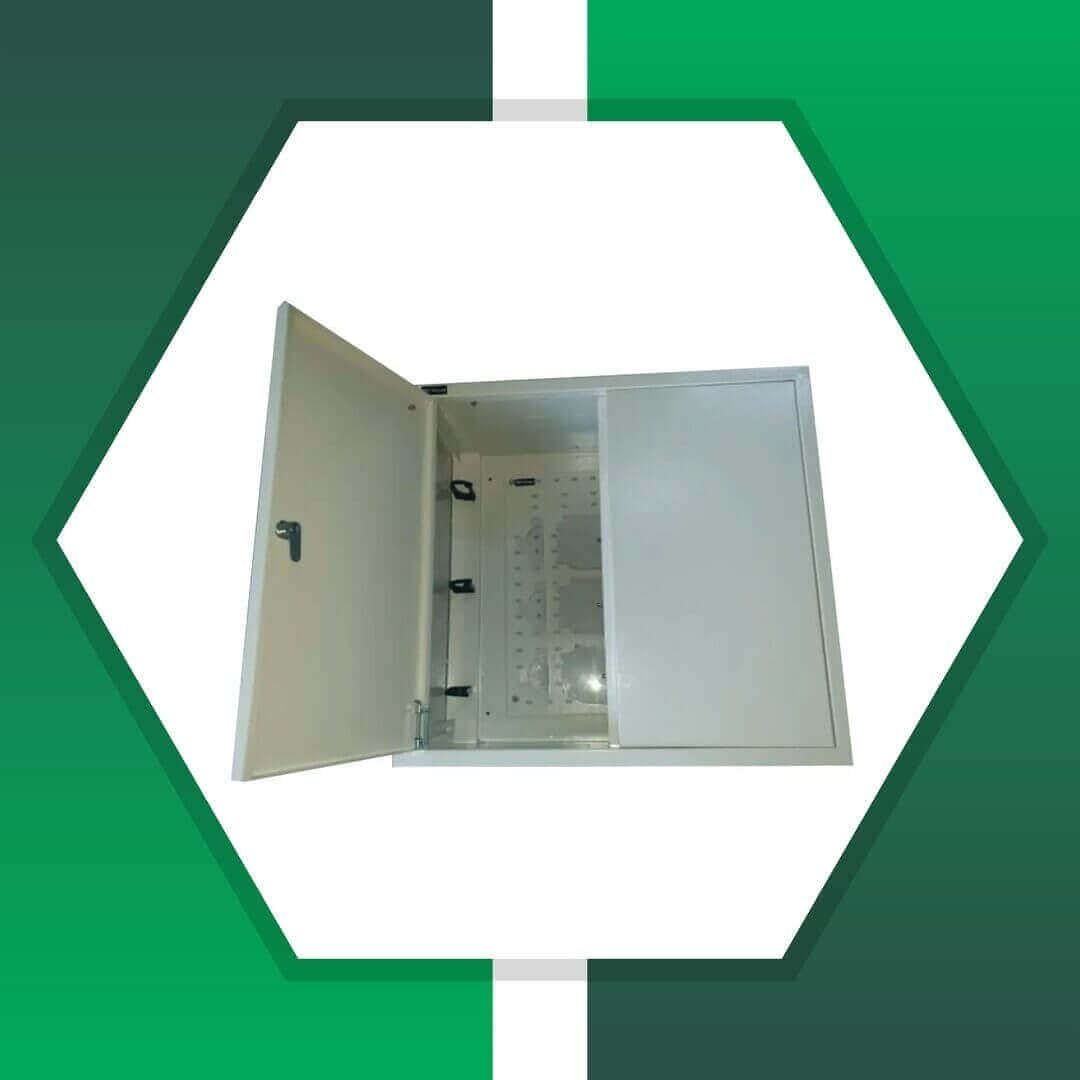

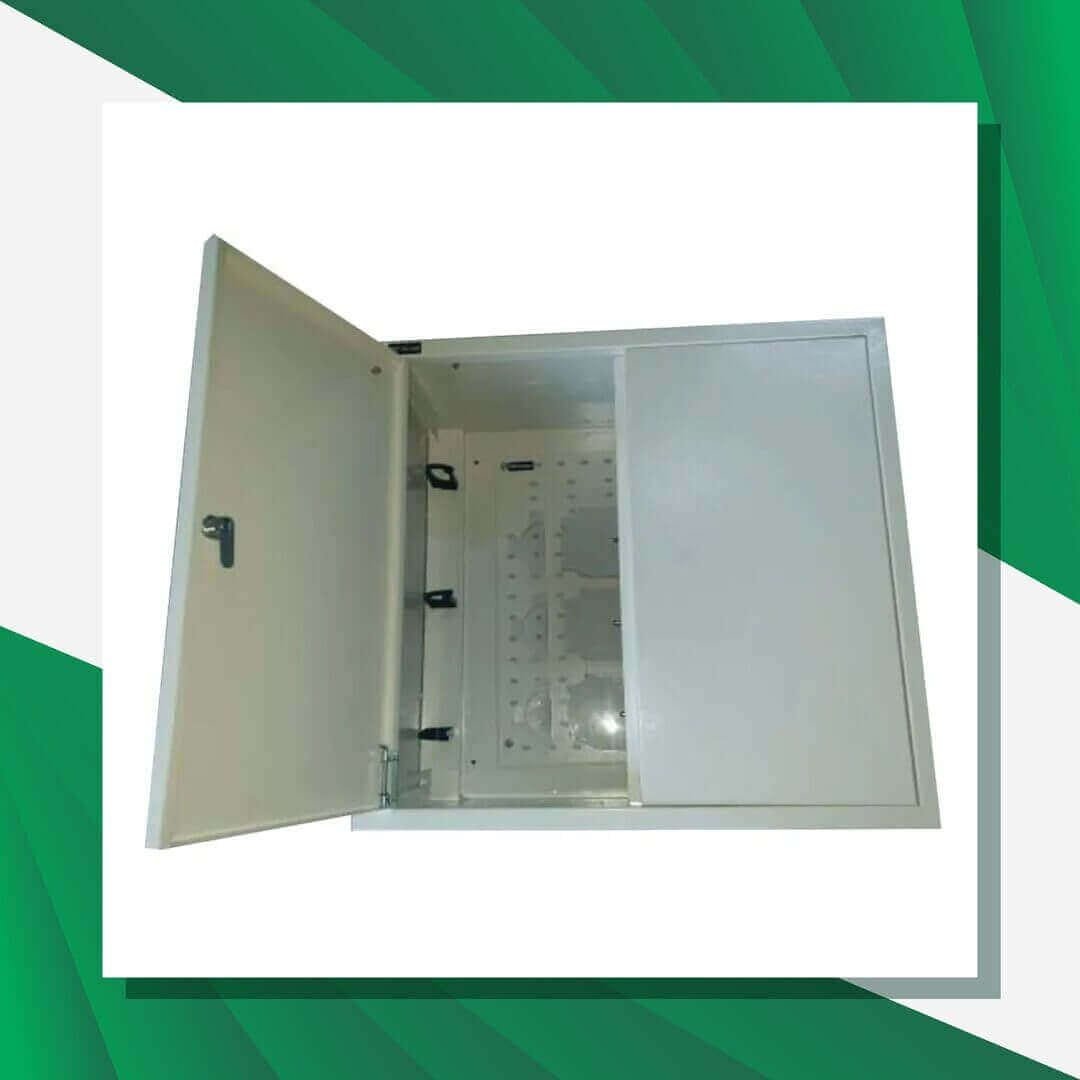

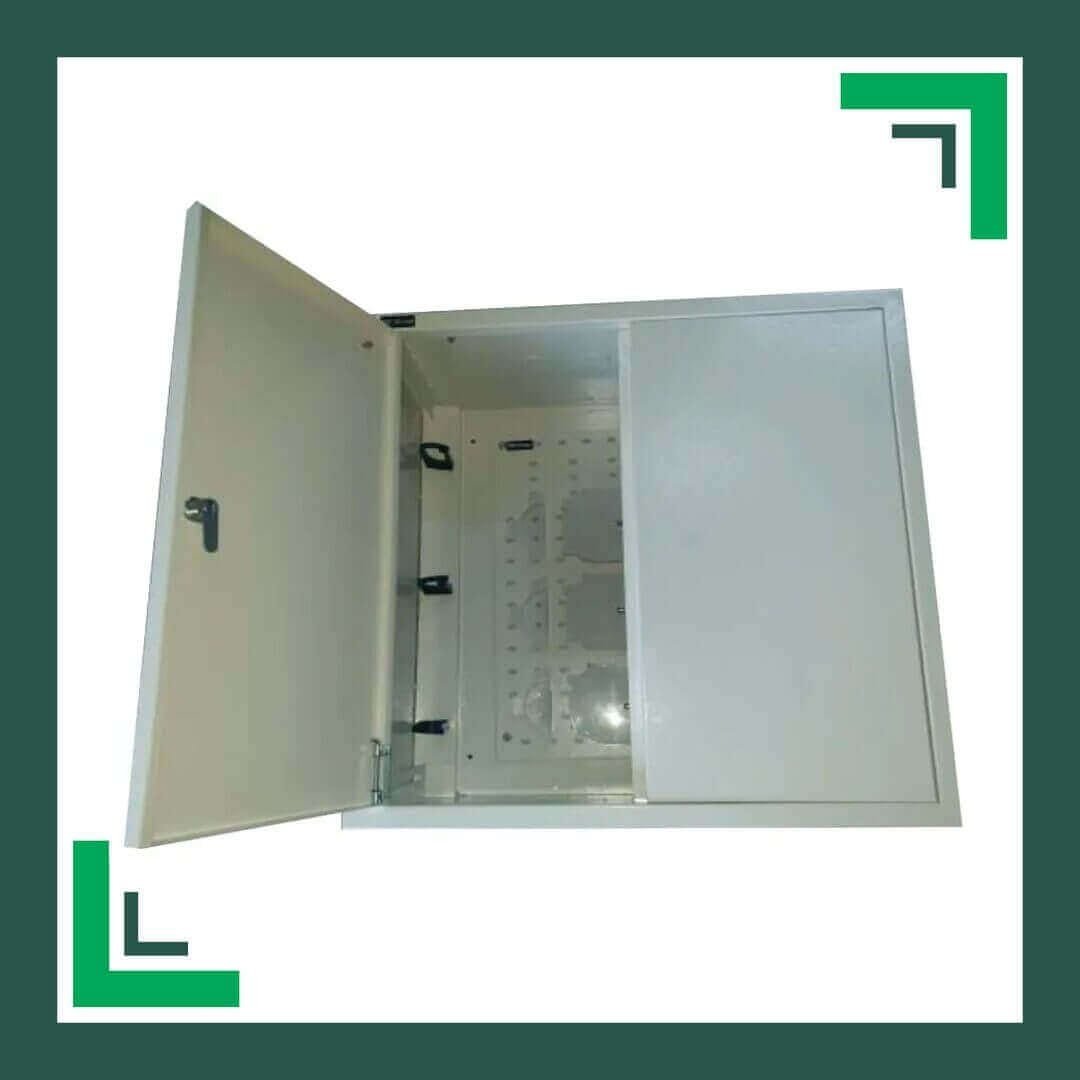

TMT Global Optical distribution Frame ODF Wall Mounted 144core

TMT GLOBAL 144 core odf wall mounted optical distribution frame provides efficient cable connections between outside plant cables and equipment inside the buildings and communications facilities. Box integrates fiber splicing, storage and cable connections together in a unit. They can manage both bundle type and ribbon type fiber cables. It is with large working space to integrate the pigtail, cables and adapters for fiber management.

All TMT Global Products meet or Exceed Rigorous Industry and Regulatory Standards for Quality Reliability and efficiency. From Design and Fabrication to Finished Product Assembly each phase in the Manufacturing process is rigorously monitored and measured to ensure the highest quality durability and operating excellence.

Features
Suitable for Wall Mounted
24/48/72/96/128/244/288 fiber capacity
Lockable Front Cover
Suitable Cable Connection
Steel Constructional Structure
Top and bottom cable entry
welded steel frame and gland plates at the top and bottom for cable entry
Wall mounting holes at the rear for easy mounting

Application:
Telecommunications,
Fiber to the home (FTTH),
LAN / WAN, CATV
IPTV
CCTV

Specifications

• Material: Cold-roll steel
• Coating: electrostatic painting
• Maximum Splice Tray: 12
• Maximum splicing  per Tray: 24
• Splicing Capacity: 24-288 Core
• Operating temperature: -25℃ to +80℃
• Atmospheric pressure: 70~-106Kpa
• Standard working wavelength: 850nm, 1310nm, 1550nm
• Dimensions（L*h*W): 600X600X300/150MM
• Housing thickness: 1.5mm
• Durability: Lifetime
• Weight: 8KG
