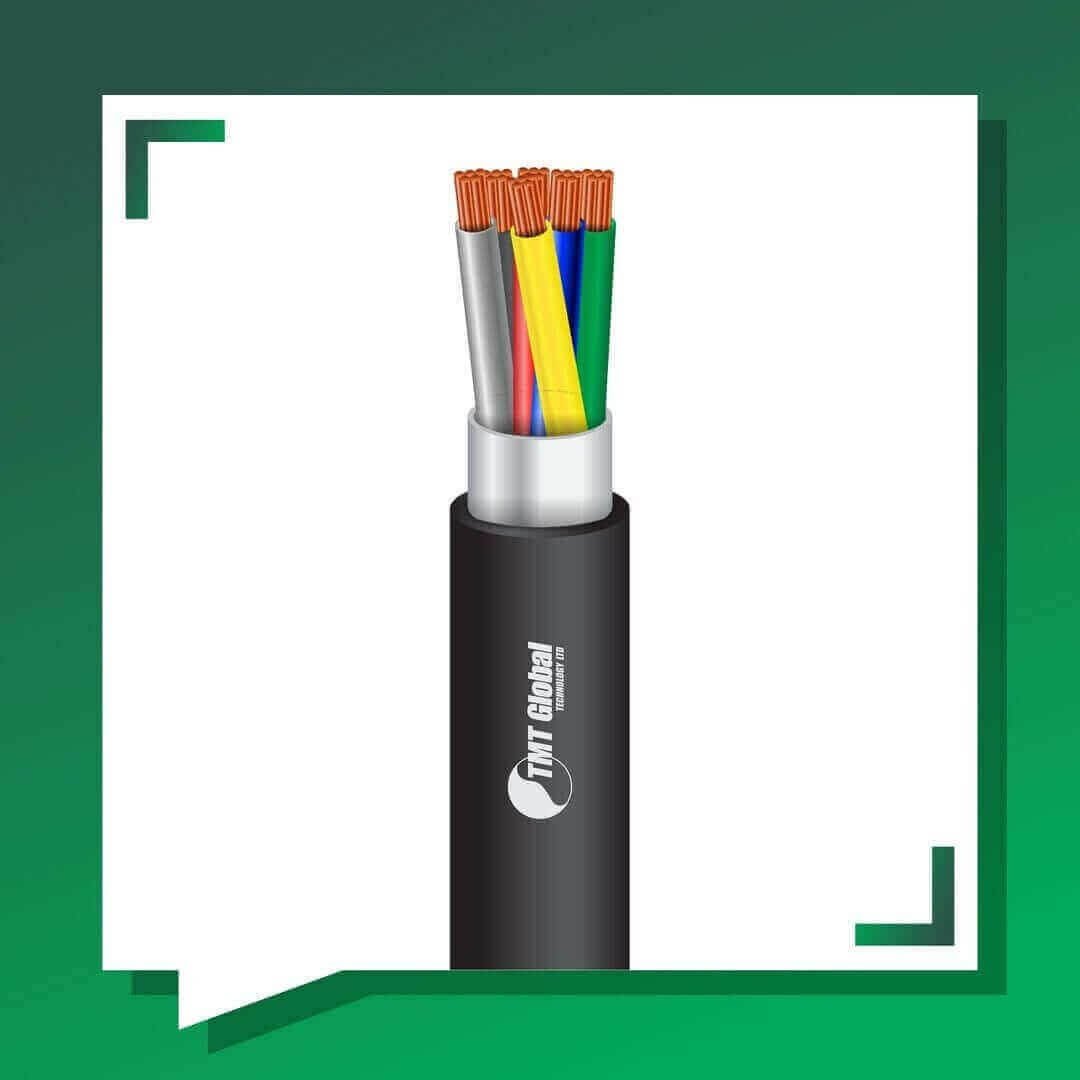

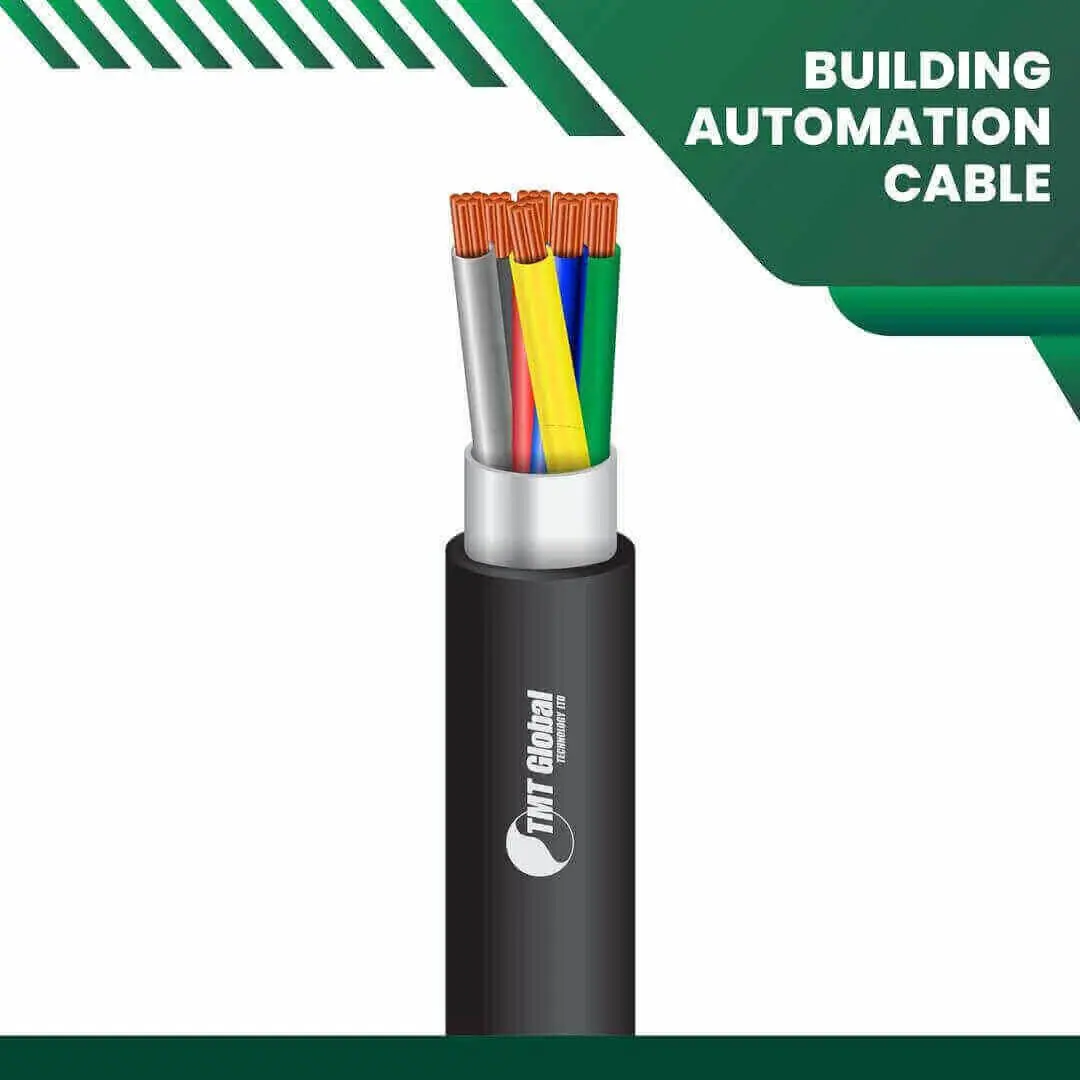

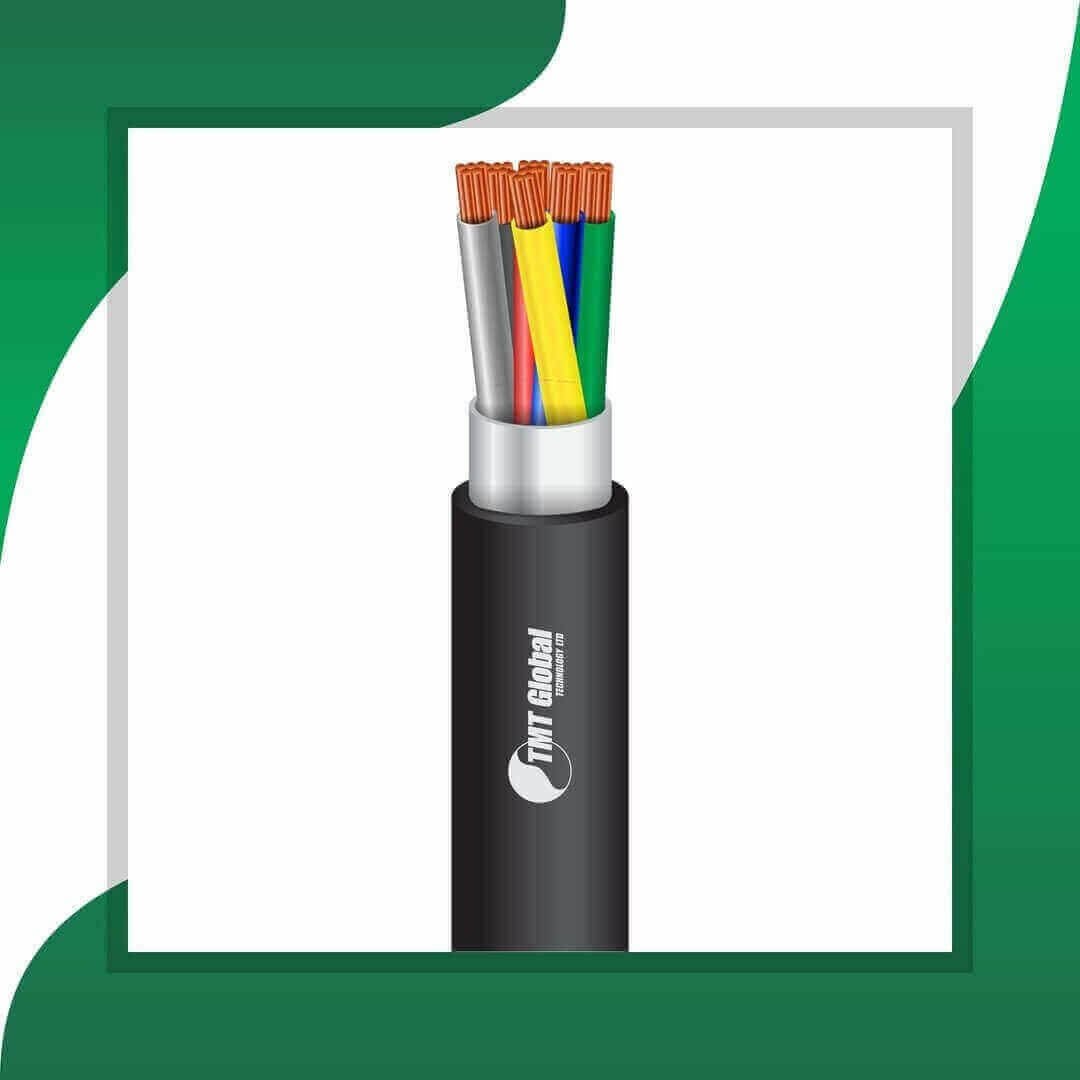

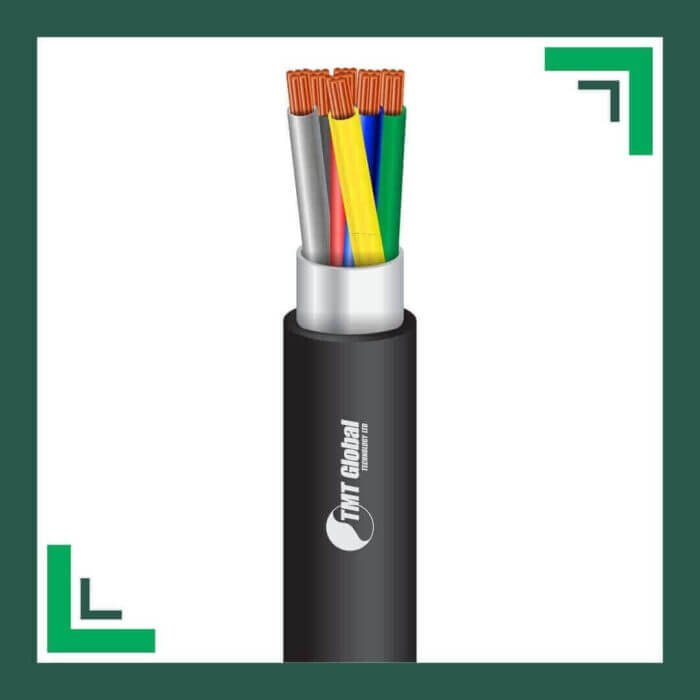

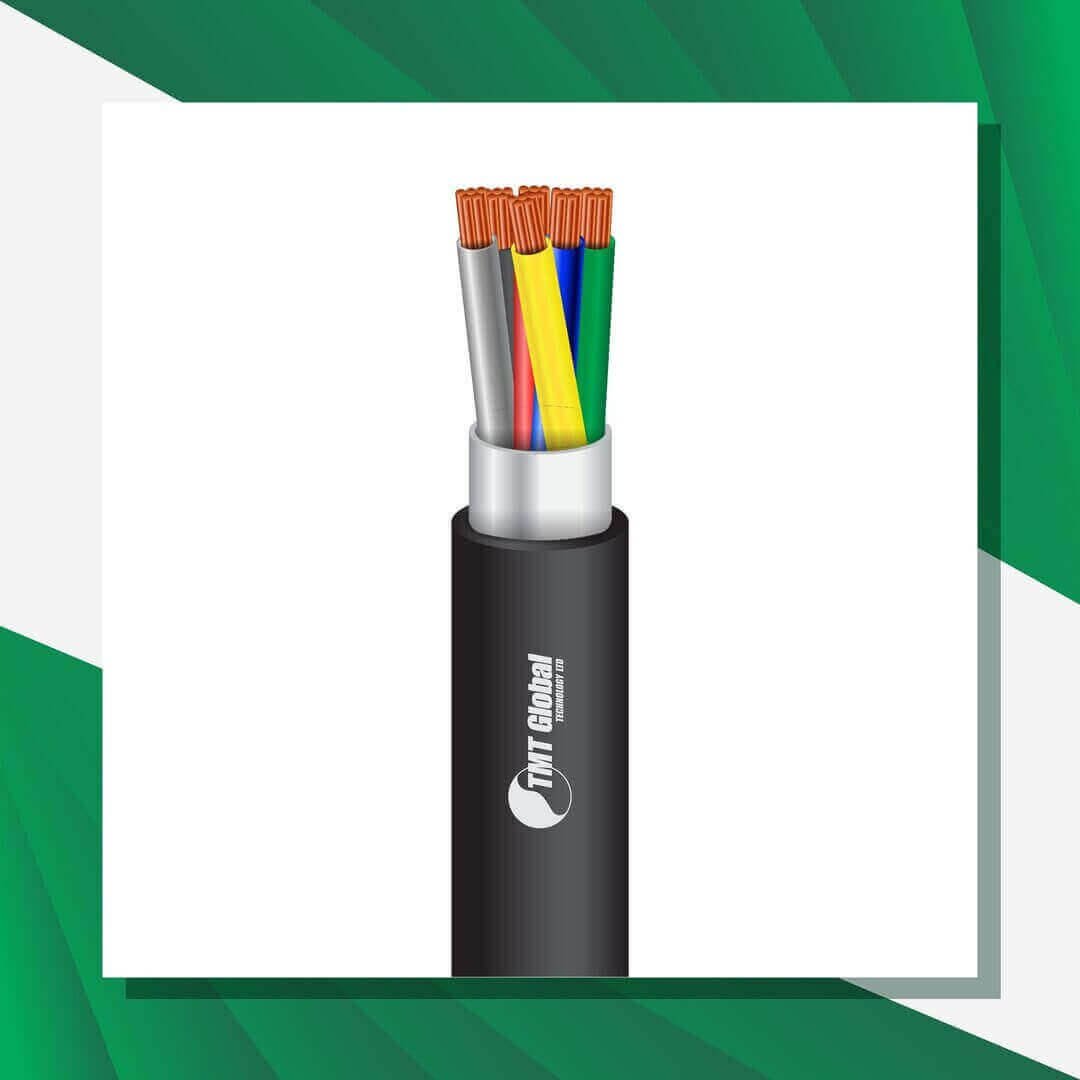

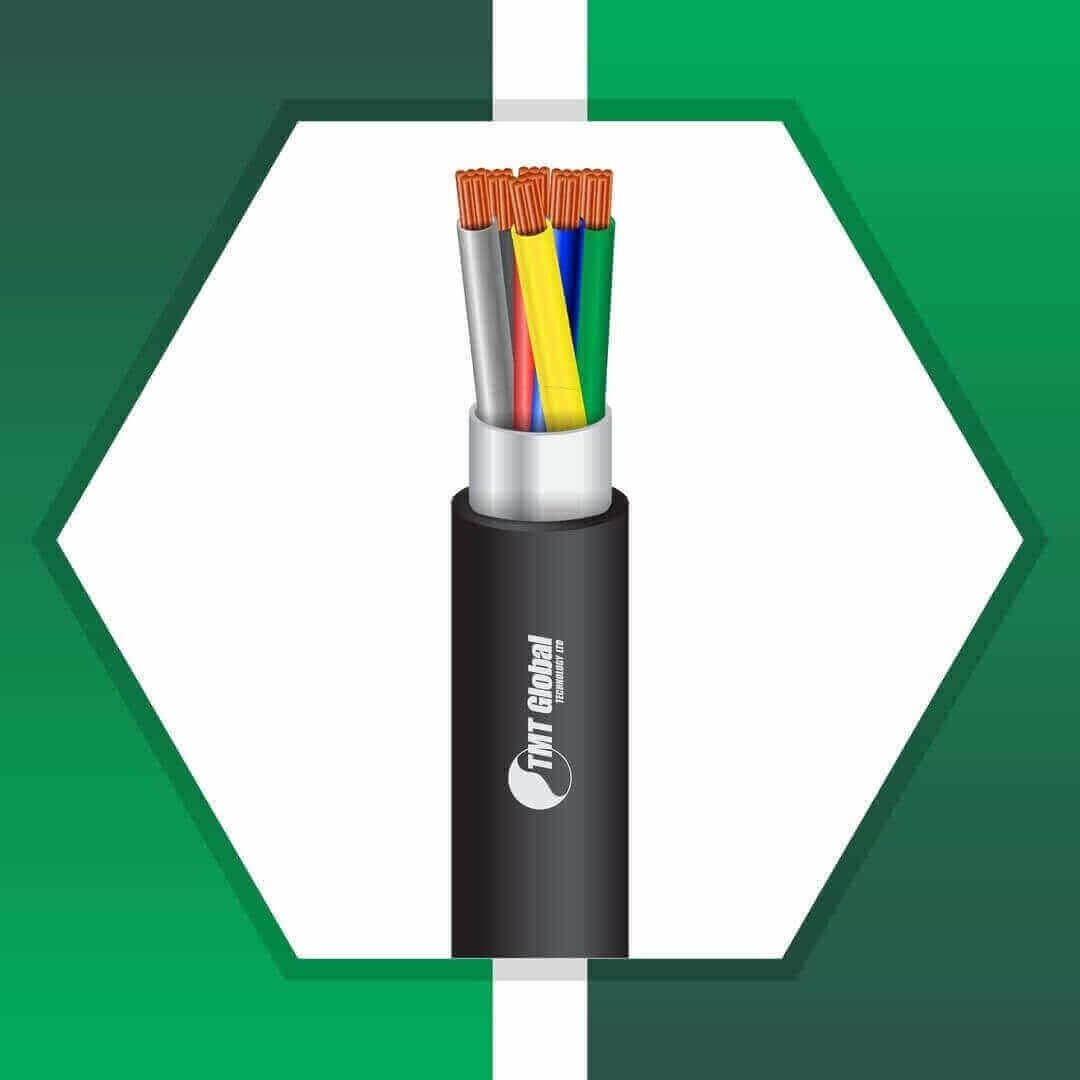

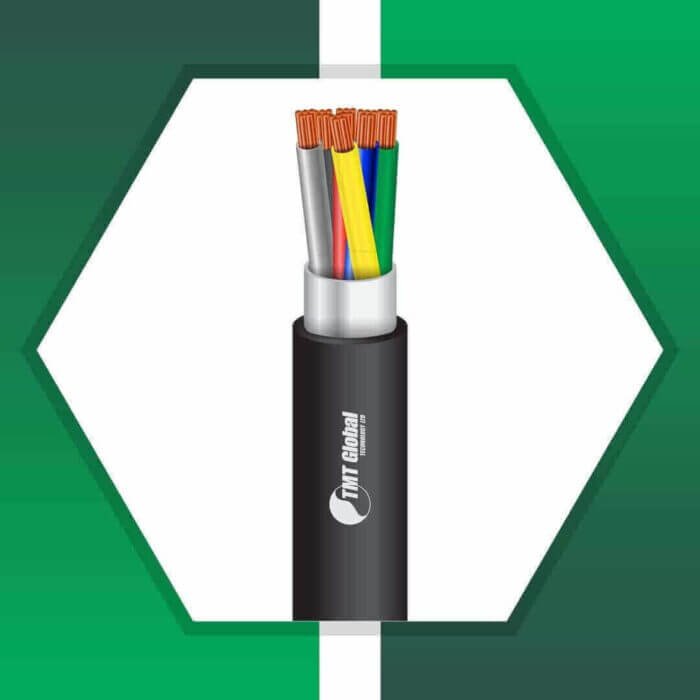

6 Core Foil Shielded Control Cable

Choosing the 6 Core Foil Shielded Control Cable

Six cores can wire a complete door: reader, lock, exit button and door contact in one run. An overall aluminium/polyester foil screen with drain wire blocks high-frequency interference, so it suits signal and data circuits that share containment with other cabling.

Related options in this range: 4 Core Foil Shielded Control Cable · 5 Core Foil Shielded Control Cable · 7 Core Foil Shielded Control Cable · 8 Core Foil Shielded Control Cable · 6 Core Foil + Braid Shielded Control Cable · 6 Core Unshielded Control Cable

Order code: 06S-BA. Send us the length, jacket and quantity for a project quotation and datasheet.

TMT 6 Core Foil Shielded Control Cable Series

TMT Global 6 Core Foil Shielded Control Cable is a configurable multicore control-cable family for machinery, control panels, building services and low-voltage automation interconnection. The product page fixes the 6-core foil shielded construction, while the TMT Series ordering table provides exact AWG and jacket-specific item codes for customer search, quotation and project selection.

KEY FEATURES

• 6-core controlled construction

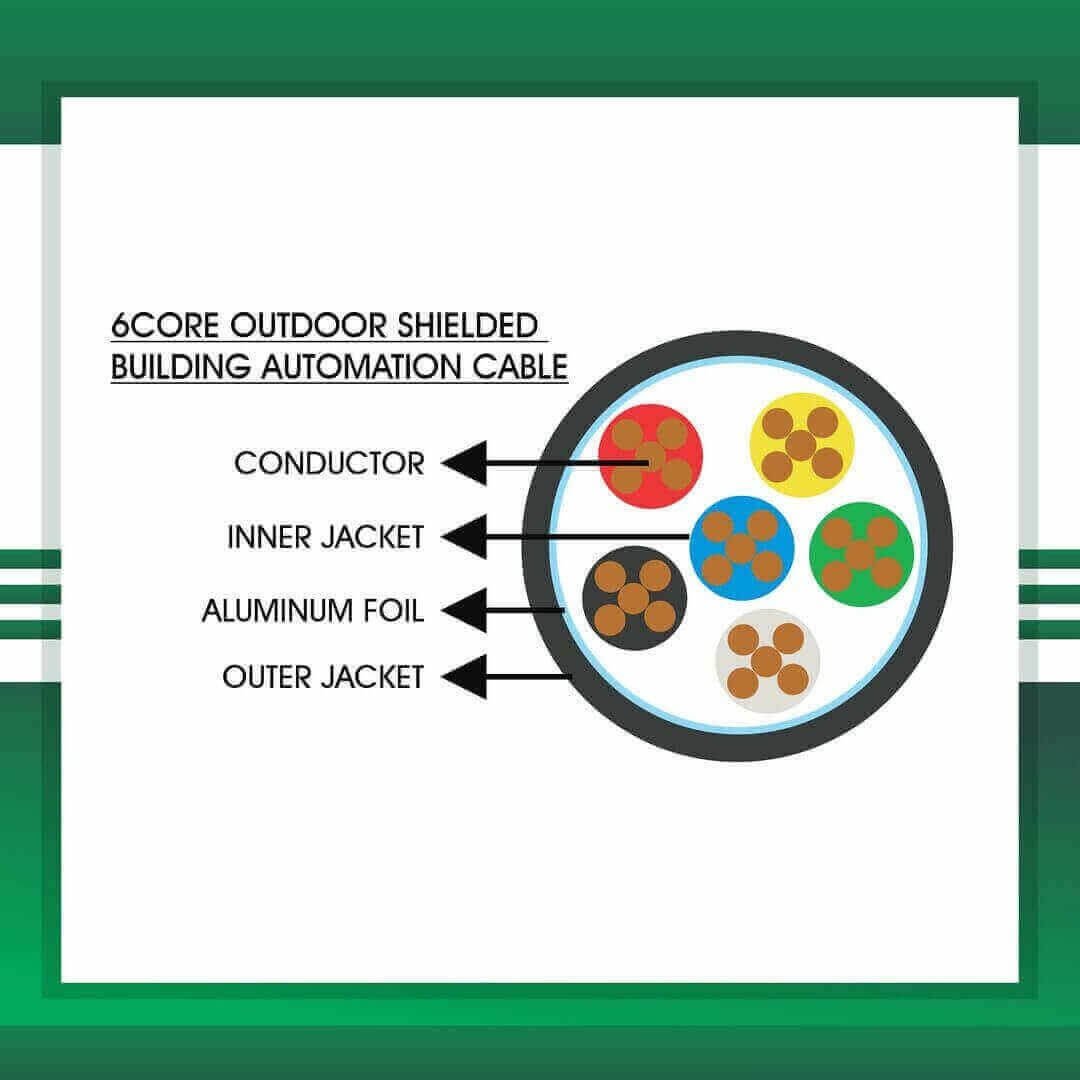

• Overall aluminium/polyester foil + drain wire
• 12, 14, 16, 18, 20, 22, 23 and 24 AWG Series options
• PVC, LSZH and outdoor PE jacket choices
• Bare-copper conductor; solid or stranded by released drawing
• Exact searchable ordering code for every standard combination

TYPICAL APPLICATIONS

• Machine and equipment control circuits
• Control panels, switchboards and plant rooms
• Relays, contactors, actuators and interlock circuits
• Building automation and process-control interconnection
• Industrial facilities, commercial buildings and infrastructure

Technical Specification

AWG / NOMINAL AREA / SERIES AVAILABILITY
