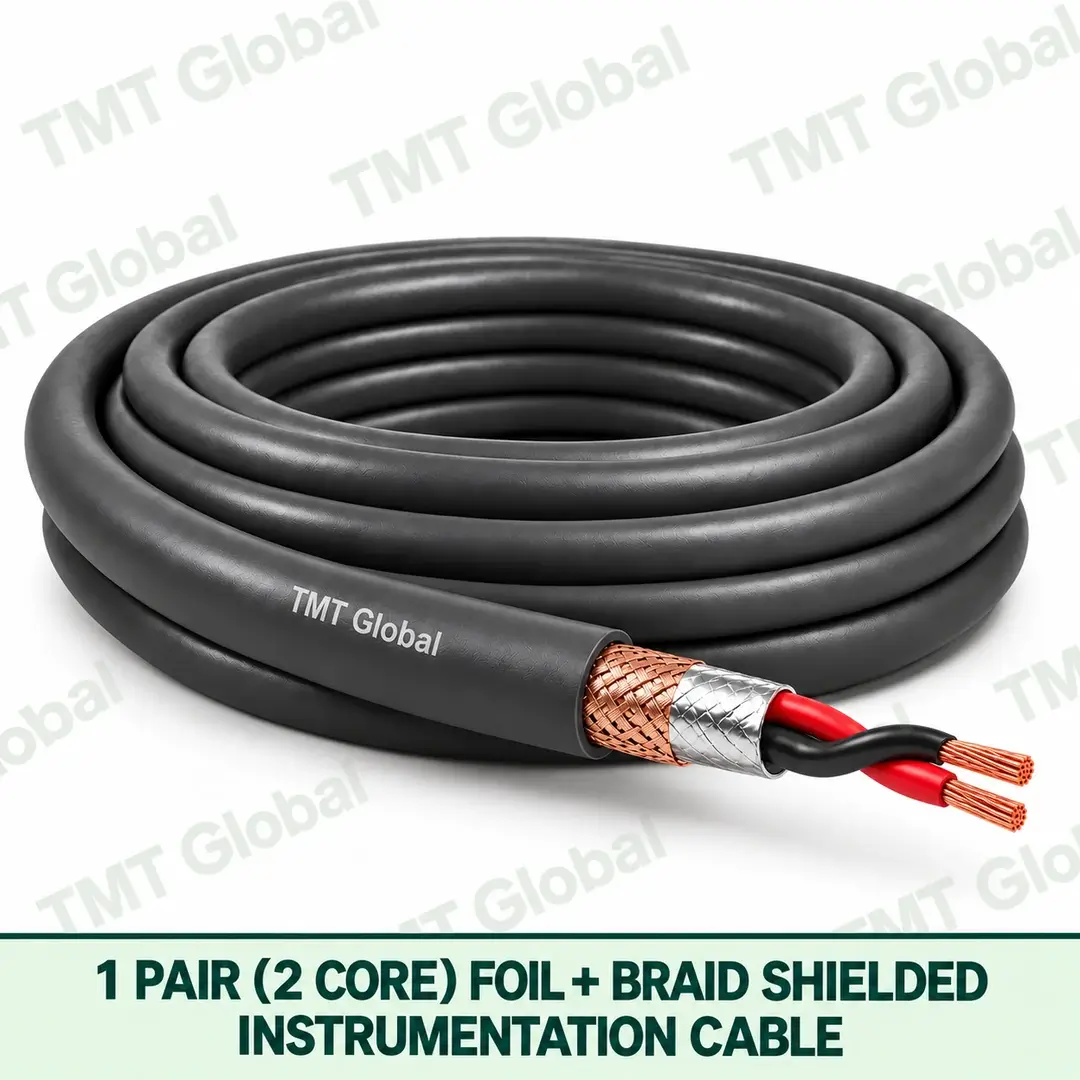

1 Pair (2 Core) Foil + Braid Shielded Instrumentation Cable

TMT 1 Pair (2 Core) Foil + Braid Shielded Instrumentation Cable Series

TMT Global 1 Pair (2 Core) Foil + Braid Shielded Instrumentation Cable is a configurable instrumentation-cable family for analogue, digital and process-control signals between field instruments, control panels, PLC/DCS systems and monitoring equipment. The product page fixes the 1 pair (2 core) foil + braid shielded construction, while the TMT Series ordering table provides exact AWG and jacket-specific item codes for customer search, quotation and project selection.

KEY FEATURES

• 1 Pair (2 Core) controlled twisted-pair construction
• Overall aluminium/polyester foil plus tinned-copper braid and drain wire
• 14, 16, 18, 20, 22 and 24 AWG Series options
• PVC, LSZH and outdoor PE jacket choices
• Bare-copper conductor; solid or stranded by released drawing
• Exact searchable ordering code for every standard combination

TYPICAL APPLICATIONS

• 4–20 mA and 0–10 V instrumentation loops
• Process measurement, transmitters and monitoring circuits
• PLC/DCS analogue and digital I/O wiring
• RTD, valve, actuator and positioner circuits
• Industrial plants, utilities and building-services systems

Technical Specification

AWG / NOMINAL AREA MATRIX
