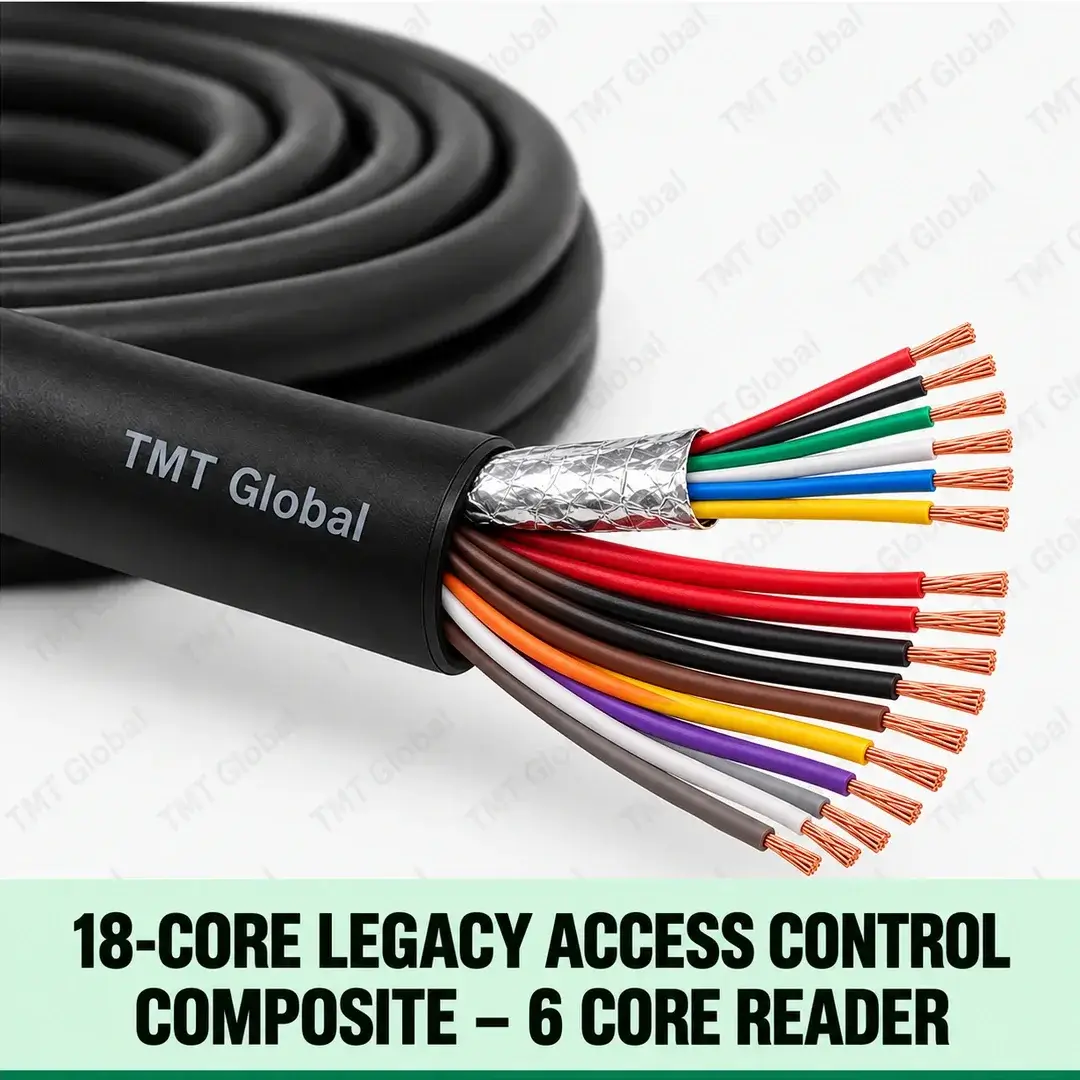

TMT Global 18-Core Legacy Access Control Composite – 6 Core Reader, black outer jacket with one six-core reader bundle plus twelve separately insulated access/lock power cores, exactly eighteen total insulated copper tips, foil shield around reader cores.

18 Core Legacy Access Control Composite – 6 Core Reader

KEY FEATURES

  • Access-control-specific construction
  • 6C22 + 4C22 + 4C22 + 4C18
  • Reader group shielded
  • 305 m standard package
  • Factory evidence required for released electrical values
Chat with Sales

Full specifications & datasheet: tmtglobal.co.uk →

Supplied in the UAE by AMSS from our Sharjah office (Industrial Area 18) and Dubai office (Naif, Deira), for projects across the Emirates. Request a quote

View / Print DatasheetContact Sales
0 People watching this product now!
Description

TMT 18 Core Legacy Access Control Composite – 6 Core Reader Series

TMT Global 18 Core Legacy Access Control Composite – 6 Core Reader is a controlled Security & ELV cable family for professional door access-control installations. Eighteen-conductor composite access-control cable using a six-core reader group with dedicated door-contact, REX/spare and lock-power sections. It remains separate from the 16-core pairised reader construction. Jacket and permitted conductor-size variations remain exact searchable Series rows under this product page.

KEY FEATURES

  • Access-control-specific construction
  • 6C22 + 4C22 + 4C22 + 4C18
  • Reader group shielded
  • 305 m standard package
  • Factory evidence required for released electrical values

APPLICATIONS

  • Single-door access systems
  • Six-wire reader systems
  • Integrated door cabling

AWG / NOMINAL AREA / SERIES AVAILABILITY

Additional information
AWG22 awg
BrandTMT Global
ColourBlack, Grey
Jacket TypePVC, LSZH, PE Outdoor
Length305 m
