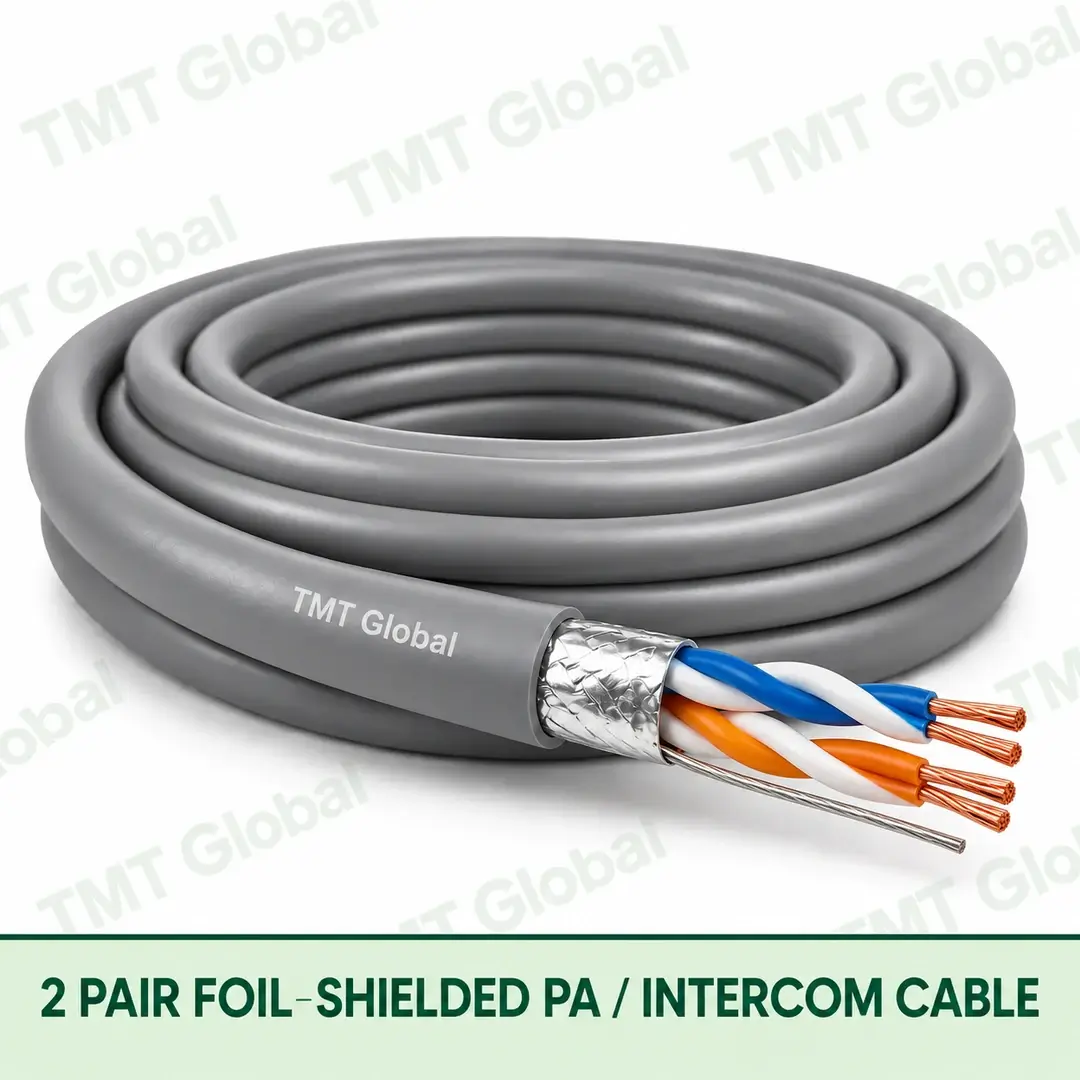

2 Pair Foil-Shielded PA / Intercom Cable

KEY FEATURES

  • Two twisted pairs / four conductors
  • Overall foil screen and drain wire
  • Balanced-audio and control geometry
  • PVC, LSZH and PE Outdoor variants
  • Dedicated PI pair-cable suffix
Chat with Sales

Supplied in the UAE by AMSS from our Sharjah office (Industrial Area 18) and Dubai office (Naif, Deira), for projects across the Emirates. Request a quote

0 People watching this product now!
Description

Choosing the 2 Pair Foil-Shielded PA / Intercom Cable

Choose PA system cable by conductor size for the run length and line load, then by jacket for the building and route. Jacket options: PVC for general indoor routes, LSZH where low smoke and zero halogen are specified for occupied buildings, PE for outdoor routes.

  • Type: Screened PA / intercom pair cable
  • Cores / pairs: 2 twisted pairs / 4 cores
  • Conductor size: 18 AWG / 20 AWG / 22 AWG / 24 AWG
  • Conductor: Stranded copper conductors
  • Screen: Overall foil screen
  • Drain wire: Drain wire included
  • Package: 305 m standard package

Related options in this range: 4 Pair Foil-Shielded PA / Intercom Cable · 2 Core Standard Fire-Resistant Voice Alarm Cable · 3 Core Standard Fire-Resistant Voice Alarm Cable · 4 Core Standard Fire-Resistant Voice Alarm Cable

Order code: 02P-S-PI. Send us the length, jacket and quantity for a project quotation and datasheet.

TMT Global 2 Pair Foil-Shielded PA / Intercom Cable Series

TMT Global 2 Pair Foil-Shielded PA / Intercom Cable uses two twisted pairs under an overall foil screen for balanced audio, paging, call-station and auxiliary control signals. The PI suffix separates pair geometry from four-core non-paired PA cable and prevents item-code collisions.

KEY FEATURES

  • Two twisted pairs / four conductors
  • Overall foil screen and drain wire
  • Balanced-audio and control geometry
  • PVC, LSZH and PE Outdoor variants
  • Dedicated PI pair-cable suffix

TYPICAL APPLICATIONS

  • Balanced PA audio links
  • Intercom call stations
  • Paging and control circuits
  • Commercial-audio interfaces
  • Two-channel low-level audio

Technical Specification

AWG / NOMINAL AREA / SERIES AVAILABILITY

Additional information
ColourBlack, Grey
BrandTMT Global
AWG18 awg, 20 awg, 22 awg, 24 awg
Jacket TypePVC, LSZH, PE Outdoor
Length305 m
