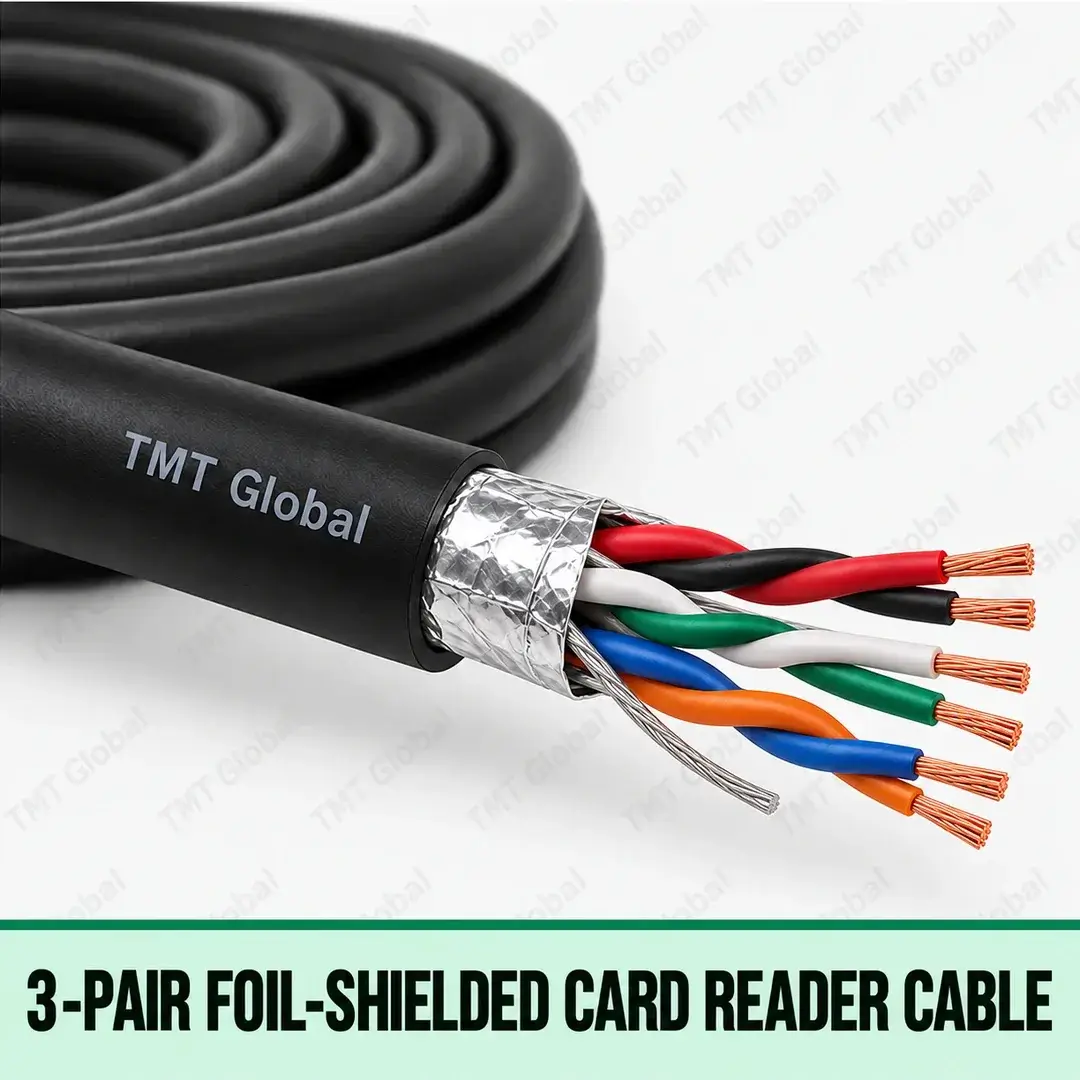

TMT Global 3-Pair Foil-Shielded Card Reader Cable, black outer jacket, foil wrap around three separately twisted color-coded pairs and drain wire, exactly six insulated copper conductors with six visible tips.

3 Pair Foil-Shielded Card Reader Cable

KEY FEATURES

  • Access-control-specific construction
  • 3PR 22/24 AWG
  • Overall foil + drain
  • 305 m standard package
  • Factory evidence required for released electrical values
Chat with Sales
View / Print DatasheetContact Sales
0 People watching this product now!
Description

TMT 3 Pair Foil-Shielded Card Reader Cable Series

TMT Global 3 Pair Foil-Shielded Card Reader Cable is a controlled Security & ELV cable family for professional door access-control installations. Three-pair shielded access-control reader cable for installations that benefit from pairised signal grouping and controlled shield continuity. Jacket and permitted conductor-size variations remain exact searchable Series rows under this product page.

KEY FEATURES

  • Access-control-specific construction
  • 3PR 22/24 AWG
  • Overall foil + drain
  • 305 m standard package
  • Factory evidence required for released electrical values

APPLICATIONS

  • Card readers
  • Keypads
  • Legacy reader interfaces

Technical Specifications

PARAMETER TECHNICAL SPECIFICATION
Product family 3 Pair Foil-Shielded Card Reader Cable
Series 03P-AP
Primary function Pairised reader
Conductor schedule 3PR 22/24 AWG
Conductor construction Stranded copper conductors
Screening Overall foil + drain
Cable form Round / common jacket
Jacket options PVC / LSZH / PE Outdoor
Standard colours Grey / Black
Standard package 305 m
Installation / protocol Legacy reader access-control wiring
Series status PVC / LSZH: Core market; PE Outdoor: Outdoor / project

AWG / NOMINAL AREA / SERIES AVAILABILITY

AWG NOMINAL AREA (mm²) SERIES AVAILABILITY
22 AWG 0.326 PVC / LSZH / PE Outdoor
24 AWG 0.205 PVC / LSZH / PE Outdoor
Additional information
AWG22 awg, 24 awg
BrandTMT Global
ColourBlack, Grey
Jacket TypePVC, LSZH, PE Outdoor
Length305 m
Download

For Products Specification /PDF

HTTPS://TMTGLOBAL.CO.UK

Ordering Information
Item NameItem Code / SKUSeriesAWG / mm²JacketColourPackQR Code
3 Pair Foil-Shielded Card Reader Cable03P-AP22 awgPVCGrey305 m QR code for 0622BPSRG-AP
3 Pair Foil-Shielded Card Reader Cable03P-AP22 awgLSZHGrey305 m QR code for 0622BLSRG-AP
3 Pair Foil-Shielded Card Reader Cable03P-AP22 awgPE OutdoorBlack305 m QR code for 0622BKSRK-AP
3 Pair Foil-Shielded Card Reader Cable03P-AP24 awgPVCGrey305 m QR code for 0624BPSRG-AP
3 Pair Foil-Shielded Card Reader Cable03P-AP24 awgLSZHGrey305 m QR code for 0624BLSRG-AP
3 Pair Foil-Shielded Card Reader Cable03P-AP24 awgPE OutdoorBlack305 m QR code for 0624BKSRK-AP
