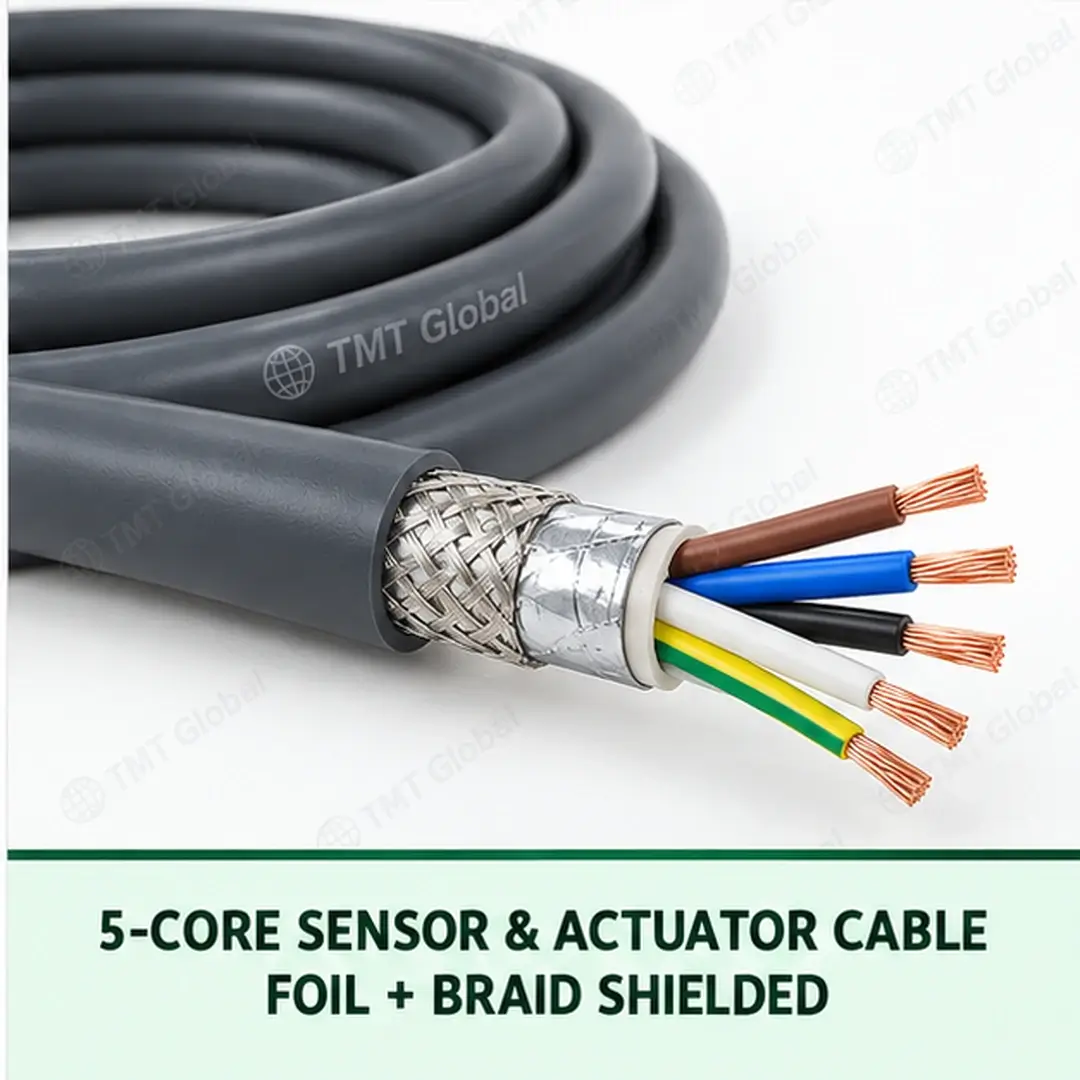

5 Core Foil + Braid Shielded Sensor & Actuator Cable

Choosing the 5 Core Foil + Braid Shielded Sensor & Actuator Cable

Five cores wire several field devices from one distribution box. Foil plus tinned-copper braid gives the strongest protection against electrical noise and adds mechanical strength, which is why it is the usual choice in plant rooms, near VFDs and motors, and across industrial sites.

Related options in this range: 3 Core Foil + Braid Shielded Sensor & Actuator Cable · 4 Core Foil + Braid Shielded Sensor & Actuator Cable · 6 Core Foil + Braid Shielded Sensor & Actuator Cable · 8 Core Foil + Braid Shielded Sensor & Actuator Cable · 5 Core Foil Shielded Sensor & Actuator Cable · 5 Core Unshielded Sensor & Actuator Cable

Order code: 05B-SN. Send us the length, jacket and quantity for a project quotation and datasheet.

TMT Global 5 Core Foil + Braid Shielded Sensor & Actuator Cable Series

TMT Global 5 Core Foil + Braid Shielded Sensor & Actuator Cable is a configurable bulk-cable family for multi-function sensors, valve or actuator feedback and M12-style field interfaces. The product page fixes the 5-core foil + braid shielded construction, while the TMT Series ordering table provides exact AWG and jacket-specific item codes for customer search, quotation and project selection.

KEY FEATURES

• 5 individually insulated bare-copper conductors
• Overall foil + tinned-copper braid + drain wire
• 18, 20, 22, 24 and 26 AWG Series options
• PVC, LSZH and outdoor PE jacket choices
• Round bulk-cable construction for fixed field wiring
• Exact searchable ordering code for every standard combination

TYPICAL  APPLICATIONS

• multi-function sensors, valve or actuator feedback and M12-style field interfaces
• building automation and industrial sensor circuits
• proximity, photoelectric, pressure, temperature and level devices
• actuator, valve, feedback and compact field-I/O connections
• electrically noisy routes requiring screened signal integrity

Technical Specification

AWG / NOMINAL AREA / SERIES AVAILABILITY
