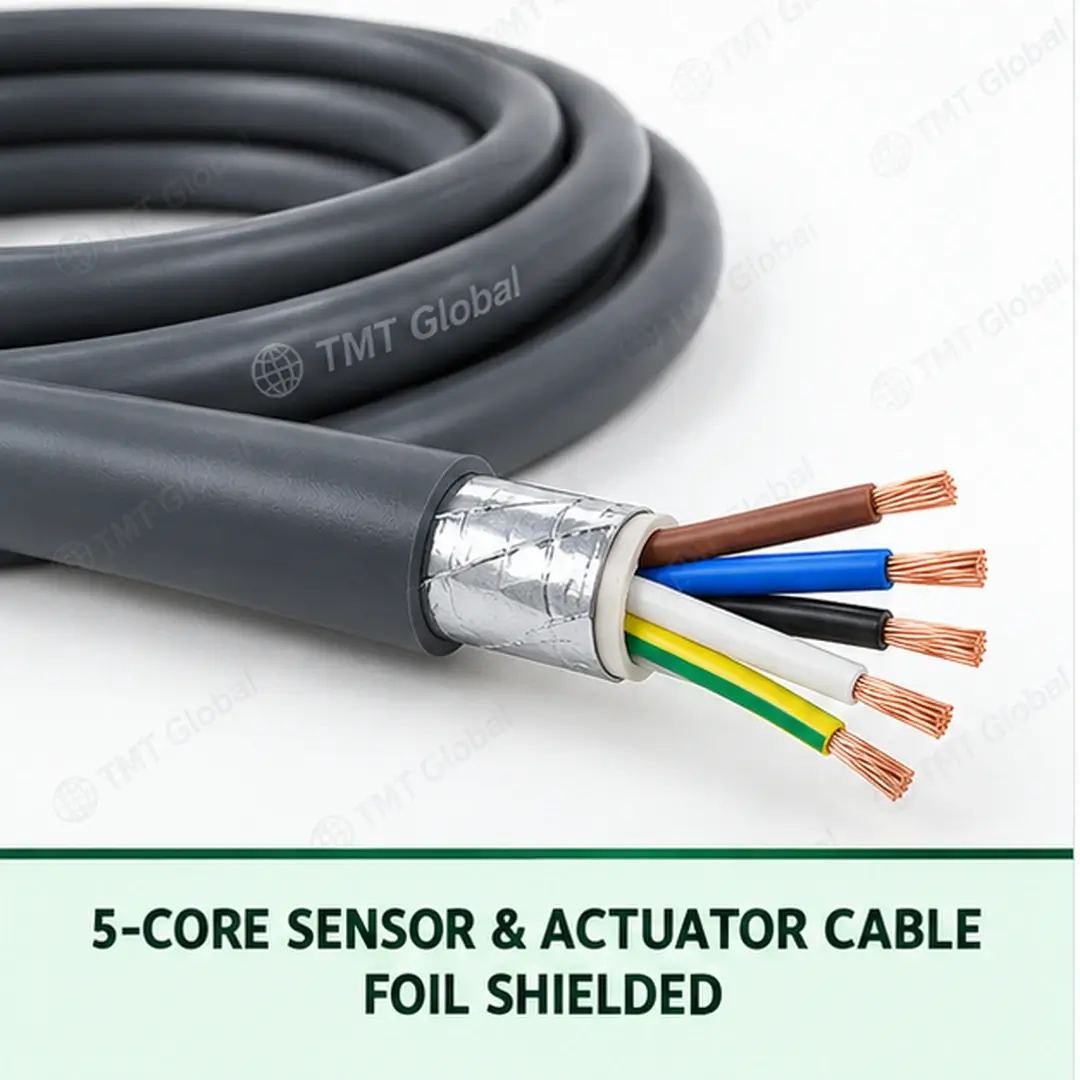

5 Core Foil Shielded Sensor & Actuator Cable

Choosing the 5 Core Foil Shielded Sensor & Actuator Cable

Five cores wire several field devices from one distribution box. An overall aluminium/polyester foil screen with drain wire blocks high-frequency interference, so it suits signal and data circuits that share containment with other cabling.

Related options in this range: 3 Core Foil Shielded Sensor & Actuator Cable · 4 Core Foil Shielded Sensor & Actuator Cable · 6 Core Foil Shielded Sensor & Actuator Cable · 8 Core Foil Shielded Sensor & Actuator Cable · 5 Core Foil + Braid Shielded Sensor & Actuator Cable · 5 Core Unshielded Sensor & Actuator Cable

Order code: 05S-SN. Send us the length, jacket and quantity for a project quotation and datasheet.

TMT Global 5 Core Foil Shielded Sensor & Actuator Cable  Series

TMT Global 5 Core Foil Shielded Sensor & Actuator Cable is a configurable bulk-cable family for multi-function sensors, valve or actuator feedback and M12-style field interfaces. The product page fixes the 5-core foil shielded construction, while the TMT Series ordering table provides exact AWG and jacket-specific item codes for customer search, quotation and project selection.

KEY FEATURES

• 5 individually insulated bare-copper conductors
• Overall aluminium/polyester foil + tinned-copper drain wire
• 18, 20, 22, 24 and 26 AWG Series options
• PVC, LSZH and outdoor PE jacket choices
• Round bulk-cable construction for fixed field wiring
• Exact searchable ordering code for every standard combination

TYPICAL  APPLICATIONS

• multi-function sensors, valve or actuator feedback and M12-style field interfaces
• building automation and industrial sensor circuits
• proximity, photoelectric, pressure, temperature and level devices
• actuator, valve, feedback and compact field-I/O connections
• electrically noisy routes requiring screened signal integrity

Technical Specification

AWG / NOMINAL AREA / SERIES AVAILABILITY
