cat6a 23awg 4pair u-ftp LSZH 305m TMT Global cables grey
Rated 5.00 out of 5 based on 1 customer rating
د.إ 360,00
General Specification:
Conductor: TMT Copper
Conductor Size: 23AWG
No. Of Pairs: 4 twisted pairs
Overall Coverage: N/L
Outer Jacket: LSZH
Jacket Color: Black /Grey/Blue/Orange/ Green/White/Aqua/ Yellows/Violet/Red
Packing: 305m / Box
Item Code: 6A336MLB
color |
Blue ,Black ,Gray ,Green ,Orange ,Red ,Violet ,white ,Yellow ,Aqua |
---|---|
Brand |
TMT GLOBAL |
0
People watching this product now!
Description
TMT cat6a 23awg 4pair u-ftp LSZH 305m TMT Global cables grey
TMT Global cat6a 23awg 4pair u-ftp LSZH 305m TMT Global cables grey are manufactured tested and complied with ANSI/TIA/568.2-D CENELEC EN 50288-5IEC 61156-5 (ISO/IEC-11801 Class -Ea). Cat6a Series is Designed to ensure the highest levels of performance, reliability, and longevity, and are ideal for large enterprise and small business

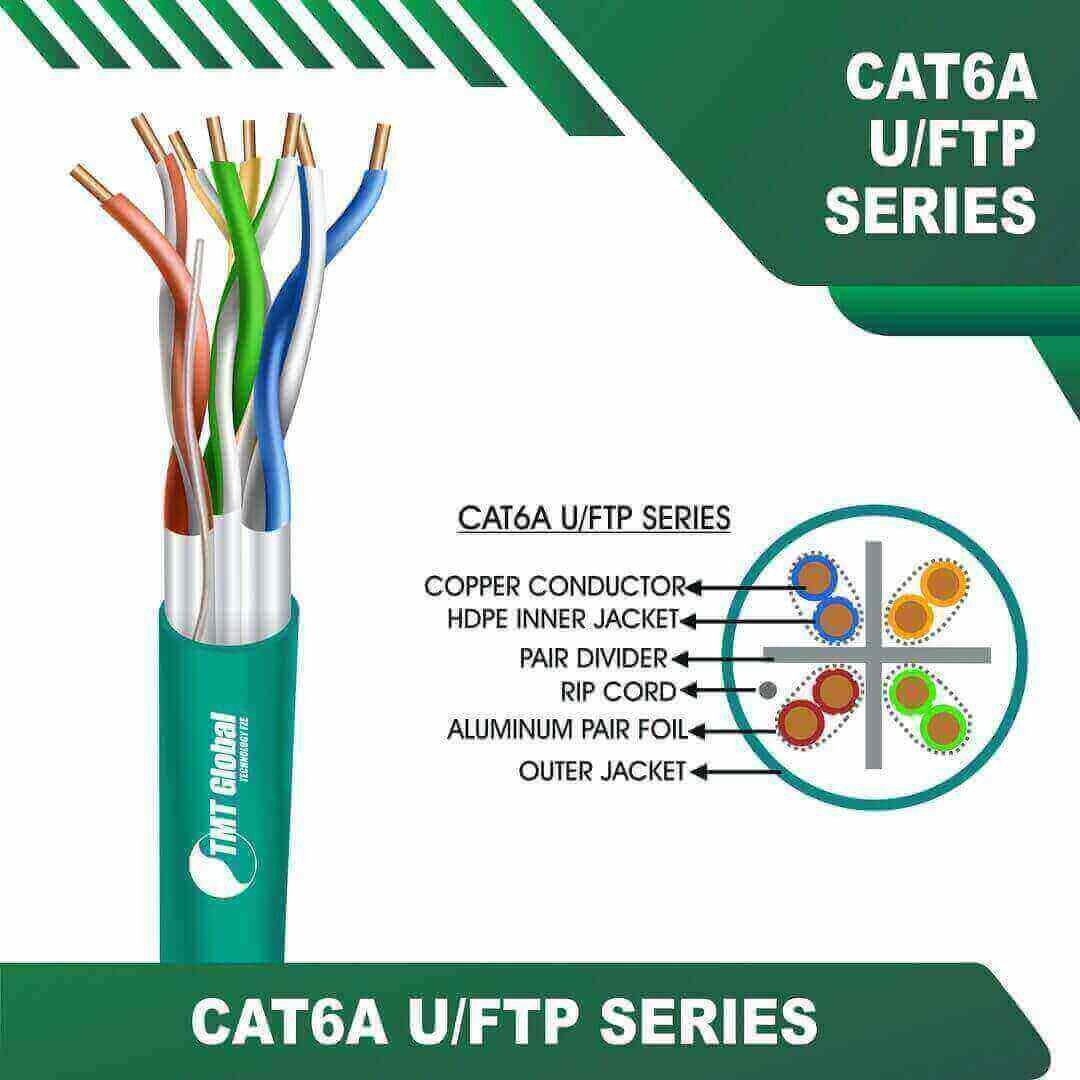

PHYSICAL AND MECHANICAL PROPERTIES
Basic Conductor: 23AWG TMT Copper
Insulation: HDPE
Number of insulated conductors: 8 twisted in 4 pairs
Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown
Outer Jacket: LSZH
Standard Jacket Color: Black /Grey/Blue/Orange/ Green/White/Aqua/ Yellows/Violet/Red
Standard Surface Marking: Includes TMT Global P/N, cable description, Meter mark and Model Number
Pulling force: 110 N MAX
Short Term Bend Radius: 6xOD (Mm)
Storage Temperature: -20 To +80C
Temperature operating range: -20 to +60C
Installation temperature range: 0 to +50C
Flame Test: IEC 60332-1
ELECTRICAL SPECIFICATIONS
- Characteristic Impedance: 100―6 Ohm @ 1-100 MHz
- DC Resistance: 93 Ohm/Km max.
- Resistance unbalance: 2% max.
- Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz
- Cap. Unbalance (wire to ground): 1500 pF/Km max. @ 1 KHz.
- Voltage rating: 72 Vdc max.
- Dielectric strength: 1500 Volts/1 minute min rms
- Velocity of Propagation (NVP): 67-69%
- Insulation Resistance: 5000 MOhm•m min. @ 500 Vdc
- Coupling attenuation: IEC 61156-5 TYPE III
