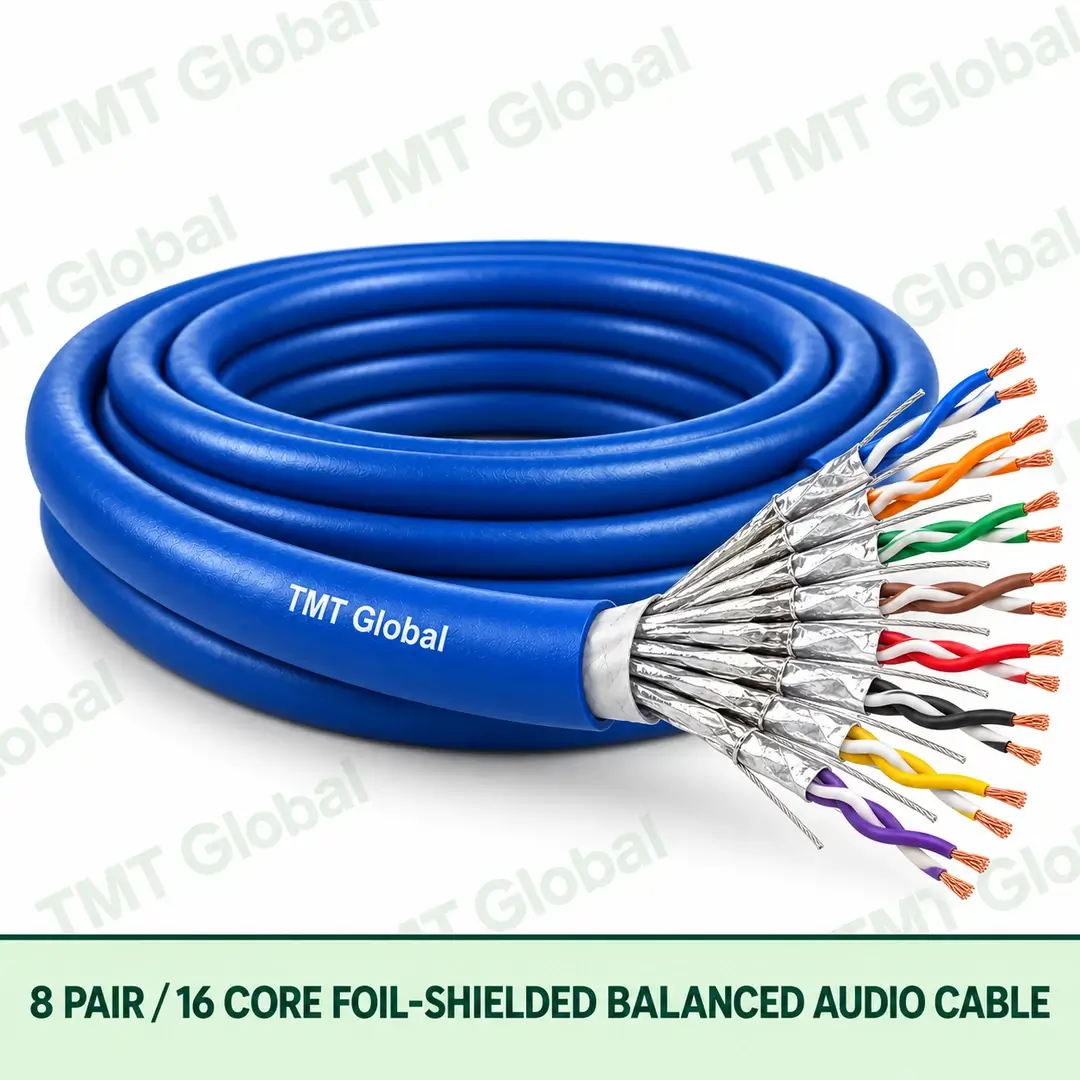

8 Pair / 16 Core Foil Shielded Balanced Audio Cable

KEY FEATURES

  • 8 twisted pairs / 16 colour-coded stranded copper conductors
  • Individual or overall aluminium/polyester foil screening with drain wire
  • 18, 20, 22, 24 AWG Series options
  • PVC, LSZH, PE Outdoor jacket choices
  • Low-capacitance audio construction subject to released factory design
  • Exact searchable ordering code for every approved combination
Chat with Sales

Supplied in the UAE by AMSS from our Sharjah office (Industrial Area 18) and Dubai office (Naif, Deira), for projects across the Emirates. Request a quote

0 People watching this product now!
Description

Choosing the 8 Pair / 16 Core Foil Shielded Balanced Audio Cable

8 pairs make it a multicore snake: up to 8 balanced channels between stage boxes, AV racks and mixing positions in one cable. An overall aluminium/polyester foil screen with drain wire blocks high-frequency interference, so it suits signal and data circuits that share containment with other cabling.

Related options in this range: 2 Pair / 4 Core Foil Shielded Balanced Audio Cable · 4 Pair / 8 Core Foil Shielded Balanced Audio Cable · 12 Pair / 24 Core Foil Shielded Balanced Audio Cable · 16 Pair / 32 Core Foil Shielded Balanced Audio Cable · 8 Pair / 16 Core 110 Ohm AES/EBU Digital Audio Cable · 8 Pair / 16 Core Foil + Braid Shielded Balanced Audio Cable

Order code: 16S-AU. Send us the length, jacket and quantity for a project quotation and datasheet.

TMT 8 Pair / 16 Core Foil Shielded Balanced Audio Cable Series

TMT Global 8 Pair / 16 Core Foil Shielded Balanced Audio Cable is a configurable balanced analogue line-level audio cable family for studios, broadcast rooms, AV racks, theatres, venues and installed sound systems. This page covers the 8-pair foil-screened construction; the ordering table lists the exact conductor-size and jacket order codes.

KEY FEATURES

  • 8 twisted pairs / 16 colour-coded stranded copper conductors
  • Individual or overall aluminium/polyester foil screening with drain wire
  • 18, 20, 22, 24 AWG Series options
  • PVC, LSZH, PE Outdoor jacket choices
  • Low-capacitance audio construction subject to released factory design
  • Exact searchable ordering code for every approved combination

TYPICAL APPLICATIONS

  • Balanced line-level analogue audio
  • Studio, broadcast and AV rack interconnection
  • Mixing consoles, patch bays and signal processors
  • Theatres, venues, hospitality and installed sound systems
  • Multipair audio snakes and central equipment rooms

Technical Specification

AWG / NOMINAL AREA / SERIES AVAILABILITY

Additional information
AWG18 awg, 20 awg, 22 awg, 24 awg
BrandTMT Global
ColourBlack, Blue
Jacket TypePVC, LSZH, PE Outdoor
Length305 m
