TMT GLOBAL cat5e cables f utp outdoor tmt global uae 305 meter are Manufactured Tested and Complied with ANSI/TIA/568.2-D CENELEC EN 50288-5IEC 61156-5 (ISO/IEC-11801 Class -Ea). Cat6a Series is Designed to Ensure the Highest levels of performance, reliability, and longevity, and are ideal for large enterprise and small business. types of communication cables global products range network cable tmt global products range network products range network cable cat3 pvc indoor outdoor ethernet cable

ELECTRICAL SPECIFICATIONS
Characteristic Impedance: 100―6 Ohm @ 1-100 MHz
DC Resistance: 93 Ohm/Km max.
Resistance unbalance: 2% max.
Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz
Cap. Unbalance (wire to ground): 1500 pF/Km max. @ 1 KHz.
Voltage rating: 72 Vdc max.
Dielectric strength: 1500 Volts/1 minute min rms
Velocity of Propagation (NVP): 67-69%
Insulation Resistance: 5000 Mega Ohm•Km min. @ 500 Vdc
Insulation Resistance: 45 nS/100m max @ 1-100 MHz
Coupling attenuation: 40 dB min @ 30-100

PHYSICAL AND MECHANICAL PROPERTIES

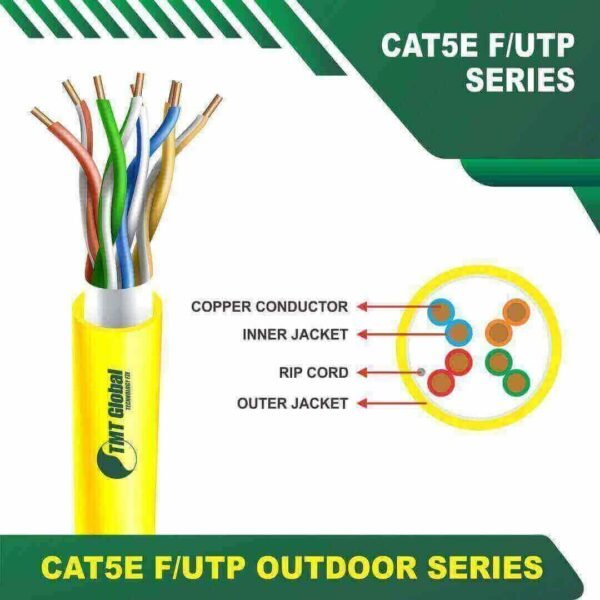

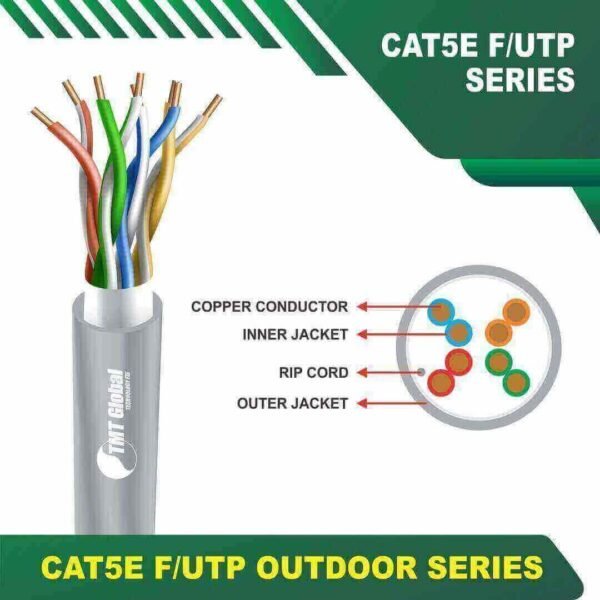

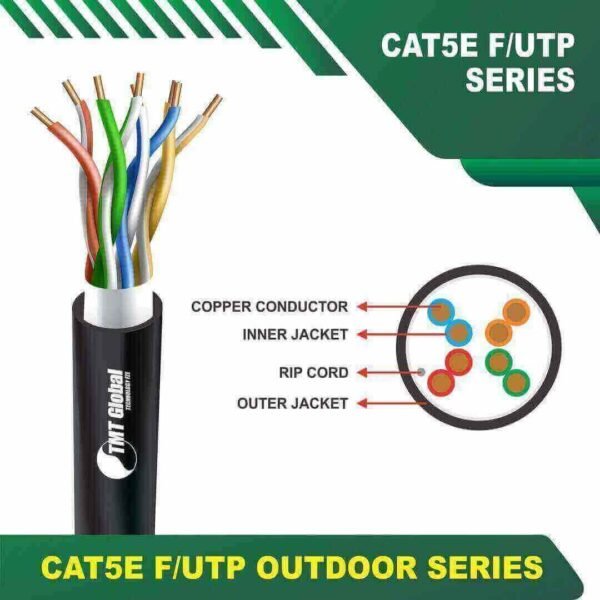

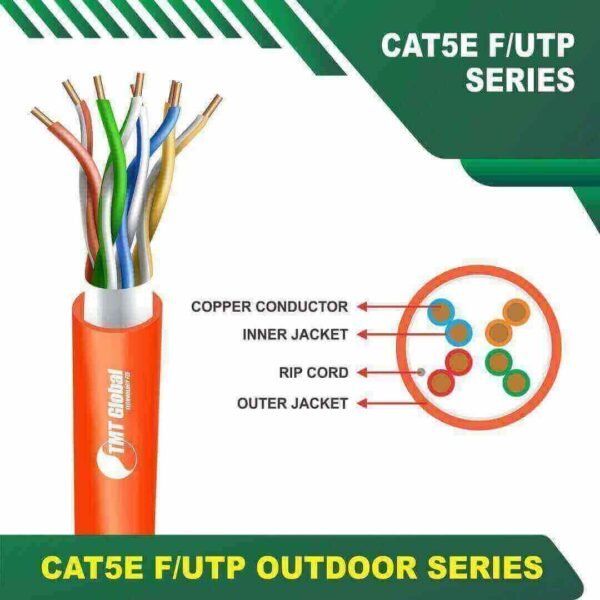

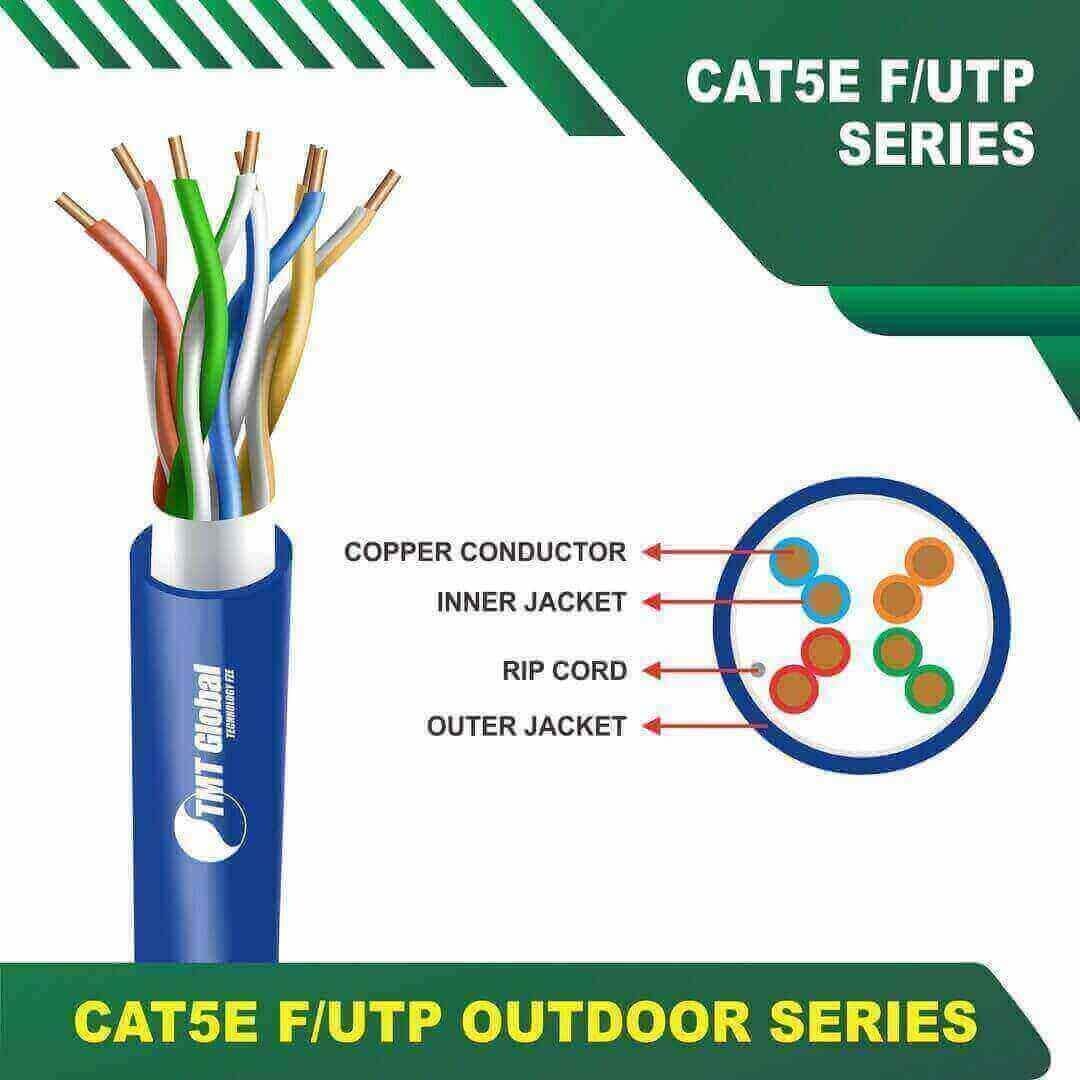

Basic Conductor: Bare copper
Conductor Size: 24AWG
Insulation: HDPE
Number of insulated conductors: 8, twisted in 4 pairs
Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown
Outer Jacket: PVC
Overall Coverage: Aluminum Foil Polyester Tape
Standard Jacket Color: Blue/Gray /Black/Green/Orange/Red/Violet/White/Yellow/Aqua
Standard Surface Marking: Includes TMT Global P/N, cable description, Meter mark and Model Number
Pulling force: 110 N max.
Short Term Bend Radius: 6xOD (mm)
Temperature operating range: -20 to +80C
Installation temperature range: 0 to +50C
Ordering Information
Item Name: 24AWG 4PAIR CAT5e F/UTP PVC CABLE 305M
Item Code:
