CAT6 U/UTP 23AWG Indoor LSZH Cable
Key features
- CAT6 U/UTP • 100 Ω • 4-pair horizontal cable
- 23AWG bare copper conductor • nominal 0.56 mm release code
- Blue LSZH / HFFR indoor jacket
- New TMT CPR model separate from legacy CAT6 SKUs
- 250 MHz category performance target
- CPR target Cca-s1b,d2,a2 or higher — certification pending
Full specifications & datasheet: tmtglobal.co.uk →
Supplied in the UAE by AMSS from our Sharjah office (Industrial Area 18) and Dubai office (Naif, Deira), for projects across the Emirates. Request a quote

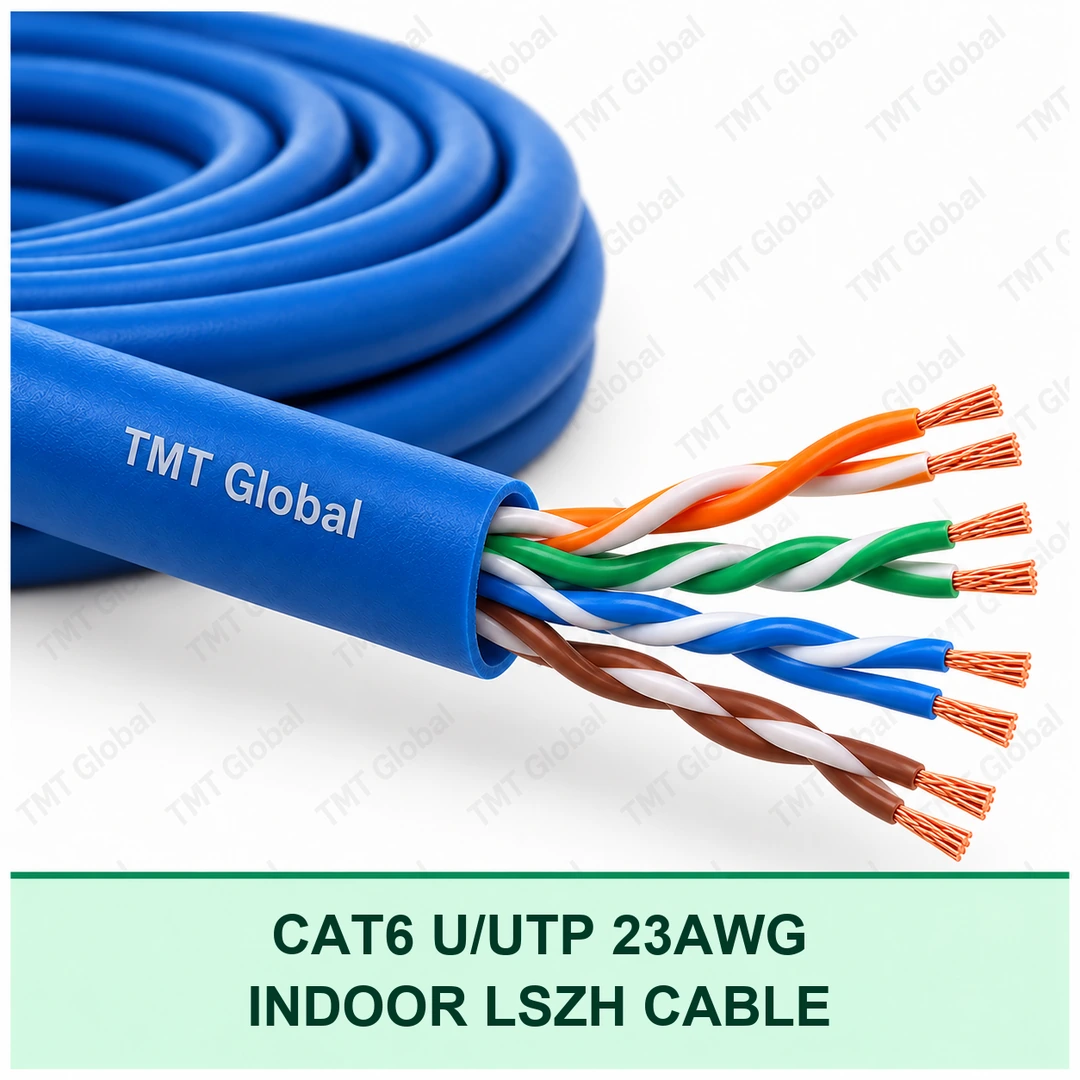

TMT Global Series CAT6 U/UTP 23AWG Indoor LSZH Cable
The TMT CAT6 U/UTP 23AWG Indoor LSZH Cable is a new bare-copper horizontal data cable developed as a dedicated UAE permanent-building CPR series. The model uses a controlled blue LSZH jacket and a new TMT item code so that factory construction, fire testing, CoCP, DoP, CE marking and e& approval records can remain traceable to one exact product.
Key features
- CAT6 U/UTP • 100 Ω • 4-pair horizontal cable
- 23AWG bare copper conductor • nominal 0.56 mm release code
- Blue LSZH / HFFR indoor jacket
- New TMT CPR model separate from legacy CAT6 SKUs
- 250 MHz category performance target
- CPR target Cca-s1b,d2,a2 or higher — certification pending
Typical applications
- Structured cabling horizontal links
- Residential and commercial building telecom networks
- MTR / FTC / consolidation-point distribution
- Data, voice and PoE applications subject to final verified performance
- Permanent indoor routes requiring halogen-free cable
PRODUCT RECORDS
PRELIMINARY DEVELOPMENT / PRE-TEST
FORMAL CPR SYSTEM 1+ RELEASE
E& SUBMISSION CONTROL
CONSTRUCTION / ELECTRICAL BASELINE
PERFORMANCE / TEST CONTROL
STANDARDS / CPR CONTROL
| Brand | TMT Global |
|---|---|
| Jacket Type | LSZH |
| AWG | 23 awg |
