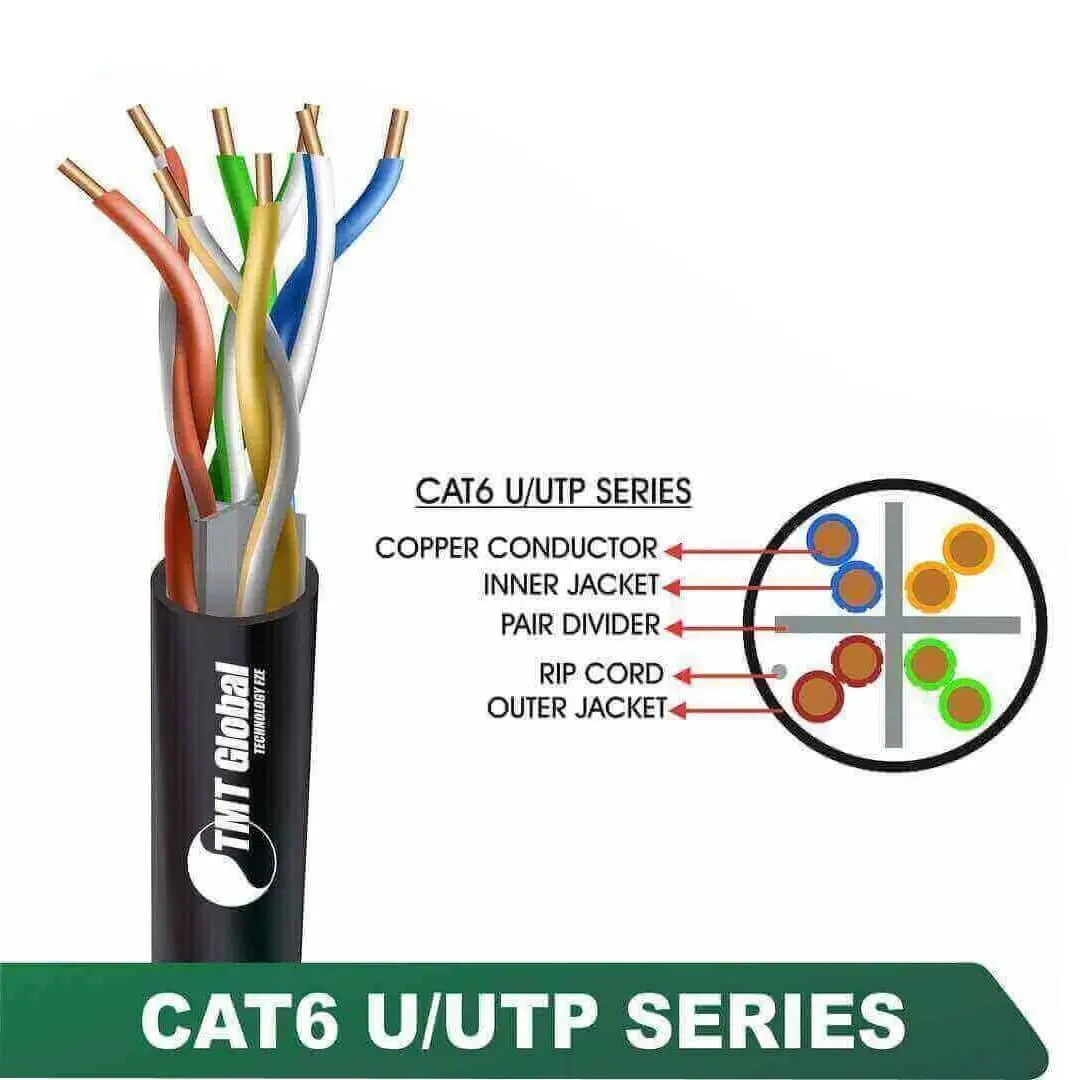

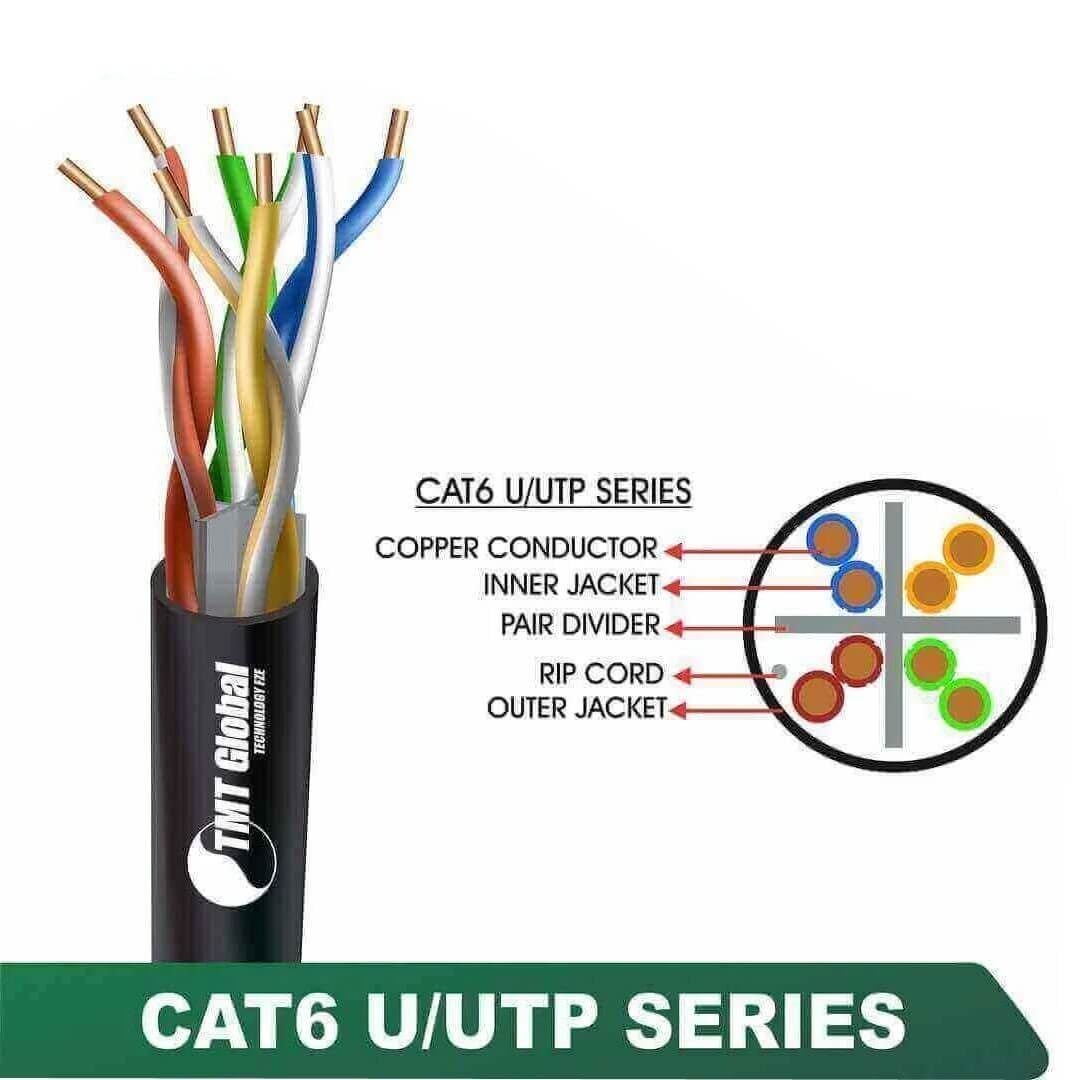

CAT6 U/UTP PE Outdoor Network Cable 23 AWG 4 Pair 305 m – 6X136MOK

Choosing the CAT6 U/UTP PE Outdoor Network Cable 23 AWG 4 Pair 305 m – 6X136MOK

Category 6 runs 1 Gb Ethernet over 100 m and 10 Gb over shorter links (up to about 55 m), a cost-effective choice for desks, CCTV and general office networks. U/UTP has no screen: it is the lightest and fastest to install, best for offices and homes away from heavy electrical noise. The black PE outer jacket is UV and moisture resistant for outdoor ducts, external walls and runs between buildings; it is not for indoor risers where low-smoke cable is required.

Related options in this range: CAT6 U/UTP PE Outdoor Network Cable 23 AWG 4 Pair 305 m – 6X135BOK · CAT6 U/UTP LSZH Network Cable 23 AWG 4 Pair 305 m – 6X135BLX Series · CAT6 U/UTP PVC Network Cable 23 AWG 4 Pair 305 m – 6X135BPX Series · CAT6 U/UTP PE Outdoor Network Cable 23 AWG 4 Pair 305 m – 6X132BOK · CAT6 U/UTP LSZH Network Cable 23 AWG 4 Pair 305 m – 6X132BLX Series

Order code: 6X136MOK. Send us the length, jacket and quantity for a project quotation and datasheet.

TMT Global Technology LTD aims to provide the best quality products, including structured cabling systems, copper and fiber optics range, access control systems, gate automation, lighting control systems, PIR motion sensors, UHF long-range readers, automatic parking solutions, SMATV systems, audio video intercom systems, audio visual systems, and public address systems. Industrial and building automation cables and accessories lead to customer satisfaction and reliability. All TMT Global products meet or exceed rigorous industry and regulatory standards for quality, reliability, and efficiency. From design and fabrication to finished product assembly, each phase in the manufacturing process is rigorously monitored and measured to ensure the highest quality, durability, and operating excellence.

ELECTRICAL SPECIFICATIONS
Characteristic Impedance: 100±6 Ohm @ 1-250 MHz
DC Resistance: 93 Ohm/Km max.
Resistance unbalance: 2% max.
Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz
Cap. Unbalance (wire to ground): 1600 pF/m max. @ 1 KHz.
Voltage rating: 72 Vdc max.
Dielectric strength: 1500 Volts/1 minute min rms
Velocity of Propagation (NVP): 67-69%
Propagation Delay Skew: 514 + 36/vf. nS/100m max @ 1-300 MHz
Insulation Resistance: 5000 Mega Ohm•Km min. @ 500 Vdc
Coupling attenuation: 40 dB min @ 30-100 MHz 40-20Log(f/100) @100-300 MHz

PHYSICAL AND MECHANICAL PROPERTIES
Basic Conductor: tmt copper
Conductor Size: 23AWG
Insulation: HDPE
Number of insulated conductors: 8, twisted in 4 pairs
Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown
Overall Coverage: N
Drain wire: N
Outer Jacket: PE
Standard Jacket Color:Black
Standard Surface Marking: Includes TMT Global P/N, cable description, Meter mark and Model Number
Pulling force: 110 N max.
Short Term Bend Radius: 8xOD (mm)
Temperature operating range: -20 to +80C
Installation temperature range: 0 to +50C
Ordering Information
Item Name: CAT6 U/UTP PE Outdoor Network Cable 23 AWG 4 Pair 305 m – 6X136MOK
