CAT6A S/FTP PE Outdoor Network Cable 23 AWG 4 Pair 305 m – 6A732BOK

Choosing the CAT6A S/FTP PE Outdoor Network Cable 23 AWG 4 Pair 305 m – 6A732BOK

Category 6A supports 10GBASE-T to the full 100 m channel, the right choice for Wi-Fi 6/7 access points, new office floors and anything planned to last 15+ years. Each pair has its own foil screen plus an overall braid, giving the highest noise immunity for data centres, industrial sites and dense 10 Gb bundles. The black PE outer jacket is UV and moisture resistant for outdoor ducts, external walls and runs between buildings; it is not for indoor risers where low-smoke cable is required.

Related options in this range: CAT6A S/FTP PE Outdoor Network Cable 23 AWG 4 Pair 305 m – 6A737BOK · CAT6A S/FTP PE Outdoor Network Cable 23 AWG 4 Pair 305 m – 6A735BOK · CAT6A S/FTP PE Outdoor Network Cable 23 AWG 4 Pair 305 m – 6A736MOK · CAT6A S/FTP PE Outdoor Network Cable 23 AWG 4 Pair 305 m – 6A536MOK · CAT6A F/FTP PE Outdoor Network Cable 23 AWG 4 Pair 305 m – 6A436MOK

Order code: 6A732BOK. Send us the length, jacket and quantity for a project quotation and datasheet.

Explore the TMT Global Cat6A Cable, designed for high performance in outdoor networking scenarios. This high-quality S/FTP cable provides exceptional data transmission capabilities, reaching speeds of up to 10 Gbps over 100 meters. Featuring a durable PE jacket for weather resistance and an improved design to combat electromagnetic interference, this cable is a reliable choice for data centers and enterprise networks. With its flexibility for installation and robust structure, TMT Global’s Cat6A cable is the perfect solution for all your networking needs, ensuring seamless connectivity in challenging outdoor environments. Discover how this outstanding cable can meet the increasing demands of modern networking today.

ELECTRICAL SPECIFICATIONS
Characteristic Impedance: 100±6 Ohm @ 1-500 MHz
Loop Resistance: 25
Resistance unbalance: 2% max.
Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz
Cap. Unbalance (wire to ground): 1500 pF/Km max. @ 1 KHz.
Voltage rating: 72 Vdc max.
Dielectric strength: 1500 Volts/1 minute min rms
Velocity of Propagation (NVP): 67-69%
Propagation Delay Skew: 534 + 36/vf. nS/100m max @ 1-500 MHz
Insulation Resistance: 45 nS/100m max @ 1-500 MHz
Coupling attenuation: 55 dB min @ 30-100 MHz 55-20Log(f/100) @100-500 MHz

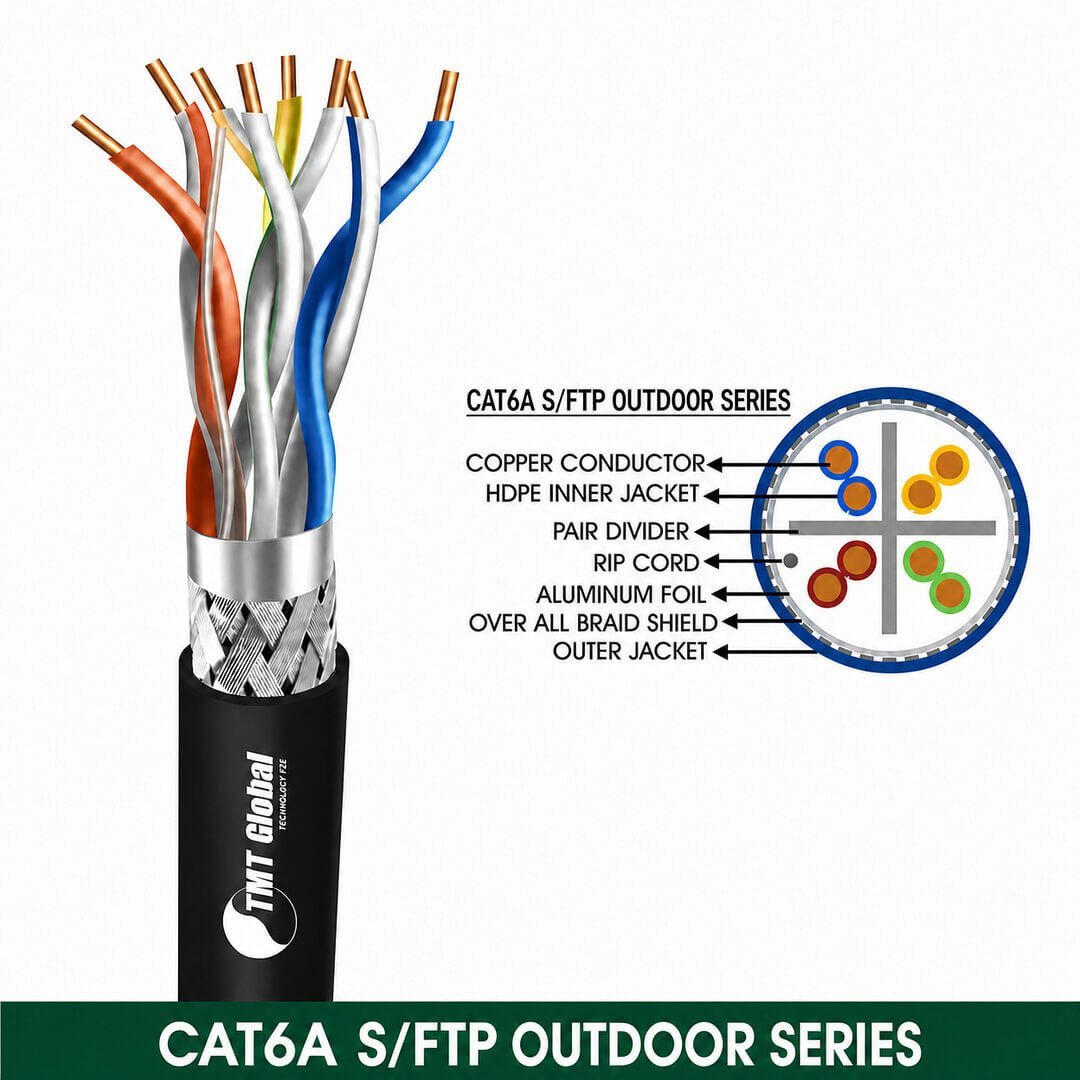

PHYSICAL AND MECHANICAL PROPERTIES
Basic Conductor: Bare copper
Conductor Size: 23AWG
Insulation: HDPE
Number of insulated conductors: 8, twisted in 4 pairs
Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown
Overall Coverage: overall Braid + Pairs aluminum Foil Polyester
Drain wire: N
Outer Jacket: PE OUTDOOR
Standard Jacket Color:Black
Standard Surface Marking: Includes TMT Global P/N, cable description, Meter mark and Model Number
Pulling force: 110 N max.
Short Term Bend Radius: 8xOD (mm)
Temperature operating range: -20 to +80C
Installation temperature range: 0 to +50C
Ordering Information
Item Name: CAT6A S/FTP PE Outdoor Network Cable 23 AWG 4 Pair 305 m – 6A732BOK
