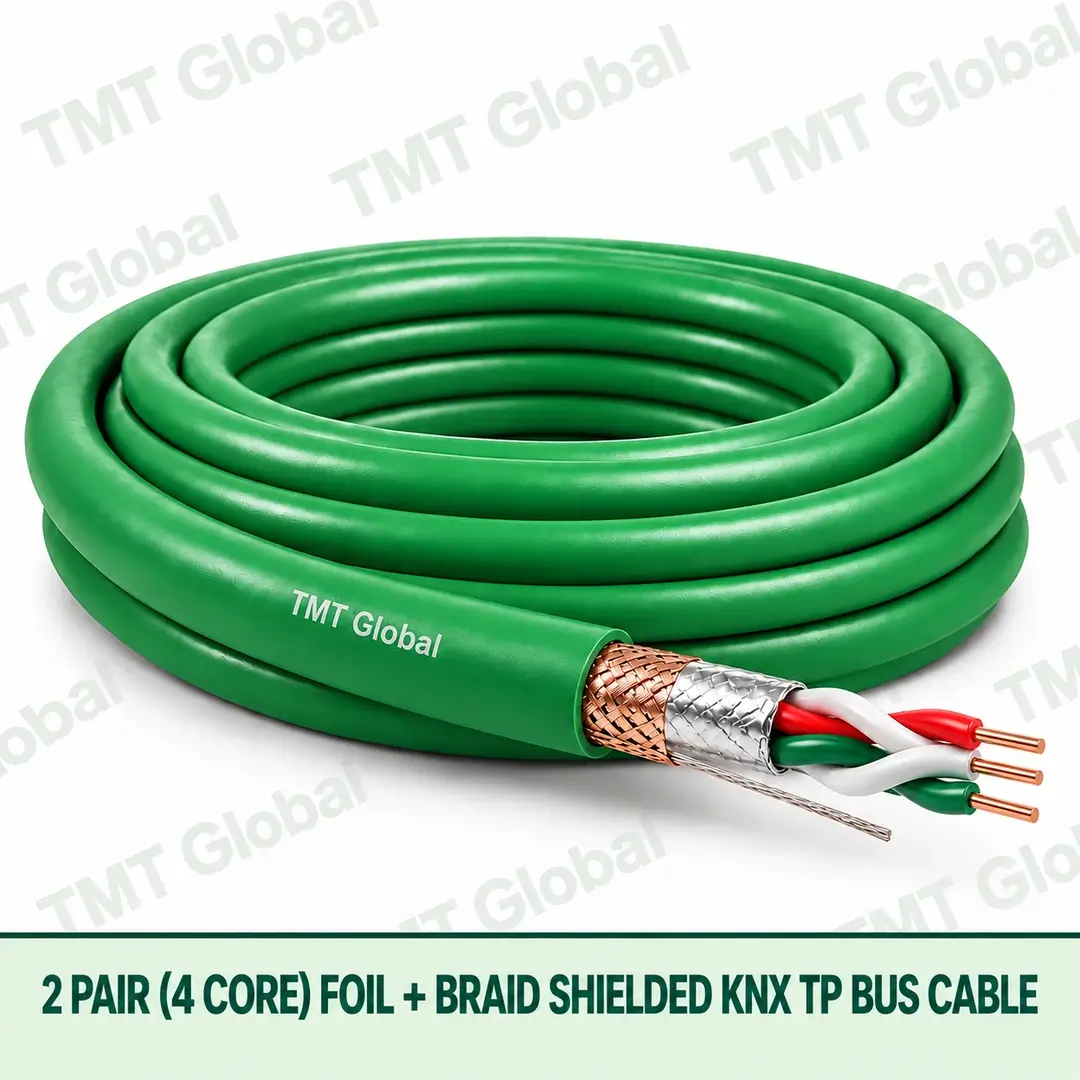

Custom 2 Pair (4 Core) Foil + Braid Shielded KNX TP Bus Cable

Choosing the Custom 2 Pair (4 Core) Foil + Braid Shielded KNX TP Bus Cable

Four cores connect a single smart-home device such as a keypad, sensor or bus line. Foil plus tinned-copper braid gives the strongest protection against electrical noise and adds mechanical strength, which is why it is the usual choice in plant rooms, near VFDs and motors, and across industrial sites.

Related options in this range: Custom 1 Pair (2 Core) Foil + Braid Shielded KNX TP Bus Cable · 2 Pair (4 Core) Foil Shielded KNX TP Bus Cable · 2 Pair 4 core KNX Control Cable LSHF 305m Roll

Order code: 04B-KX SERIES. Send us the length, jacket and quantity for a project quotation and datasheet.

TMT Global Custom 2 Pair (4 Core) Foil + Braid Shielded KNX TP Bus Cable Series

TMT Global Custom 2 Pair (4 Core) Foil + Braid Shielded KNX TP Bus Cable is a controlled twisted-pair cable family for KNX TP building-automation bus installations. This is a TMT custom / special-project construction and is not presented as the mainstream KNX TP standard. The product page fixes the 2 × 2 × 0.8 mm foil + braid shielded construction, while the TMT Series ordering table provides exact jacket-specific item codes for customer search, quotation and project selection.

KEY FEATURES

• 2 × 2 × 0.8 mm solid bare-copper twisted-pair construction
• Overall foil + tinned-copper braid + drain wire
• PVC green, LSZH green and PE Outdoor black ordering options
• 20 AWG item-code field representing the 0.8 mm KNX conductor format
• Exact searchable made-to-order SKU for every declared jacket option
• 305 m standard TMT package; project lengths subject to release

TYPICAL APPLICATIONS

• KNX TP bus lines and device interconnection
• Lighting, HVAC, blinds and room-control networks
• Residential, commercial, hospitality and public buildings
• Second pair available for approved auxiliary SELV use where project design permits
• Industrial / higher-EMI special projects subject to factory and KNX evaluation

Technical Specification

AWG / NOMINAL AREA / SERIES AVAILABILITY
