long range uhf reader up to 10m range
د.إ 1.000,00
General Specification
Operating Frequency: 860-868MHz, RF band Customized (Optional)
Frequency Hopping: FHSS or Fixed Frequency
Power / Current :+20dBm ~ +30dBm@50Ω load, 1dBm each step
Antenna : Built-in 12dBi linear Polarization antenna (Horizontal/vertical Customized)
Communication Interfaces: RS-232, Wiegand 26/34
Firmware Update: Firmware Upgrade
Tag Protocol : ISO18000-6B, EPC Class 1 Gen 2(ISO18000-6C)
Reading: Range 0~10m
Power: DC 12V
Power Assumption: 2W (Standby), 10W (Working)
Net Weight: 2.5kg
Gross Weight: 5.23kg
Operating Temperature: -40℃ ~ +60℃
Storage Temperature: -60℃ ~ +80℃
Model No. : TMT-7642
| Brand |
TMT GLOBAL |
|---|
0
People watching this product now!
Description

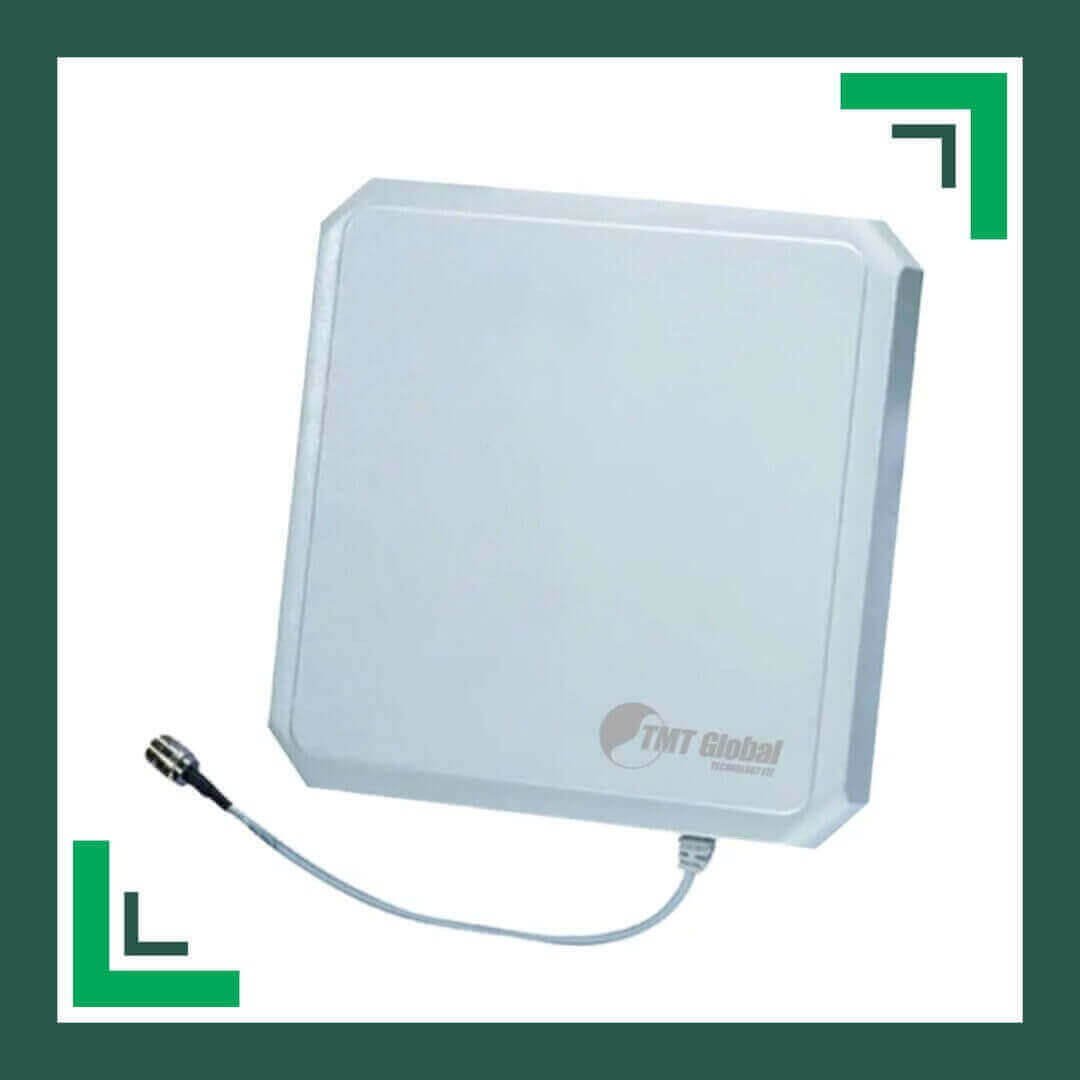

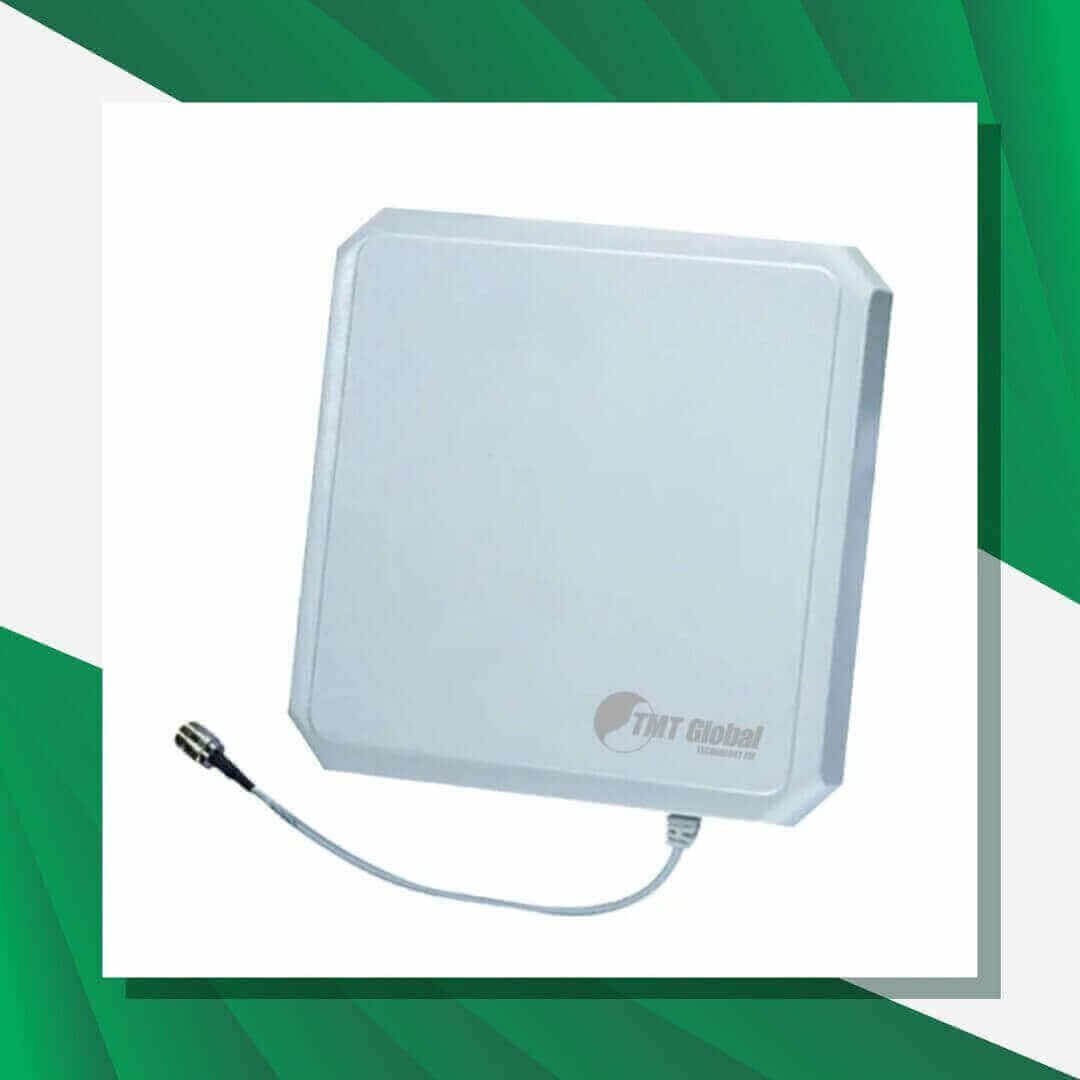

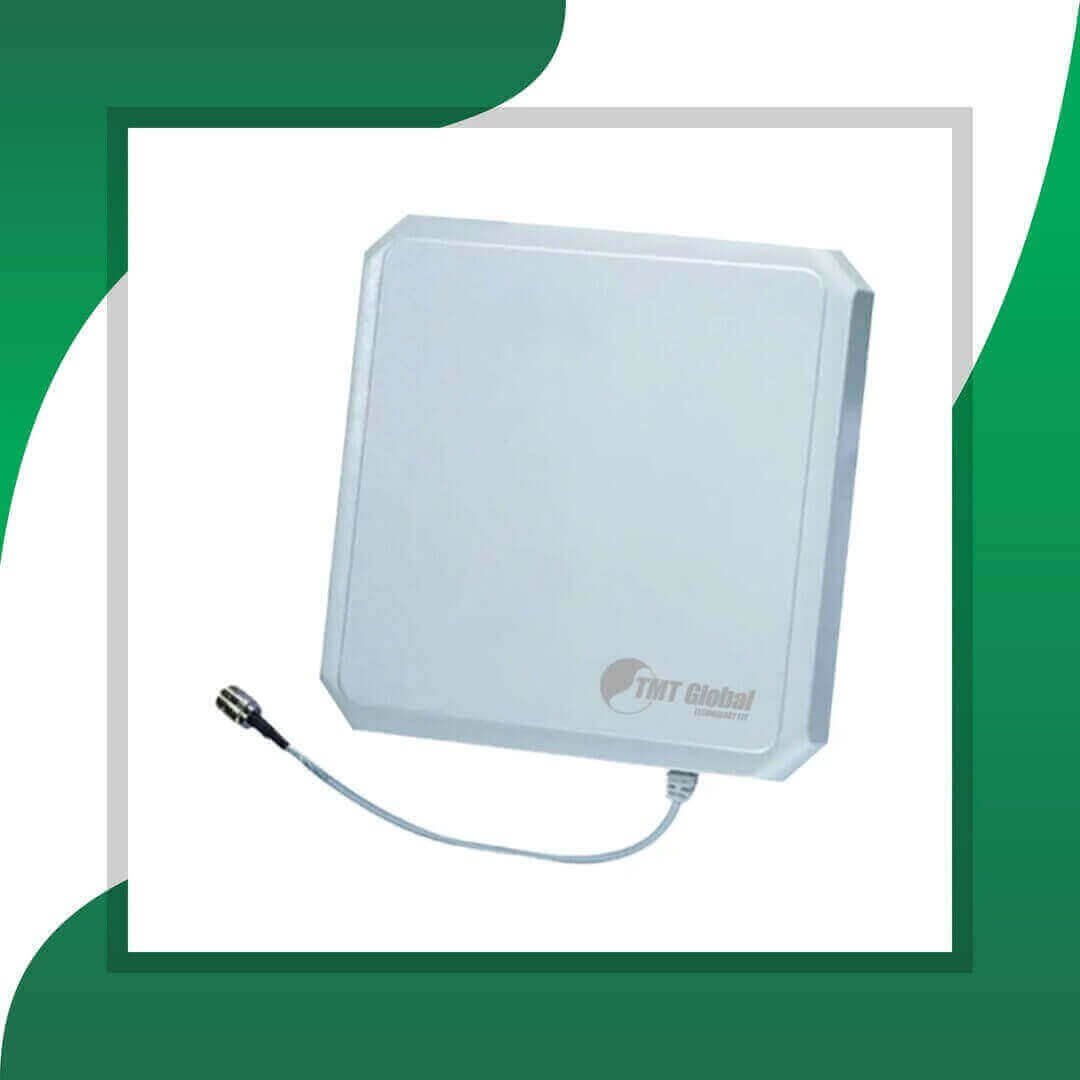

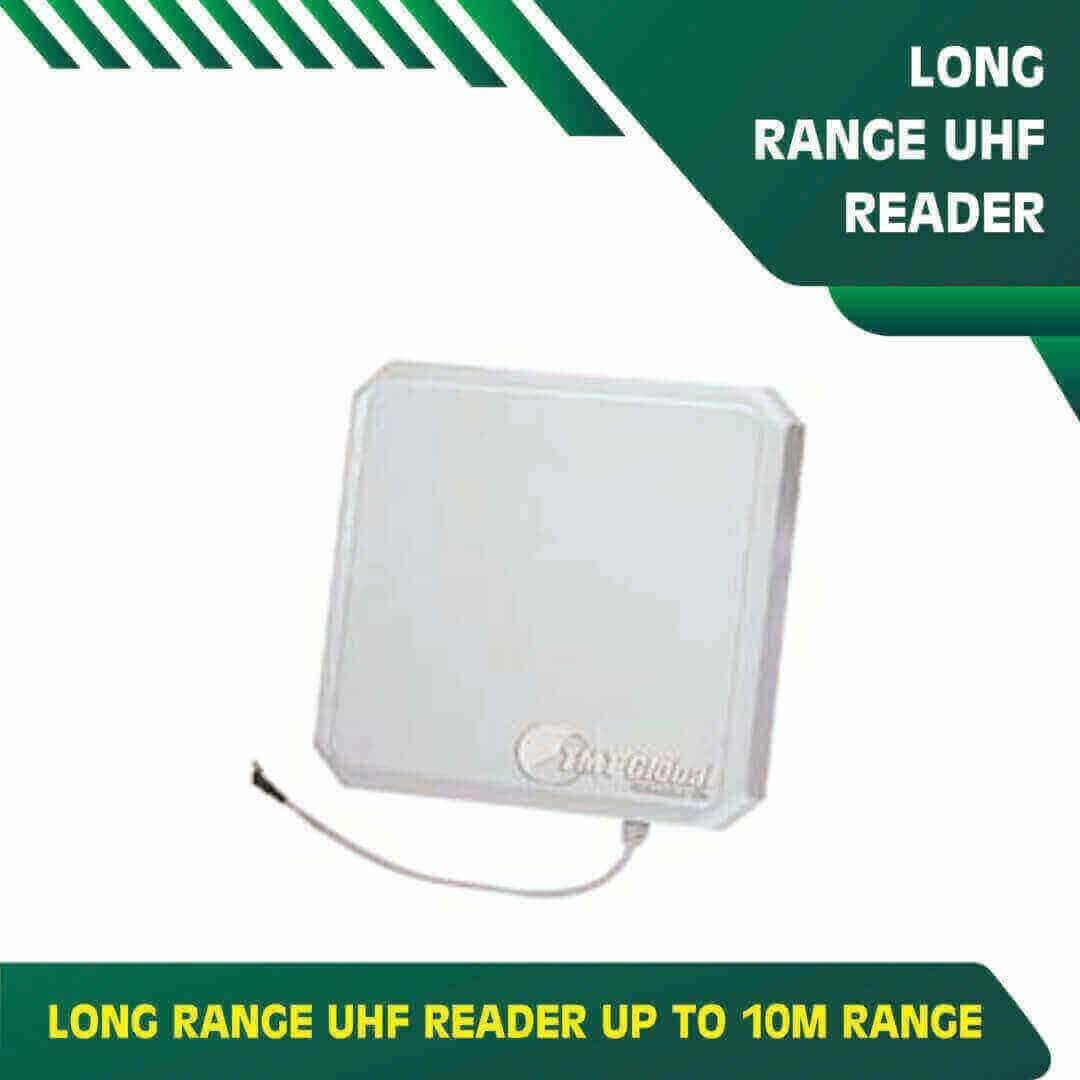

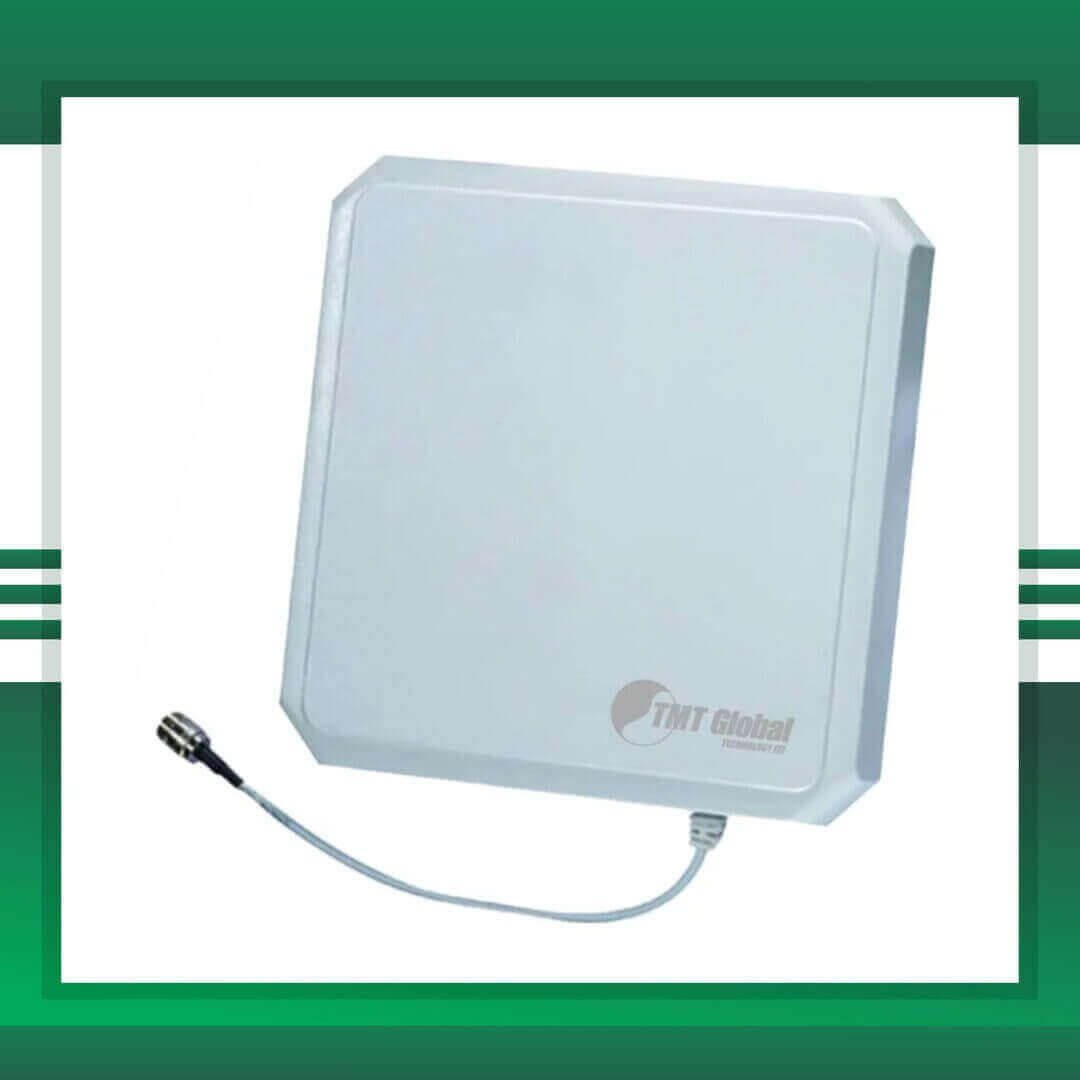

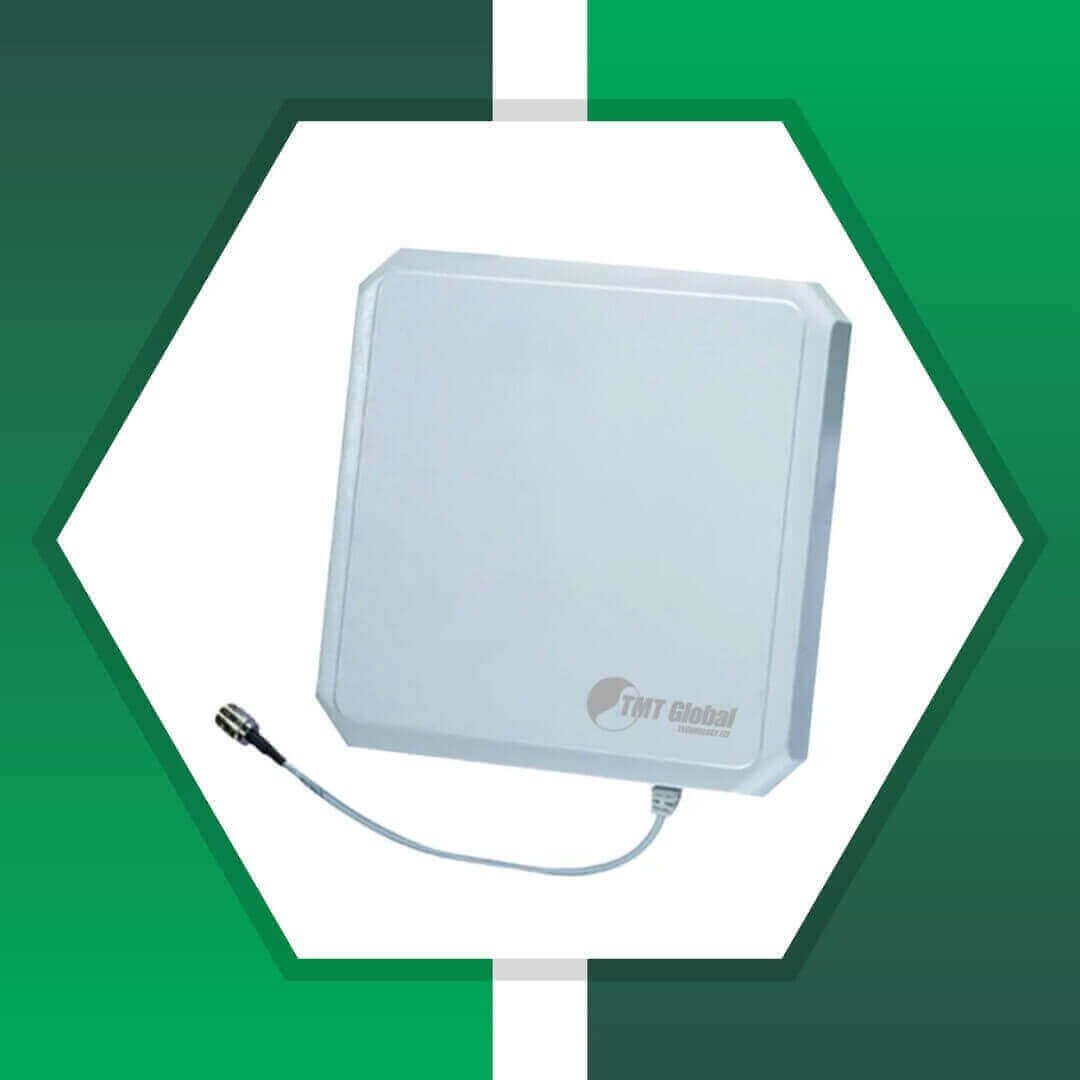

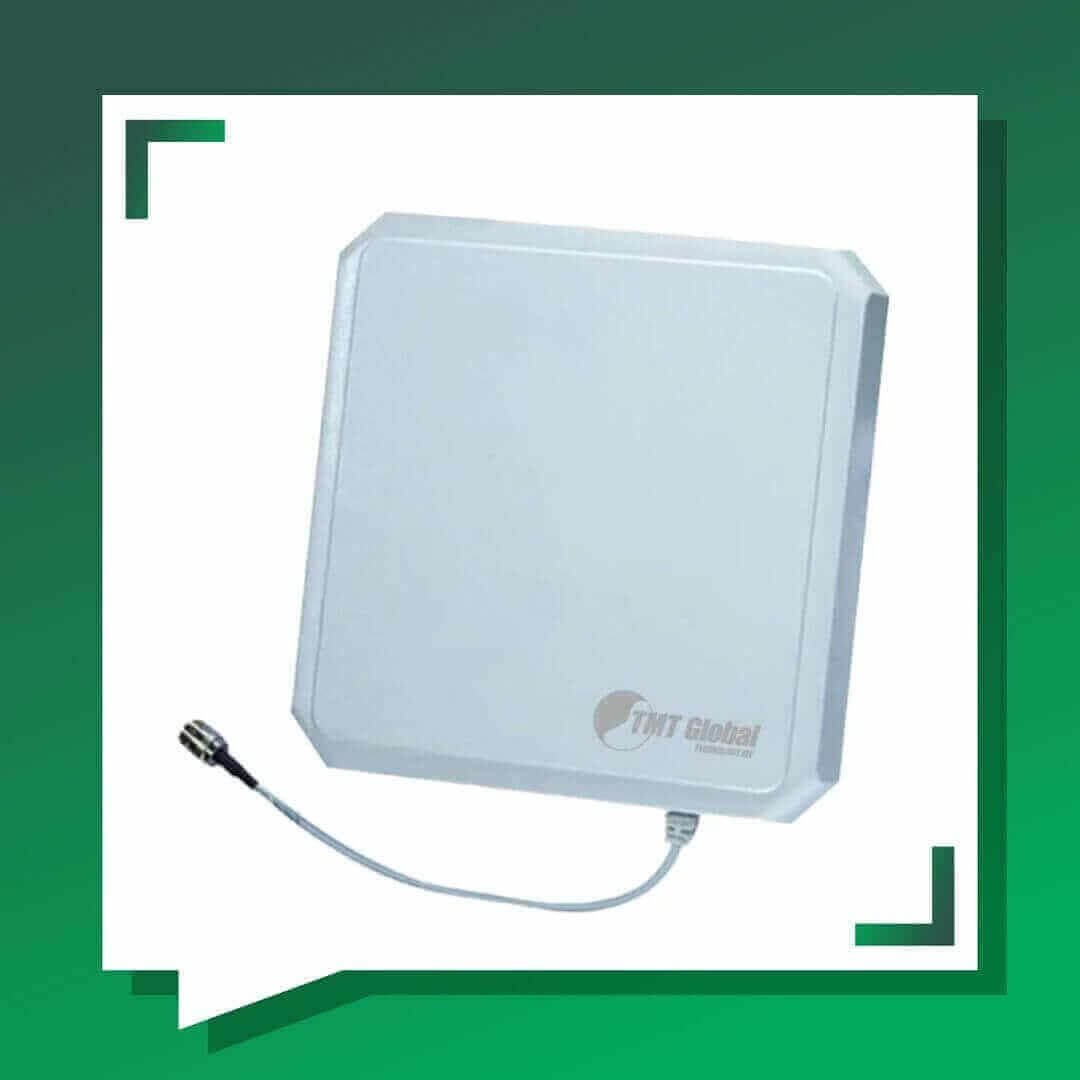

TMT Global Long Range UHF Reader Up To 10m Range
TMT Global long range uhf reader up to 10m range Integrated Reader widely applied in intelligent transportation, customs access management, warehouse logistics.
Applications
- Vehicle parking, intelligent Weighing
- Warehouse, Logistics management
- Asset management
- Production line management
Functions
UHF (860-868MHz) Band, Equipped with 10 DBI antenna
Support standard RS-232, Wigand Interface
Multi-group I/O ports, Controlling the Functional mode of the Reader/Writer
Order-Trigger, Set Time-Trigger and Out-Trigger Suitable for Customer’s Applications
Upgrade Firmware by serial port online
Strong API user Interface
Performance Index
Operating Frequency: 860-868MHz, RF band Customized (Optional)
Frequency Hopping: FHSS or Fixed Frequency
Power Output: +20dBm ~ +30dBm@50Ω load, 1dBm each step
Antenna: Built-in 12dBi linear Polarization antenna (Horizontal/Vertical Customized)
Communication Interfaces: RS-232, Wiegand 26/34
Optional Interfaces: RS-485, 802.11 WIFI Module and 10M/100M Ethernet interfaces
I/O Interfaces: 2-channel Relay Output, 2-channel Trigger Input, 2-channel level Output (optional)
Firmware Update: Firmware Upgrade
Application Software Platform: API(C++, C#) development kit (can be customized)
Tag Operation
Tag Protocol: ISO18000-6B, EPC Class 1 Gen 2(ISO18000-6C)
Reading Range: 0~10m
Writing Range: 0~5m
Mechanical/Electric Performance
IP Rating: IP66
Indicator: Buzzer and LED(Power, Antenna, Reading/Writing)
Power: DC 12V
Power Assumption: 2W(Standby), 10W(Working)
Product Dimension: 445mm x 445mm x 78mm (LxWxH)
Package Dimension: 600mm x 500mm x 110mm (LxWxH)
Net Weight: 2.5kg
Gross Weight: 5.23kg
Operating Temperature: -40℃ ~ +60℃
Storage Temperature: -60℃ ~ +80℃
Humidity: 5%～ 95%(non-condensing)
