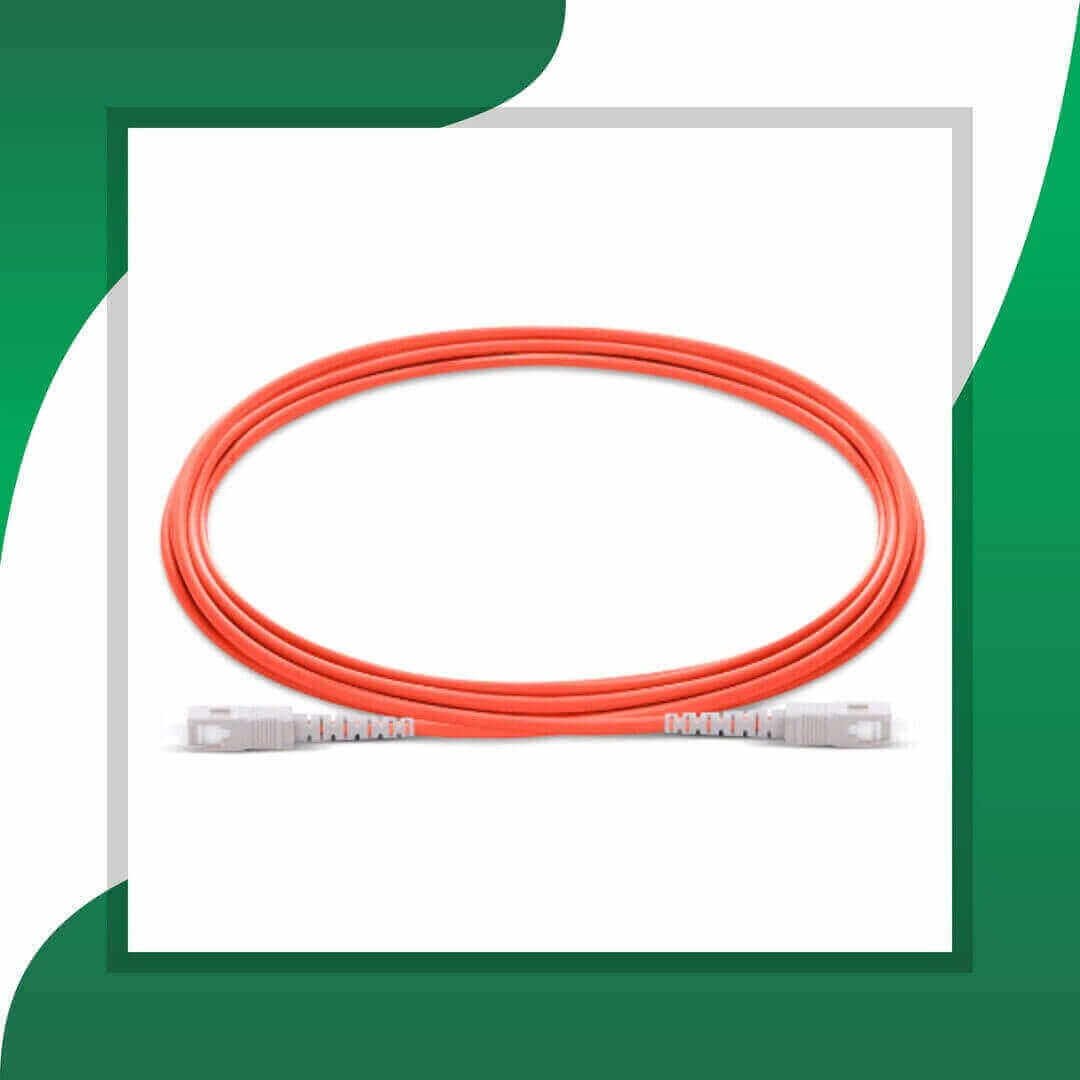

TMT Global Fiber Optic Patch Cord Multi Mode SC-SC-UPC Simplex LSZH OM2
TMT Global Technology LTD aims to provide the best quality products r Structured Cabling Systems Copper And Fiber Optics Range Access Control Systems Gate Automation Lighting Control Systems Pir Motion Sensors UHF Long Range Readers Automatic Parking Solutions SMATV Systems Audio Video Intercom Systems Audio Visual Systems Public Address Systems. Industrial and Building automation Cables and Accessories which leads to Satisfaction and reliability to customers. All TMT Global Products meet or Exceed Rigorous Industry and Regulatory Standards for Quality, Reliability, and efficiency. From design and fabrication to finished product assembly, each phase in the Manufacturing process is rigorously monitored and measured to ensure the highest quality, durability and operating excellence. TMT Global products are Routinely Tested and Certified by various government and third-party testing labs to ensure quality standards.Fiber Optic Patch Cord Multi Mode SC-SC-UPC Simplex LSZH OM2
100% pre-terminated and tested in factory to ensure transfer performance.
Rapid configuration and networking, reduce installation time.
Supports 10G and 40G network applications.
Low insertion loss and added loss.
High back loss, small volume, light weight.
LSZH, OFNP, OFNR cable jacket.
Mechanical performance: IEC 61754-20 standard.
RoHS and REACH materials compliant.
- Optical Specifications
- Mode type: Single mode / multi mode
- Cable Type: Simplex/Duplex
- Connector Style: SC, FC, ST, LC, MTRJ,
- Polish Type: PC,UPC,APC
- Diameter: 0.9mm, 1.6mm, 2.0mm, 3.0mm
- Lengths: 1,2,3,4,5,8,10,15,20,25,30,40,50,70,100Meter
- Strength Member: Aramid Yarn
- Outer Jacket: LSZH/PVC/OFNR/OFNP
- Interchangeability &Vibration: ≤0.2dB
- Minimum Bend radius: 10 -13mm
- Wavelength: SM:1310/1550nm MM:850nm
- Operating temperature: -40~75°C Jacket Color
- Single mode: Yellow / Green, Yellow Blue
- Storage temperature: -45~85°C
- Multi mode: OM-1, OM-2 (Orange/Beige ) ,OM-3,(Aqua) OM-4 (Purple)
- Fiber type: ITU-T G.652D, G.657A1 /A2
Multi mode OM-2 Multi mode OM-3 Multi mode OM-4
≤0.3dB ≤0.3dB ≤0.3dB
≥30dB ≥30dB ≥30dB
Insertion loss: ≤0.3dB
Return loss: ≥60dB
