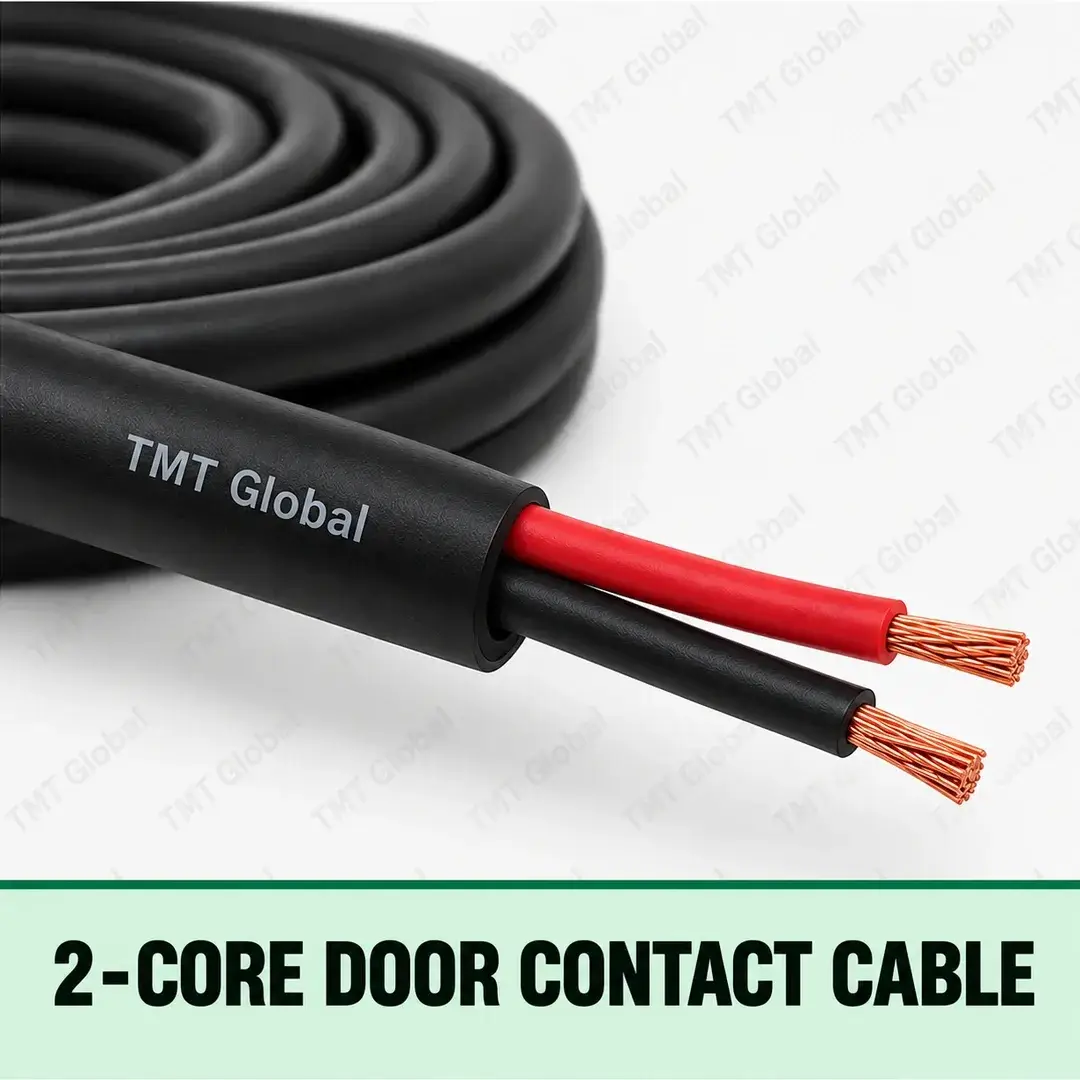

TMT Global 2-Core Door Contact Cable, slim black outer jacket, exactly two insulated copper conductors, one red and one black, two visible tips, no shield.

2 Core Door Contact Cable

KEY FEATURES

  • Access-control-specific construction
  • 2C 22/24 AWG
  • Unshielded
  • 305 m standard package
  • Factory evidence required for released electrical values
Chat with Sales
View / Print DatasheetContact Sales
0 People watching this product now!
Description

TMT 2 Core Door Contact Cable Series

TMT Global 2 Core Door Contact Cable is a controlled Security & ELV cable family for professional door access-control installations. Low-current contact cable for door-position switches, magnetic contacts and supervised door status circuits in access-control systems. Jacket and permitted conductor-size variations remain exact searchable Series rows under this product page.

KEY FEATURES

  • Access-control-specific construction
  • 2C 22/24 AWG
  • Unshielded
  • 305 m standard package
  • Factory evidence required for released electrical values

APPLICATIONS

  • Door position contacts
  • Magnetic contacts
  • Supervised status circuits

Technical Specifications

PARAMETER TECHNICAL SPECIFICATION
Product family 2 Core Door Contact Cable
Series 02U-AD
Primary function Door contact
Conductor schedule 2C 22/24 AWG
Conductor construction Stranded copper conductors
Screening Unshielded
Cable form Round / common jacket
Jacket options PVC / LSZH / PE Outdoor
Standard colours Grey / Black
Standard package 305 m
Installation / protocol Low-voltage access-control wiring
Series status PVC / LSZH: Core market; PE Outdoor: Outdoor / project

AWG / NOMINAL AREA / SERIES AVAILABILITY

AWG NOMINAL AREA (mm²) SERIES AVAILABILITY
22 AWG 0.326 PVC / LSZH / PE Outdoor
24 AWG 0.205 PVC / LSZH / PE Outdoor
Additional information
AWG22 awg, 24 awg
BrandTMT Global
ColourBlack, Grey
Jacket TypePVC, LSZH, PE Outdoor
Length305 m
Download

For Products Specification /PDF

HTTPS://TMTGLOBAL.CO.UK

Ordering Information
Item NameItem Code / SKUSeriesAWG / mm²JacketColourPackQR Code
2 Core Door Contact Cable02U-AD22 awgPVCGrey305 m QR code for 0222BPURG-AD
2 Core Door Contact Cable02U-AD22 awgLSZHGrey305 m QR code for 0222BLURG-AD
2 Core Door Contact Cable02U-AD22 awgPE OutdoorBlack305 m QR code for 0222BKURK-AD
2 Core Door Contact Cable02U-AD24 awgPVCGrey305 m QR code for 0224BPURG-AD
2 Core Door Contact Cable02U-AD24 awgLSZHGrey305 m QR code for 0224BLURG-AD
2 Core Door Contact Cable02U-AD24 awgPE OutdoorBlack305 m QR code for 0224BKURK-AD
