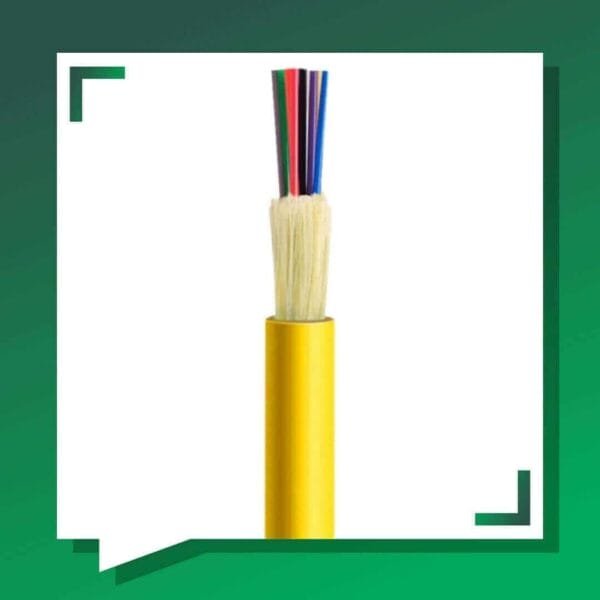

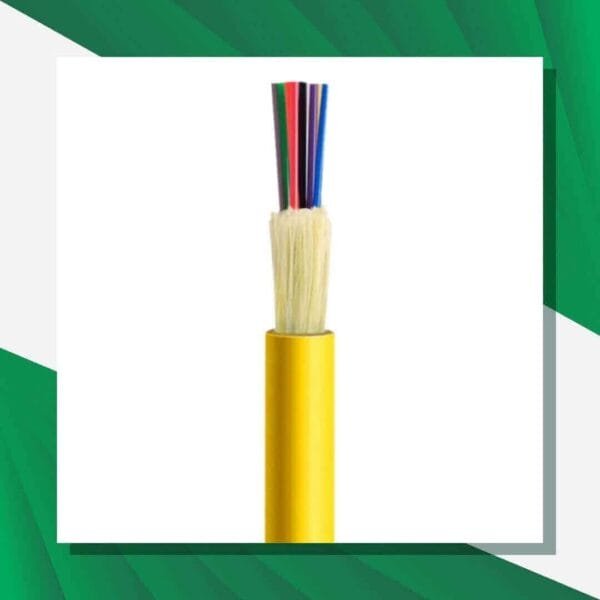

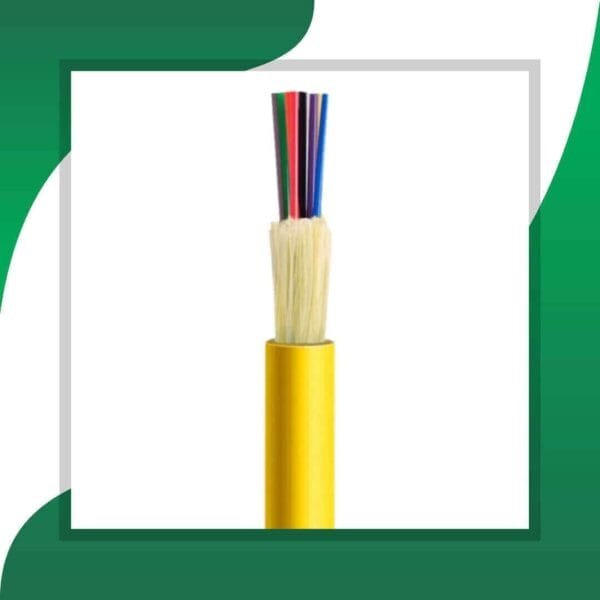

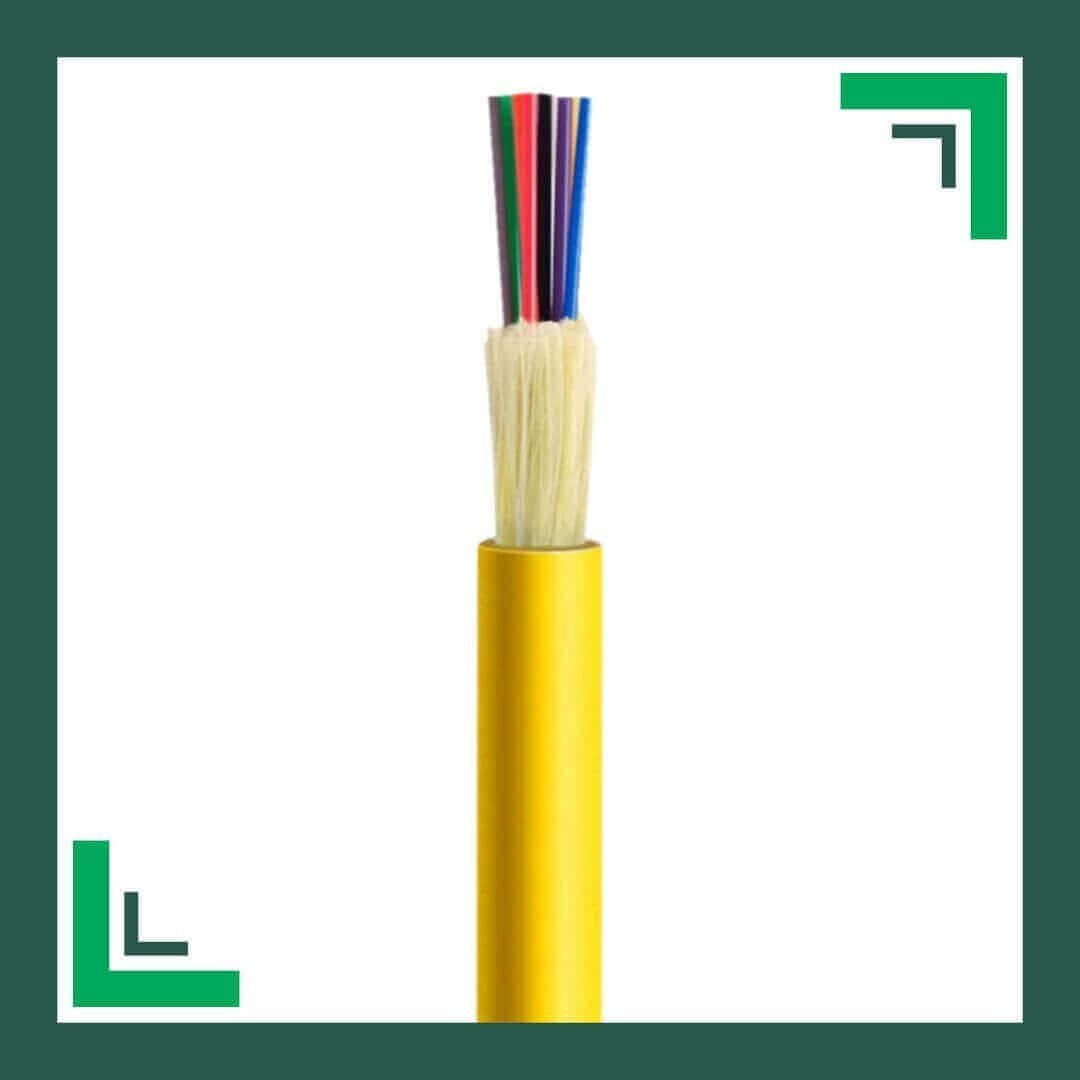

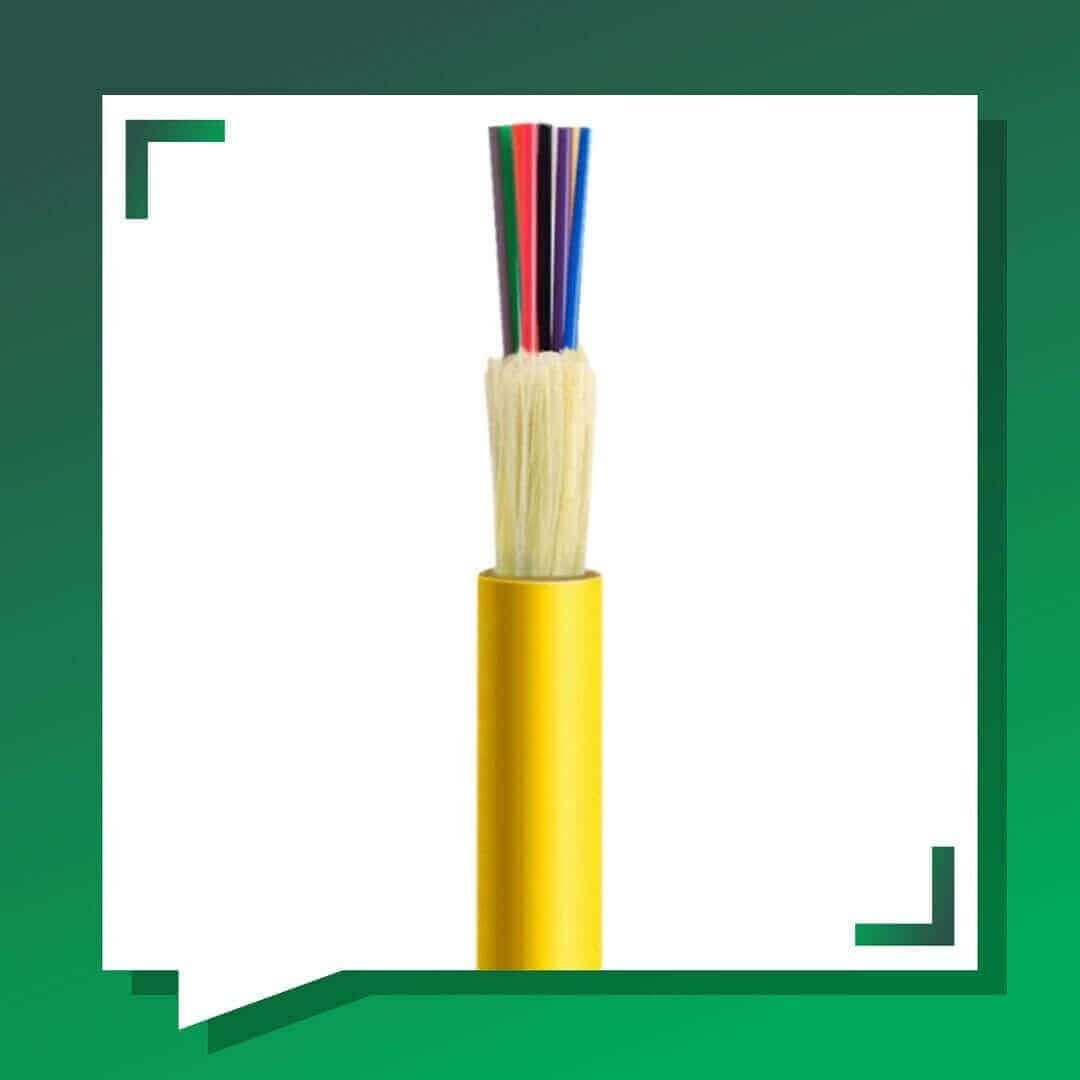

6 core multi core single mode fiber optic cable LSZH

TMT GLOBAL 6 core multi core single mode fiber optic cable LSZH

TMT GLOBAL 6 core multi core single mode fiber optic cable LSZH provides high-strength optical fiber cables for use in various industrial, indoor, and outdoor applications.

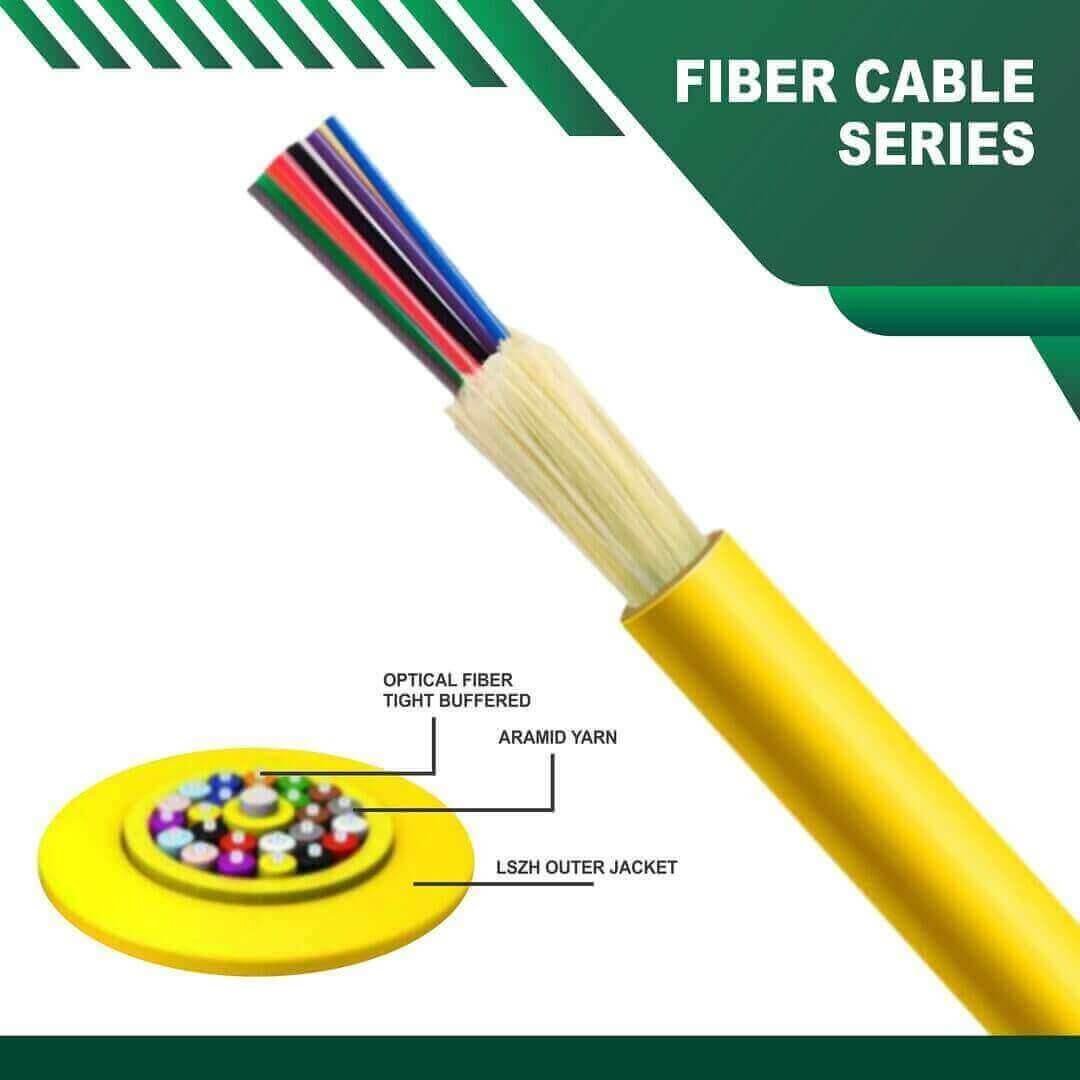

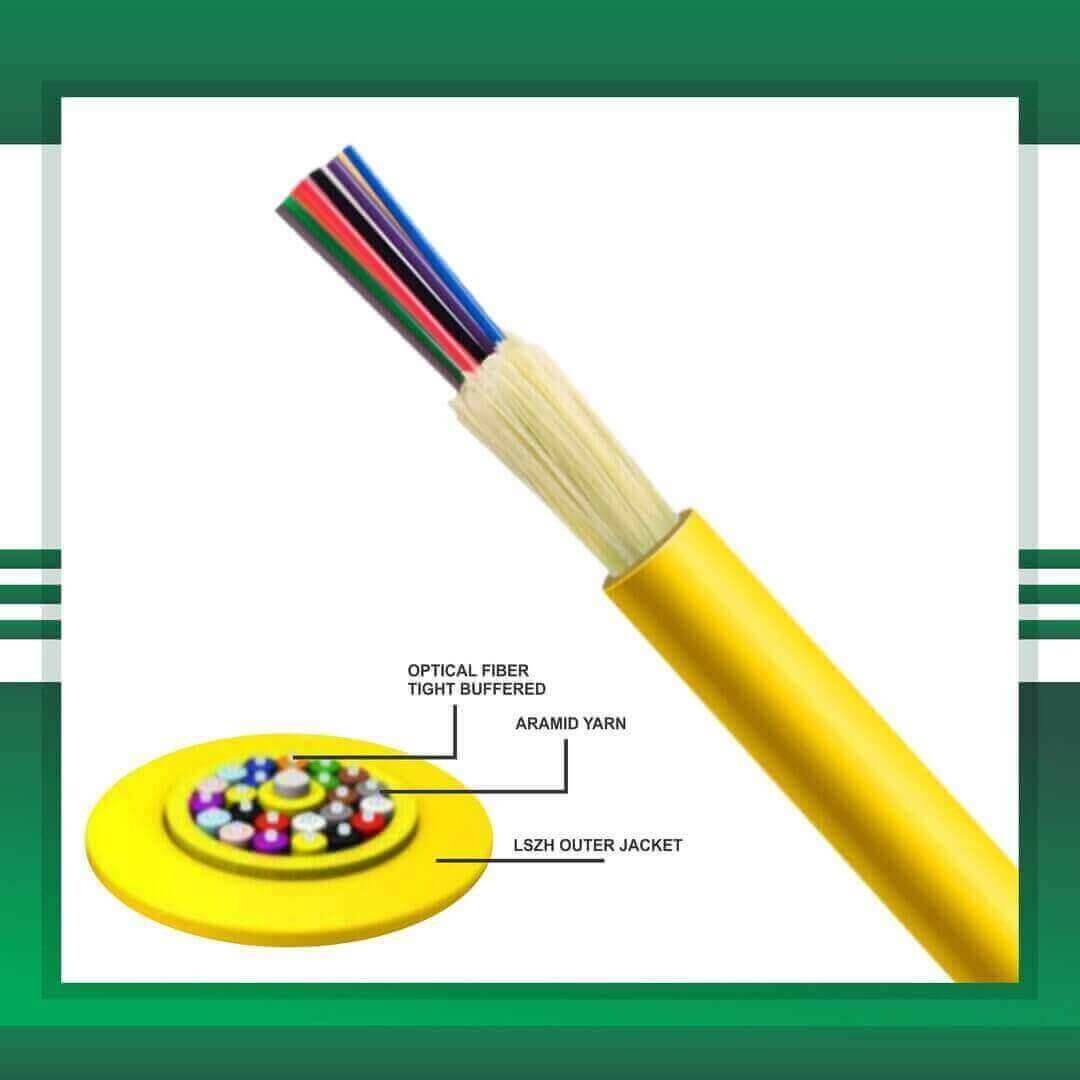

The TMT GLOBAL multi-core single mode fiber optic cables LSZH are a highly reliable solution for high-speed data transmission. These cables are designed with low smoke zero halogen (LSZH) materials, ensuring safety in confined spaces by minimizing toxic emissions during fire incidents. With multiple cores, they facilitate efficient data flow and allow for greater network capacity, making them ideal for both commercial and residential applications.

However, potential buyers should consider the complexity of installation, which may require professional assistance to maximize performance. Additionally, the cost may be higher compared to standard cables, potentially limiting accessibility for budget-conscious consumers. Overall, the TMT GLOBAL cables stand out for their performance and safety features, making them a commendable choice for those requiring robust fiber optic solutions.

PHYSICAL DESCRIPTION

Products: Fiber optic cable single mode
Tube Filling Compound: Thixotropic jelly
Fiber Type: ITU-T G.657A1/A2,G.652D
Tube material: PBT ( Polybutylene Terephthalate)
Armored: Corrugated steel tape
Fiber Count: 6,8,12,24,48,96,128

Tube Outer/Inner Diameter(mm): 3.0/2.0 ±
Cable Diameter(mm): 7.2*-12
Cable Weight(kg/km): 45±
Length/ Drum: 2000 m Drum ±5%
Ripcord: Polyester cord
Outer Jacket: PE,MDPE, LSZH

Optical Characteristics

Fiber  type                                                   ITU-T G.652D                    ITU-T G.657/A1   ITU-T G.657/A2

Attenuation (max)                                 0.40 dB/km (1310 nm)                                0.40 dB/km (1310 nm)                          0.35 dB/km (1310 nm)

0.25 dB/km (1550 nm)                         0.25 dB/km (1550 nm)                                0.22 dB/km (1550 nm)

MFD                                                          9.0±0.4 μm (1310 nm)                                   9.0±0.4 μm (1310 nm)                          8.6 ± 0.4 μm (1310 nm)

10.1±0.5 μm (1550 nm)                         10.1±0.5 μm (1550 nm)

Cladding diameter                                   125 ± 0.3 μm                                                   125 ± 0.7 μm                                          125 ± 0.7 μm

Core/Clad Concentricity error              ≤ 0.5 μm                                                           ≤ 0.5 μm                                                 ≤ 0.5 μm

Zero dispersion wavelength                   1300nm≤ ≤1324nm                                       1300nm≤ ≤1324nm                            1302nm≤ ≤1322nm

Cladding non-circularity                         ≤ 0.7 %                                                             ≤ 0.7 %                                                    1%

Coating diameter                                       245 ± 10 μm                                                    242 ± 7 μm                                            240 ± 5 μm

Cut Off Wavelength                                  ≤ 1260nm                                                        ≤ 1260nm                                               ≤ 1260nm

Proof Test                                                   ≥ 1% (100kpsi or 0.7GPa)                             ≥ 1% (100kpsi or 0.7GPa)                   ≥ 1% (100kpsi or 0.7GPa)

Macro bending Attenuation : (10 turn on a 15 mm radius mandrel)                         ≤ 0.25 dB @1550 nm                           ≤ 0.5dB @1550 nm
