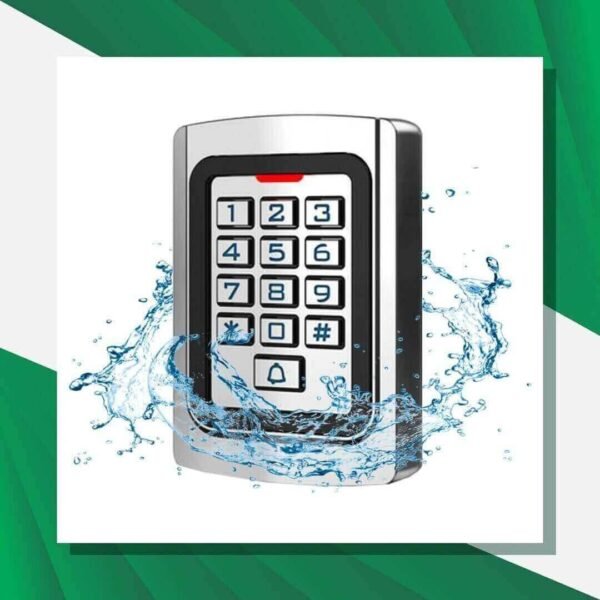

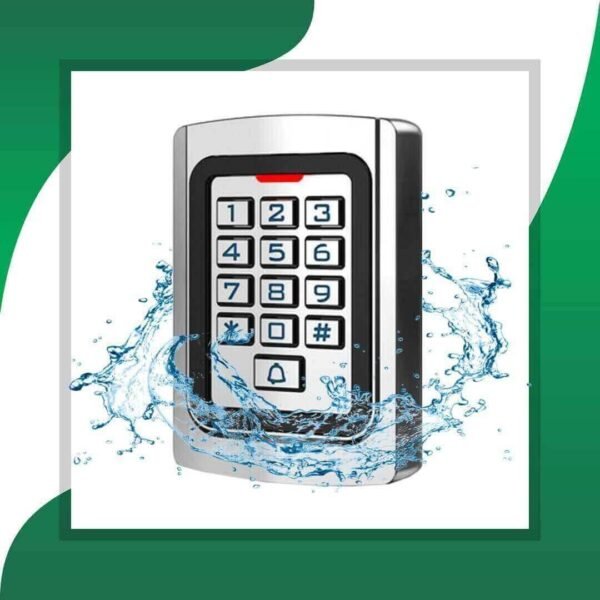

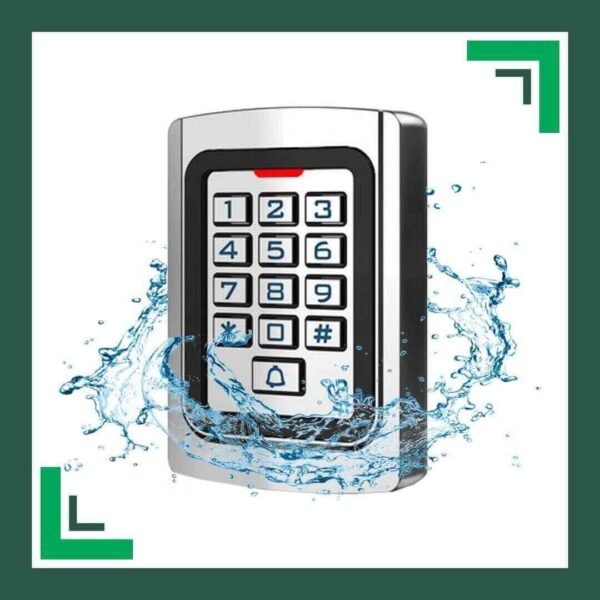

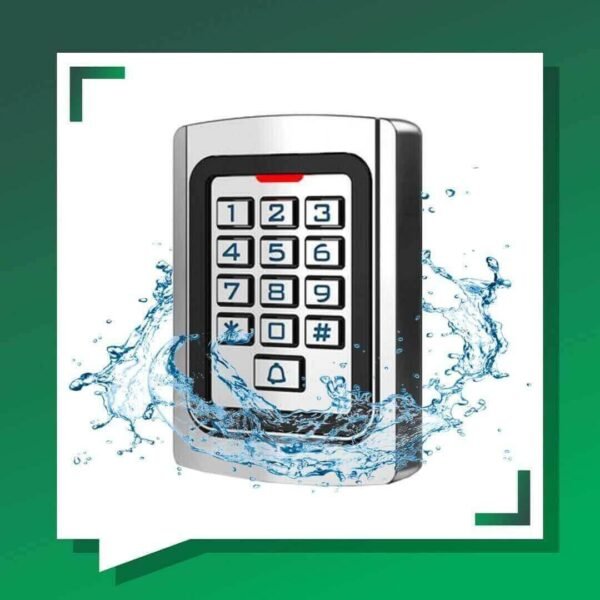

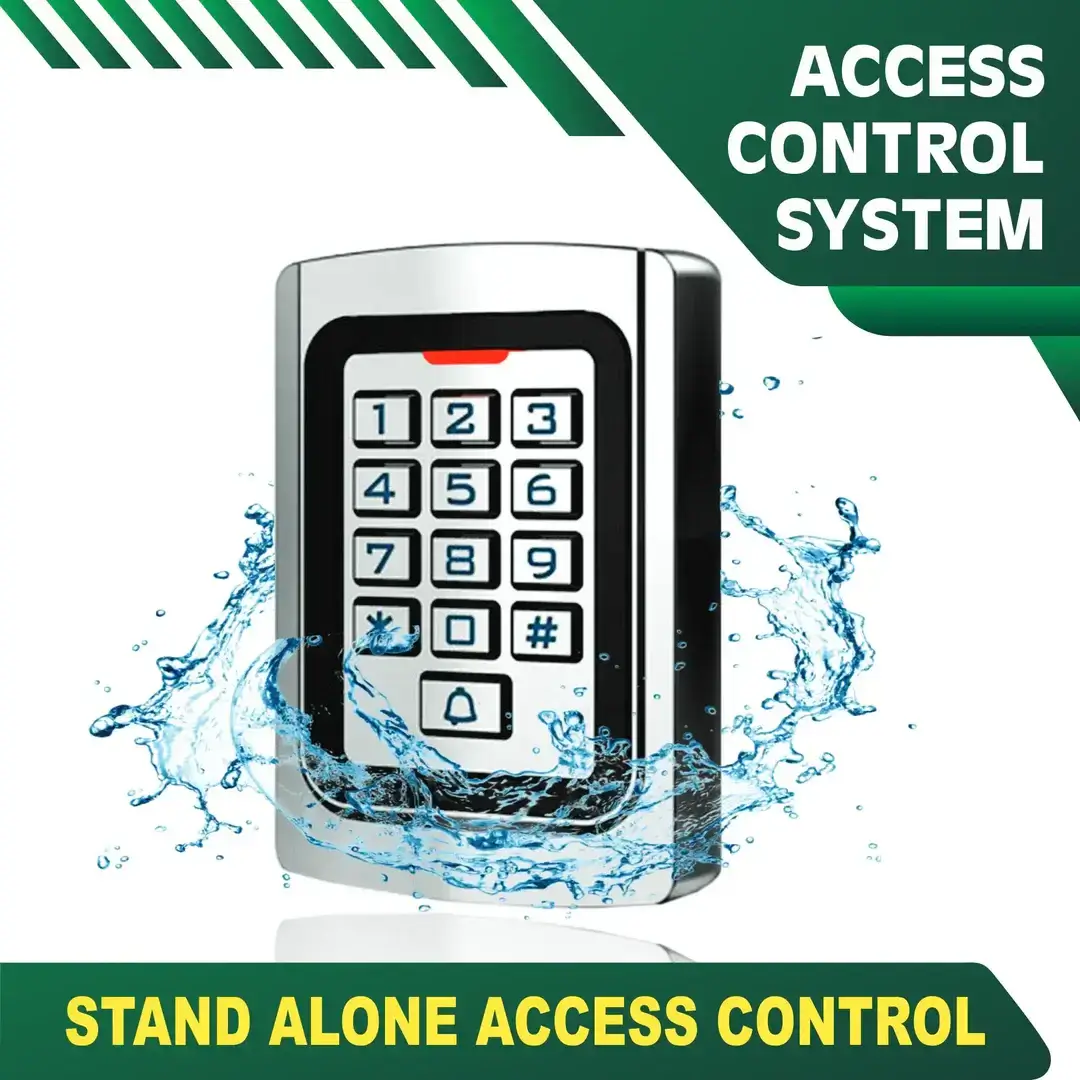

digital touch keypad reader standalone Waterproof IP68 Metal

TMT Global digital touch keypad reader standalone Waterproof IP68 Metal ip68 waterproof access controller keypad

Overview

The TMT GLOBAL Digital Touch Keypad Reader is engineered to provide a robust and reliable access control solution for your premises. Featuring advanced touch technology, this keypad reader is designed to be resilient and versatile, making it suitable for both residential and commercial applications. With its sleek metal casing and waterproof IP68 rating, rest assured that this product can withstand harsh weather conditions and protect against dust and water infiltration.

Key Features

Equipped with state-of-the-art digital touch technology, the TMT GLOBAL keypad reader ensures quick and efficient access for authorized personnel. The standalone functionality eliminates the need for complex wiring or additional software, allowing for effortless installation and operation. This product not only supports multiple user codes but also offers superior security with features such as code scrambling to prevent unauthorized access.

The IP68 rating guarantees that the keypad can endure extreme environments, providing peace of mind for users in various scenarios, including outdoor installations. The metal construction adds to its durability, making it an excellent choice for locations that require a robust access control solution.

Installation and Maintenance

Installing the TMT GLOBAL Digital Touch Keypad Reader is straightforward. The product comes with comprehensive instructions, making it easy for anyone to set it up without professional assistance. Its user-friendly interface allows for simple code management and configuration, ensuring that your security system is always up-to-date.

In terms of maintenance, the keypad has a minimal upkeep requirement. Regular cleaning of the surface is recommended to maintain its pristine look and operational efficiency. Additionally, due to its waterproof properties, you won’t have to worry about it being affected by rain or spills, simplifying the maintenance process.

Features

• Waterproof, conforms to IP65/IP68
• Strong Zinc Alloy Electroplated anti-vandal case
• Full programming from the keypad
• 2000 users, supports Card, PIN, Card + PIN
• Can be used as a stand alone keypad
• Backlight keys
• Wiegand 26 input for connection to external reader
• Wiegand 26 output for connection to a controller
• Adjustable Door Output time, Alarm time, Door Open time
• Very low power consumption (30mA)
• Fast operating speed, <20ms with 2000 users
• Lock output current short circuit protection
• Easy to install and program
• Built in light dependent resistor (LDR) for anti tamper
• Built in buzzer
• Red, Yellow and Green LEDS display the working status

Specification
Card type: NL
Waterproof degree: IP68
Environment Humidity: 10%～90%
Lock output: ≤3A
Working voltage: DC12-24V ±10％
Static electricity: ≤30mA
Alarm output: ≤20A
Output short circuit protection time: 100μS
Card read distance: 2～5cm
Ambient temperature: -45℃～60℃
Door Opening Time: 0～99s(Adjustable)
Metal structure design: anti-vandal Digital backlit keyboard
All-in-one : WG26 output/input
User capacity: 2000 card user card, 2000 user password
Access Way: card, password, card + password
The doorbell button and interface: buttons and isolation circuit Connect to any external bell
Dimension: 120x80x25mm
