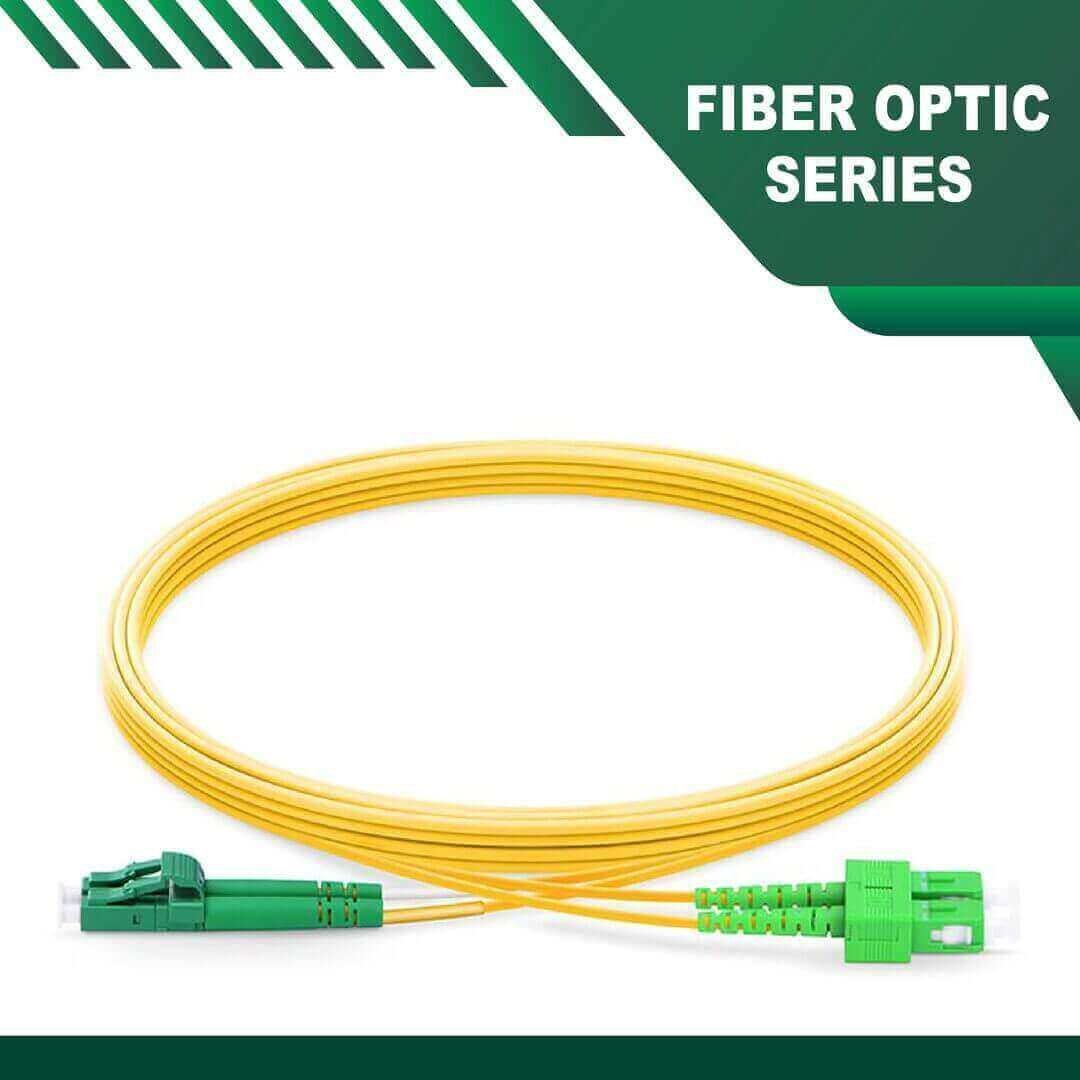

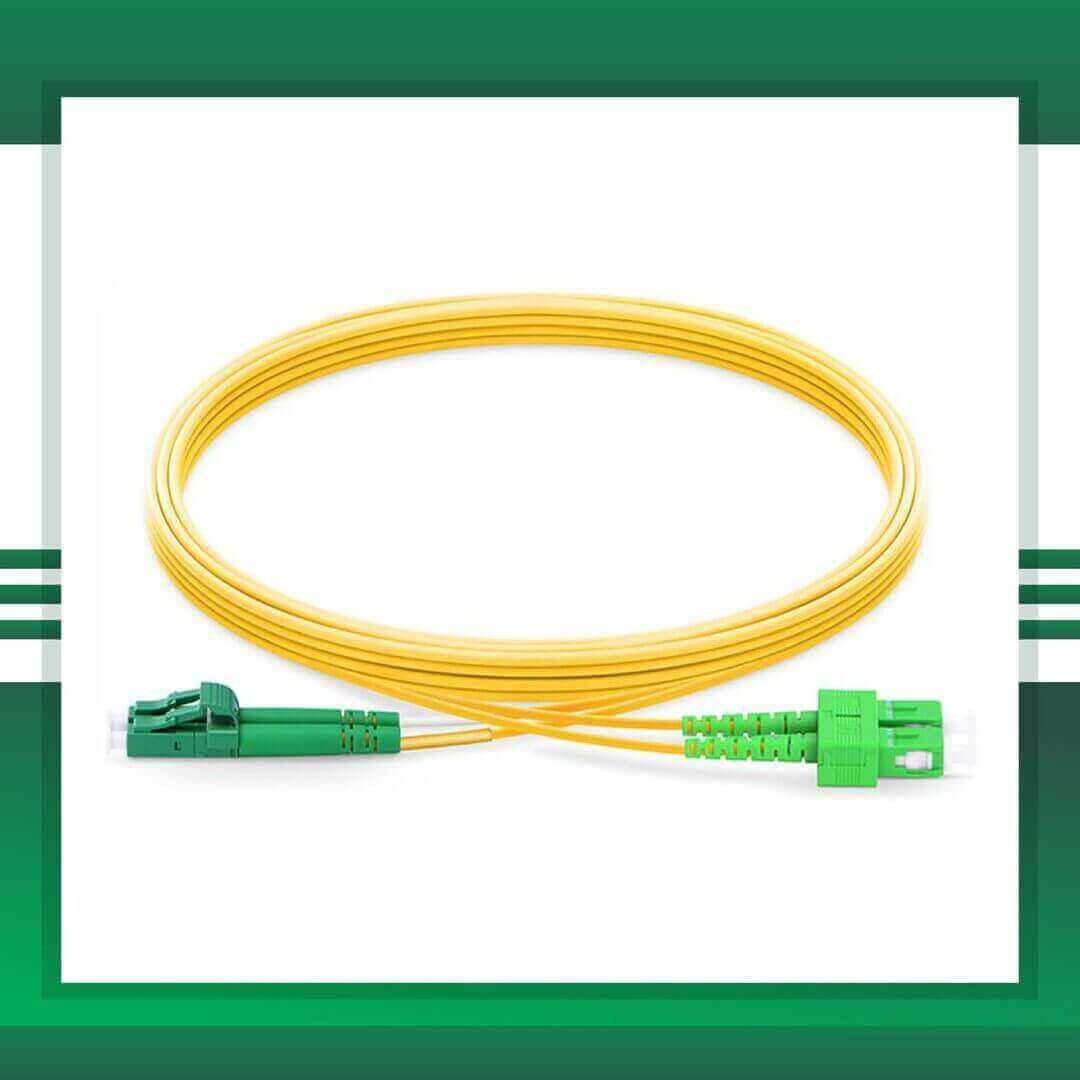

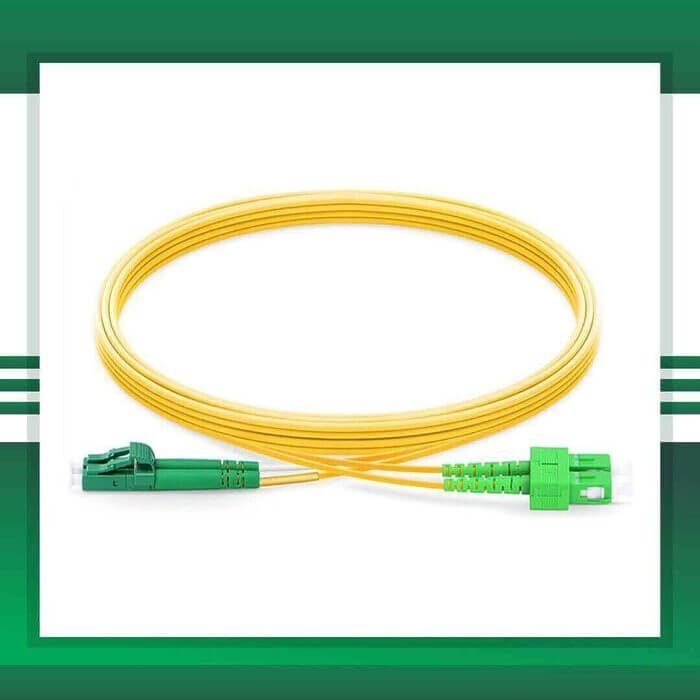

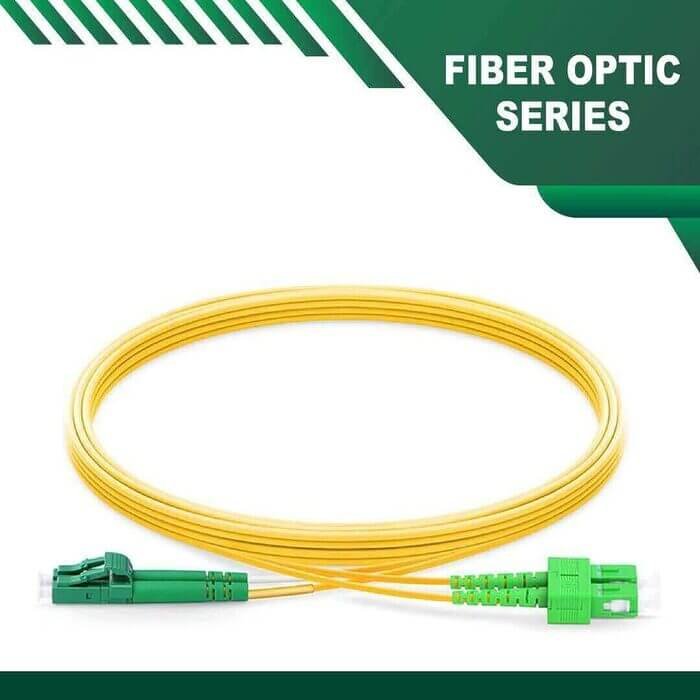

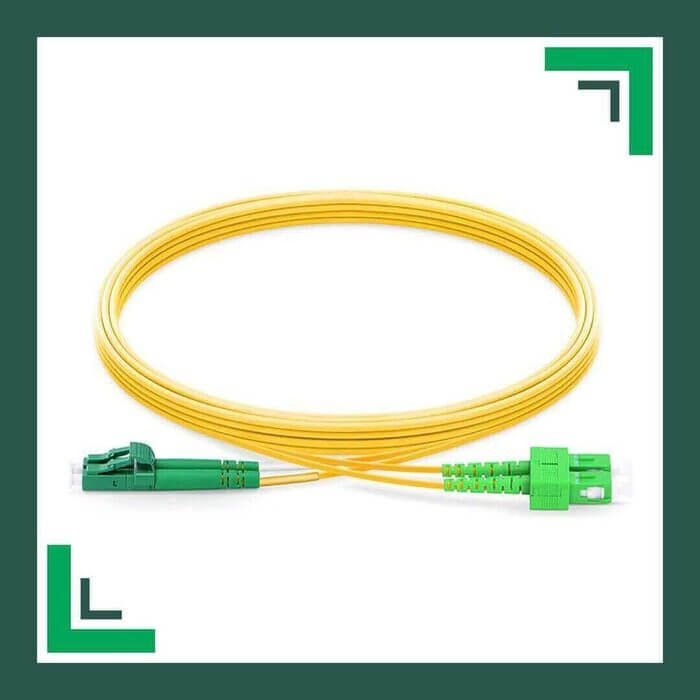

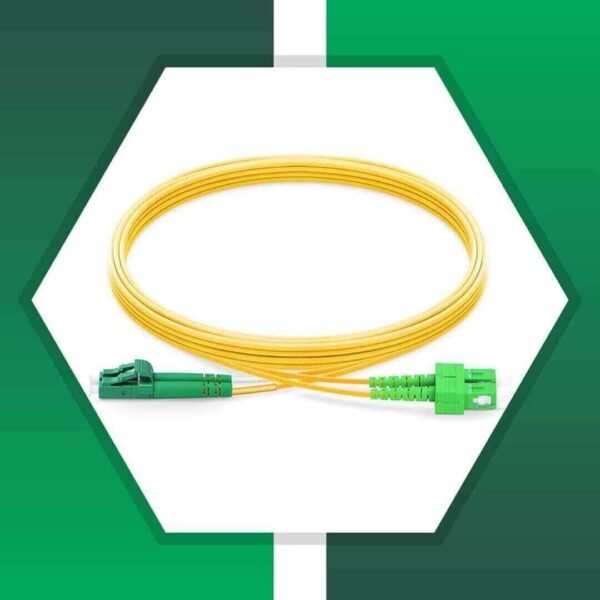

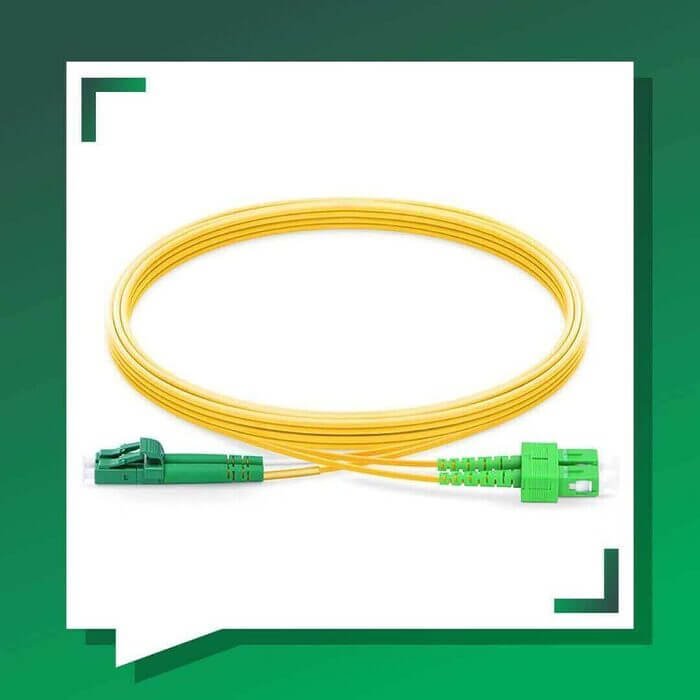

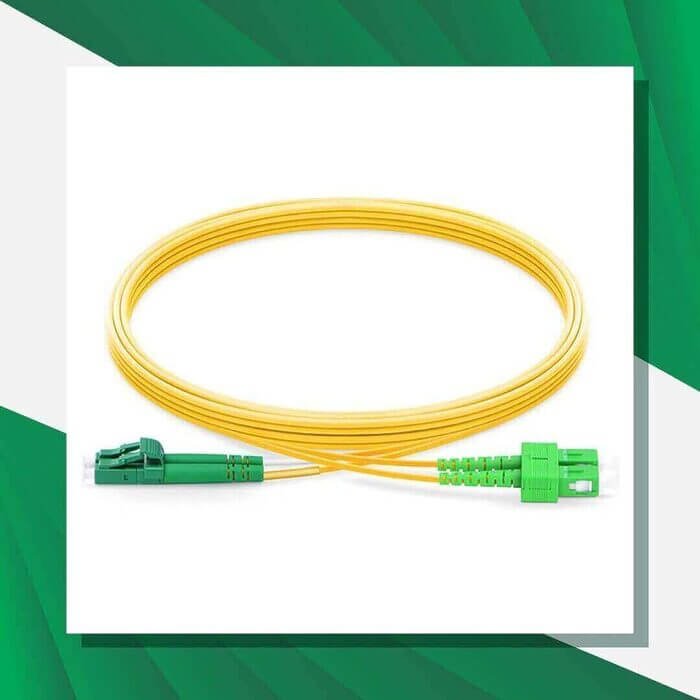

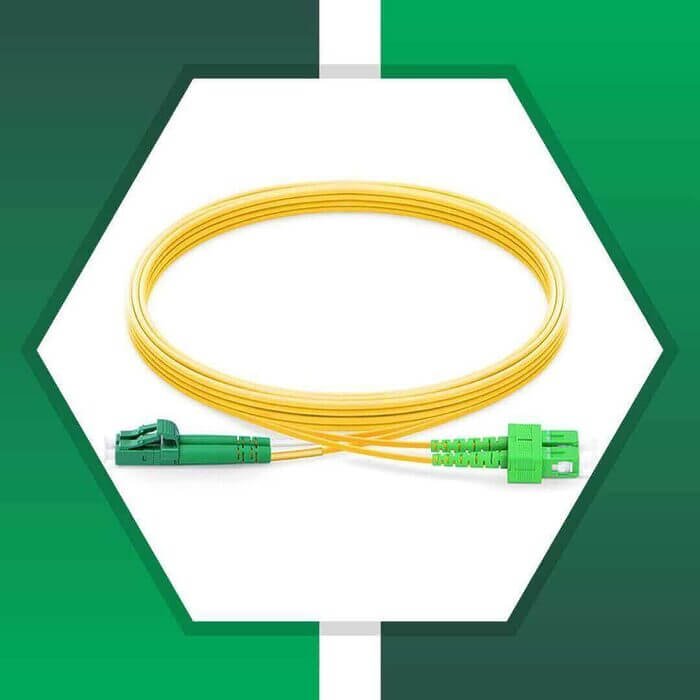

SC-LC-APC Duplex LSZH Fiber Optic Patch Cord Single Mode

TMT GLOBAL SC-LC-APC Duplex LSZH Fiber Optic

TMT Global  PATCH CABLES  are manufactured and  tested  in  compliance with TIA 604 (FOCIS), IEC 61754 and YD/T industry standards. OM1, OM2, OM3, OM4, OM5 or OS2 fiber types to meet the demand of Gigabit Ethernet, 10 Gigabit Ethernet and high speed. Fiber Optic Patch Cord SM SC-LC-APC Duplex LSZH duplex fiber patch cable os fiber patch cable os lc plenum duplex fiber patch cable fiber patch cable os sc SC-LC-APC Duplex LSZH Fiber Optic

The TMT GLOBAL Fiber Optic Patch Cord SM SC-LC-APC Duplex LSZH is a high-performance solution for those seeking reliable and efficient data transmission. Featuring single-mode fiber with SC to LC connectors, it ensures minimal signal loss and optimal transmission speeds, making it ideal for high-bandwidth applications. The LSZH (Low Smoke Zero Halogen) jacket enhances safety by reducing toxic fumes in case of fire, a crucial advantage for indoor installations.

While the patch cord excels in performance, it is essential to consider its specific compatibility with existing systems, as it may not be suitable for multimode networks. Additionally, the rigidity of the cable can make installation in tight spaces somewhat challenging. Overall, the TMT GLOBAL Fiber Optic Patch Cord is a commendable choice for users prioritizing quality and safety in their fiber optic connections.

Features
100% pre-terminated and tested in factory to ensure transfer performance.
Rapid configuration and networking, reduce installation time.
Supports 10G and 40G network applications.
Low insertion loss and added loss.
High back loss, small volume, light weight.
LSZH, OFNP, OFNR cable jacket.
Mechanical performance: IEC 61754-20 standard.
RoHS and REACH materials compliant.

Optical Specifications
Mode type: Single mode / multi mode
Cable Type: Simplex/Duplex
Connector Style: SC, FC, ST, LC, MTRJ,
Polish Type: PC,UPC,APC
Diameter: 0.9mm, 1.6mm, 2.0mm, 3.0mm
Lengths: 1,2,3,4,5,8,10,15,20,25,30,40,50,70,100Meter
Strength Member: Aramid Yarn
Outer Jacket: LSZH/PVC/OFNR/OFNP
Interchangeability &Vibration: ≤0.2dB
Minimum Bend radius: 10 -13mm
Wavelength: SM:1310/1550nm MM:850nm
Operating temperature: -40~75°C
Jacket Color
Single mode: Yellow / Green, Yellow Blue
Storage temperature: -45~85°C
Multi mode: OM-1, OM-2 (Orange/Beige ) ,OM-3,(Aqua) OM-4 (Purple)
Fiber type: ITU-T G.652D, G.657A1 /A2 Fiber Optic Patch Cord Single Mode SC-SC-UPC Duplex LSZH

General Specification
Mode type : Single Mode
Cable Type : Simplex
Connector Style : SC-LC
Fiber Type : ITU-T G.652D
Polish type :UPC/APC
Outer Jacket : LSZH
Insertion loss : ≤0.3dB
Return loss : ≥60dB
Wavelength : SM,1310/1550nm
Length : 1,2,3,4,5,8,10,15,20,25,30,40,50,70,100Meter
Product ID : TMT-D52410Y

Multi mode OM-2                   Multi mode OM-3        Multi mode OM-4            ST-UPC
≤0.3dB                                            ≤0.3dB                               ≤0.3dB                                     ≤0.3dB
≥30dB                                             ≥30dB                                 ≥30dB                                      ≥50dB
Insertion loss: ≤0.3dB
Return loss: ≥60dB
