4ch ahd 6-1 hybrid dvr

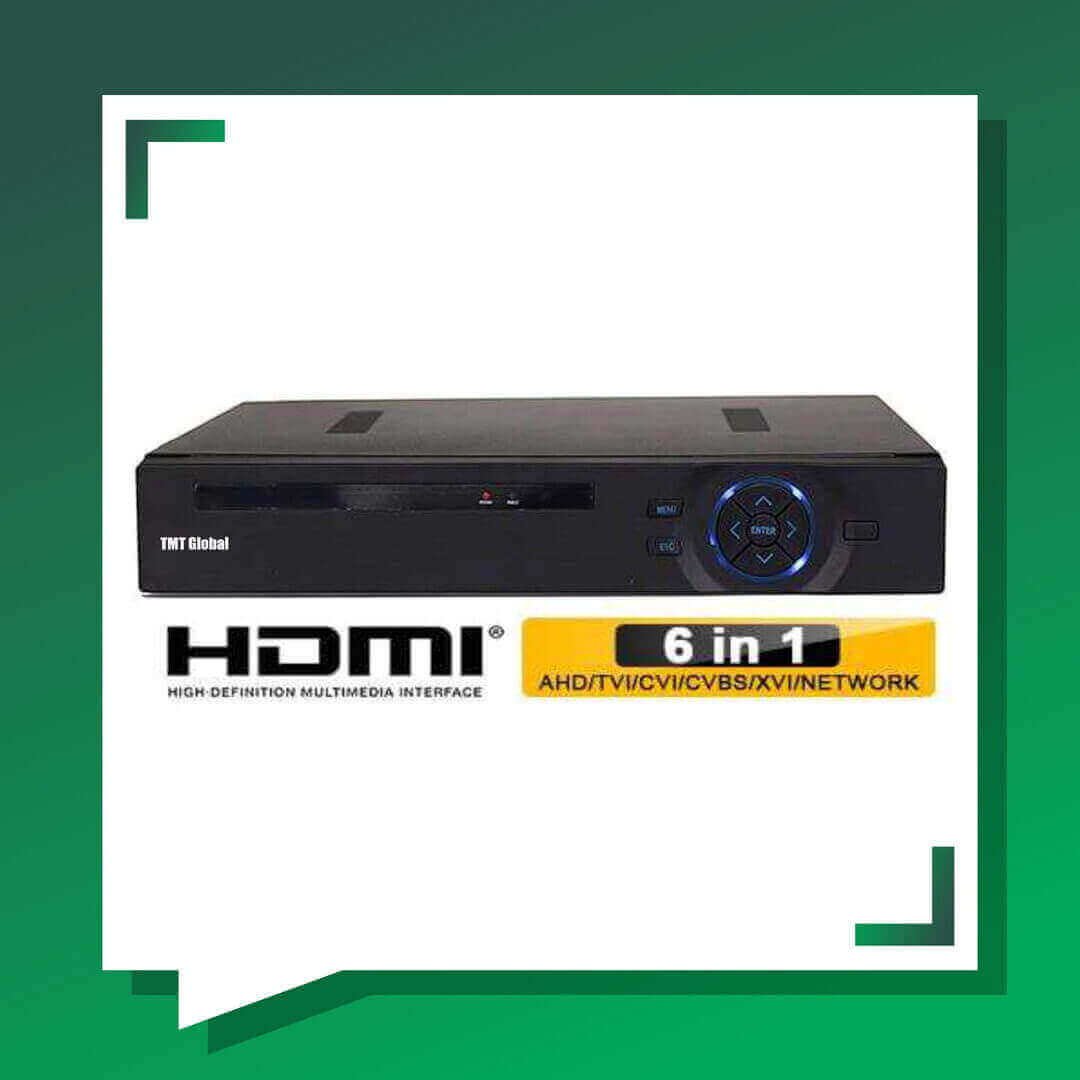

TMT Global  HD 1080P 4ch ahd 6-1 hybrid dvr

TMT Global Technology LTD aims to provide the best quality products r Structured Cabling Systems Copper And Fiber Optics Range Access Control Systems Gate automation Lighting Control Systems Pir Motion Sensors UHF Long Range Readers Automatic Parking Solutions SMATV Systems Audio Video Intercom Systems Audio Visual Systems Public Address Systems. Industrial and Building automation Cables and Accessories which leads to satisfaction and reliability to customers.

Features

• Name: 4ch Ahd 6-1 Hybrid DVR
• Channel: 4ch 1080P video input ability @15fps H.264 Compression
• Video Input Type: AHD, TVI, CVI, XVI, CVBS, IP 6 in 1
• Support 4ch Audio in and 1ch Audio out
• Support RS485
• Support 1*6TB
• Support ONVIF; access third party
• Support AHD, TVI ,CVI,CVBS,IPHD video input
• Support Web, CMS, center Platform Management Software TMTEYE.
• Support multiple cloud technology, network Penetration, alarm information pushed to your phone and other functions.
• Support various mobile monitoring (iPhone, Android)
• Remote Access, With DNS (ARSP),easy to monitor Remotely

Specification

System 4ch ahd 6-1 hybrid dvr
Main Processor Technical Grade Embedded Microprocessor HI 3531
Operating System Embedded LINUX Operating System
System resource Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up.
Interface
Operation interface 16bit real color GUI interface support mouse operation
Display screen 1/4 screen (take analog channel as an example, other is base on the selected channel mode)
Video
Video standard PAL/NTSC（ 1080P）
Image encode H.264(High Profile)；JPEG
Monitor quality Monitor：D1；VGA，HDMI：High definition（support 1920*1080, 1280*720,1440*900,1280*1024, 1024*768、
800*600
Playback quality 1080P/720P/D1/HD1/CI
Encode capability 4*1080P (15FPS) Decode capability 4*1080P (15FPS)
Multi-mode video input AHD/CVI/TVI/ANALOG：4*1080P(15FPS) HVR：2*1080P（AHD+2*1080P（IP NVR：8*1080P+8*960P；4*3M；
Motion detection Each channel can set 192（16*12）detection area；can set multi-level of flexibility (for local analog channel only）
Audio

4ch ahd 6-1 hybrid dvr

Audio compression G711A Bidirectional talk support
Record and play back
Record mode manual > alarm > motion detection > timing
Video search time 、 date 、 event 、 channel search
Storage and back up
Space occupation Video：CIF 4~5G/day*channel， D1 16~20G/day*channel；
Audio：691.2M/day*channel
Video storage Local HDD 、 Network
Back up mode Network backup 、 USB portable HDD 、 USB imprint 、 SATA imprint
Interface
Video input 4CH BNC(1.0Vp-p,75Ω) Video output 1 CH VGA ， 1 CH HDMI
Audio input 4CH RCA Audio output 1 CH RCA(200-3000mV,5KΩ)
Alarm input N/A Alarm output N/A
Network port RJ45 10M/100M self-adaptive Ethernet
port
PTZ control 1 RS485 ； support multi kinds of PTZ protocol
USB port 2 * USB 2.0 HDD port 1 SATA ports （ each max to 6TB ）
Wireless port N/A
other
Power 12V/ 2 A Consumption <15W （ not including HDD )
Temperature 0 ℃ – ＋ 55 ℃ Humidity 10% － 90%
Dimension L255*W220*H45MM Weight 1.2KG
