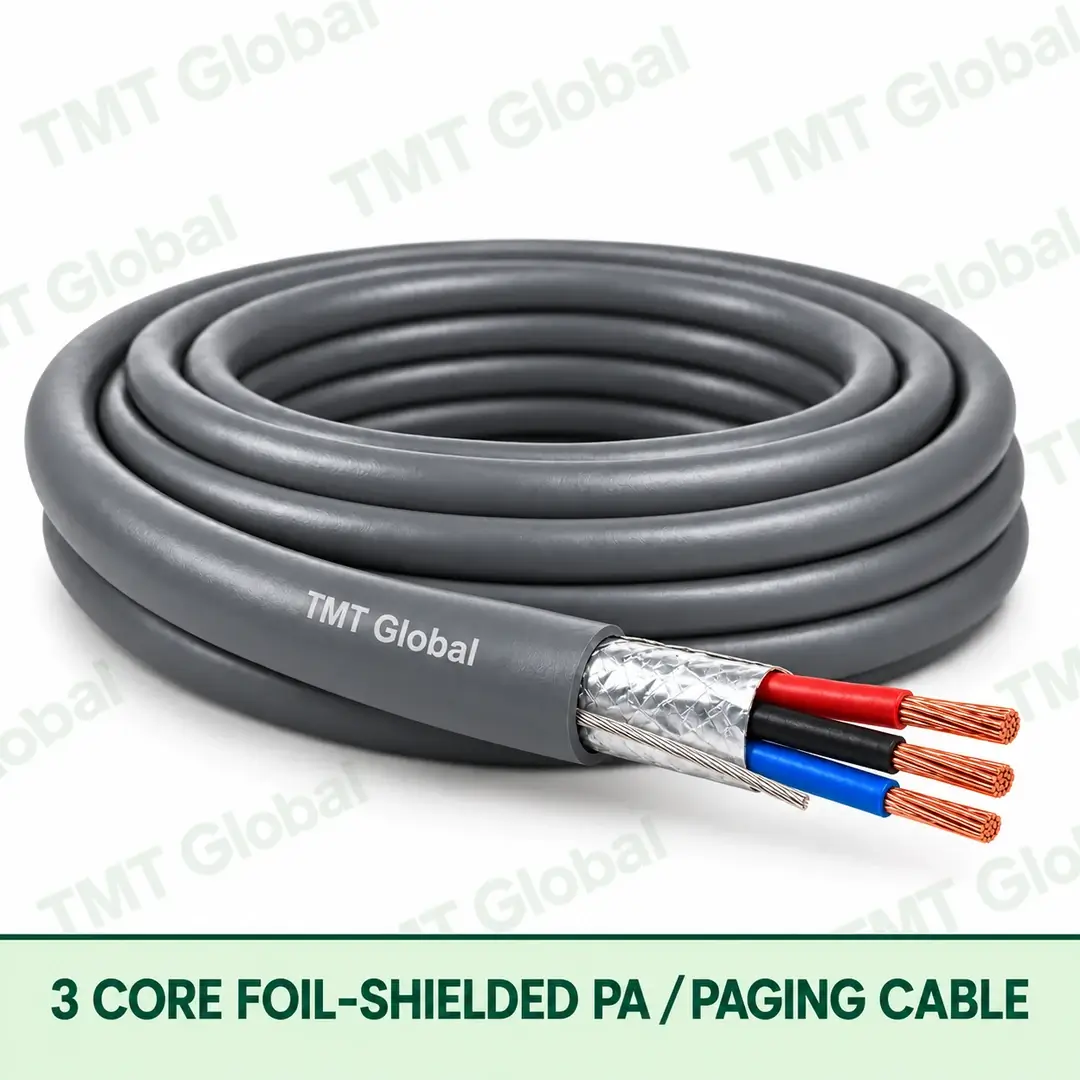

3 Core Foil-Shielded PA / Paging Cable

KEY FEATURES

  • Three stranded bare-copper conductors
  • Overall foil screen and drain wire
  • PVC, LSZH and PE Outdoor jackets
  • Screened PA and paging construction
  • See the ordering table for exact AWG and jacket codes
Chat with Sales

Supplied in the UAE by AMSS from our Sharjah office (Industrial Area 18) and Dubai office (Naif, Deira), for projects across the Emirates. Request a quote

0 People watching this product now!
Description

Choosing the 3 Core Foil-Shielded PA / Paging Cable

Choose PA system cable by conductor size for the run length and line load, then by jacket for the building and route. Jacket options: PVC for general indoor routes, LSZH where low smoke and zero halogen are specified for occupied buildings, PE for outdoor routes.

  • Type: Screened PA / paging bulk cable
  • Cores / pairs: 3 core
  • Conductor size: 14 AWG / 16 AWG / 18 AWG / 20 AWG
  • Conductor: Stranded copper conductors
  • Screen: Overall foil screen
  • Drain wire: Drain wire included
  • Package: 305 m standard package

Related options in this range: 4 Core Foil-Shielded PA / Control Cable · 2 Pair Foil-Shielded PA / Intercom Cable · 4 Pair Foil-Shielded PA / Intercom Cable · 2 Core Standard Fire-Resistant Voice Alarm Cable

Order code: 03C-S-PA. Send us the length, jacket and quantity for a project quotation and datasheet.

TMT Global 3 Core Foil-Shielded PA / Paging Cable Series

TMT Global 3 Core Foil-Shielded PA / Paging Cable combines three signal/control conductors with an overall foil screen and drain wire. It supports paging, intercom and commercial-audio installations that need an additional control conductor and improved noise immunity.

KEY FEATURES

  • Three stranded bare-copper conductors
  • Overall foil screen and drain wire
  • PVC, LSZH and PE Outdoor jackets
  • Screened PA and paging construction
  • See the ordering table for exact AWG and jacket codes

TYPICAL APPLICATIONS

  • PA paging stations
  • Intercom call points
  • Commercial-audio control circuits
  • Noisy building-service routes
  • Indoor and outdoor paging links

Technical Specification

AWG / NOMINAL AREA / SERIES AVAILABILITY

Additional information
AWG14 awg, 16 awg, 18 awg, 20 awg
ColourBlack, Grey
Jacket TypePVC, LSZH, PE Outdoor
BrandTMT Global
Length305 m
