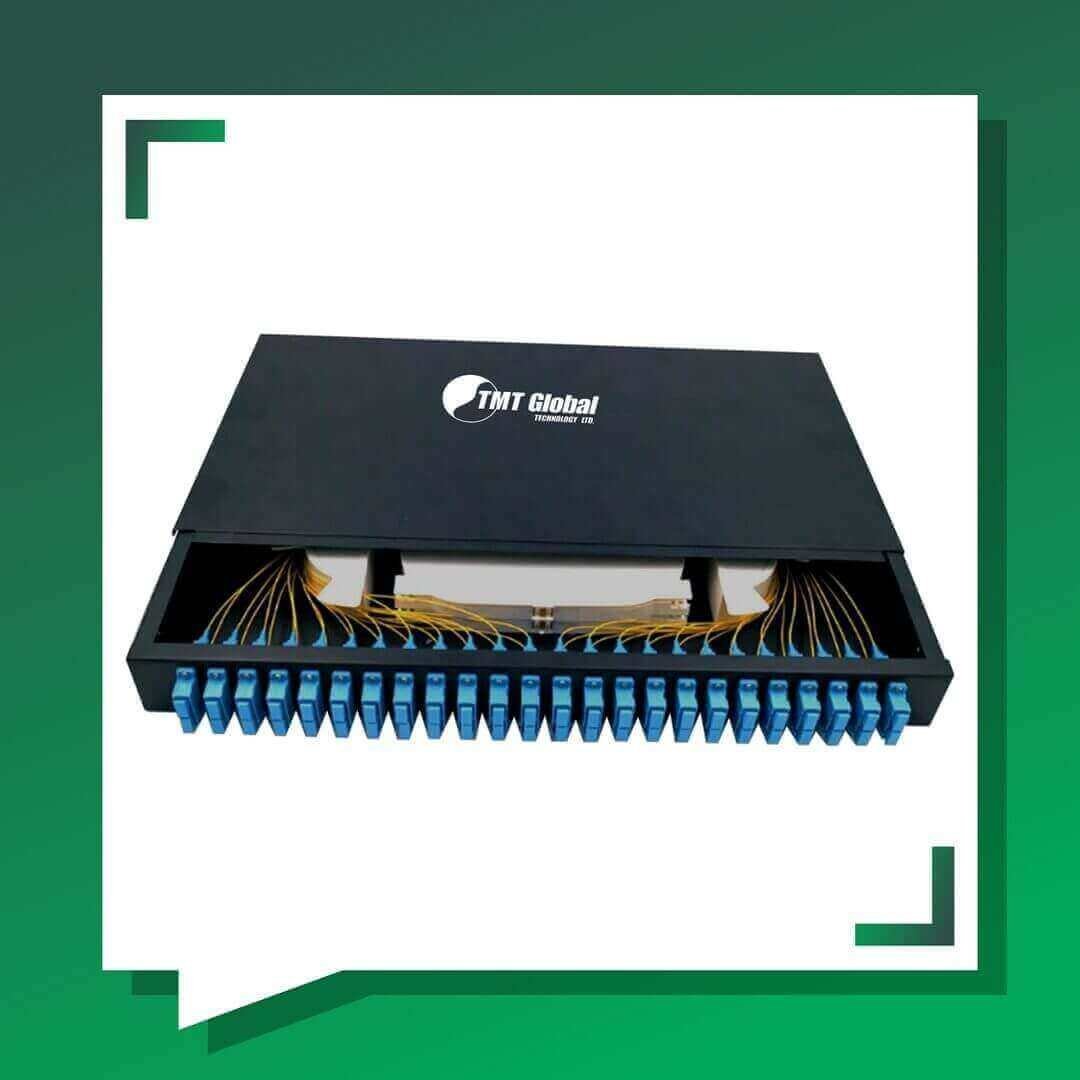

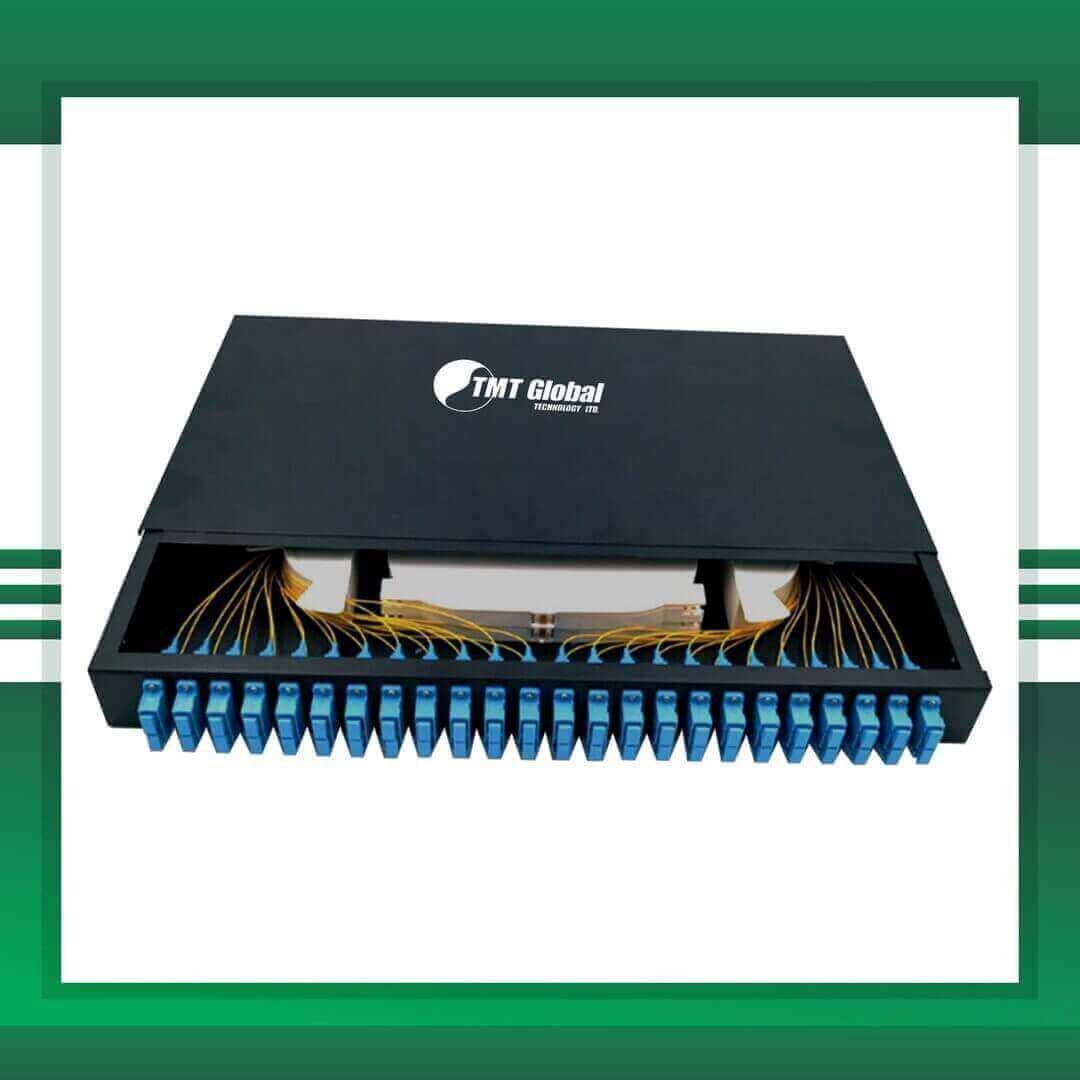

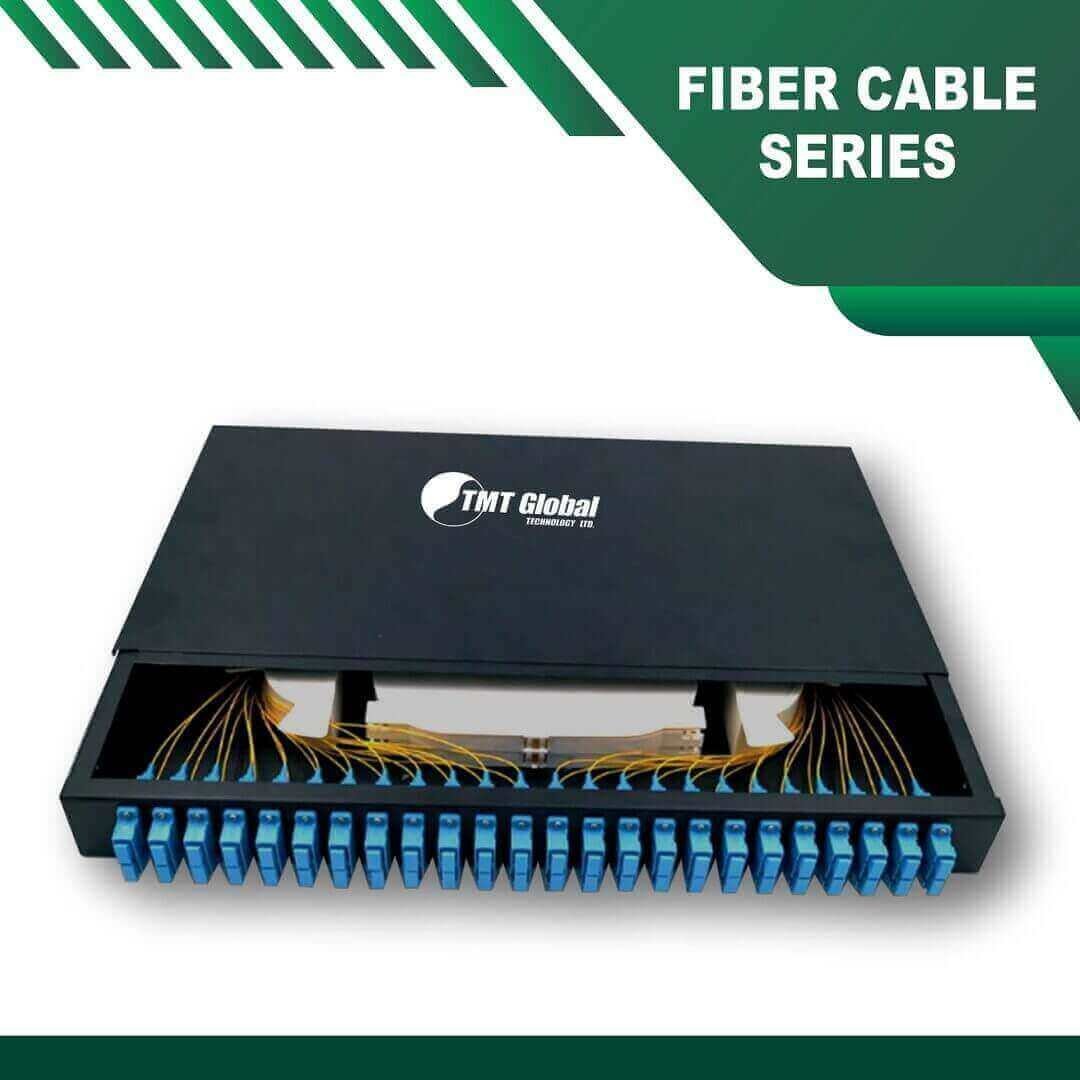

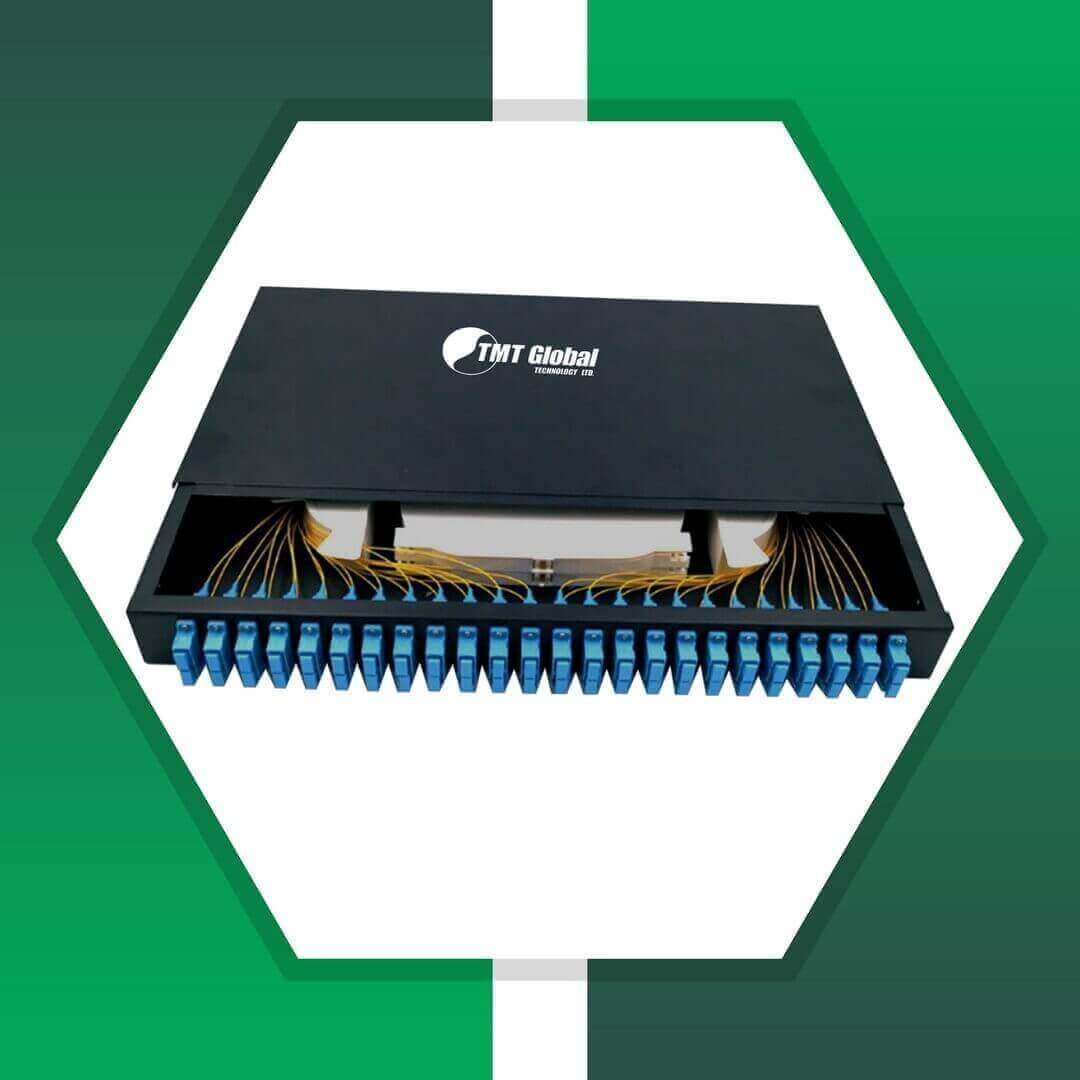

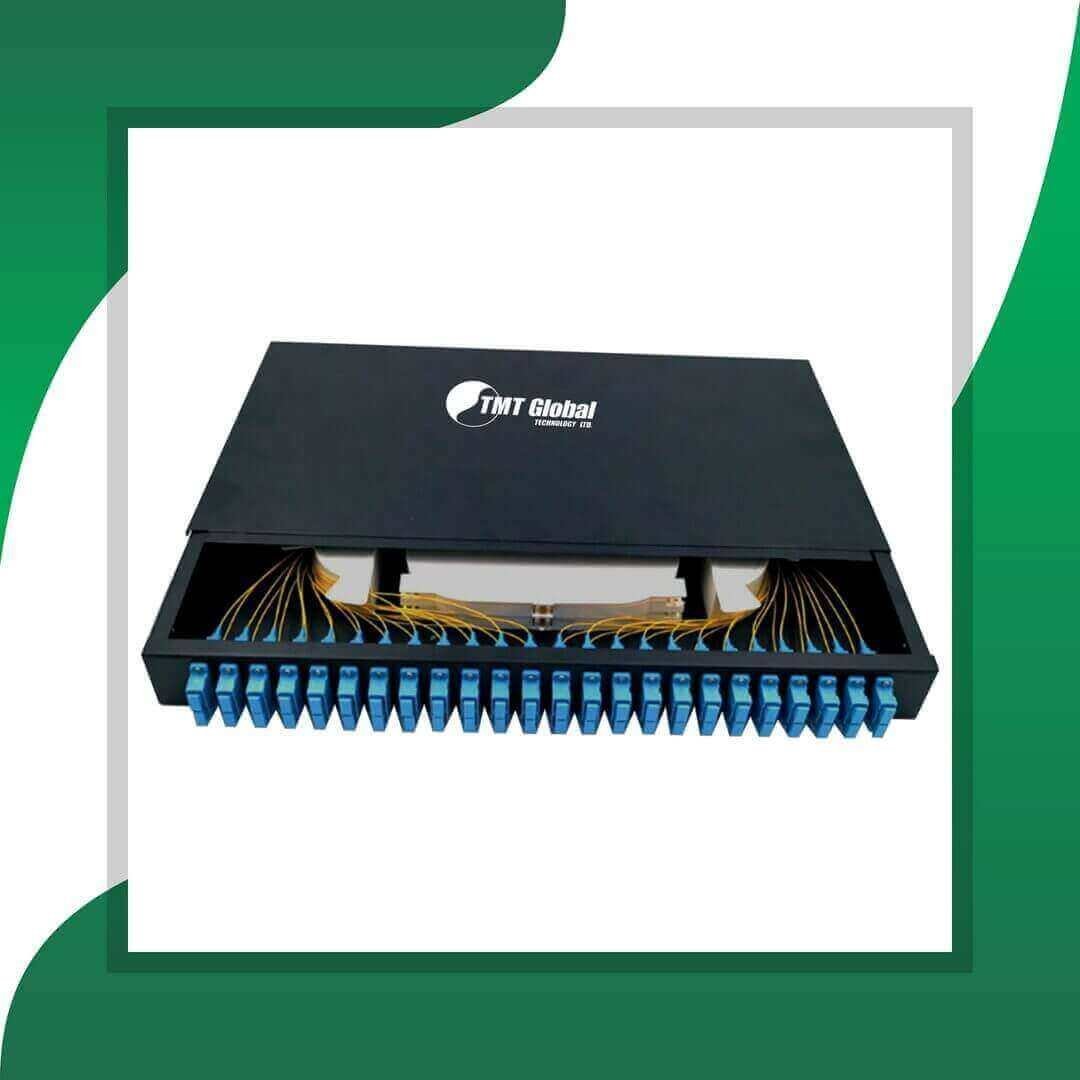

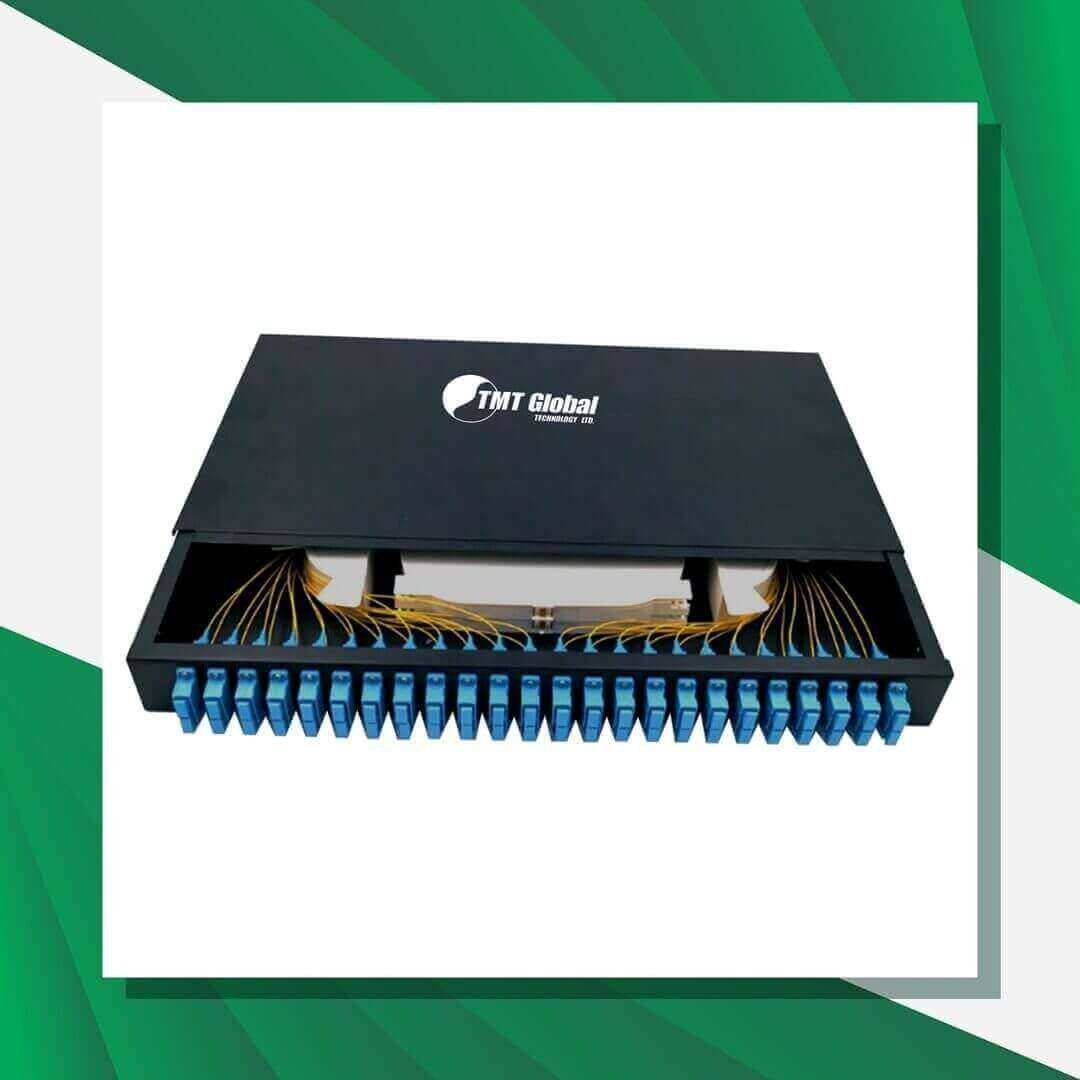

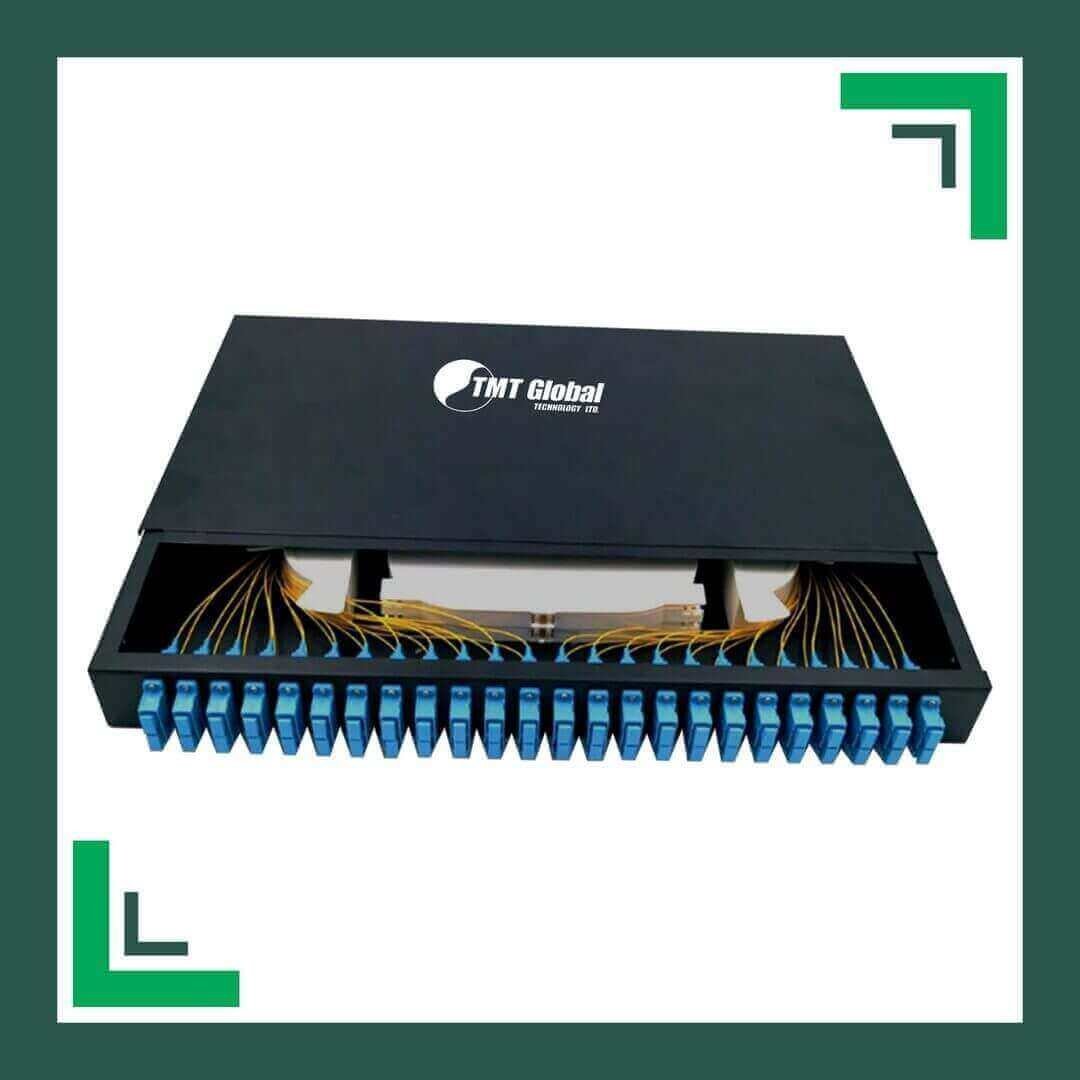

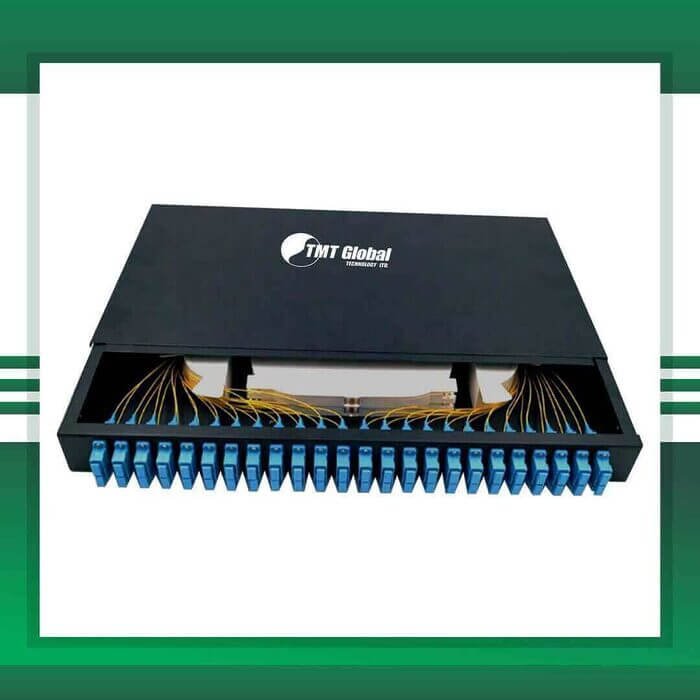

TMT GLOBAL fiber patch panel 48port sc upc Duplex Adapter

Introducing our Fiber Patch Panel with 48 ports, designed specifically to streamline your fiber optic network installations. This top-of-the-line patch panel is equipped with SC UPC duplex adapters, providing a reliable and efficient solution for your data transmission needs. Whether you are upgrading your current setup or building a new one, our patch panel stands out as a premier choice for performance and organization.fiber patch panel 48port sc upc Duplex Adapter

High-Quality Construction

Crafted from robust materials, the fiber patch panel promises durability and longevity. Each port is designed to minimize signal loss while allowing for seamless connections throughout your fiber network. The SC UPC duplex adapter ensures that your fibers are connected efficiently, allowing you to maximize performance without sacrificing quality.

Easy Installation and Maintenance

One of the highlights of our fiber patch panel is its user-friendly design that simplifies installation and maintenance. Detailed labeling on each port facilitates easy identification, making it simpler for technicians to manage connections. With its 48-port capacity, this patch panel is perfect for data centers, telecommunication rooms, or any environment where multiple fiber lines need to be organized efficiently.

Investing in our Fiber Patch Panel with 48-port SC UPC duplex adapter is a strategic choice that will enhance your network’s performance. Experience improved organization and connectivity while ensuring that your fiber optic network remains scalable for future growth. Make the transition to efficient fiber management with our reliable patch panel today!

Features
Sliding patch panel for easy rework and maintenance
Front Panel equipped with SC,LC ,FC, Adaptors
Connection Point to fix Fiber Cassette
Cold rolled steel Constructional Structure
Fixed Splice tray

Applications
Telecommunication networks
FTTH
LAN, WAN, CATV networks
Active device termination
CCTV
IPTV

Specification
ELEMENT: 12/24/48 Port
Mounting Type: Rack
Rack Type : Slide
U Size: 1U (44 mm)
Width: 483mm
Depth:  230mm
Weight: 2.4kgs fully
Packaged Dimensions : 483mm W X 44mm H x 230mm D
IP Rating: P20
Adapter Options: SC /LC /FC
Number of ports: 48
Cable Entry 20mm: 2
Mounting adjustment range: 50mm
Material: Cold Rolled Steel
Material thickness: 1.2mm
Material coating: Powder coating
Color: Black/white
Operating Temperature: -40°c to + 50°c
Compliant to: RoHS, Reach / SVHC
Designed in accordance: TIA/EIA 568.C, ISO/IEC 11801, EN 50173,IEC 60304, IEC 61754, EN 297-1

General Specification
Element : 48port
Mounting Type :Rack
Rack Type : Slide
U Size : 1U (44 mm)
Width : 483mm
Depth : 230mm
Weight : 2.4kgs fully
Packaged Dimensions : 483mm W X 44mm H x 230mm D
IP Rating : P20
Adapter Options  : SC /LC /FC
Number of ports  : 24
Cable Entry 20mm  : 2
Material : Cold Rolled Steel
Color : Black/white
Products ID : TMT-482LUDL
