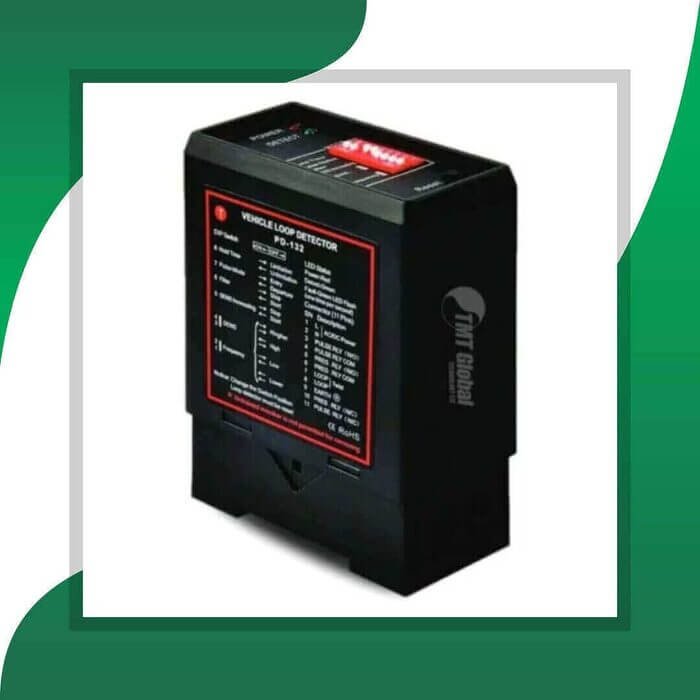

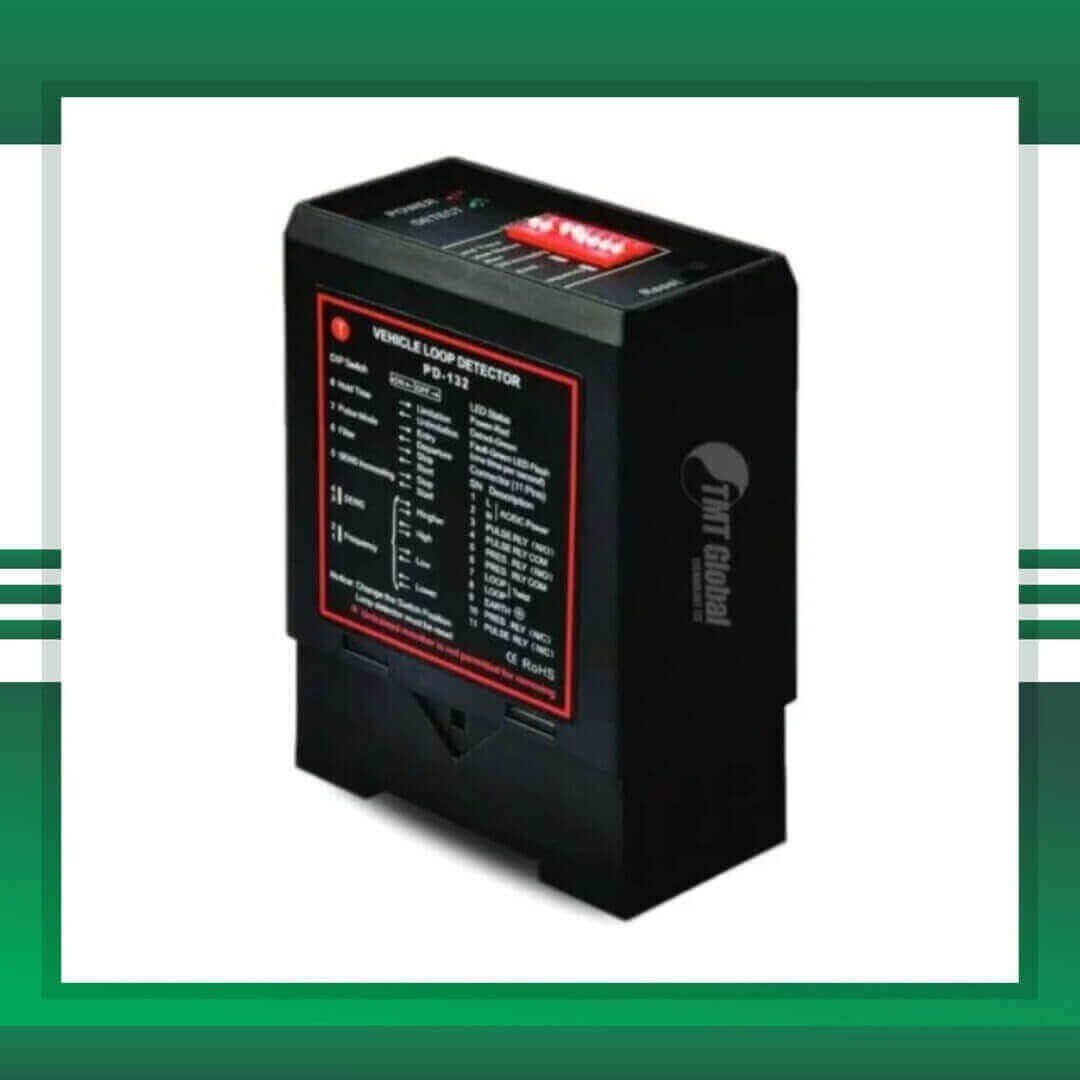

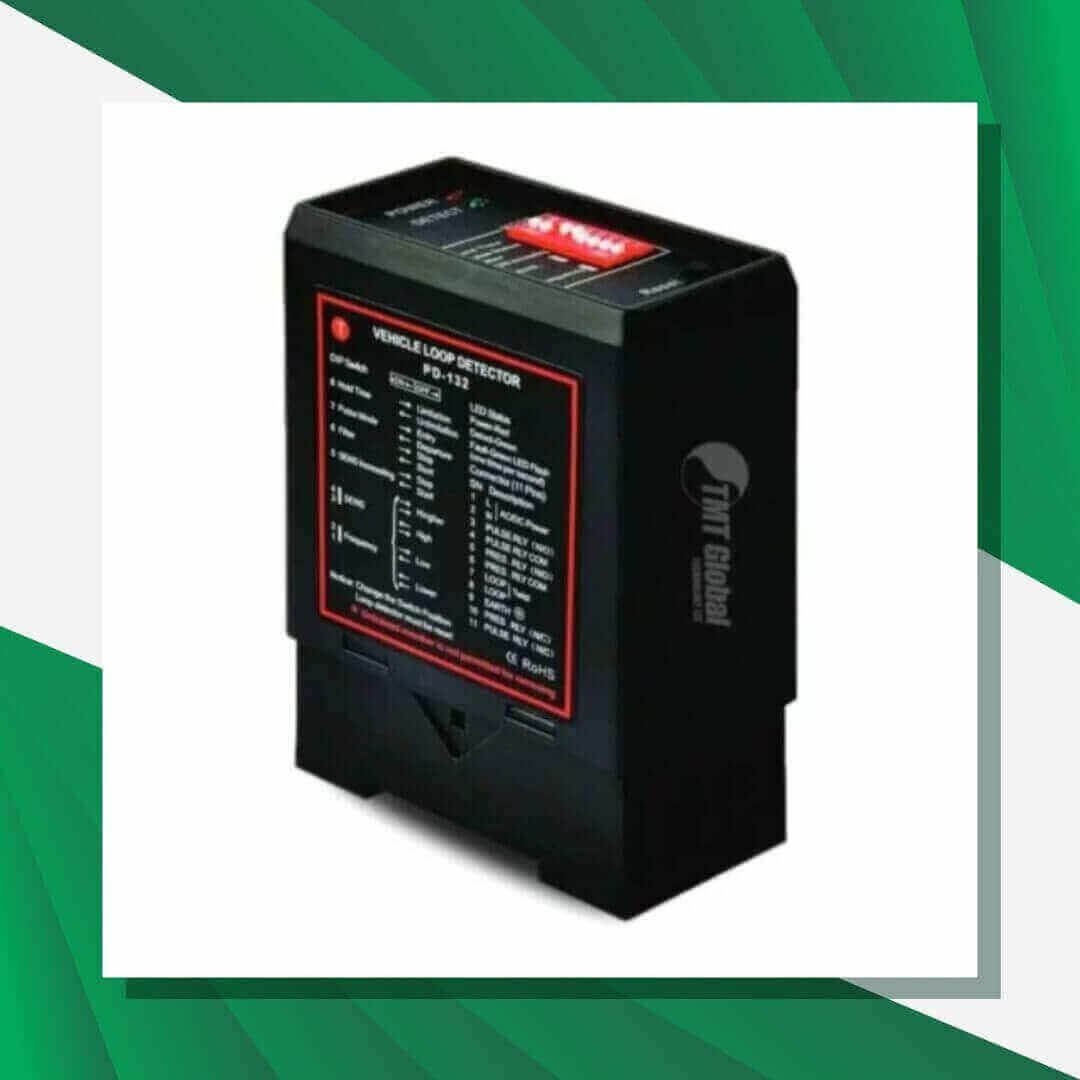

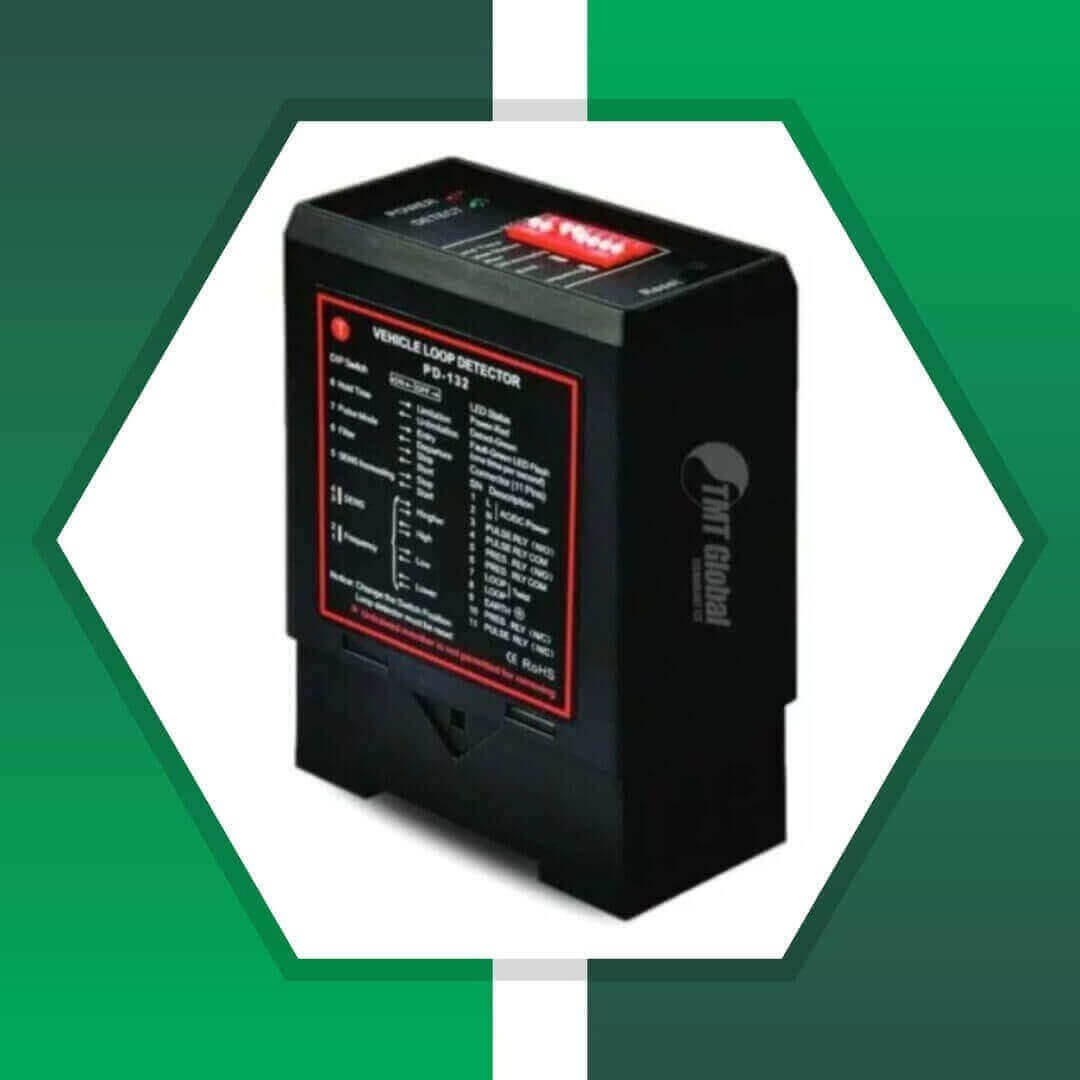

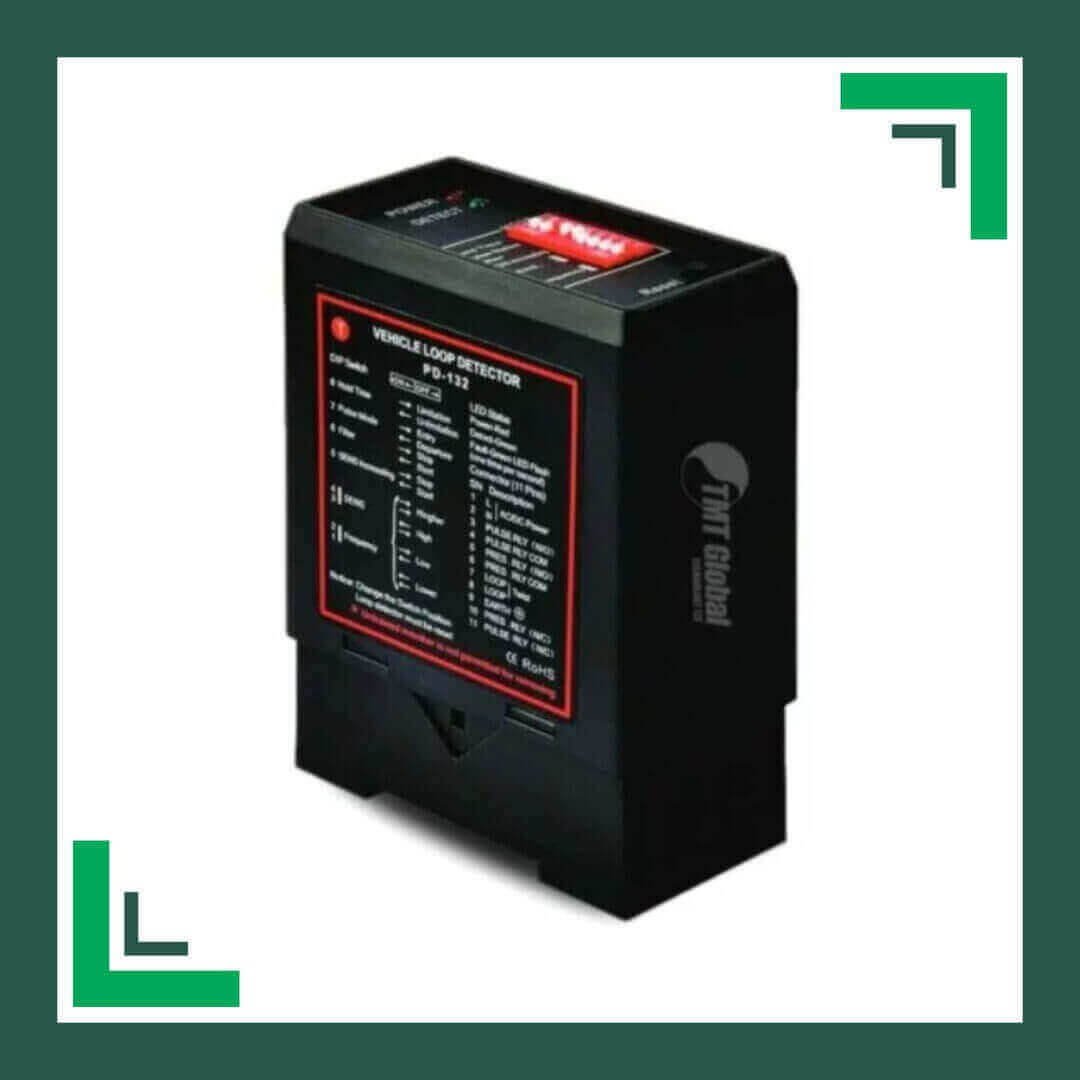

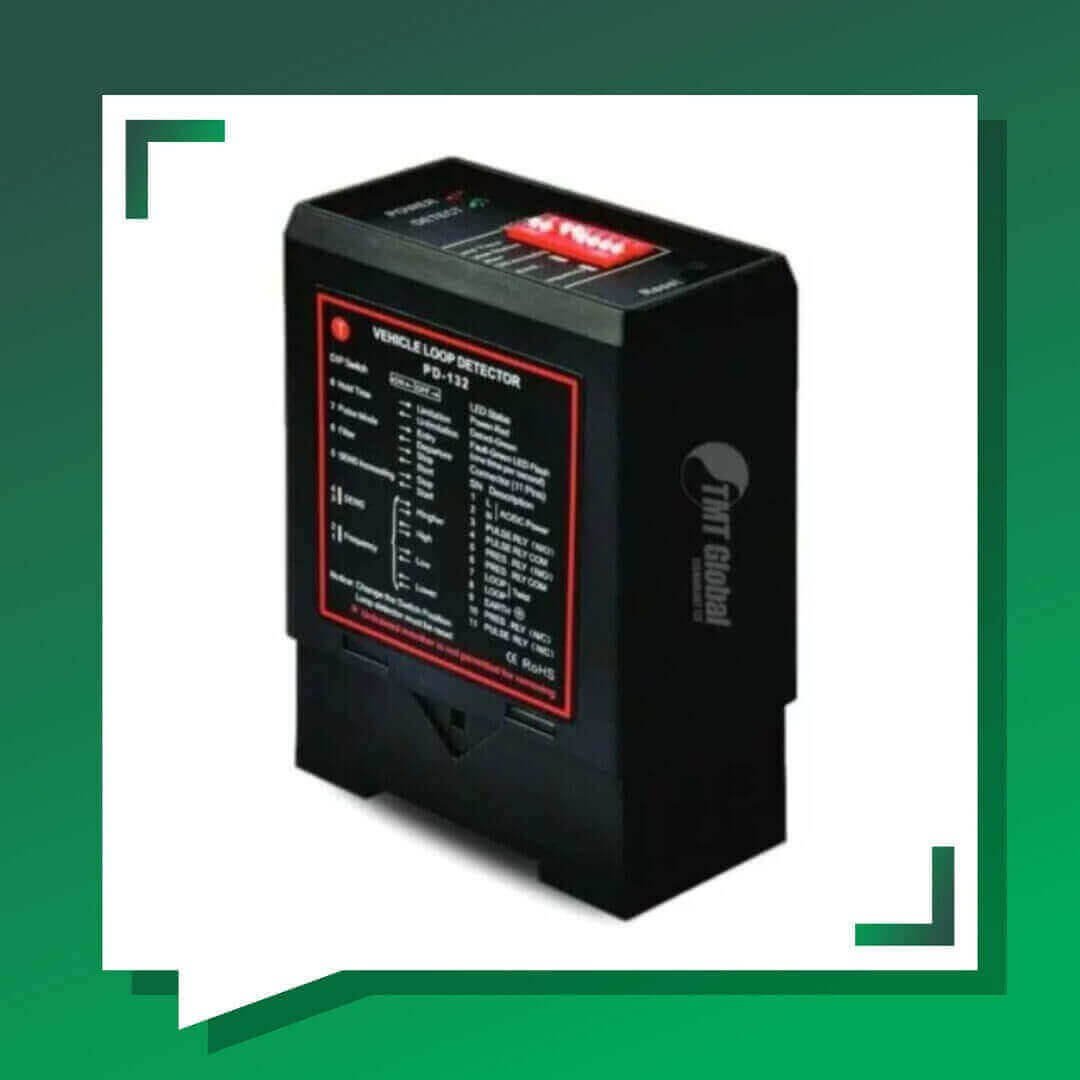

loop detector for gate barrier Dual Channel 100-240V AC

TMT GLOBAL loop detector Gate Automation Dual Channel 100-240V AC

The TMT loop detector for gate barrier Dual Channel 100-240V AC offers reliable performance for various gate automation systems. With its dual-channel capability, it effectively enhances detection accuracy, ensuring smooth and efficient operation. The device is compatible with a wide voltage range, making it suitable for diverse setups.

However, potential users should be aware of some limitations. Installation may require a certain level of technical expertise, which could be a drawback for those unfamiliar with gate automation systems. Additionally, while the detector performs well in most conditions, it may struggle in extreme weather situations, affecting reliability.

Overall, the TMT Loop Detector stands out for its functionality and adaptability, making it a solid choice for both residential and commercial applications.

Technical Parameters

• Product Name: Loop Detector
• Self-turning range: 20-2000μH
• Response Times: Turn-on 10-90MS Turn-off 10-90MS
• Sensitivity: 16 way selectable , Highest 0.010% DL/L , Lowest 2.56% DL/L
• Power Requirements: 110-240VAC (48 to 62Hz) 12-24VADC(48 to 62Hz)
• Visual Indications: Power LED-Red,  Channel LED-Green
• Reset: Reset by push button on front of enclosure
• Frequency Four step switch selectable 20-80KHz
• Relay Output: Presence Relay/Fault Relay
• Voltage tolerance : AC+10% / -15%
• Voltage tolerance : DC±15%
• Device Channel: Single /Double
• Operating temperature: 40℃ to +70℃ (-111℉ to +158℉)
• Sensitivity : 4 levels adjustable
• Relative Humidity: <95%
• Application: open gate, match with barrier gate, gate opener etc.

General Specification
Product Name: Loop Detector
Self-turning range; 20-2000μH
Response Times :Turn-on 10-90MS Turn-off 10-90MS
Power Requirements: 110-240VAC (48 to 62Hz) 12-24VADC(48 to 62Hz)
Visual Indications: Power LED-Red, Channel LED-Green
Frequency: Four-step switch selectable 20-80KHz
Relay Output: Presence Relay/Fault Relay
Voltage tolerance : AC +10% / -15%
Device Channel: Double
Application: open gate, match with barrier gate, gate opener etc
Model No. : TMT-7762
