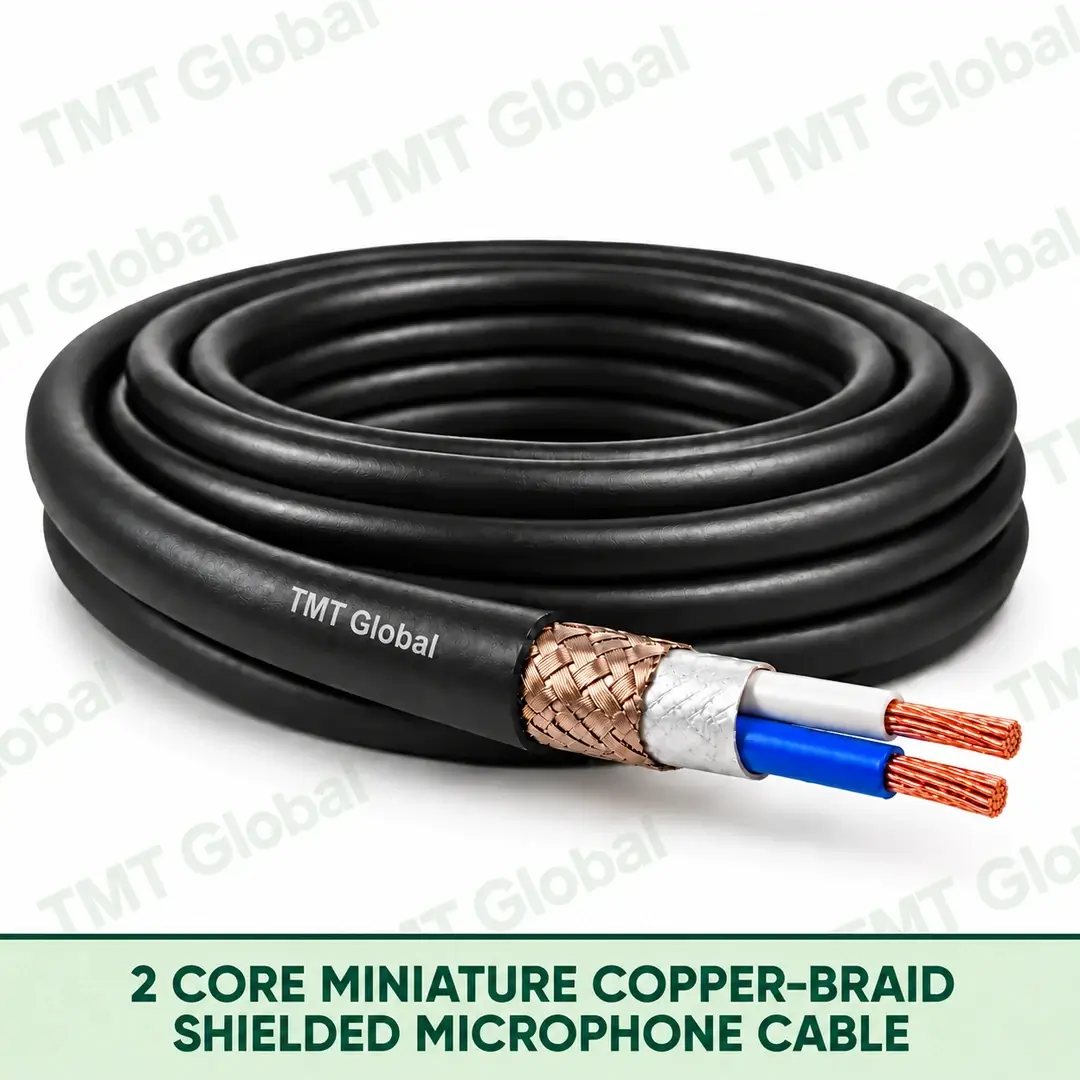

2 Core Miniature Copper-Braid Shielded Microphone Cable

KEY FEATURES

  • Compact two-core balanced construction
  • Copper braid / served shield
  • 26, 28 and 30 AWG miniature Series options
  • PVC, LSZH and PUR / TPU jacket options
  • Small OD and flexibility controlled by released drawing
Chat with Sales

Supplied in the UAE by AMSS from our Sharjah office (Industrial Area 18) and Dubai office (Naif, Deira), for projects across the Emirates. Request a quote

0 People watching this product now!
Description

Choosing the 2 Core Miniature Copper-Braid Shielded Microphone Cable

Microphone cable carries low-level balanced audio, so screening and flexibility matter most. Choose the pair count for the channels on the run and the jacket for fixed or stage use. Jacket options: PVC for general indoor routes, LSZH where low smoke and zero halogen are specified for occupied buildings.

  • Type: Miniature balanced microphone and low-level analogue audio cable
  • Cores / pairs: Miniature balanced pair / 2 core
  • Conductor size: 26 AWG / 28 AWG / 30 AWG
  • Conductor: Stranded copper
  • Screen: Copper braid / served shield
  • Package: 305 m

Related options in this range: 2 Core Foil-Shielded Installation Microphone Cable · 4 Core Star-Quad Foil + Braid Double-Shielded Microphone Cable · 2 Pair / 4 Core Foil-Shielded Stereo Microphone Cable · 2 Pair / 4 Core Foil + Braid Shielded Stereo Microphone Cable

Order code: 02C-MM. Send us the length, jacket and quantity for a project quotation and datasheet.

TMT Global 2 Core Miniature Copper-Braid Shielded Microphone Cable Series

TMT Global 2 Core Miniature Copper-Braid Shielded Microphone Cable provides a compact balanced signal construction for lavalier, headset, bodypack, compact patching and miniature audio assemblies. The family keeps small conductor sizes separate from standard stage cable and requires factory confirmation of flexibility, capacitance, OD and termination compatibility.

KEY FEATURES

  • Compact two-core balanced construction
  • Copper braid / served shield
  • 26, 28 and 30 AWG miniature Series options
  • PVC, LSZH and PUR / TPU jacket options
  • Small OD and flexibility controlled by released drawing

TYPICAL APPLICATIONS

  • Lavalier and headset microphone assemblies
  • Wireless bodypack interconnection
  • Compact patching and internal audio harnesses
  • Conference, broadcast and presentation systems
  • Miniature connectorised microphone leads

Technical Specification

AWG / NOMINAL AREA / SERIES AVAILABILITY

Additional information
BrandTMT Global
AWG20 awg, 22 awg, 24 awg
Length305 m
Jacket TypePUR / TPU, PVC, LSZH
ColourBlack
