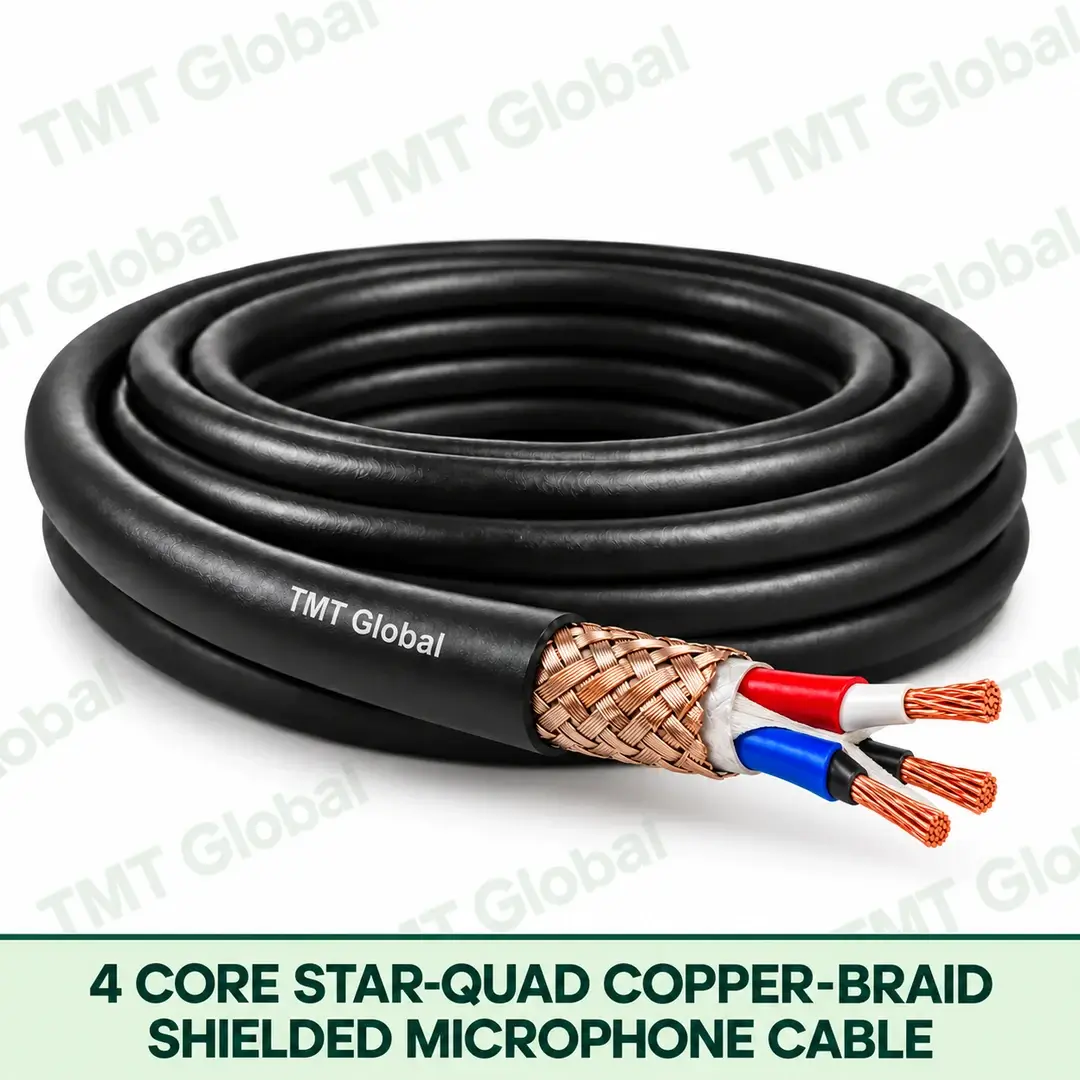

4 Core Star-Quad Copper-Braid Shielded Microphone Cable

KEY FEATURES

  • Four-conductor star-quad geometry
  • Flexible copper braid / served screen
  • 20, 22 and 24 AWG Series options
  • PVC, LSZH and PUR / TPU jacket options
  • Low-noise geometry subject to factory electrical verification
Chat with Sales

Supplied in the UAE by AMSS from our Sharjah office (Industrial Area 18) and Dubai office (Naif, Deira), for projects across the Emirates. Request a quote

0 People watching this product now!
Description

Choosing the 4 Core Star-Quad Copper-Braid Shielded Microphone Cable

Microphone cable carries low-level balanced audio, so screening and flexibility matter most. Choose the pair count for the channels on the run and the jacket for fixed or stage use. Jacket options: PVC for general indoor routes, LSZH where low smoke and zero halogen are specified for occupied buildings.

  • Type: Professional star-quad microphone and balanced analogue audio cable
  • Cores / pairs: Star quad / 4 core
  • Conductor size: 20 AWG / 22 AWG / 24 AWG
  • Conductor: Stranded copper
  • Screen: Copper braid / served shield
  • Package: 305 m

Related options in this range: 4 Core Star-Quad Foil + Braid Double-Shielded Microphone Cable · 2 Core Foil + Braid Double-Shielded Flexible Microphone Cable · 2 Core Miniature Copper-Braid Shielded Microphone Cable · 2 Core Foil-Shielded Installation Microphone Cable

Order code: 04C-MQ. Send us the length, jacket and quantity for a project quotation and datasheet.

TMT Global 4 Core Star-Quad Copper-Braid Shielded Microphone Cable Series

TMT Global 4 Core Star-Quad Copper-Braid Shielded Microphone Cable uses four insulated conductors arranged as a star-quad geometry with opposite conductors connected in parallel for balanced microphone service. The construction is intended for improved rejection of electromagnetic interference where the released geometry, lay and shield design are verified.

KEY FEATURES

  • Four-conductor star-quad geometry
  • Flexible copper braid / served screen
  • 20, 22 and 24 AWG Series options
  • PVC, LSZH and PUR / TPU jacket options
  • Low-noise geometry subject to factory electrical verification

TYPICAL APPLICATIONS

  • Critical microphone lines in electrically noisy venues
  • Broadcast, studio and film production
  • Stage boxes, patch systems and wall plates
  • Touring and live-sound microphone assemblies
  • Balanced analogue audio requiring star-quad construction

Technical Specification

AWG / NOMINAL AREA / SERIES AVAILABILITY

Additional information
ColourBlack
BrandTMT Global
Jacket TypePUR / TPU, PVC, LSZH
AWG20 awg, 22 awg, 24 awg
Length305 m
