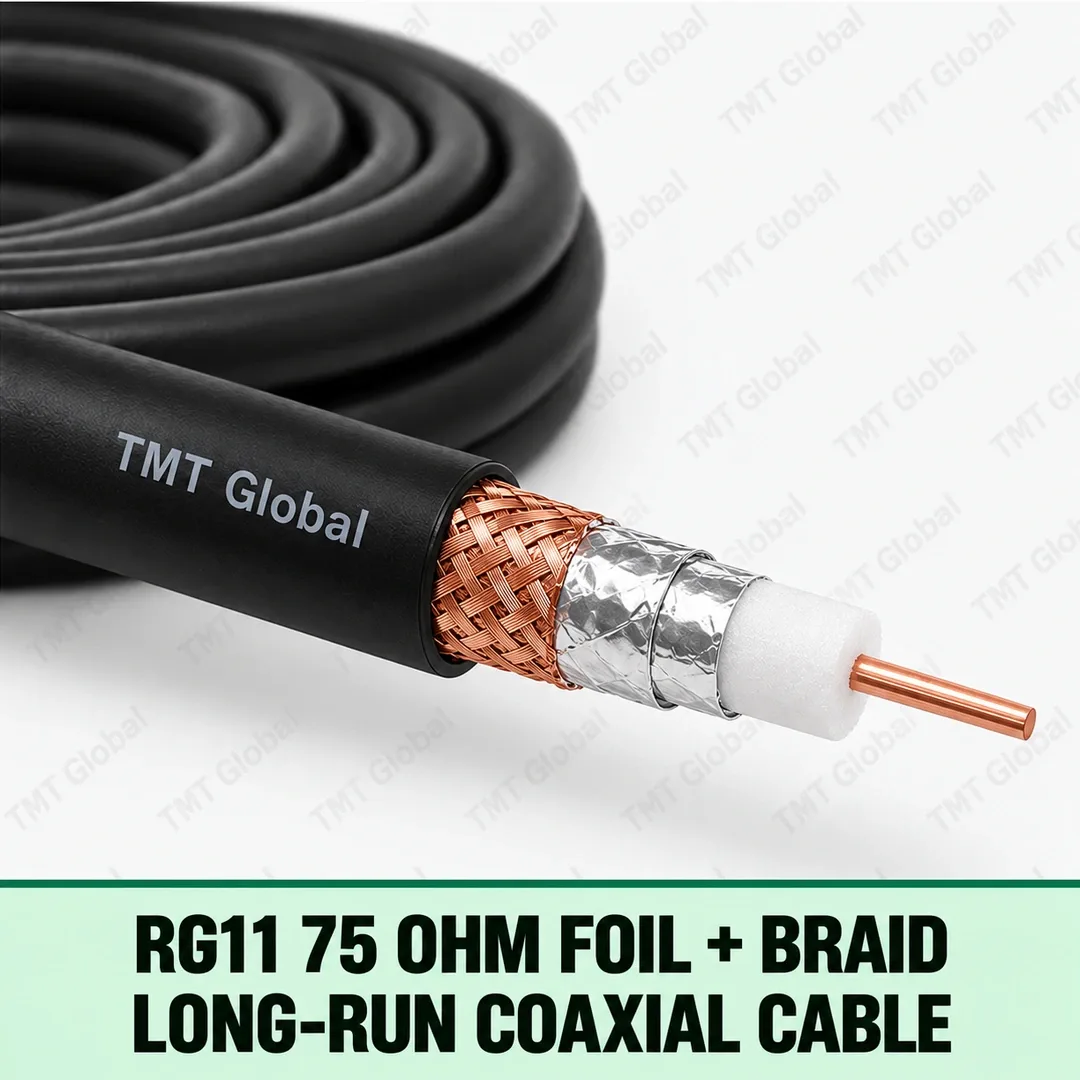

RG11 75 Ohm Foil + Braid Long-Run Coaxial Cable

KEY FEATURES

  • RG11 construction
  • 75 Ω nominal impedance family
  • 14 AWG copper-clad steel centre conductor
  • Foil + braid screening construction
  • 305 m standard package
Chat with Sales

Supplied in the UAE by AMSS from our Sharjah office (Industrial Area 18) and Dubai office (Naif, Deira), for projects across the Emirates. Request a quote

0 People watching this product now!
Description

Choosing the RG11 75 Ohm Foil + Braid Long-Run Coaxial Cable

Choose coaxial cable by RG type and impedance first: 75 ohm types carry video and CCTV signals, 50 ohm types carry RF and antenna signals. Then pick the jacket for the route. Jacket options: PVC for general indoor routes, LSZH where low smoke and zero halogen are specified for occupied buildings, PE for outdoor routes.

  • Type: Round standalone coaxial cable
  • RG type / impedance: RG11, 75 Ω nominal
  • Conductor size: 14 AWG Copper-Clad Steel
  • Screen: Foil + braid
  • Package: 305 m

Related options in this range: RG11 75 Ohm Quad-Shield Long-Run Coaxial Cable · RG6 75 Ohm Quad-Shield Coaxial Cable · RG6 75 Ohm Foil + Braid Coaxial Cable · RG58 50 Ohm RF Coaxial Cable

Order code: RG11-FB-R1. Send us the length, jacket and quantity for a project quotation and datasheet.

TMT Global RG11 75 Ohm Foil + Braid Long-Run Coaxial Cable Series

TMT Global RG11 75 Ohm Foil + Braid Long-Run Coaxial Cable is a controlled standalone coaxial-cable family for professional ELV, video and RF installations. Long-run RG11 construction with larger 14 AWG centre conductor for lower-loss 75 ohm video and RF distribution. This reuses the existing RG11 long-run product position. Jacket and colour are exact searchable Series ordering variants; the centre-conductor and shield construction are fixed by the family.

KEY FEATURES

  • RG11 construction
  • 75 Ω nominal impedance family
  • 14 AWG copper-clad steel centre conductor
  • Foil + braid screening construction
  • 305 m standard package

APPLICATIONS

  • Long TV / CATV runs
  • Head-end distribution
  • Outdoor RF backbone

Technical Specification

Additional information
AWG18 awg
BrandTMT Global
ColourBlack, White
Jacket TypePVC, LSZH, PE Outdoor
Length305 m
