Coax and Power Cable RG59 2 Core 1.5mm 305m
General Specification
Inner Conductor : Material BC dia,mm 1.13
Foil Coverage : 98%
Braid : material CCS
Braid Coverage : 144*0.16
Dielectric : Material FPE dia,mm 4.8
Film Foil Type : Material CCS-Pet
Outer Sheath : Material PVC dia,mm 7.5
Item Code : TMT-R5XSCK-1
Chat with Sales
Full specifications & datasheet: tmtglobal.co.uk →
Supplied in the UAE by AMSS from our Sharjah office (Industrial Area 18) and Dubai office (Naif, Deira), for projects across the Emirates. Request a quote
0
People watching this product now!
Description

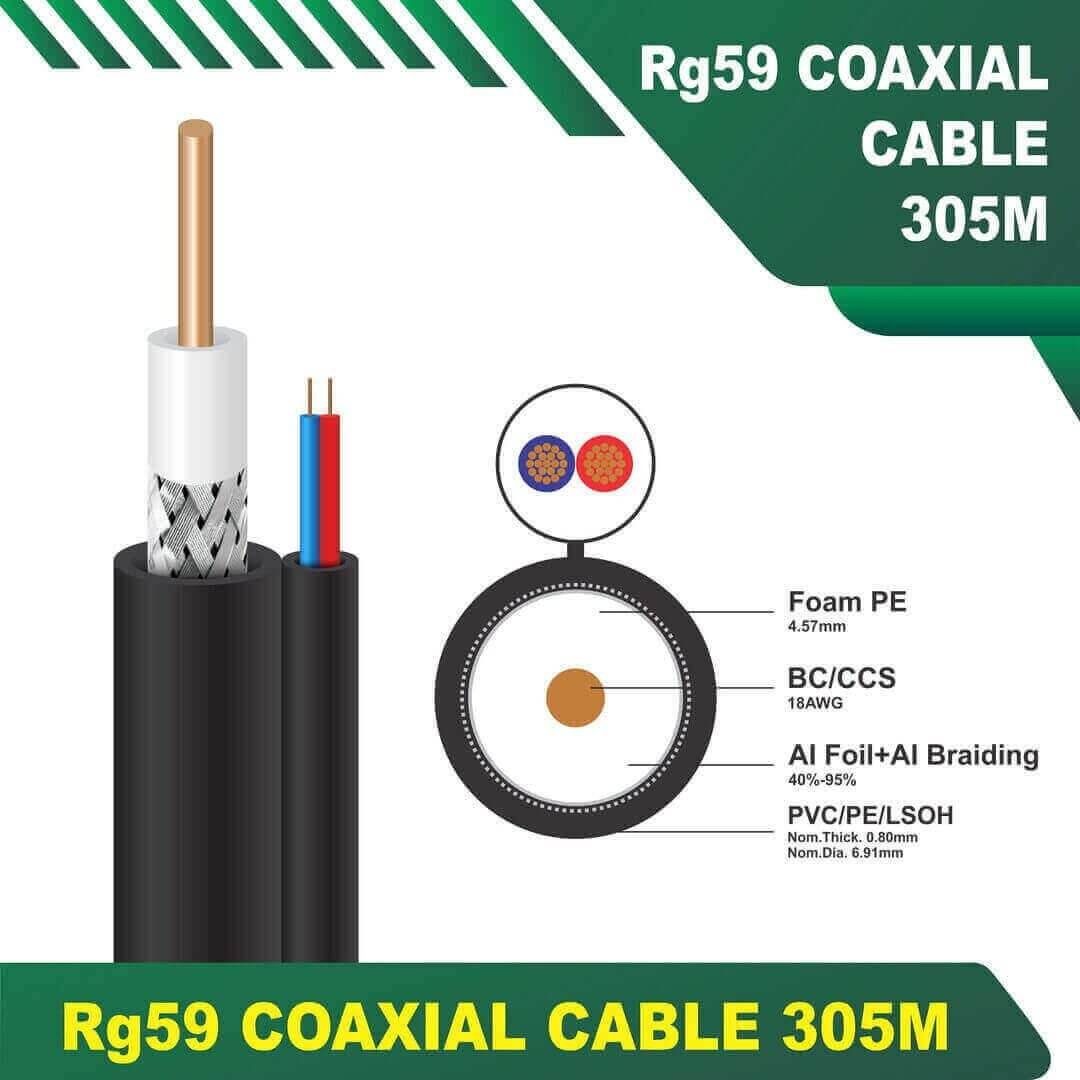

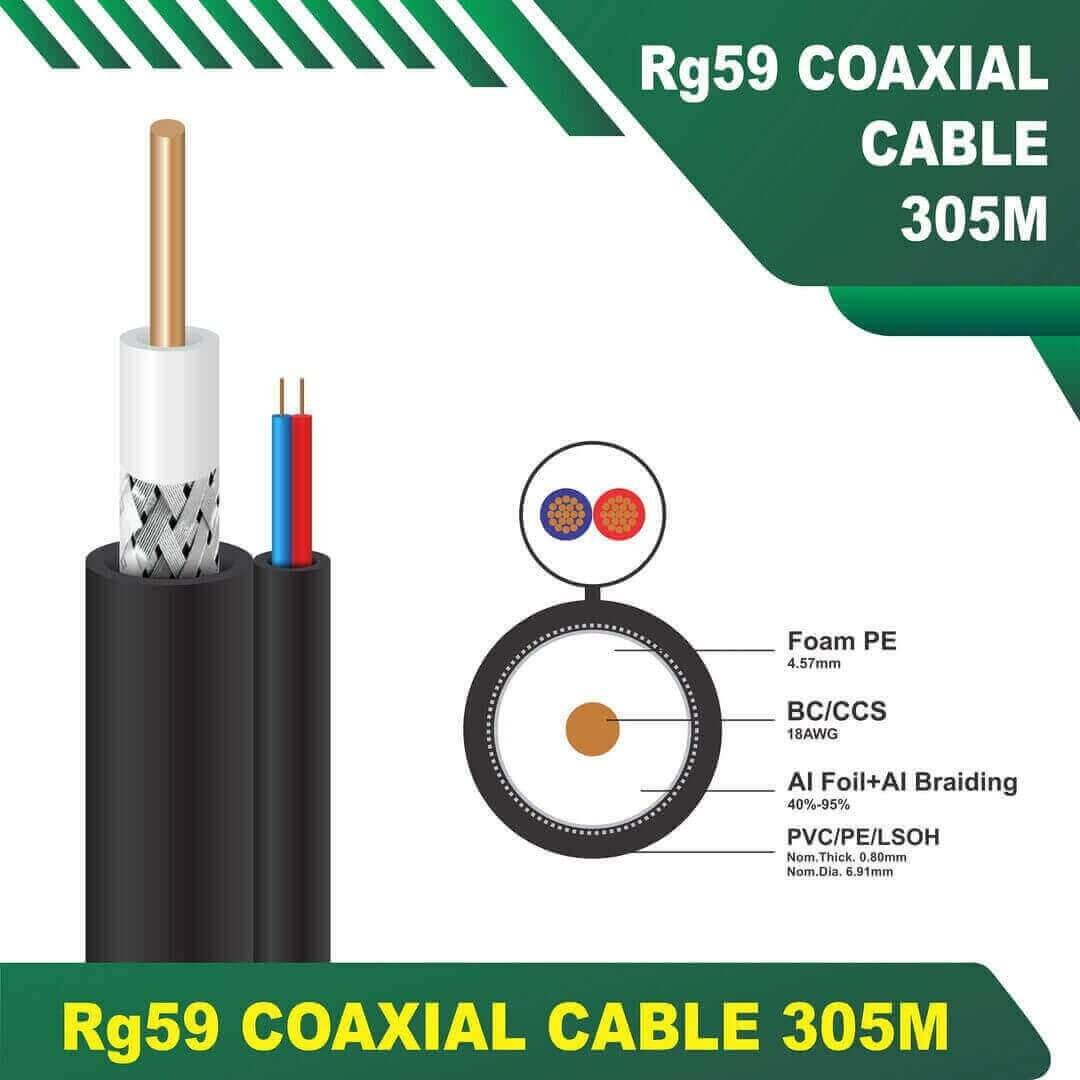

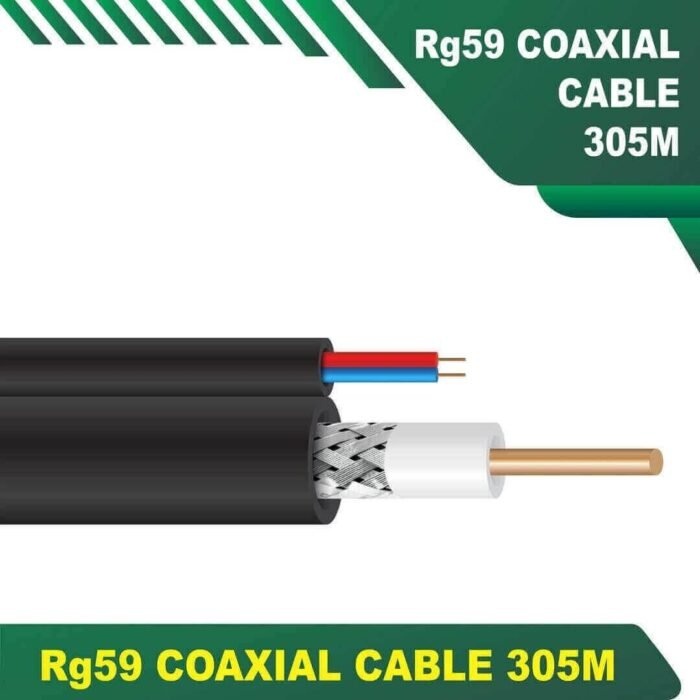

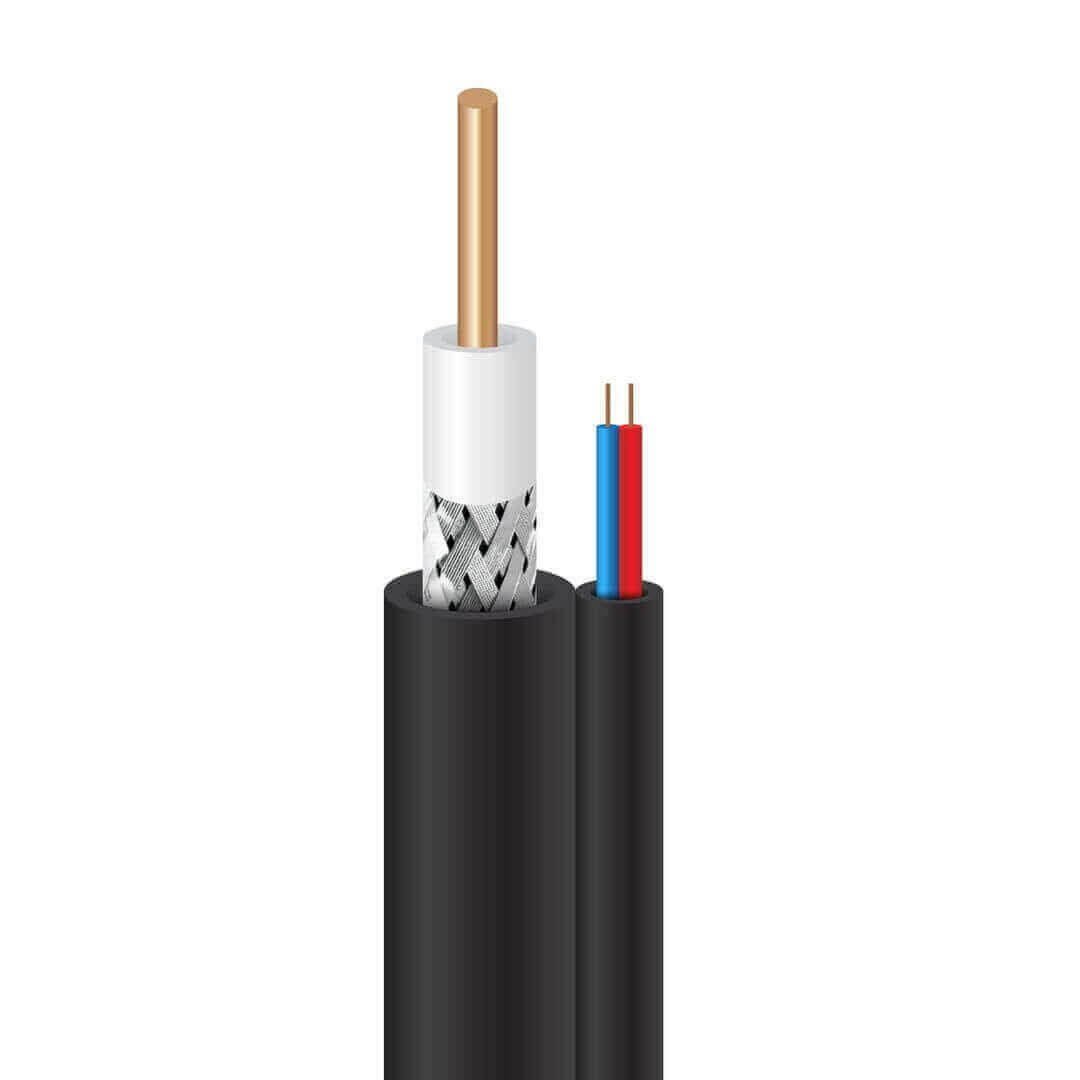

Coax and Power Cable RG59 2 Core 1.5mm 305m
Combined RG59 coaxial and 2-core power cable for CCTV cameras, carrying video and camera power in one sheath.

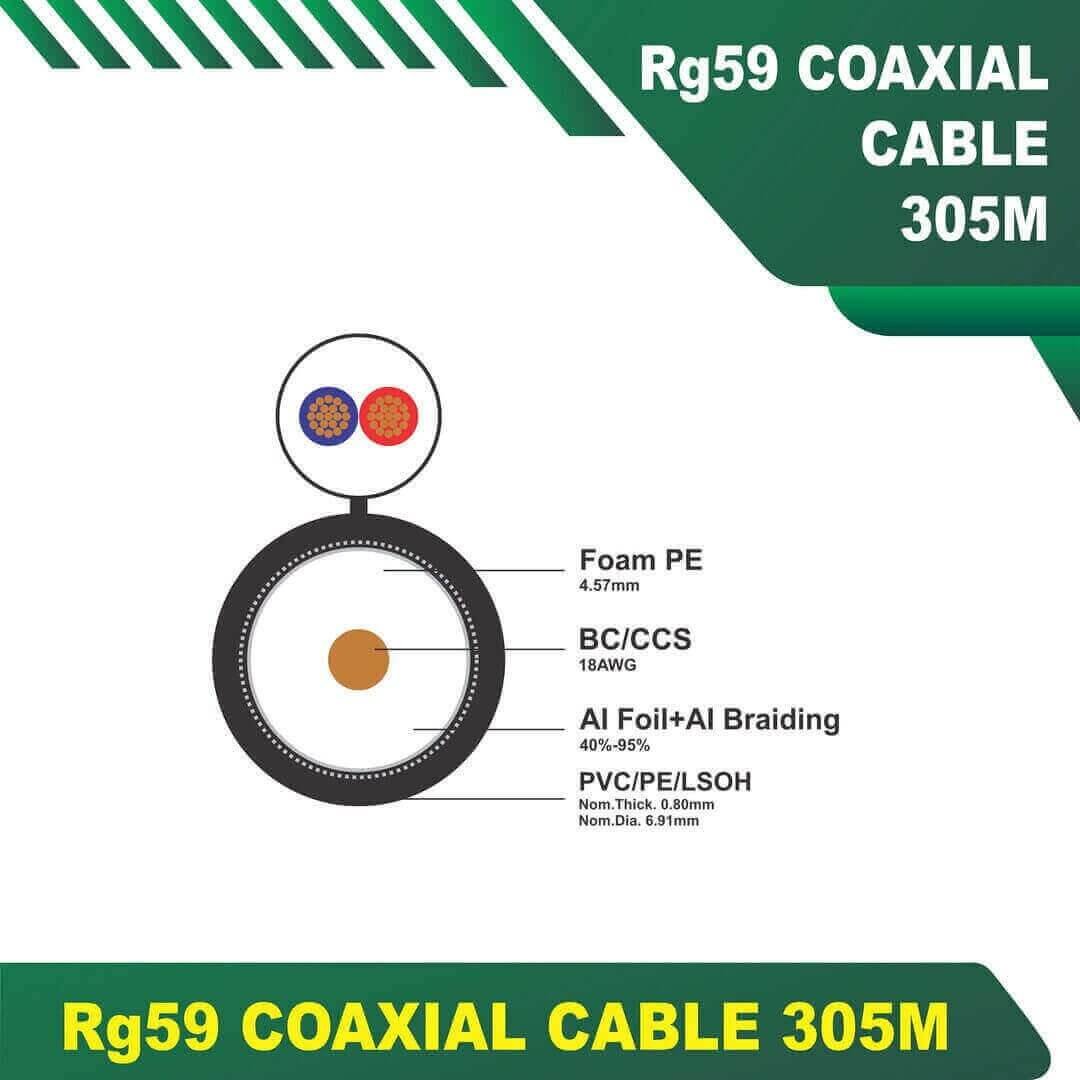

Specification
- Inner Conductor: Material BC dia,mm 1.13
- Foil Coverage: 98%
- Braid: material CCS
- Braid Coverage: 144*0.16
- Dielectric: Material FPE dia,mm 4.8
- Film Foil Type: Material CCS-Pet
- Outer Sheath: Material PVC dia,mm 7.5
- Item Code: TMT-R5XSCK-1
See all coaxial cables.
