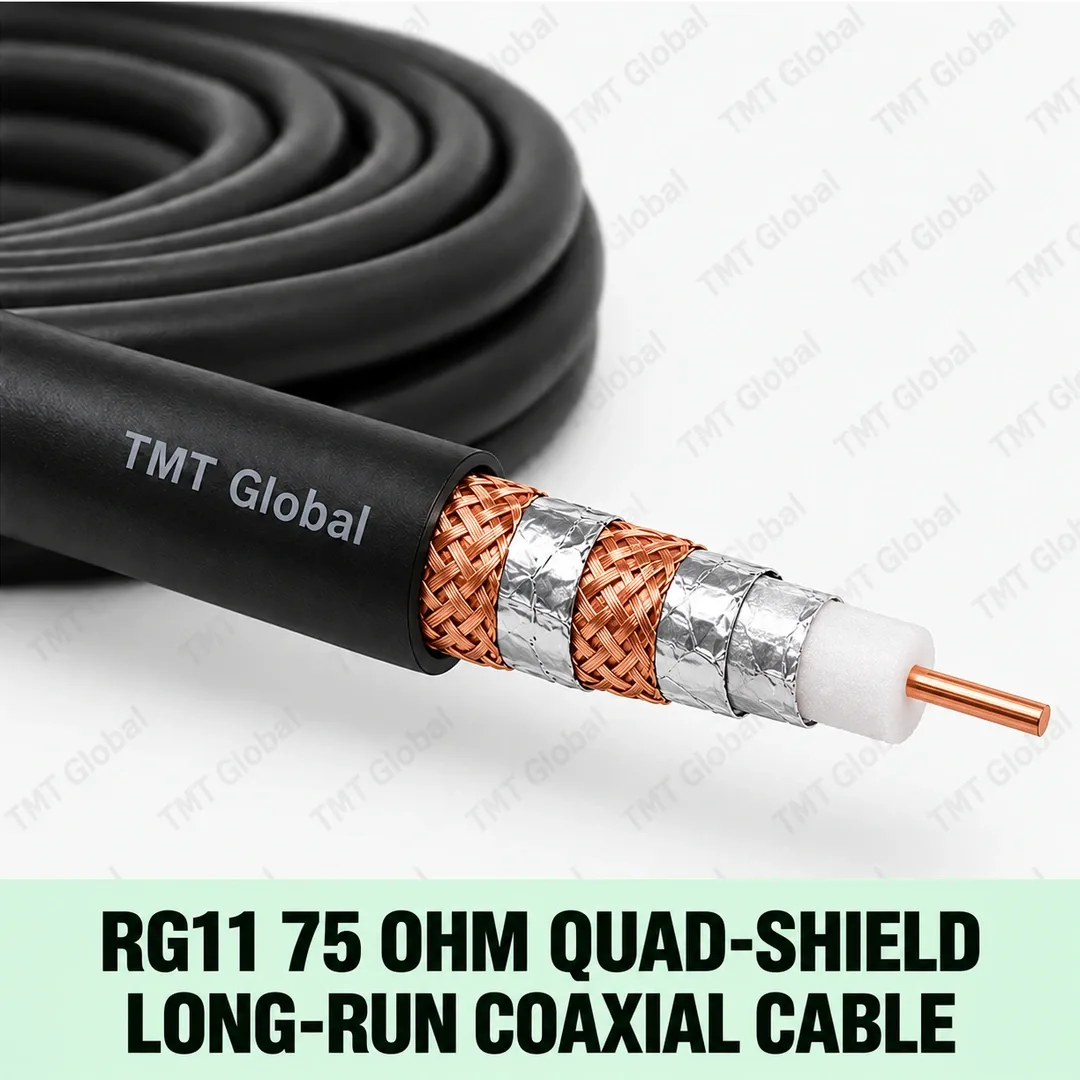

RG11 75 Ohm Quad-Shield Long-Run Coaxial Cable
KEY FEATURES
- RG11 construction
- 75 Ω nominal impedance family
- 14 AWG copper-clad steel centre conductor
- Quad shield screening construction
- 305 m standard package
Full specifications & datasheet: tmtglobal.co.uk →
Supplied in the UAE by AMSS from our Sharjah office (Industrial Area 18) and Dubai office (Naif, Deira), for projects across the Emirates. Request a quote
Choosing the RG11 75 Ohm Quad-Shield Long-Run Coaxial Cable
Choose coaxial cable by RG type and impedance first: 75 ohm types carry video and CCTV signals, 50 ohm types carry RF and antenna signals. Then pick the jacket for the route. Jacket options: PVC for general indoor routes, LSZH where low smoke and zero halogen are specified for occupied buildings, PE for outdoor routes.
- Type: Round standalone coaxial cable
- RG type / impedance: RG11, 75 Ω nominal
- Conductor size: 14 AWG Copper-Clad Steel
- Screen: Quad shield
- Package: 305 m
Related options in this range: RG11 75 Ohm Foil + Braid Long-Run Coaxial Cable · RG58 50 Ohm RF Coaxial Cable · RG6 75 Ohm Quad-Shield Coaxial Cable · RG6 75 Ohm Foil + Braid Coaxial Cable
Order code: RG11-QUAD-R1. Send us the length, jacket and quantity for a project quotation and datasheet.
TMT Global RG11 75 Ohm Quad-Shield Long-Run Coaxial Cable Series
TMT Global RG11 75 Ohm Quad-Shield Long-Run Coaxial Cable is a controlled standalone coaxial-cable family for professional ELV, video and RF installations. Series-11 quad-shield construction for long RF/video runs with enhanced screening. It remains a separate physical product family from standard RG11 because the shield stack differs. Jacket and colour are exact searchable Series ordering variants; the centre-conductor and shield construction are fixed by the family.
KEY FEATURES
- RG11 construction
- 75 Ω nominal impedance family
- 14 AWG copper-clad steel centre conductor
- Quad shield screening construction
- 305 m standard package
APPLICATIONS
- Long satellite/CATV runs
- High-interference pathways
- Campus RF distribution
Technical Specification
| AWG | 18 awg |
|---|---|
| Brand | TMT Global |
| Colour | Black, White |
| Jacket Type | PVC, LSZH, PE Outdoor |
| Length | 305 m |
