RG6 Coaxial Cable 305 Meter

General Specification
Inner Conductor : Material BC dia,mm 1.13
Foil Coverage : 98%
Braid : material CCS
Braid Coverage : 144*0.16
Dielectric : Material FPE dia,mm 4.8
Film Foil Type : Material CCS-Pet
Outer Sheath : Material PVC dia,mm 7.5
Products ID : TMT-R6XSCK

Chat with Sales

Supplied in the UAE by AMSS from our Sharjah office (Industrial Area 18) and Dubai office (Naif, Deira), for projects across the Emirates. Request a quote

0 People watching this product now!
Description

RG6 Coaxial Cable, 305 m (TMT-R6XSCK)

RG6 is a 75 ohm coaxial cable for video and RF signals: analogue and HD-over-coax CCTV, satellite and SMATV, and TV distribution. This model has a solid bare copper conductor, a foam PE dielectric and a double screen of foil plus braid, supplied on a 305 m reel.

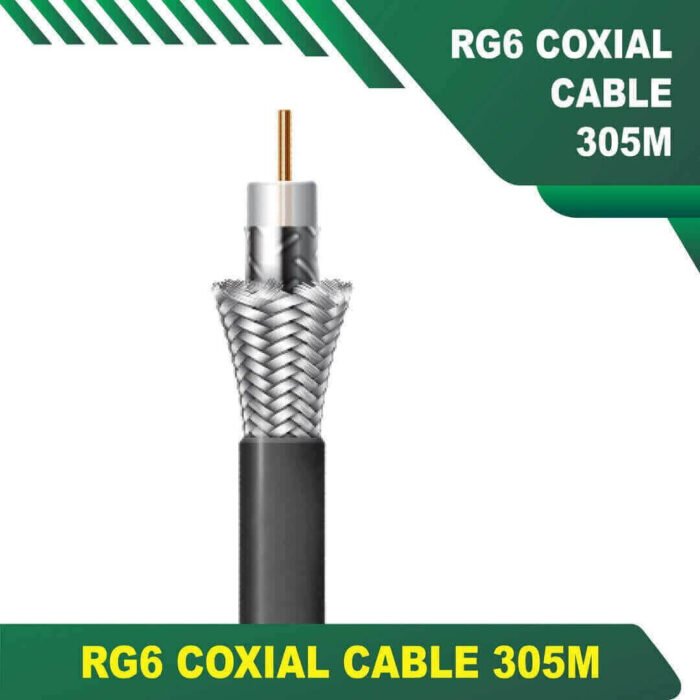

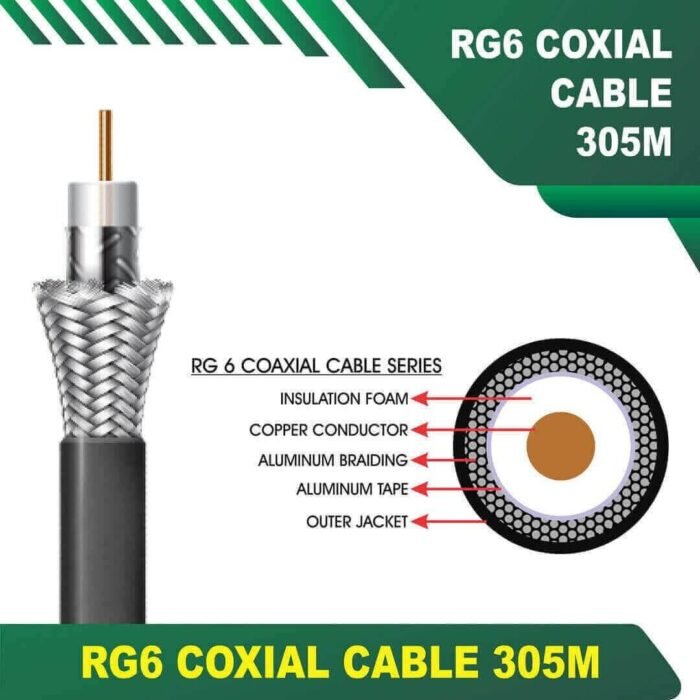

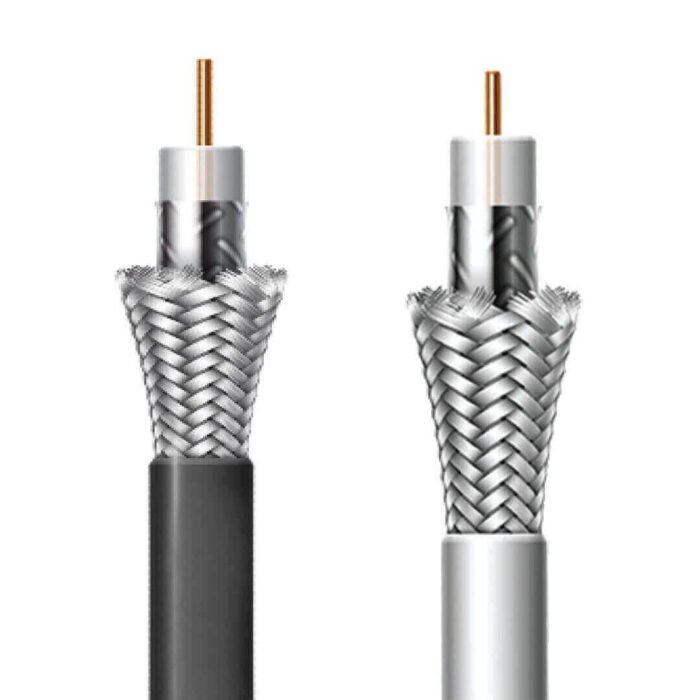

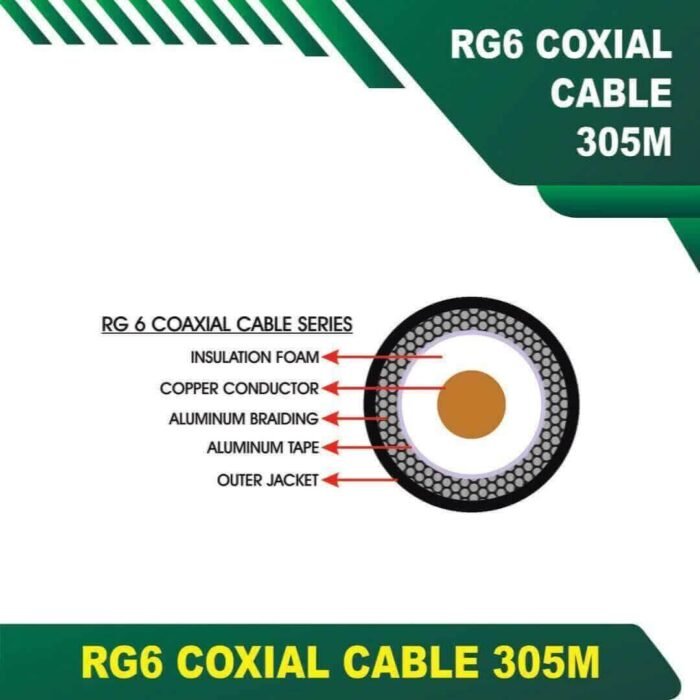

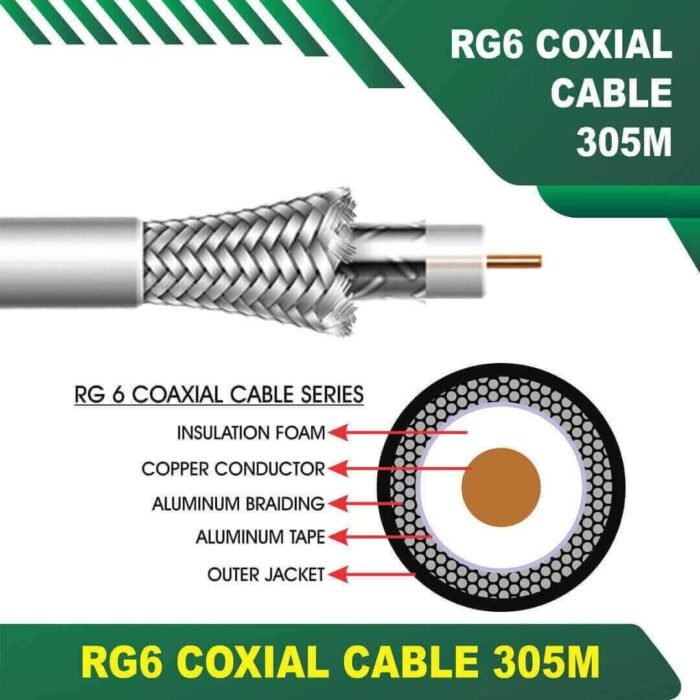

Construction

  • Inner conductor: bare copper, 1.13 mm
  • Dielectric: foam PE, 4.8 mm
  • Foil: 98% coverage
  • Braid: 144 × 0.16 mm
  • Sheath: PVC, 7.5 mm

Typical applications

  • Analogue and HD-over-coax CCTV (HD-TVI, HD-CVI, AHD)
  • Satellite, SMATV and MATV distribution
  • Cable TV and RF signal runs

RG6 or RG59?

RG6 has a larger conductor and lower loss than RG59, so it suits longer runs and satellite frequencies. See all coaxial cables.
