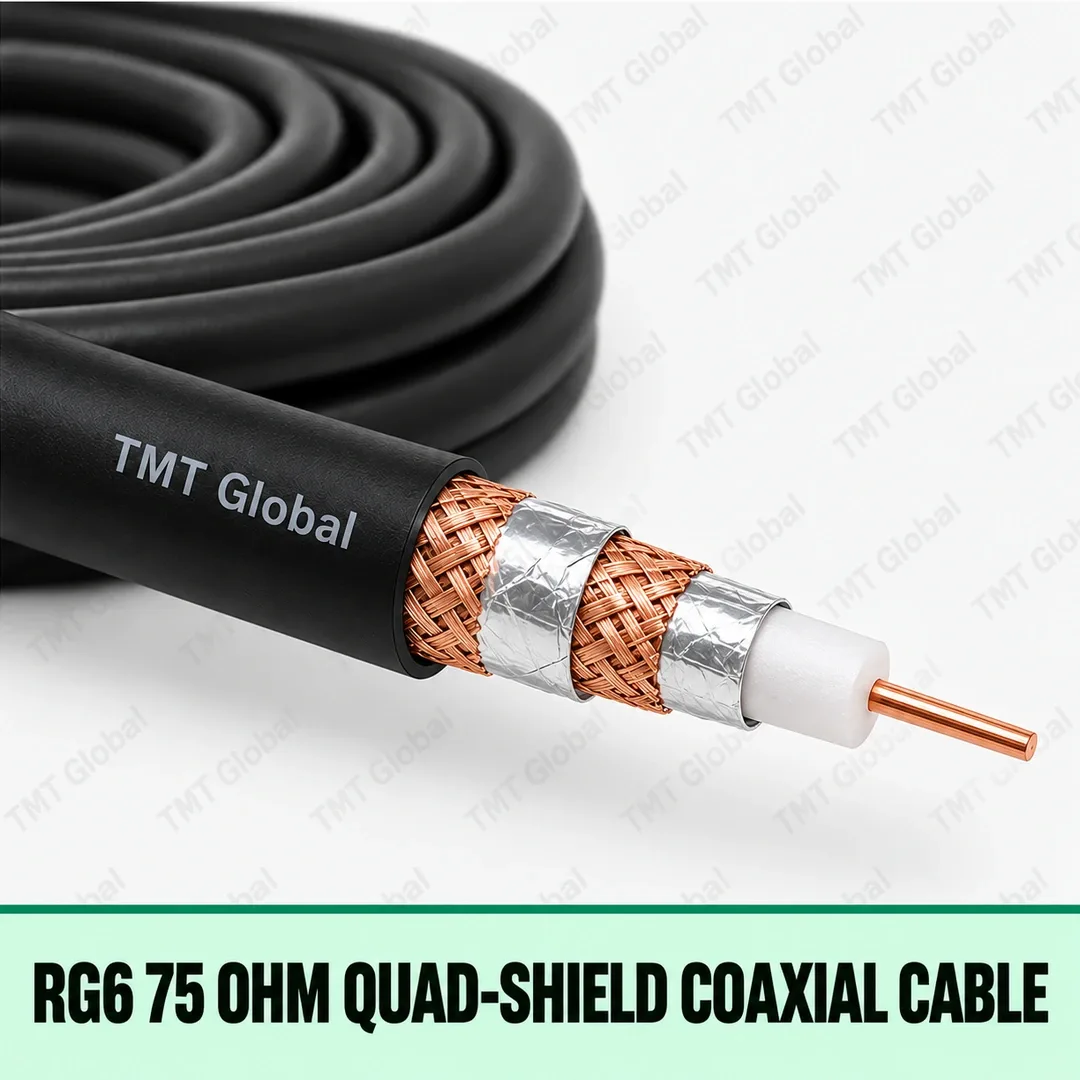

RG6 75 Ohm Quad-Shield Coaxial Cable

KEY FEATURES

  • RG6 construction
  • 75 Ω nominal impedance family
  • 18 AWG copper-clad steel centre conductor
  • Quad shield screening construction
  • 305 m standard package
Chat with Sales

Supplied in the UAE by AMSS from our Sharjah office (Industrial Area 18) and Dubai office (Naif, Deira), for projects across the Emirates. Request a quote

0 People watching this product now!
Description

Choosing the RG6 75 Ohm Quad-Shield Coaxial Cable

Choose coaxial cable by RG type and impedance first: 75 ohm types carry video and CCTV signals, 50 ohm types carry RF and antenna signals. Then pick the jacket for the route. Jacket options: PVC for general indoor routes, LSZH where low smoke and zero halogen are specified for occupied buildings, PE for outdoor routes.

  • Type: Round standalone coaxial cable
  • RG type / impedance: RG6, 75 Ω nominal
  • Conductor size: 18 AWG Copper-Clad Steel
  • Screen: Quad shield
  • Package: 305 m

Related options in this range: RG11 75 Ohm Foil + Braid Long-Run Coaxial Cable · RG6 75 Ohm Foil + Braid Coaxial Cable · RG11 75 Ohm Quad-Shield Long-Run Coaxial Cable · RG58 50 Ohm RF Coaxial Cable

Order code: RG6-QUAD-R6. Send us the length, jacket and quantity for a project quotation and datasheet.

TMT Global RG6 75 Ohm Quad-Shield Coaxial Cable Series

TMT Global RG6 75 Ohm Quad-Shield Coaxial Cable is a controlled standalone coaxial-cable family for professional ELV, video and RF installations. Series-6 quad-shield construction for RF/video distribution where higher screening performance is required. It is separated from standard RG6 because the shield stack and centre-conductor construction change materially. Jacket and colour are exact searchable Series ordering variants; the centre-conductor and shield construction are fixed by the family.

KEY FEATURES

  • RG6 construction
  • 75 Ω nominal impedance family
  • 18 AWG copper-clad steel centre conductor
  • Quad shield screening construction
  • 305 m standard package

APPLICATIONS

  • Satellite distribution
  • CATV / broadband video
  • High-interference RF routes

Technical Specification

Additional information
AWG18 awg
BrandTMT Global
ColourBlack, White
Jacket TypePVC, LSZH, PE Outdoor
Length305 m
