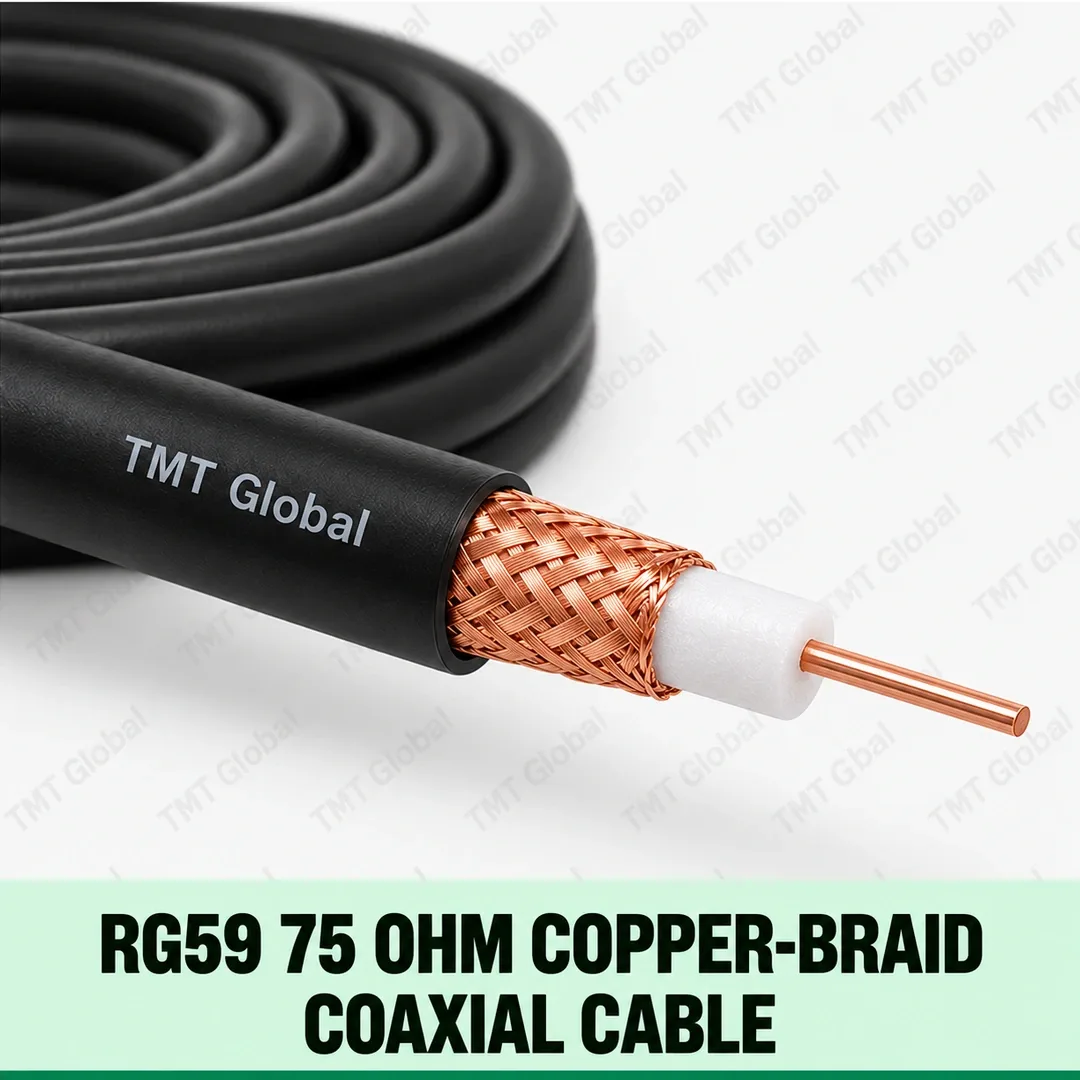

RG59 75 Ohm Copper-Braid Coaxial Cable

KEY FEATURES

  • RG59 construction
  • 75 Ω nominal impedance family
  • 20 AWG bare copper centre conductor
  • 95% braid class screening construction
  • 305 m standard package
Chat with Sales

Supplied in the UAE by AMSS from our Sharjah office (Industrial Area 18) and Dubai office (Naif, Deira), for projects across the Emirates. Request a quote

0 People watching this product now!
Description

Choosing the RG59 75 Ohm Copper-Braid Coaxial Cable

Choose coaxial cable by RG type and impedance first: 75 ohm types carry video and CCTV signals, 50 ohm types carry RF and antenna signals. Then pick the jacket for the route. Jacket options: PVC for general indoor routes, LSZH where low smoke and zero halogen are specified for occupied buildings, PE for outdoor routes.

  • Type: Round standalone coaxial cable
  • RG type / impedance: RG59, 75 Ω nominal
  • Conductor size: 20 AWG Bare Copper
  • Screen: 95% braid class
  • Package: 305 m

Related options in this range: RG6 75 Ohm Foil + Braid Coaxial Cable · RG6 75 Ohm Quad-Shield Coaxial Cable · RG11 75 Ohm Foil + Braid Long-Run Coaxial Cable · RG11 75 Ohm Quad-Shield Long-Run Coaxial Cable

Order code: RG59-BRAID-R5. Send us the length, jacket and quantity for a project quotation and datasheet.

TMT Global RG59 75 Ohm Copper-Braid Coaxial Cable Series

TMT Global RG59 75 Ohm Copper-Braid Coaxial Cable is a controlled standalone coaxial-cable family for professional ELV, video and RF installations. Classic RG59 analogue-video / CCTV construction with a 20 AWG centre conductor and braid screen. This reuses the existing RG59 product position rather than creating a duplicate generic coax page. Jacket and colour are exact searchable Series ordering variants; the centre-conductor and shield construction are fixed by the family.

KEY FEATURES

  • RG59 construction
  • 75 Ω nominal impedance family
  • 20 AWG bare copper centre conductor
  • 95% braid class screening construction
  • 305 m standard package

APPLICATIONS

  • Analogue CCTV video
  • Baseband video
  • Security video links

Technical Specification

Additional information
AWG20 awg
BrandTMT Global
Jacket TypePVC, LSZH, PE Outdoor
ColourBlack, White
Length305 m
CONDUCTORBare Copper
