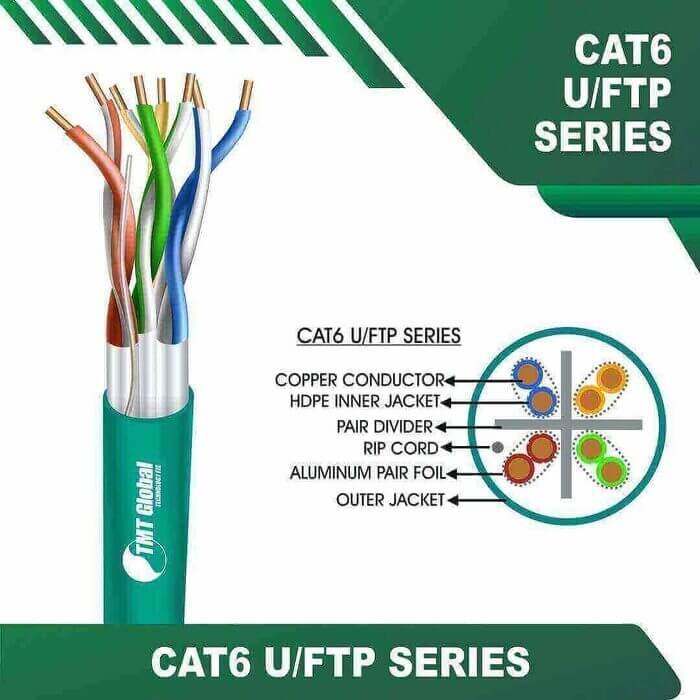

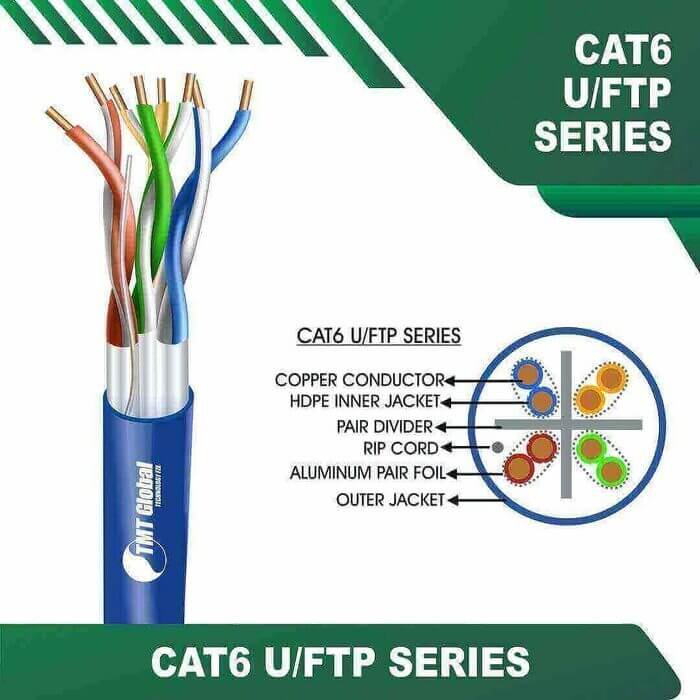

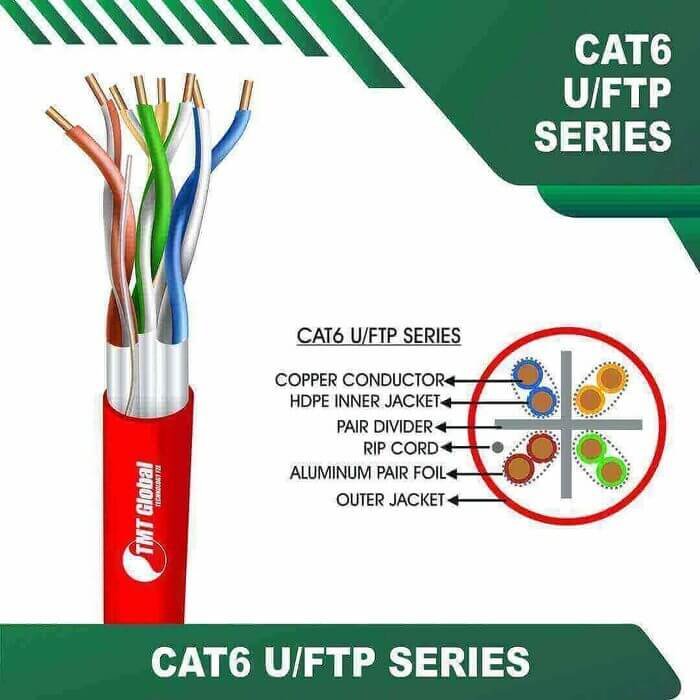

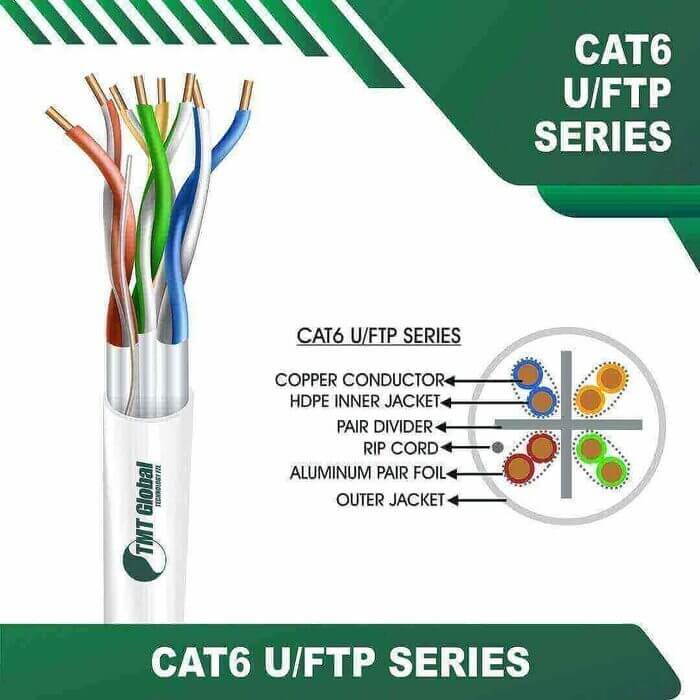

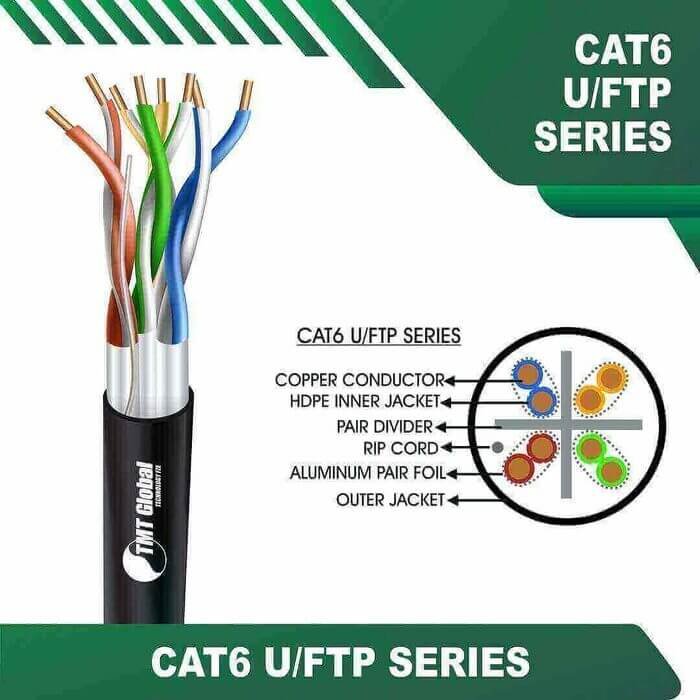

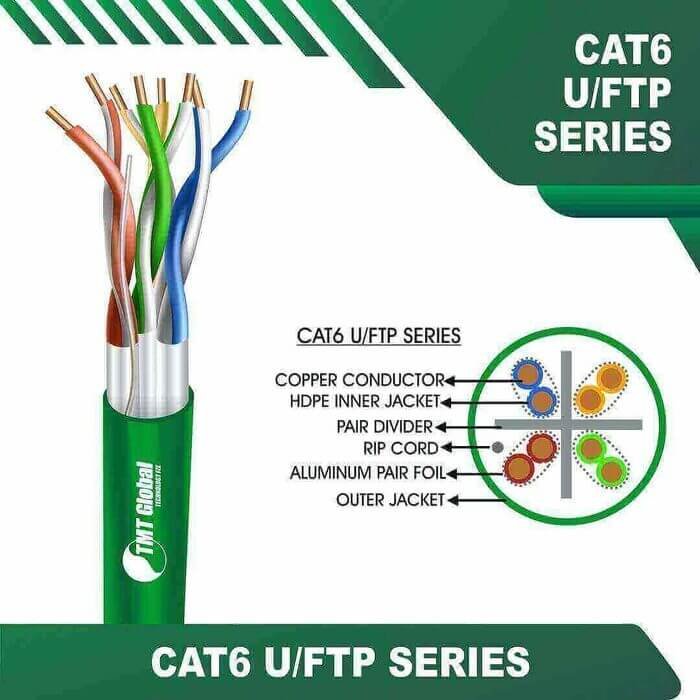

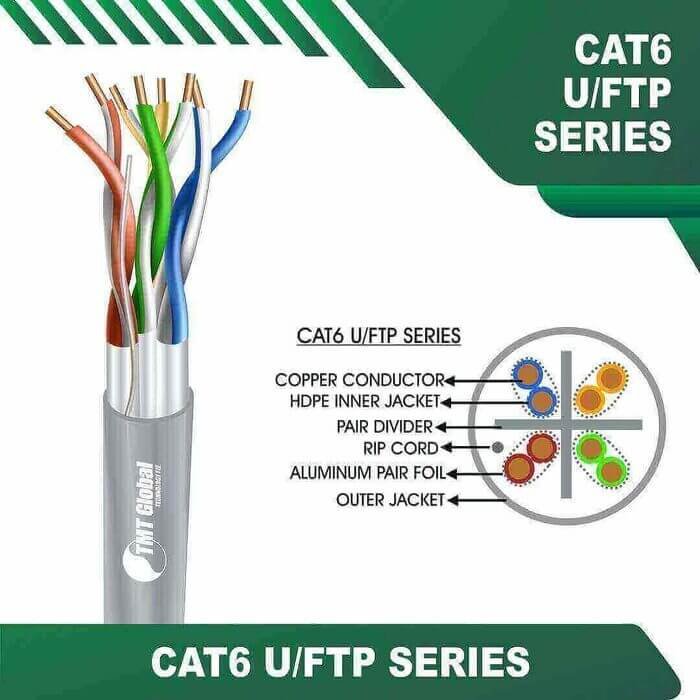

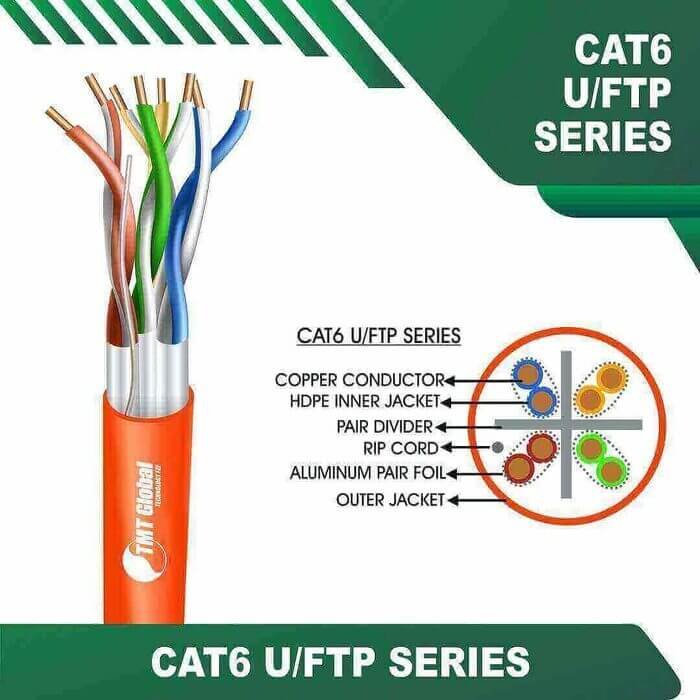

Cat6 23awg U FTP Ethernet Cable 4 twisted pair 305m

TMT GLOBAL Cat6 23awg U FTP Ethernet Cable 4 twisted pair 305m

The TMT GLOBAL Cat6 23awg 4 twisted pair U-FTP Ethernet Cable 305m, available in a generous 305-meter length, is engineered to provide exceptional performance and reliability for your networking needs. This cable meets and exceeds industry standards including IEC 60332-1-2, EN 50173-1:2011, and ISO/IEC11801:2011, ensuring it is safe, compliant, and built to last. With its 4 twisted pairs, this U-FTP Ethernet cable minimizes crosstalk and interference, making it ideal for high-speed data transmission in both residential and commercial settings. Whether you’re setting up a new office network or upgrading your home system, the TMT GLOBAL Cat6 cable delivers the high performance required for structured cabling systems, supporting various applications including VoIP, video streaming, and online gaming.

ELECTRICAL SPECIFICATIONS
Characteristic Impedance: 100±6 Ohm @ 1-250 MHz
DC Resistance: 93 Ohm/Km max.
Resistance unbalance: 2% max.
Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz
Cap. Unbalance (wire to ground): 1600 pF/m max. @ 1 KHz.
Voltage rating: 72 Vdc max.
Dielectric strength: 1500 Volts/1 minute min rms
Velocity of Propagation (NVP): 67-69%
Propagation Delay Skew: 514 + 36/vf. nS/100m max @ 1-300 MHz
Insulation Resistance: 5000 Mega Ohm•Km min. @ 500 Vdc
Coupling attenuation: 40 dB min @ 30-100 MHz 40-20Log(f/100) @100-300 MHz

PHYSICAL AND MECHANICAL PROPERTIES
Basic Conductor: TMT copper
Conductor Size: 23AWG
Insulation: HDPE
Number of insulated conductors: 8, twisted in 4 pairs
Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown
Overall Coverage: Polyester-aluminum tape
Drain wire: copper conductor laid in close contact under the shield.
Outer Jacket: PVC/LSZH
Standard Jacket Color:Blue/Gray /Black/Green/Orange/Red/Violet/White/Yellow./Aqua
Standard Surface Marking: Includes TMT Global P/N, cable description, Meter mark and Model Number
Pulling force: 110 N max.
Short Term Bend Radius: 8xOD (mm)
Temperature operating range: -20 to +80C
Installation temperature range: 0 to +50C
Ordering Information
Item Name: 23AWG 4PAIR CAT6 SF/UTP CABLE PVC  305M
