Cat6 23awg s ftp Cable 305m tmt-4050

TMT GLOBAL Cat6 23awg S FTP Cable 305m tmt-4050

TMT Global Cat6 23awg S FTP Cable 305m tmt-4050  are Manufactured Tested and Complied with IEC 60332-1-2 EN 50173-1:2011 ISO/IEC11801:2011(Ed. 2.2) ANSI/TIA/EIA-568.2-D IEC61935-2:2010(Ed.3.0) EN 50173-2:2007 including Amendment A1:2010 Requirements for Patch Cord Assemblies Cat6 23awg S FTP Cable 305m tmt-4050 and Provide High Performance levels for structured cabling systems.

TMT Global Technology LTD aims to provide the best quality products r Structured Cabling Systems Copper And Fiber Optics Range Access Control Systems Gate automation Lighting Control Systems Pir Motion Sensors UHF Long Range Readers Automatic Parking Solutions SMATV Systems Audio Video Intercom Systems Audio Visual Systems Public Address Systems.cat6 23awg 4 twisted pair 305m cat6 23awg 4 twisted cable 305m cat6 23awg 4 global products range network cable tmt global products range network

ELECTRICAL SPECIFICATIONS
Characteristic Impedance: 100±6 Ohm @ 1-250 MHz
DC Resistance: 93 Ohm/Km max.
Resistance unbalance: 2% max.
Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz
Cap. Unbalance (wire to ground): 1600 pF/m max. @ 1 KHz.
Voltage rating: 72 Vdc max.
Dielectric strength: 1500 Volts/1 minute min rms
Velocity of Propagation (NVP): 67-69%
Propagation Delay Skew: 514 + 36/vf. nS/100m max @ 1-300 MHz
Insulation Resistance: 5000 Mega Ohm•Km min. @ 500 Vdc
Coupling attenuation: 40 dB min @ 30-100 MHz 40-20Log(f/100) @100-300 MHz

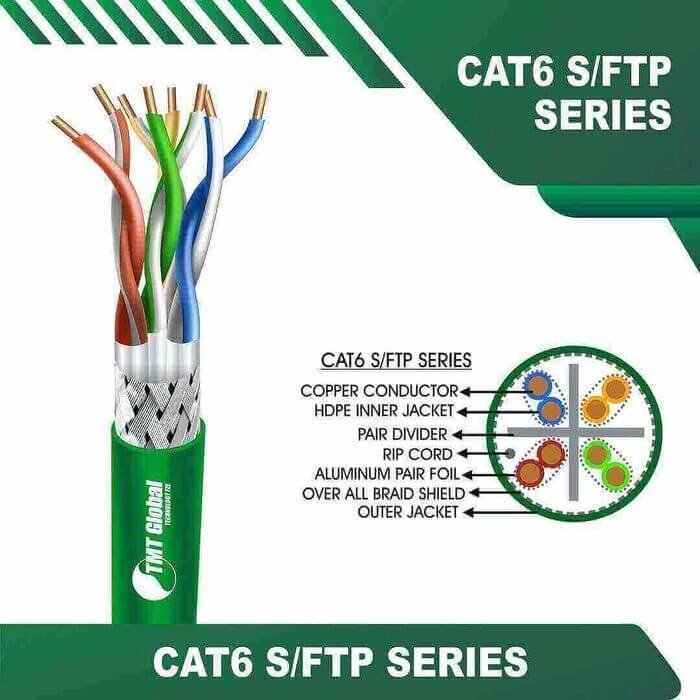

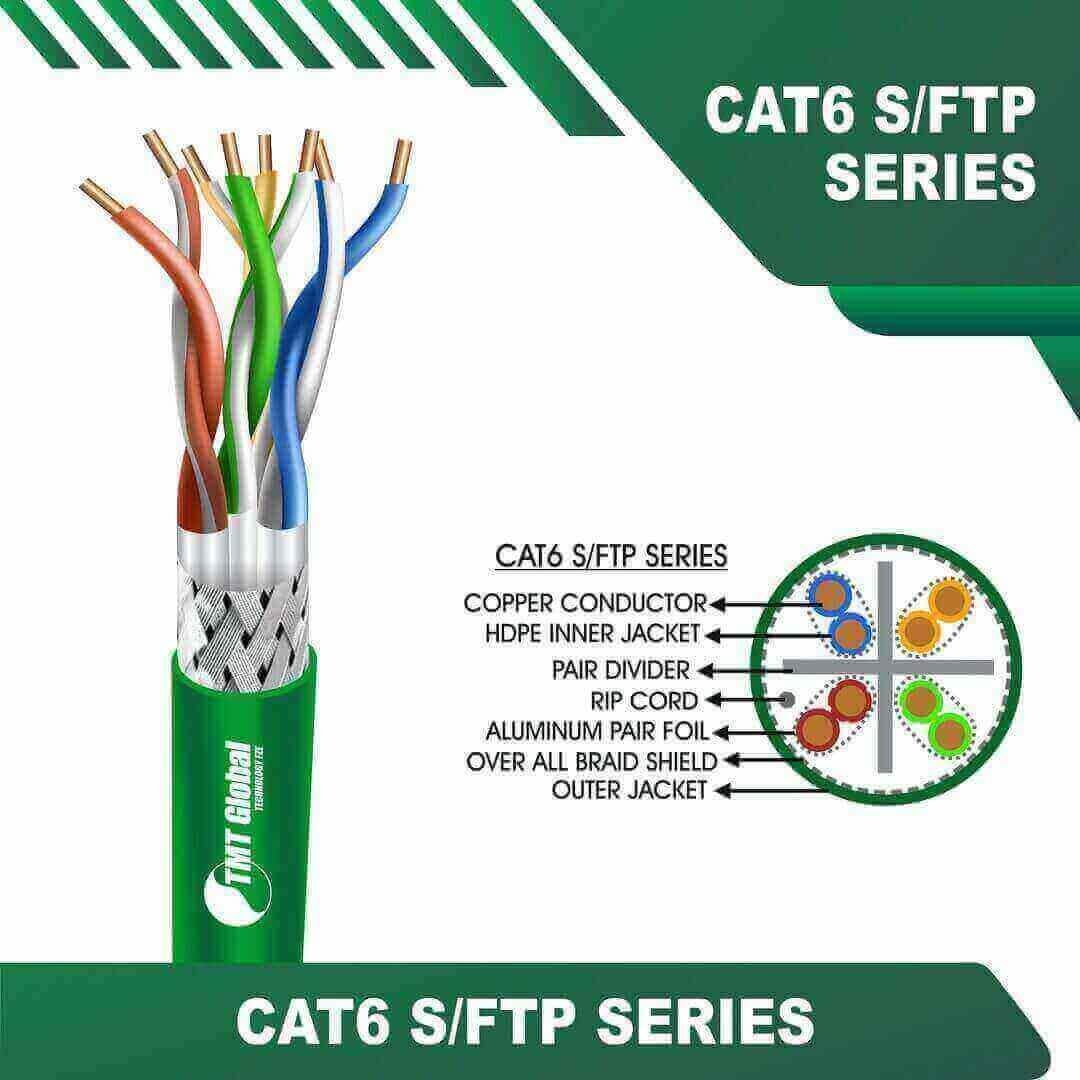

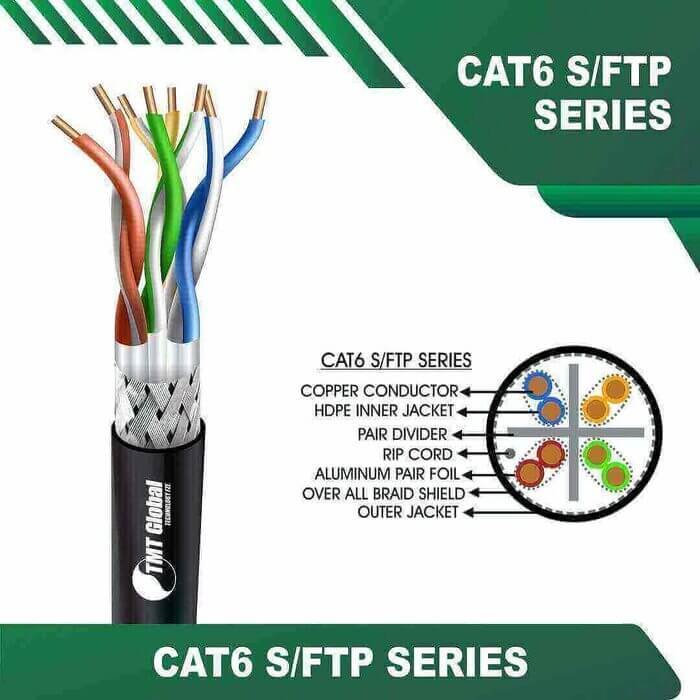

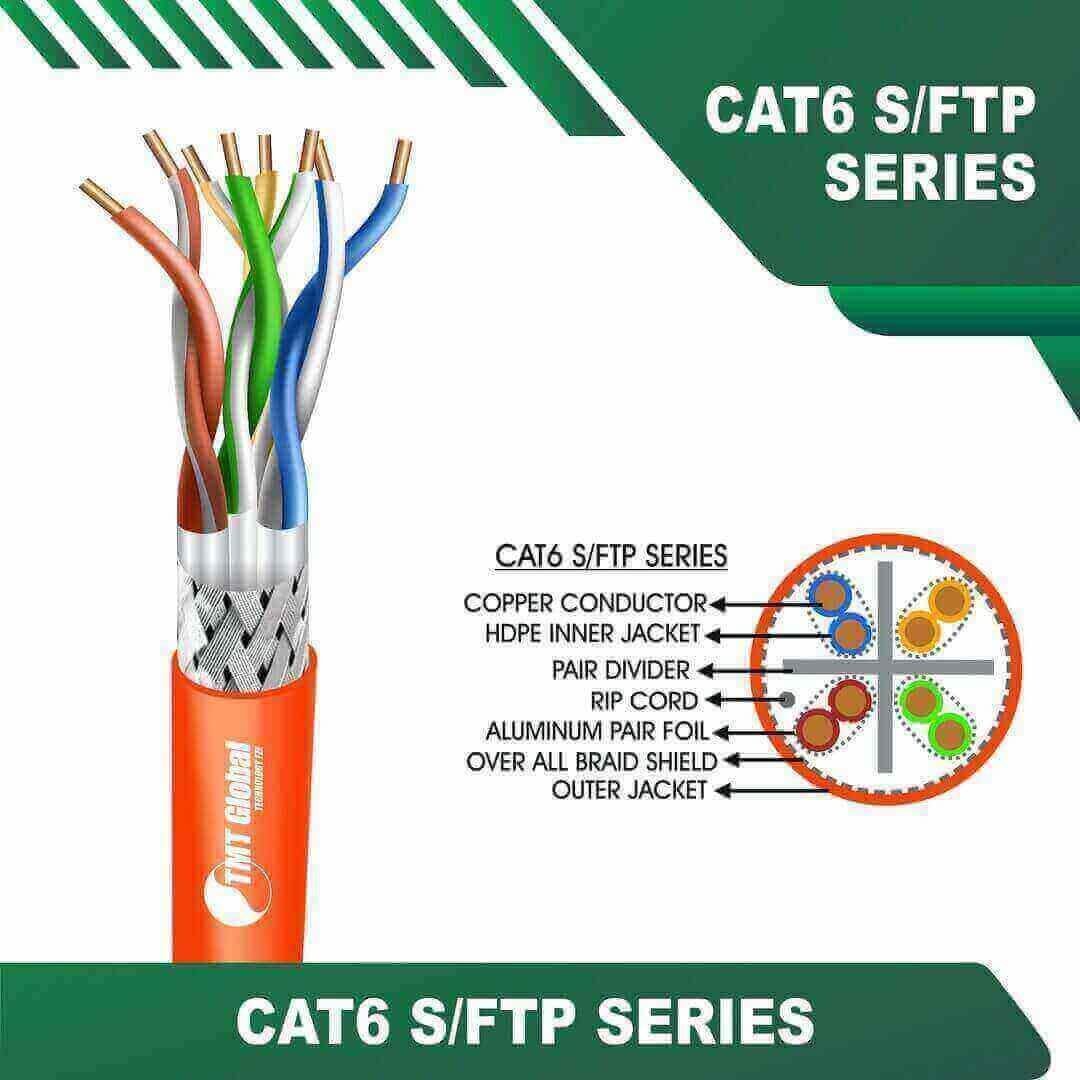

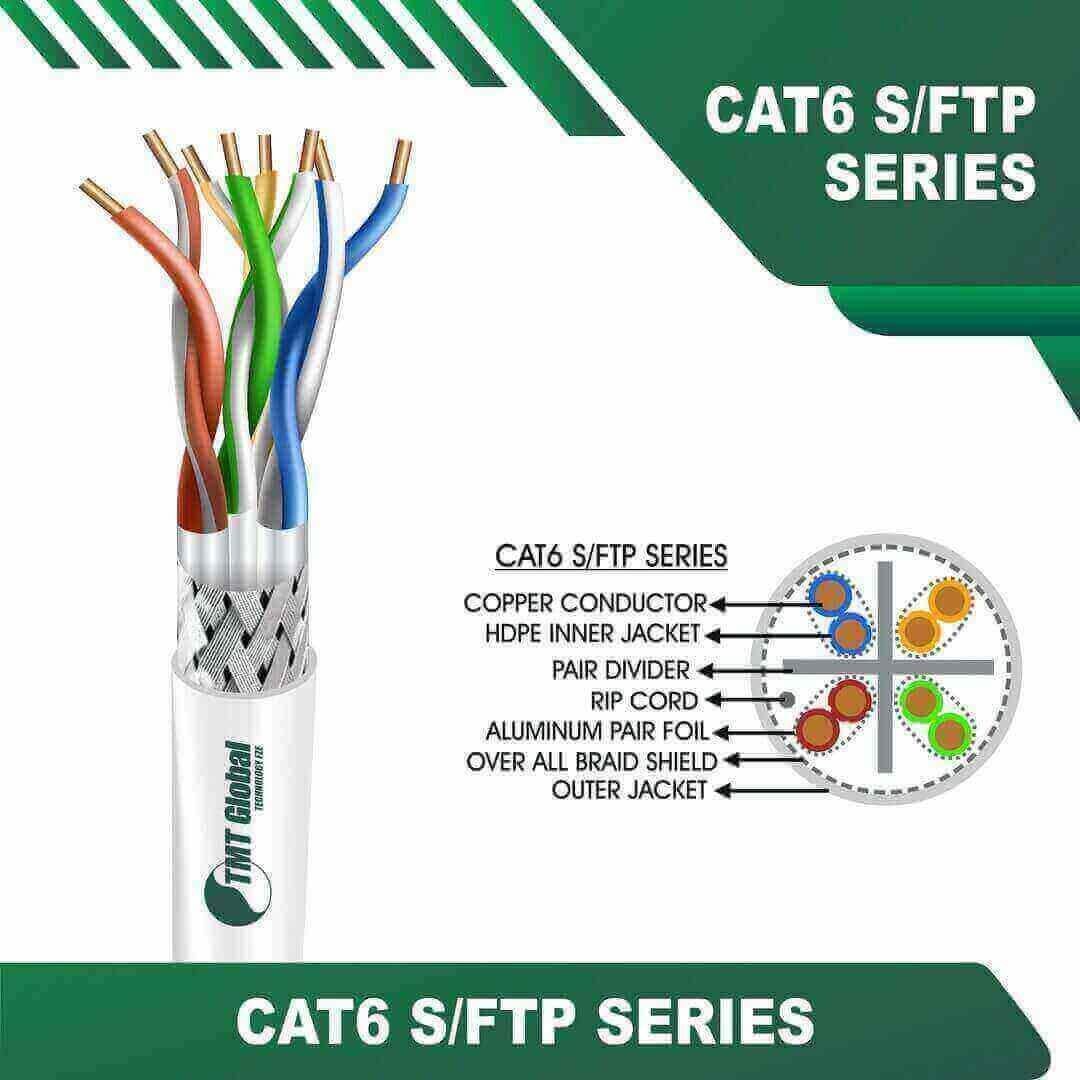

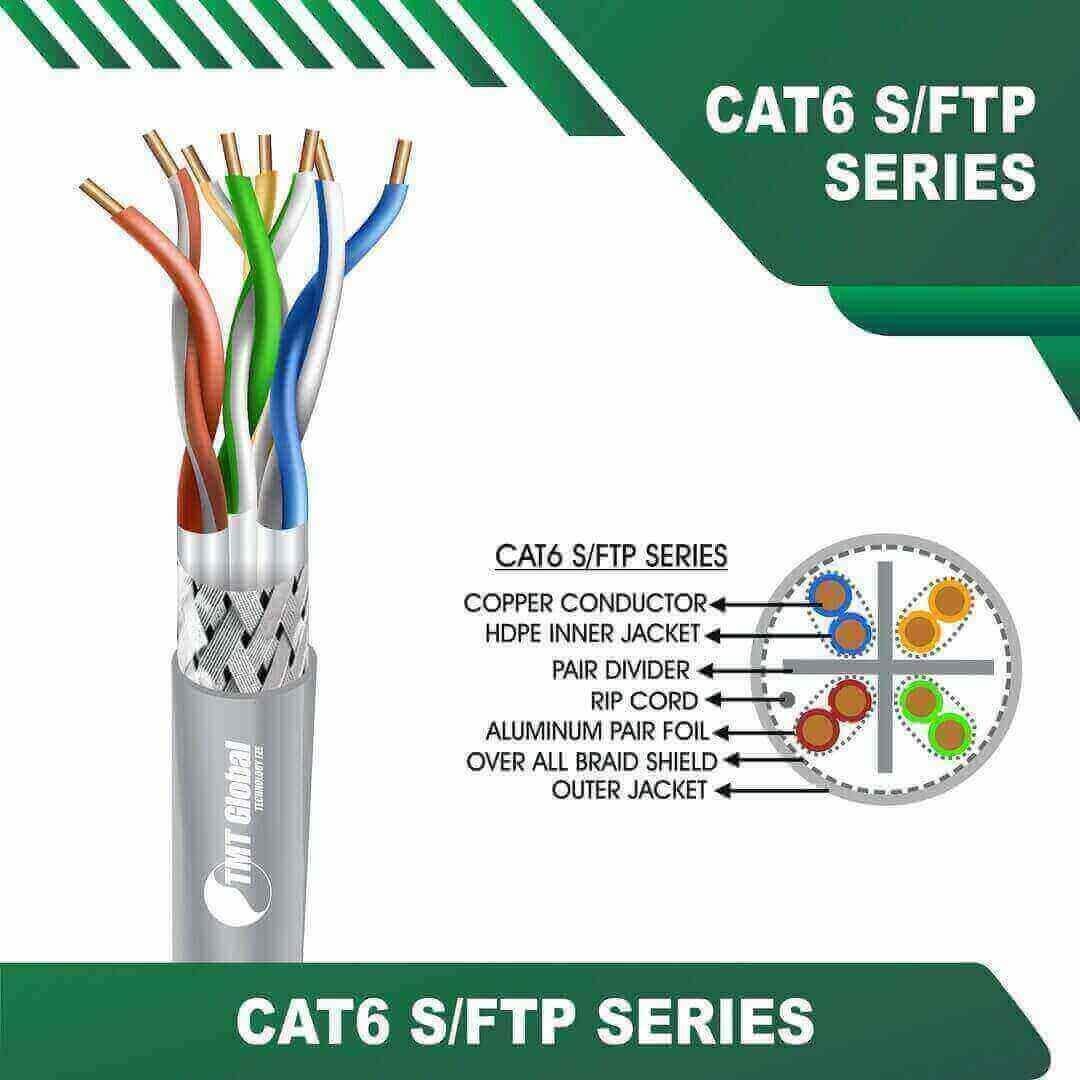

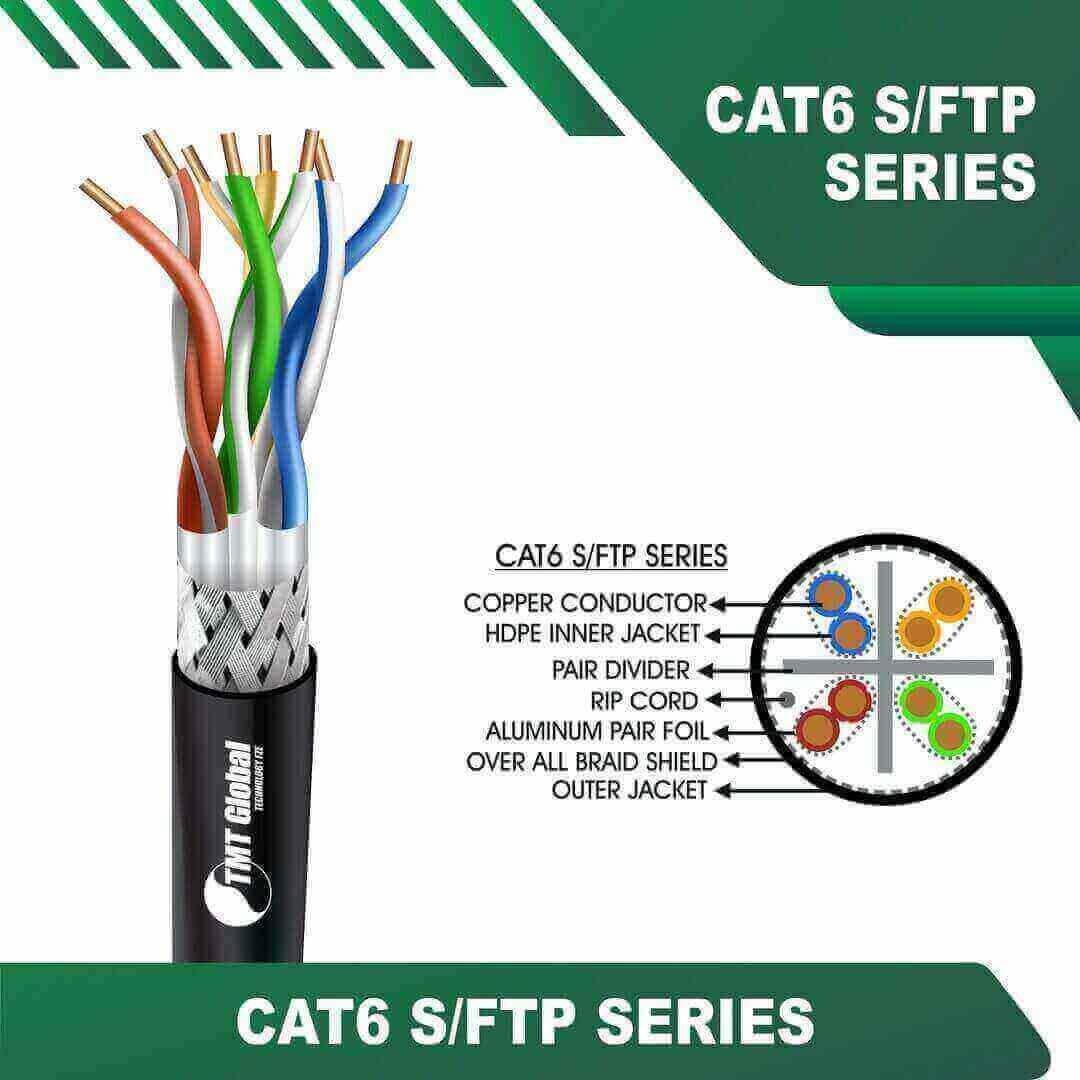

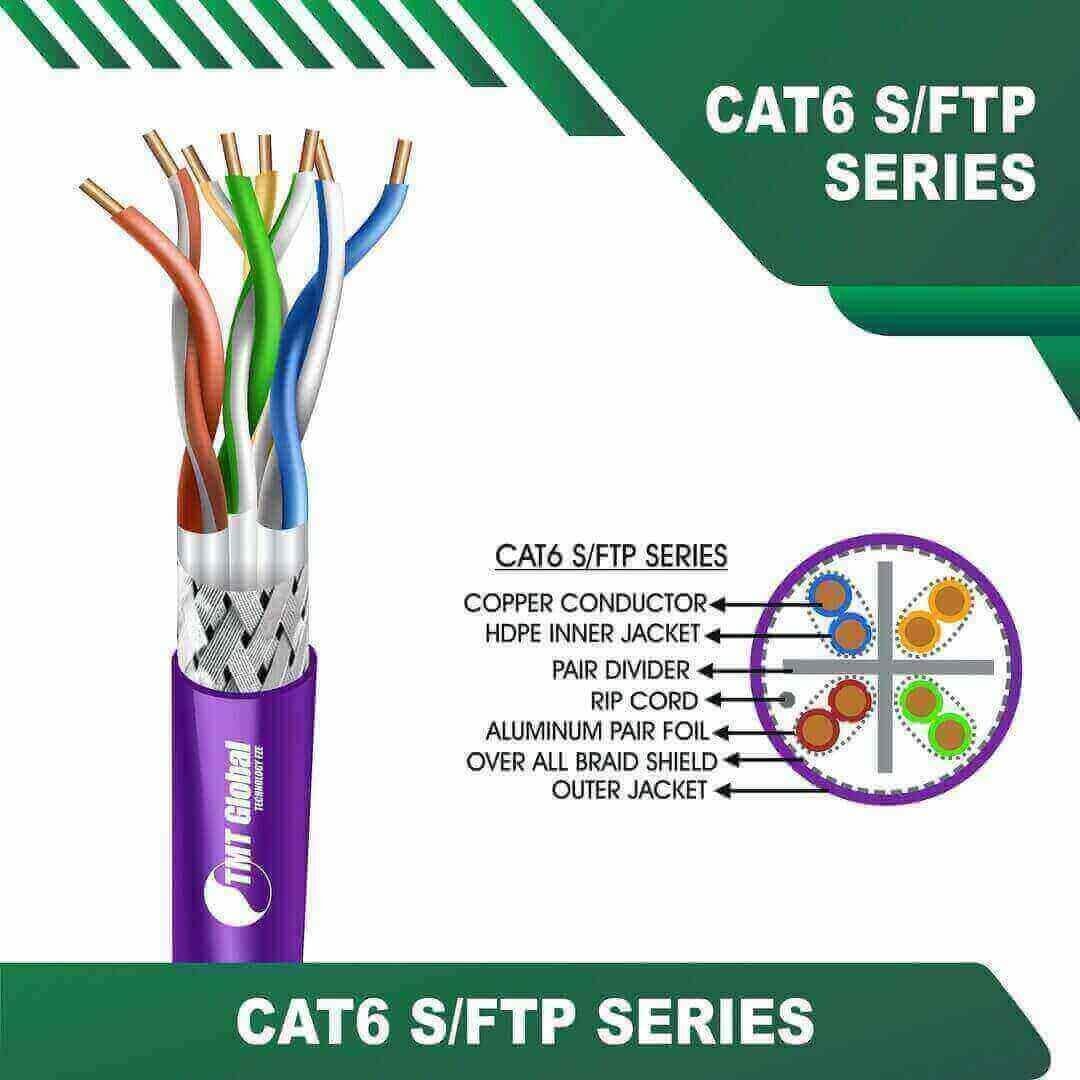

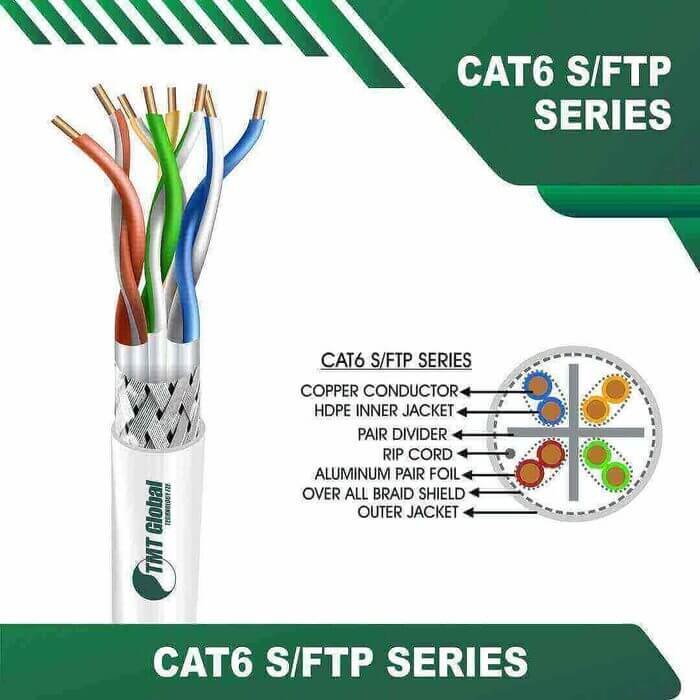

PHYSICAL AND MECHANICAL PROPERTIES
Basic Conductor: TMT copper
Conductor Size: 23AWG
Insulation: HDPE
Number of insulated conductors: 8, twisted in 4 pairs
Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown
Overall Coverage: Braiding Shield +Polyester-aluminum tape
Drain wire: copper conductor laid in close contact under the shield.
Outer Jacket: PVC
Standard Jacket Color:Blue/Gray /Black/Green/Orange/Red/Violet/White/Yellow./Aqua
Standard Surface Marking: Includes TMT Global P/N, cable description, Meter mark and Model Number
Pulling force: 110 N max.
Short Term Bend Radius: 8xOD (mm)
Temperature operating range: -20 to +80C
Installation temperature range: 0 to +50C
Ordering Information
Item Name: 23AWG 4PAIR CAT6 SFTP CABLE PVC  305M
