cat5e u-utp outdoor 24awg 4pair cable 305Meter

TMT GLOBAL cat5e u-utp outdoor 24awg 4pair cable 305Meter

TMT GLOBAL Cat6a Elevator Travelling Network Cable are Manufactured Tested and Complied with ANSI/TIA/568.2-D CENELEC EN 50288-5IEC 61156-5 (ISO/IEC-11801 Class -Ea). Cat6a Series is Designed to Ensure the Highest levels of performance, reliability, and longevity, and are ideal for large enterprise and small business.CAT5E U-UTP OUTDOOR 24AWG 4PAIR CABLE 305Meter

CAT5E U-UTP OUTDOOR CABLE  is a high-quality networking cable manufactured by tmt global technology ltd. This cable is specifically network lan cable cat5e ethernet cable cat5e utp lan cable utp outdoor 22awg 24awg ethernet designed outdoor 22awg 24awg ethernet lan for outdoor use, making it suitable for a wide range of applications in various weather conditions. With a 24AWG gauge and 4 pairs of twisted copper conductors, this cable ensures reliable and fast data transmission.

It is compliant with the CAT5E standard, guaranteeing excellent performance and compatibility with various network devices. The 305-meter length provides flexibility in installations, allowing for efficient and convenient networking setups. Choose CAT5E  for your outdoor networking needs, and experience reliable connectivity and durability.

ELECTRICAL SPECIFICATIONS
Characteristic Impedance: 100―6 Ohm @ 1-100 MHz
DC Resistance: 93 Ohm/Km max.
Resistance unbalance: 2% max.
Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz
Cap. Unbalance (wire to ground): 1500 pF/Km max. @ 1 KHz.
Voltage rating: 72 Vdc max.
Dielectric strength: 1500 Volts/1 minute min rms
Velocity of Propagation (NVP): 67-69%
Insulation Resistance: 5000 Mega Ohm•Km min. @ 500 Vdc
Insulation Resistance: 45 nS/100m max @ 1-100 MHz
Coupling attenuation: 40 dB min @ 30-100

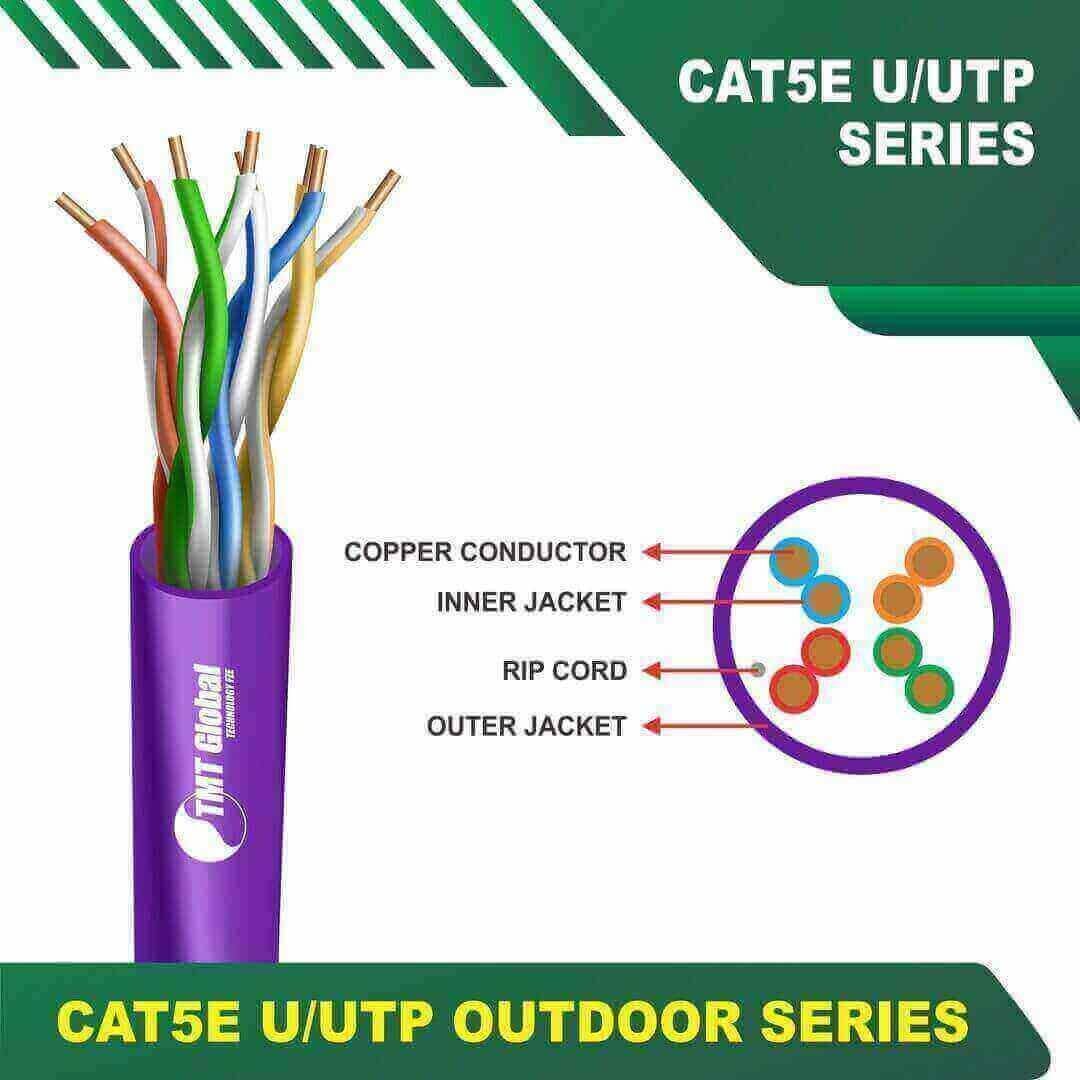

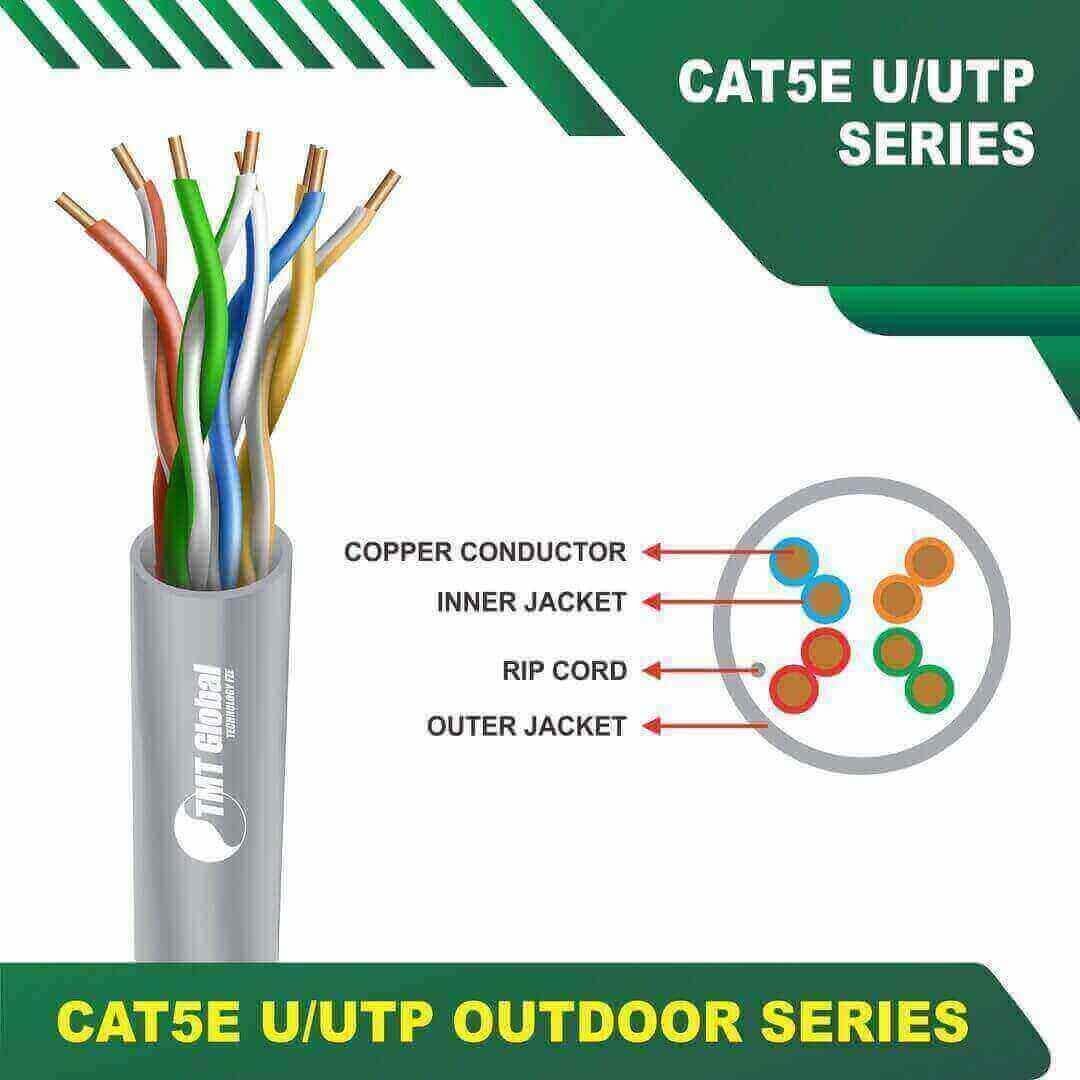

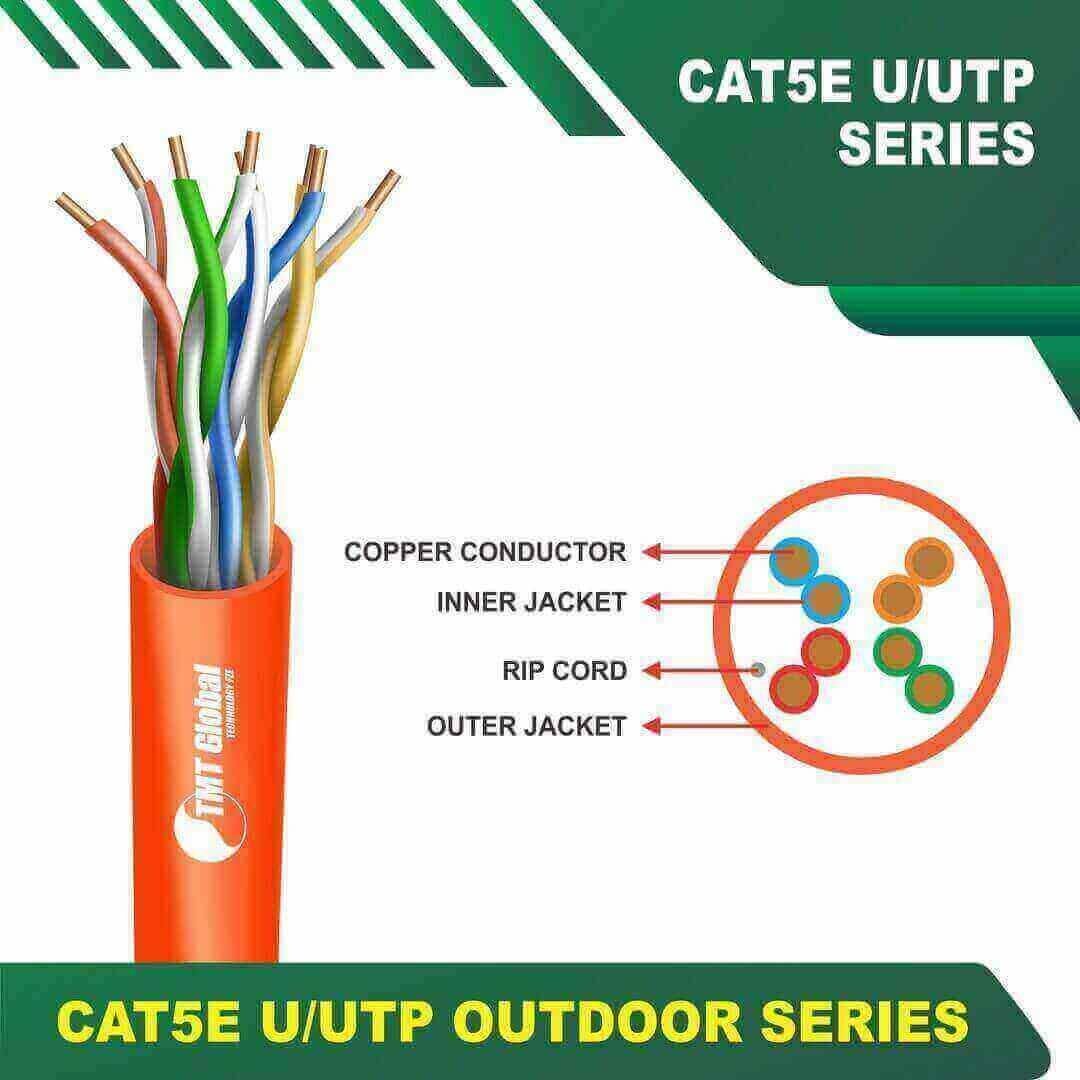

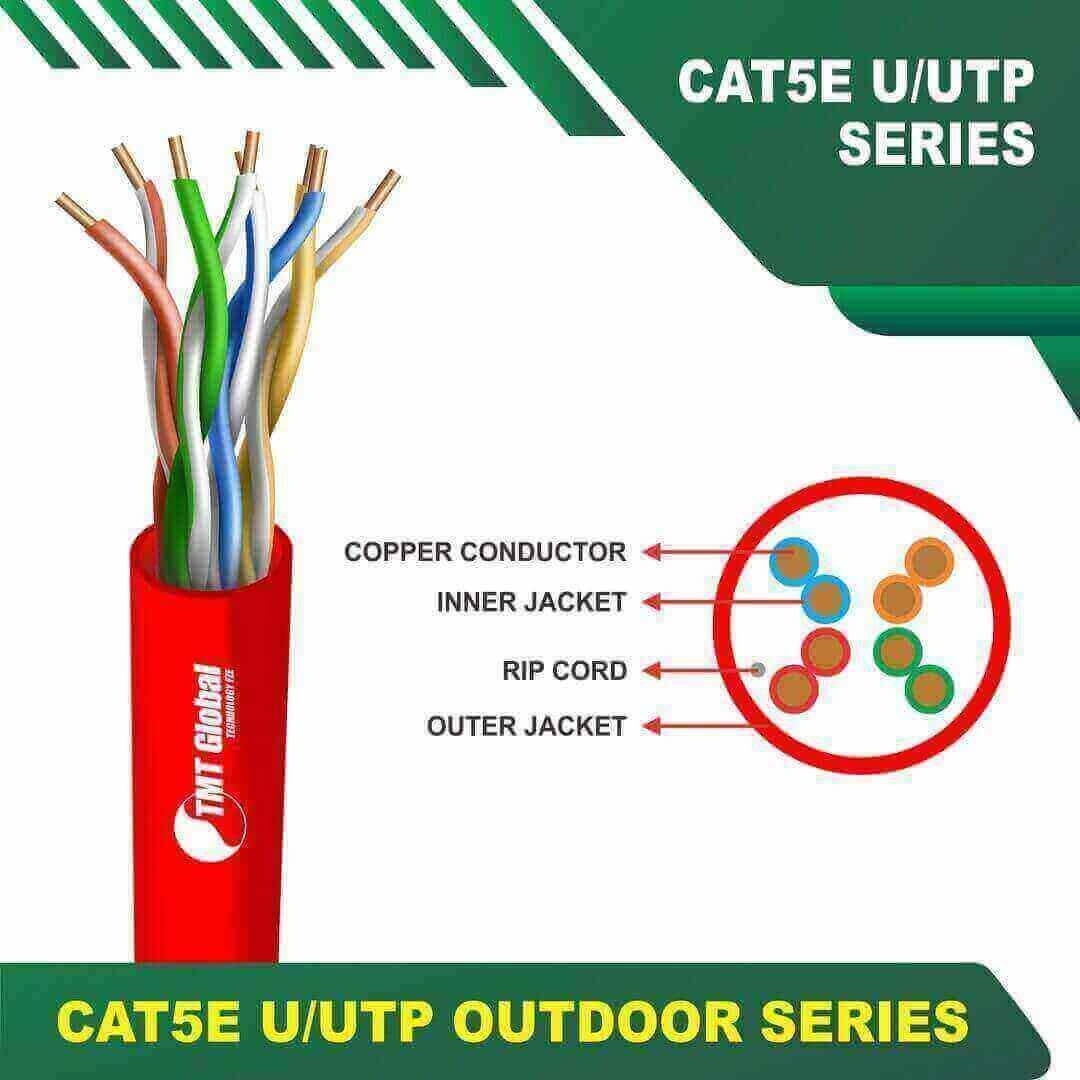

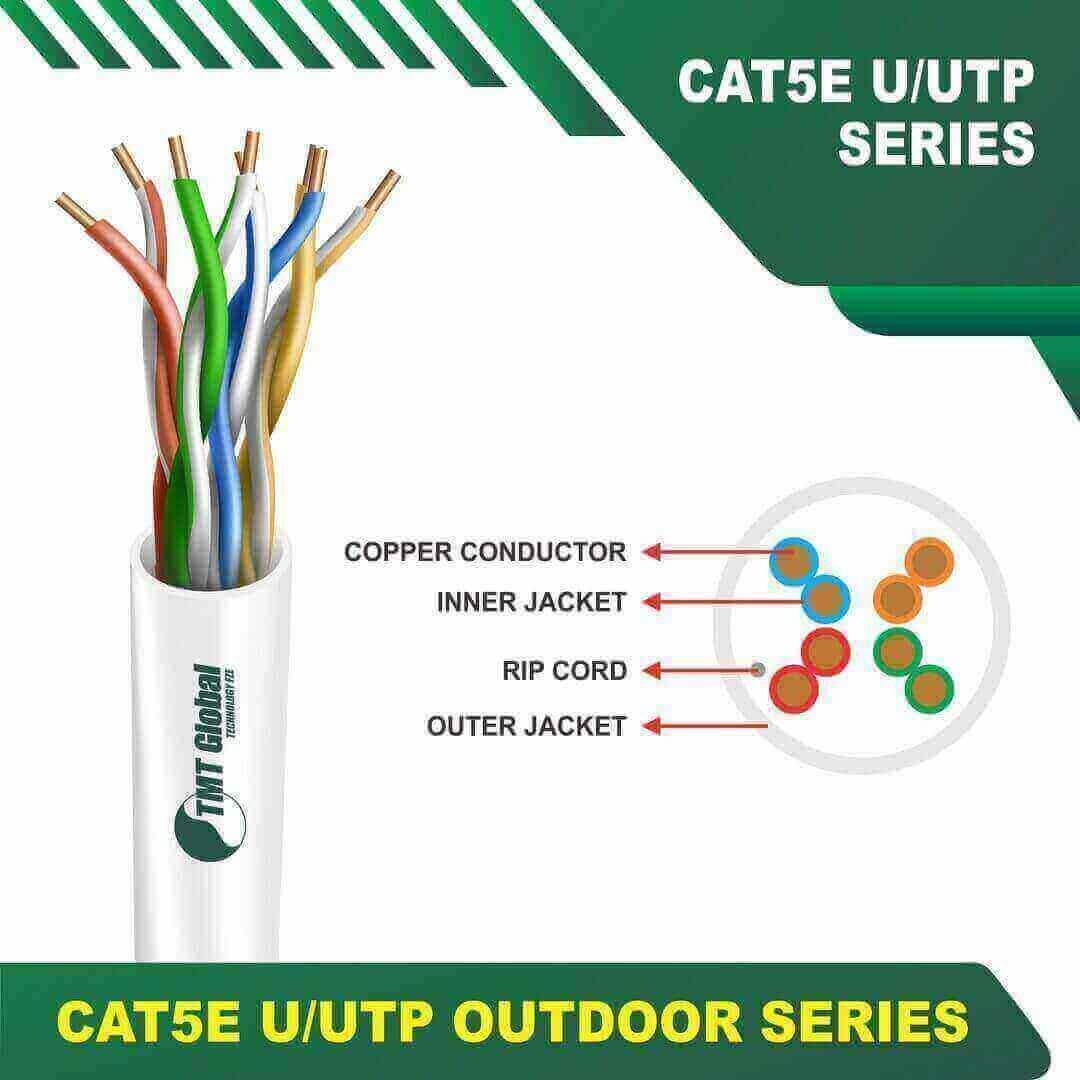

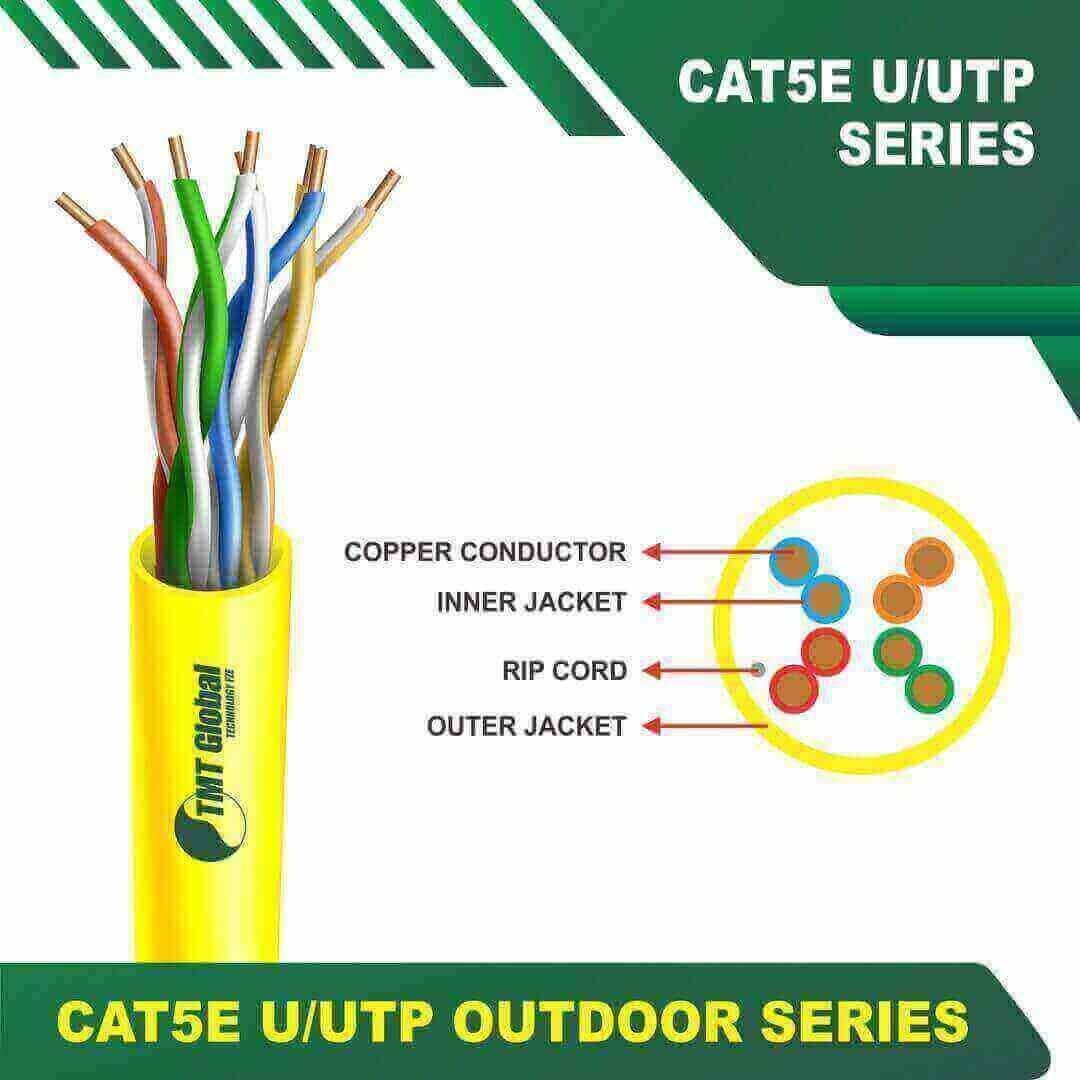

PHYSICAL AND MECHANICAL PROPERTIES
Basic Conductor: tmt copper
Conductor Size: 24AWG
Insulation: HDPE
Number of insulated conductors: 8, twisted in 4 pairs
Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown

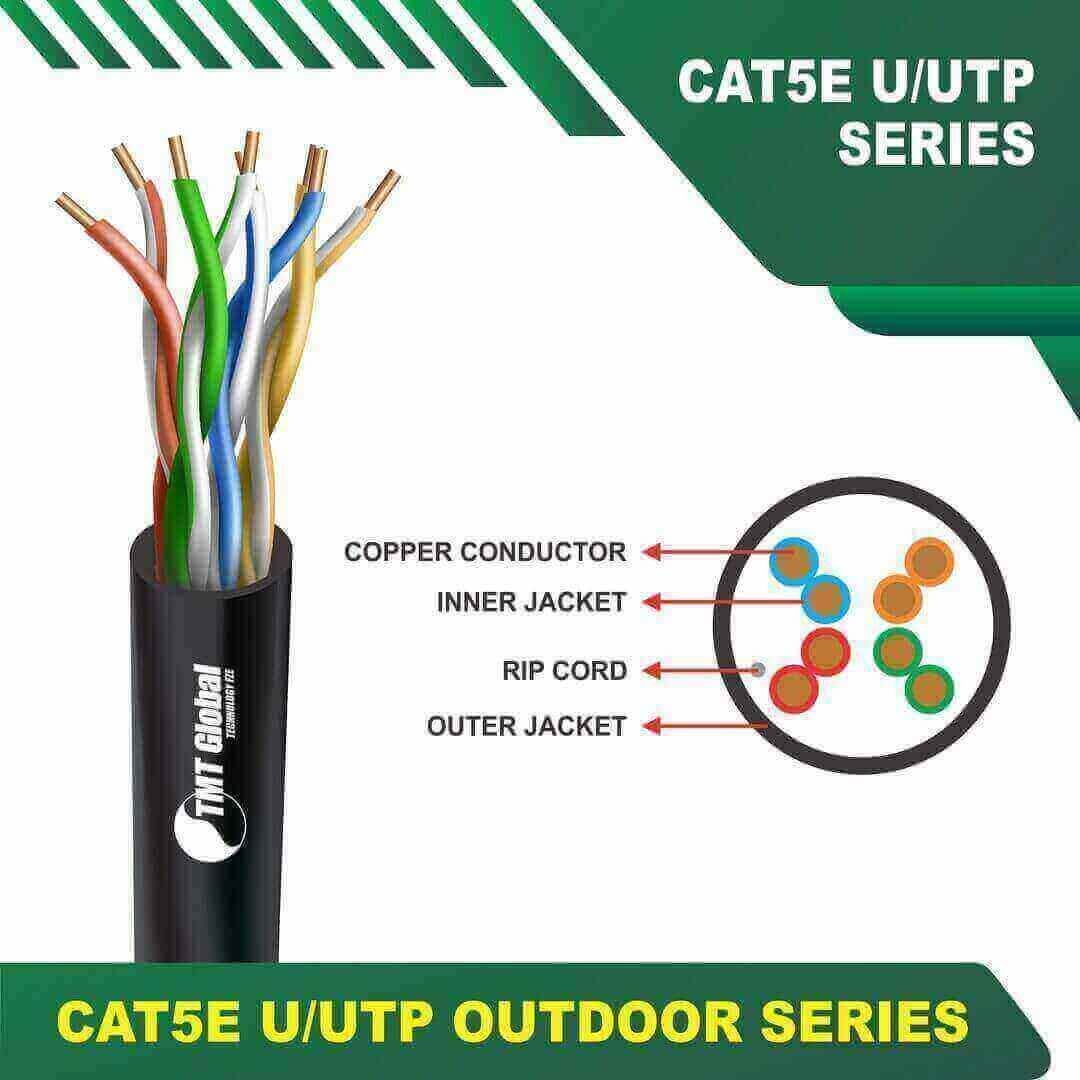

Outer Jacket: Heavy-duty, black, UV-resistant PE compound for outdoor use.
Standard Jacket Color: Black
Standard Surface Marking: Includes TMT Global P/N, cable description, Meter mark and Model Number
Pulling force: 110 N max.
Short Term Bend Radius: 6xOD (mm)
Temperature operating range: -20 to +80C
Installation temperature range: 0 to +50C
Ordering Information
Item Name: Cat5e u utp 5xxx8B PE Outdoor Cable 24 awg 4 pair 305m
Item Code: 5X148BOK
