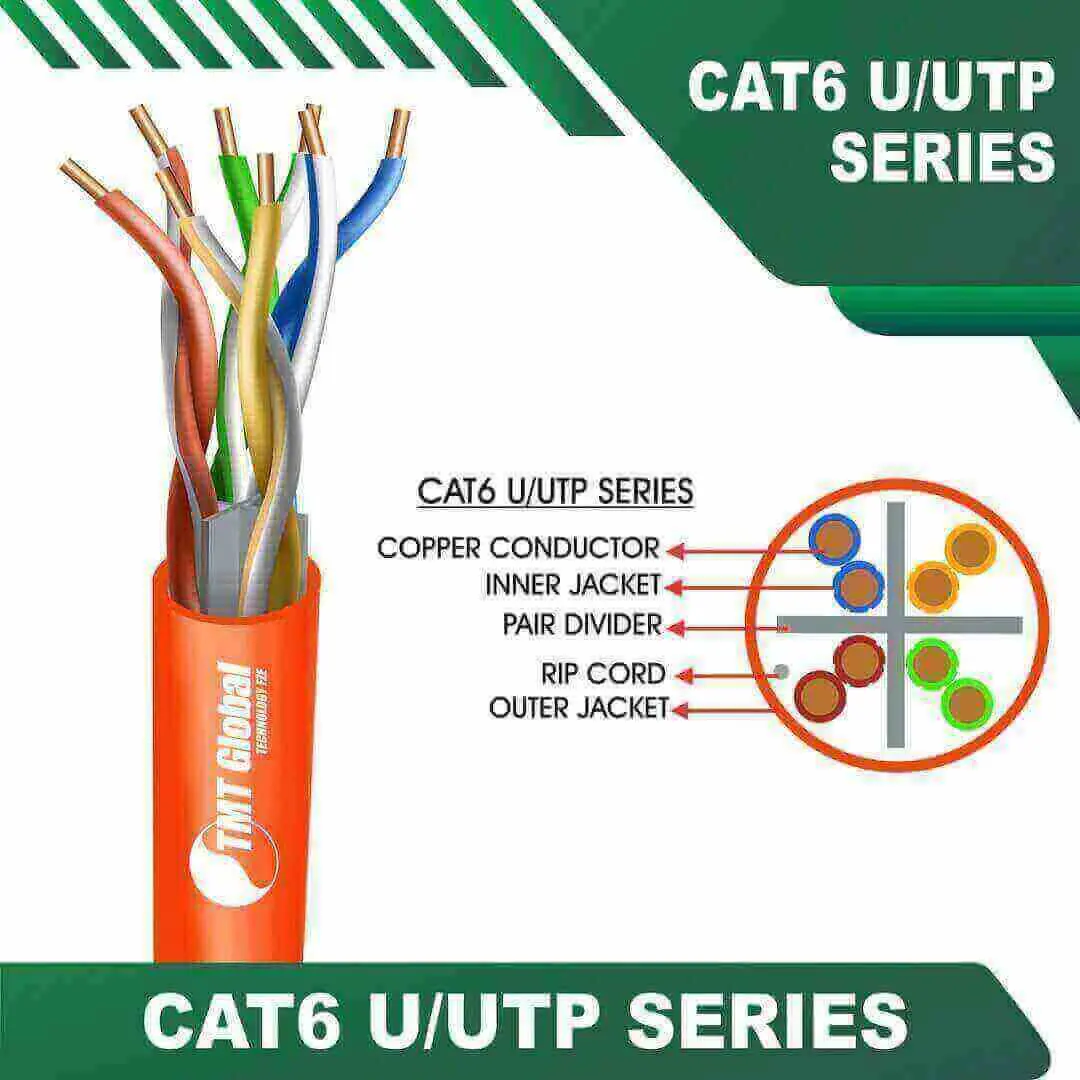

cat6 23awg 4 twisted pair U-UTP data Cable tmt 305m

TMT GLOBAL cat6 23awg 4 twisted pair U-UTP data Cable 305m

The TMT GLOBAL cat6 23awg 4 twisted pair U-UTP data Cable tmt (305m) offers robust performance for high-speed networking applications. Designed to support data transmission speeds of up to 1 Gbps, this cable is ideal for both residential and commercial use. Its 23AWG construction enhances durability while minimizing signal loss, ensuring reliable connectivity over long distances.

One of the notable features is its U/UTP design, which reduces electromagnetic interference, making it suitable for environments with multiple electronic devices. The 305-meter length provides ample cable for extensive network setups, reducing the need for additional purchases.

However, potential limitations include its lack of shielding, which may expose the cable to interference in particularly noisy environments. Additionally, installation may require careful planning to prevent physical damage to the cable during setup. Overall, the TMT GLOBAL Cat6 cable stands out for its performance and length, making it a solid choice for a variety of networking needs.

ELECTRICAL SPECIFICATIONS
Characteristic Impedance: 100±6 Ohm @ 1-250 MHz
DC Resistance: 93 Ohm/Km max.
Resistance unbalance: 2% max.
Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz
Cap. Unbalance (wire to ground): 1600 pF/m max. @ 1 KHz.
Voltage rating: 72 Vdc max.
Dielectric strength: 1500 Volts/1 minute min rms
Velocity of Propagation (NVP): 67-69%
Propagation Delay Skew: 514 + 36/vf. nS/100m max @ 1-300 MHz
Insulation Resistance: 5000 Mega Ohm•Km min. @ 500 Vdc
Coupling attenuation: 40 dB min @ 30-100 MHz 40-20Log(f/100) @100-300 MHz

PHYSICAL AND MECHANICAL PROPERTIES
Basic Conductor: Bare copper
Conductor Size: 23AWG
Insulation: HDPE
Number of insulated conductors: 8, twisted in 4 pairs
Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown
Overall Coverage: Polyester-aluminum tape
Drain wire: N
Outer Jacket: PE
Standard Jacket Color:Black
Standard Surface Marking: Includes TMT Global P/N, cable description, Meter mark and Model Number
Pulling force: 110 N max.
Short Term Bend Radius: 8xOD (mm)
Temperature operating range: -20 to +80C
Installation temperature range: 0 to +50C
Ordering Information
Item Name: Cat6 f utp 6xxx2B PE Outdoor Cable 23 awg 4 pair 305m

By Fahad Cables Industry FZE
