Cat6a 23awg 4 twisted pair F-UTP Bulk Cable 305m

TMT GLOBAL cat6a 23awg 4 twisted pair F-UTP Network Cable 305m

TMT GLOBAL offers the CAT6a 23AWG 4 twisted pair F-UTP Network Cable in a 305m length, designed to meet high-performance networking needs. This cable provides reliable data transmission over long distances, ensuring minimal interference and signal loss. With its durable construction and high-quality materials, TMT GLOBAL’s CAT6a cable is a dependable choice for various networking applications. The 23AWG 4 twisted pair configuration enhances signal integrity and efficiency, making it suitable for both residential and commercial environments. Overall, the TMT GLOBAL CAT6a cable is a robust solution for those seeking a reliable and high-speed network connection.Cat6a 23awg 4 twisted pair F-UTP Bulk Cable 305m

ELECTRICAL SPECIFICATIONS
Characteristic Impedance: 100±6 Ohm @ 1-500 MHz
Loop Resistance: 25
Resistance unbalance: 2% max.
Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz
Cap. Unbalance (wire to ground): 1500 pF/Km max. @ 1 KHz.
Voltage rating: 72 Vdc max.
Dielectric strength: 1500 Volts/1 minute min rms
Velocity of Propagation (NVP): 67-69%
Propagation Delay Skew: 534 + 36/vf. nS/100m max @ 1-500 MHz
Insulation Resistance: 45 nS/100m max @ 1-500 MHz
Coupling attenuation: 55 dB min @ 30-100 MHz 55-20Log(f/100) @100-500 MHz

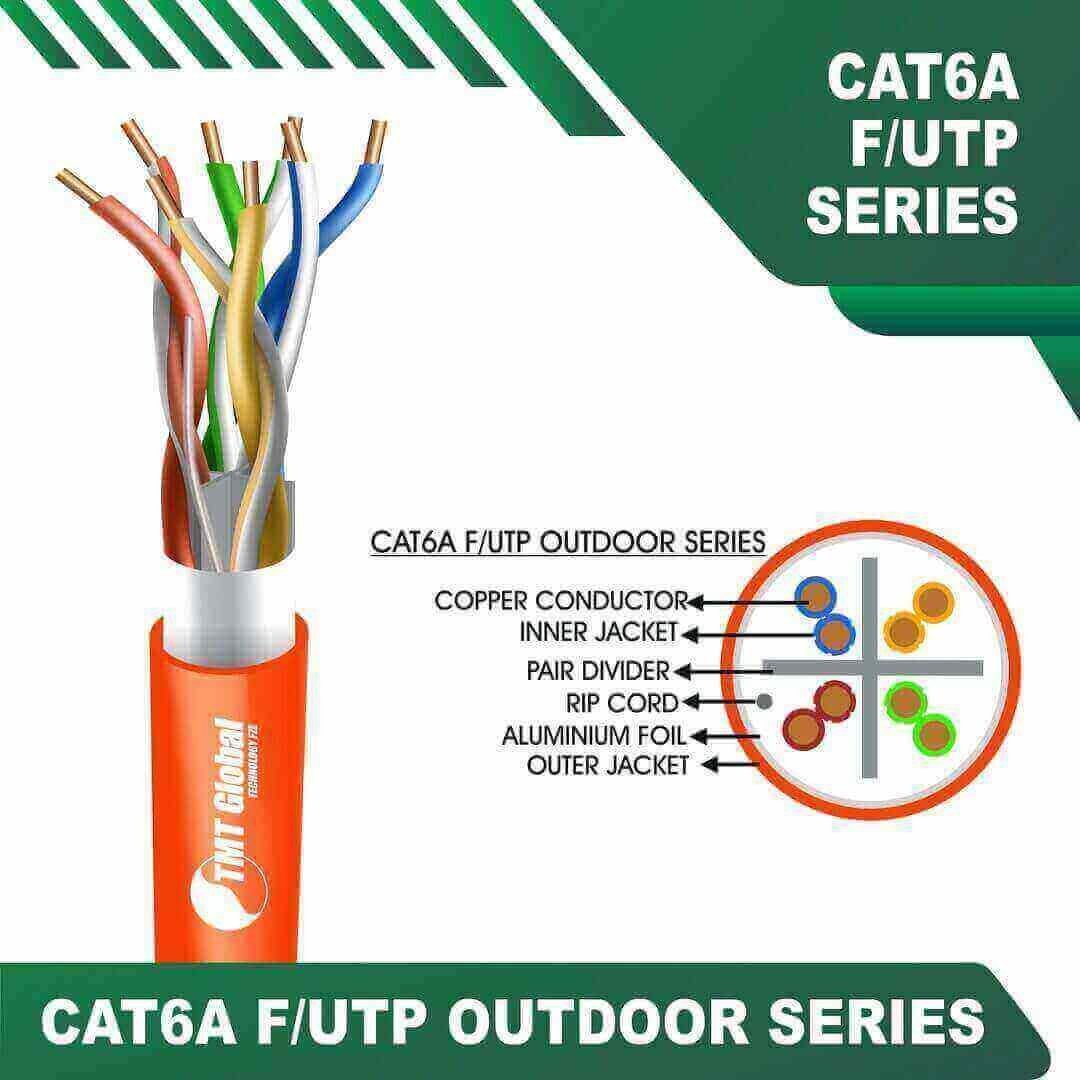

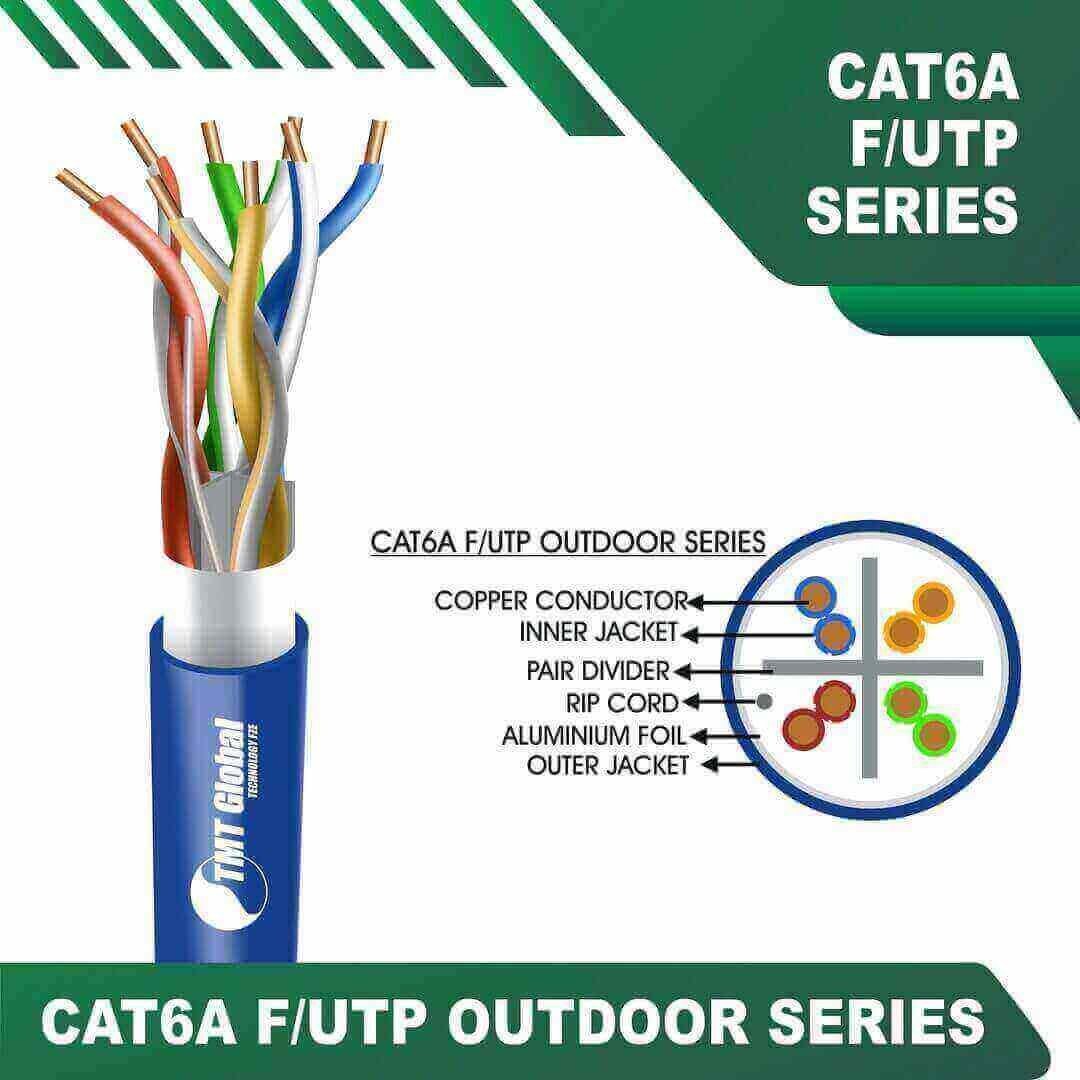

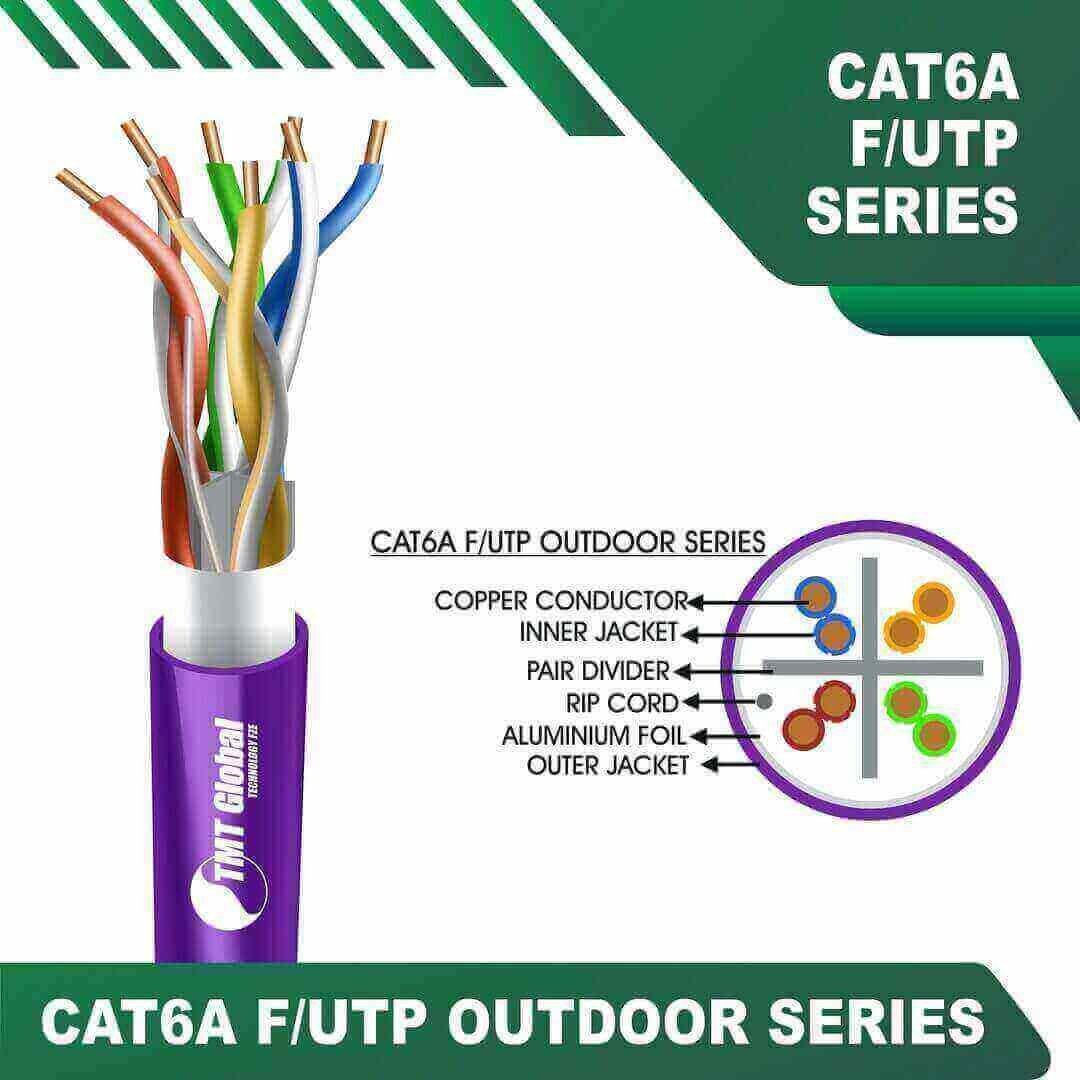

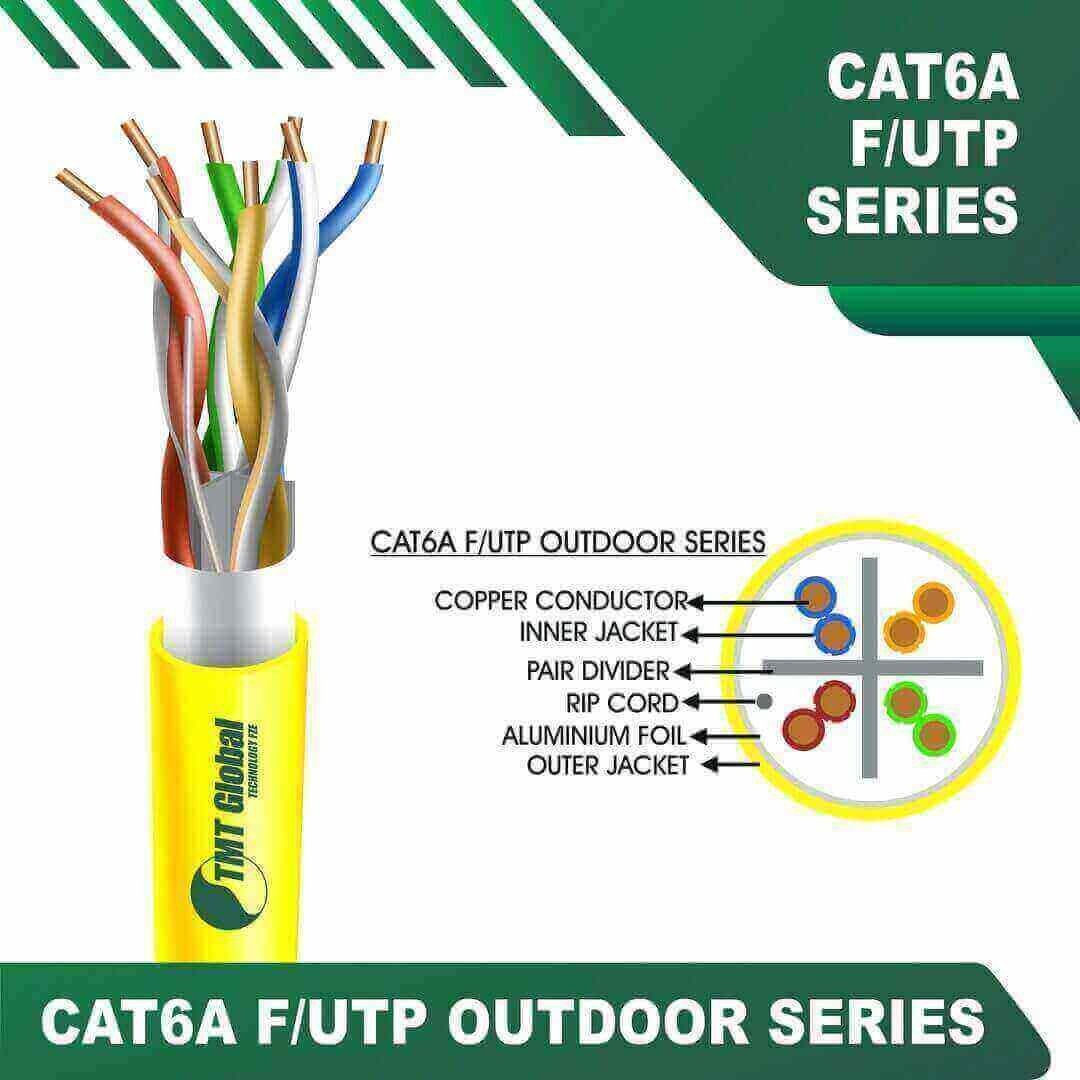

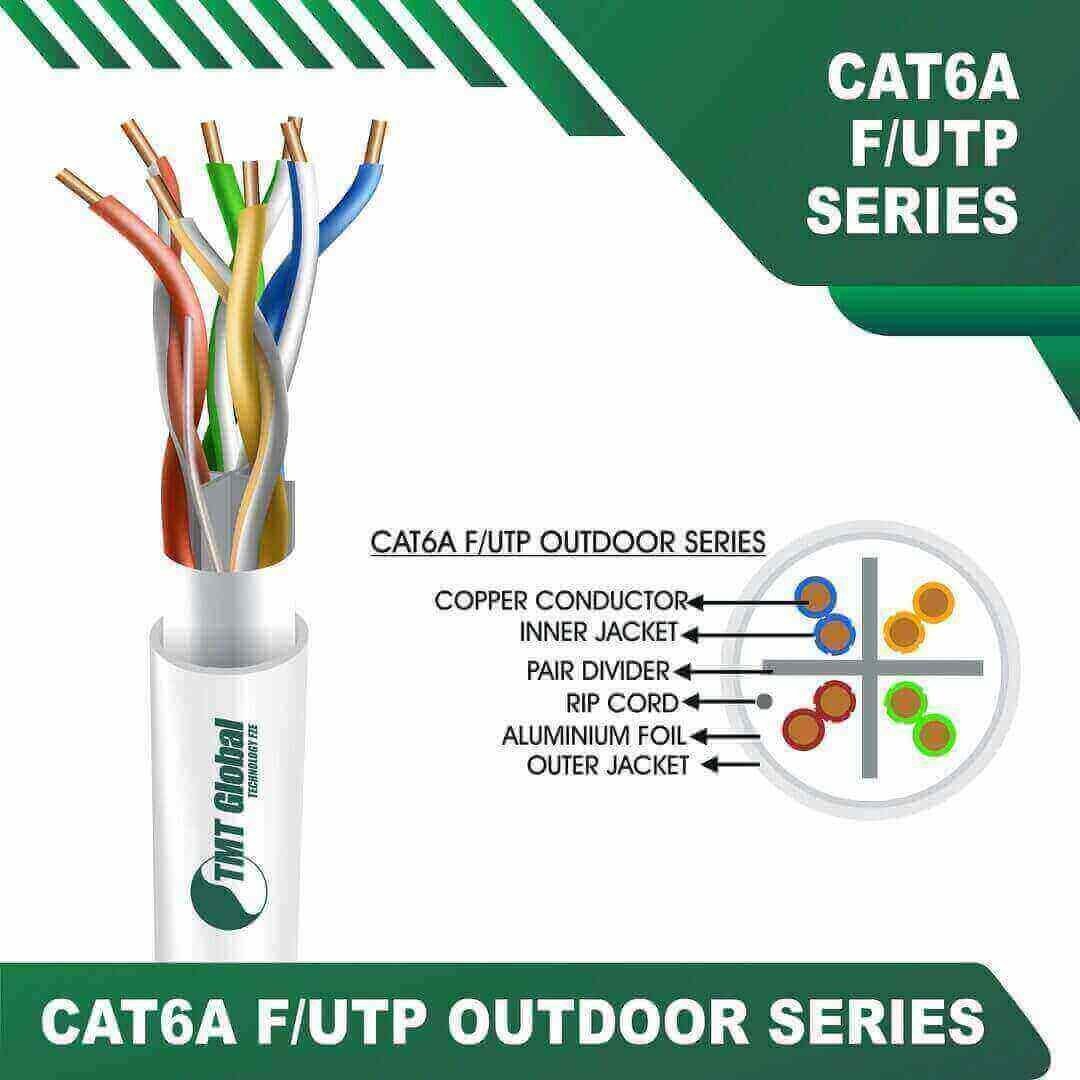

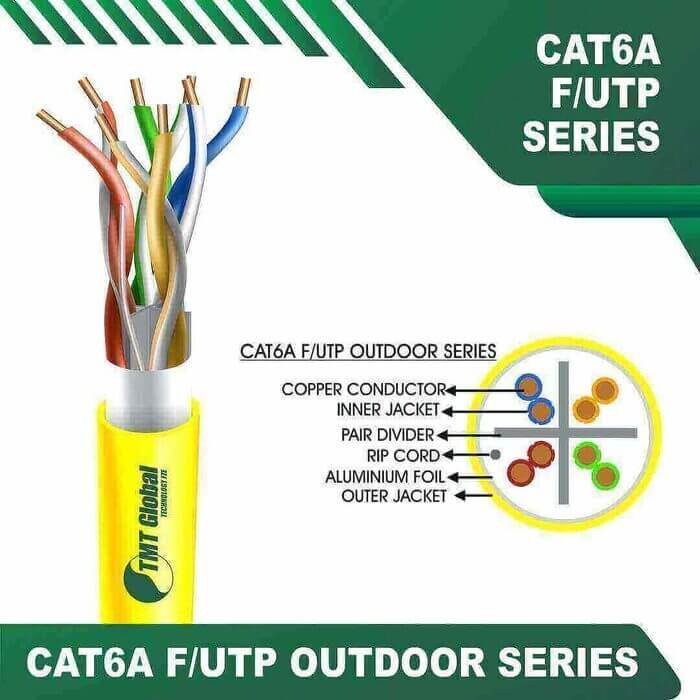

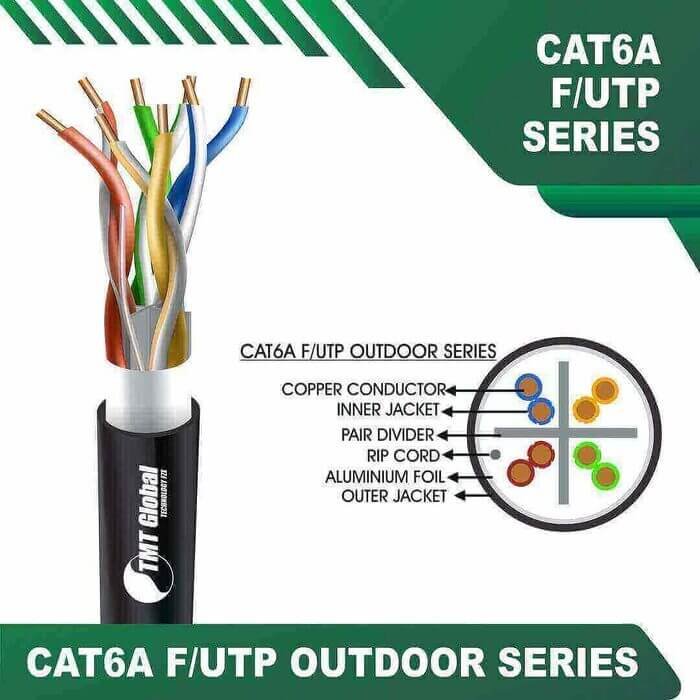

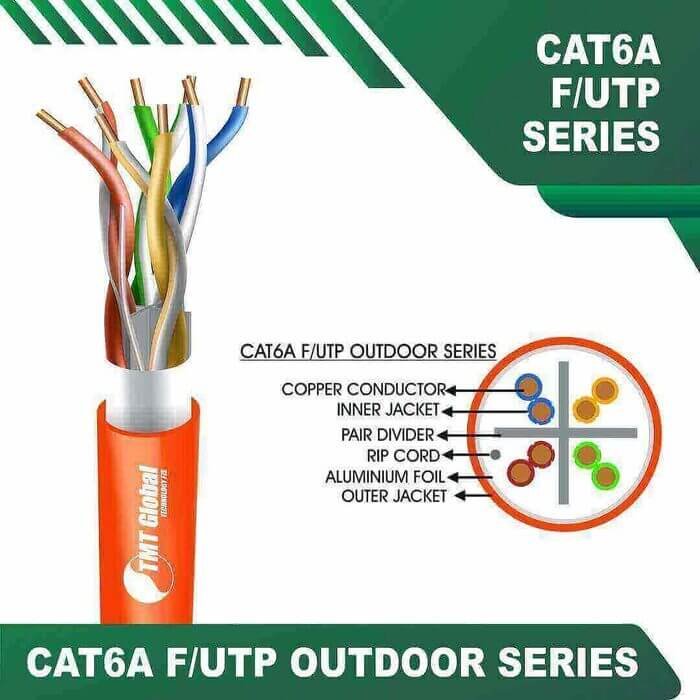

PHYSICAL AND MECHANICAL PROPERTIES
Basic Conductor: Bare copper
Conductor Size: 23AWG
Insulation: HDPE
Number of insulated conductors: 8, twisted in 4 pairs
Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown
Overall Coverage: aluminum Foil Polyester Tape
Drain wire: N
Outer Jacket: LSZH
Standard Jacket Color: Blue/Gray /Black/Green/Orange/Red/Violet/White/Yellow/Aqua
Standard Surface Marking: Includes TMT Global P/N, cable description, Meter mark and Model Number
Pulling force: 110 N max.
Short Term Bend Radius: 8xOD (mm)
Temperature operating range: -20 to +80C
Installation temperature range: 0 to +50C
Ordering Information
Item Name: 23AWG 4PAIR CAT6A F/UTP CABLE LSZH 305M
